NSN 5930-01-005-6475 MIL-S-24187/1, MIL-S-24187/1-R2LS4, MILS241871
Product Details | ROTARY SWITCH
5930-01-005-6475 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: MIL-S-24187/1, MIL-S-24187/1-R2LS4, MILS241871, MILS241871R2LS4, R053230, R2LS4, 000257A, 00025-7A, 4055-293 ITEM 90, 4055293ITEM90, 7006521, 700652-1, 9053230, 5930-01-005-6475, 01-005-6475, 5930010056475, 010056475
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1975 | 01-005-6475 | 02134 ( SWITCH, ROTARY ) |

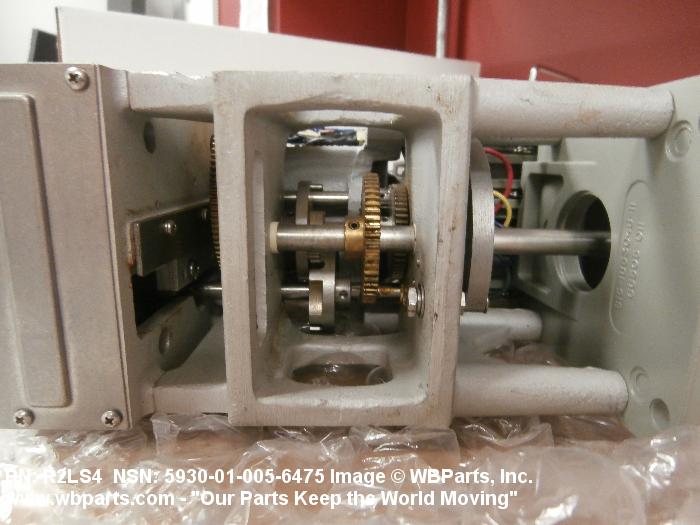

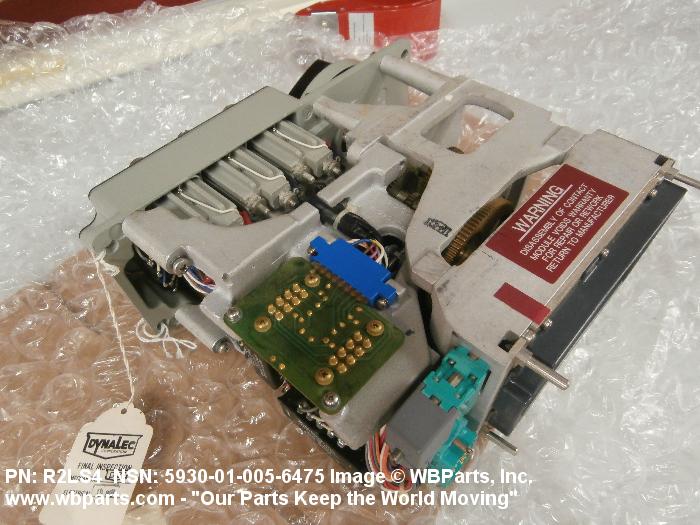

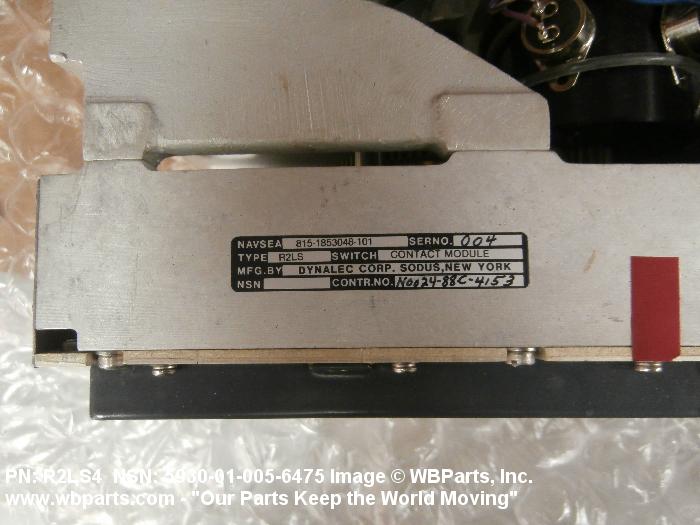

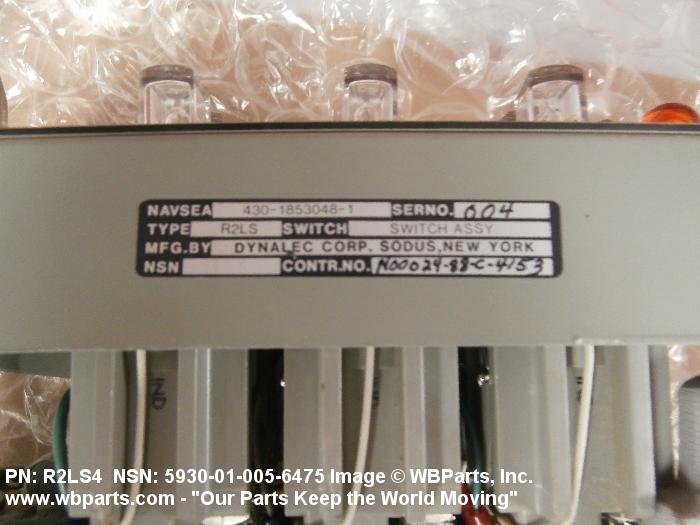

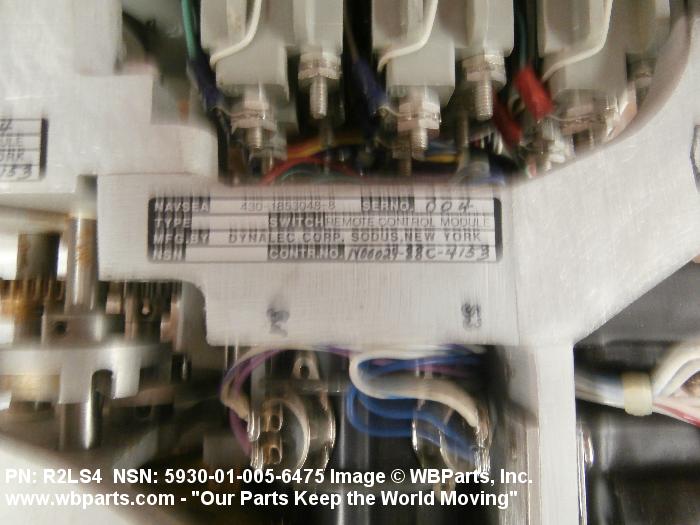

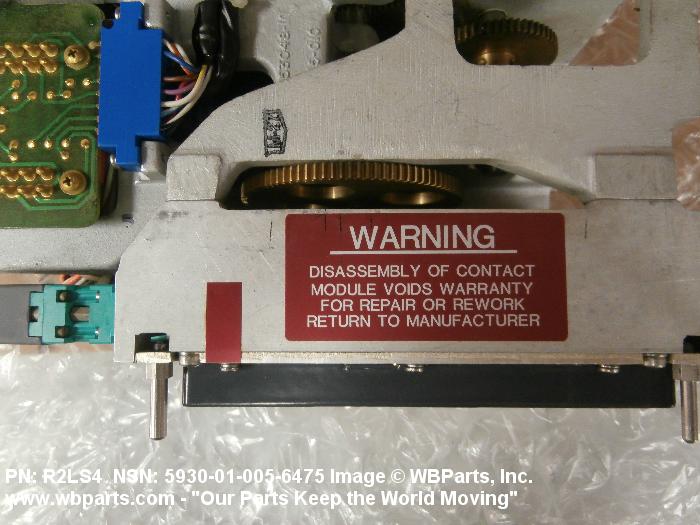

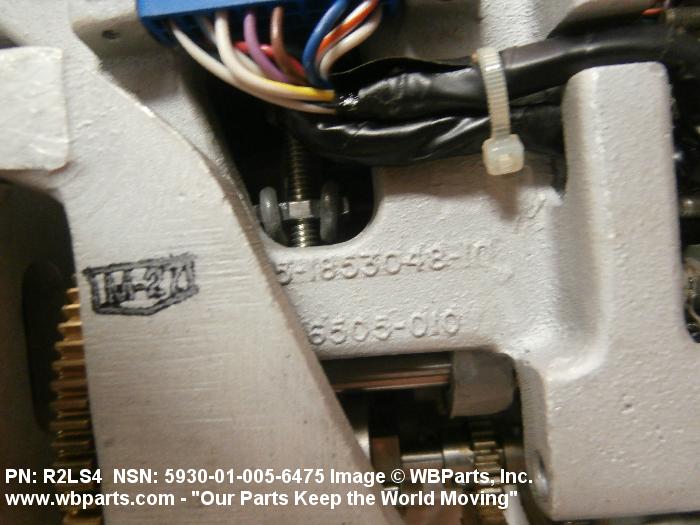

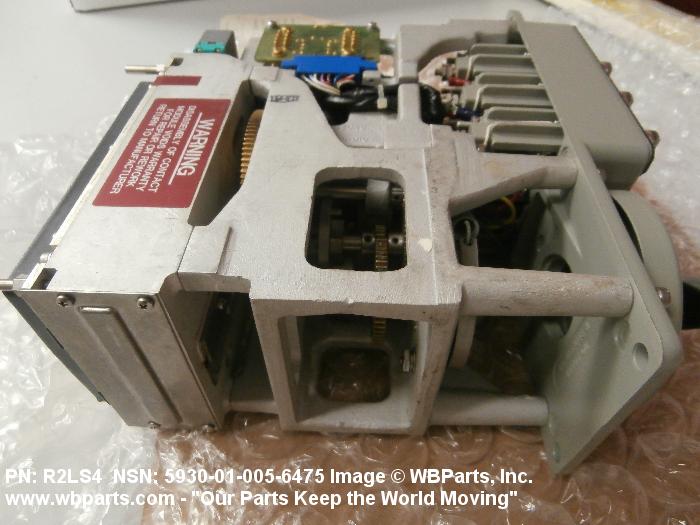

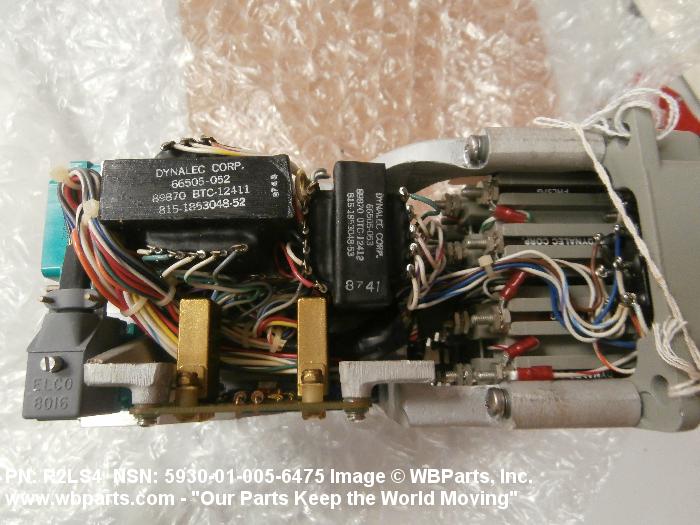

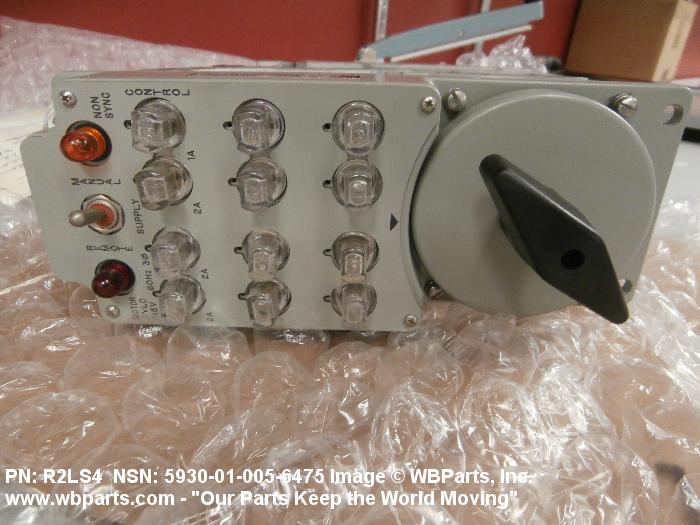

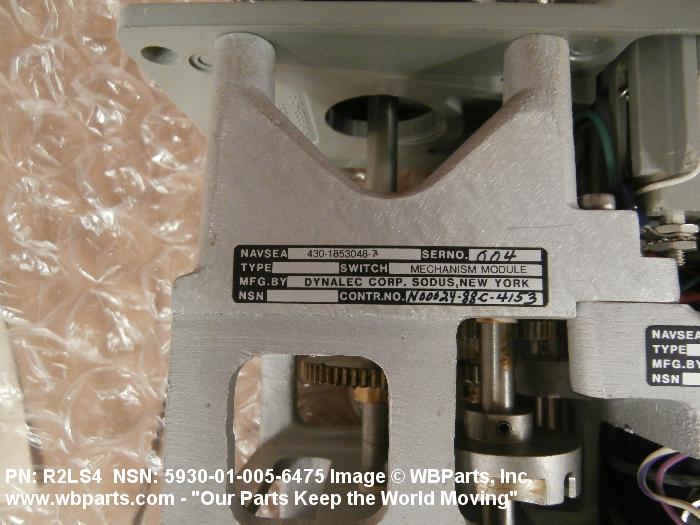

Drawings & Photos | NSN 5930-01-005-6475
Demand History | NSN 5930-01-005-6475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9053230 | 2015-07-195 | 2 | |
| 5930-01-005-6475 | 2015-07-192 | 2 | NECO |
| 5930-01-005-6475 | 2015-01-08 | 1 | United States |
| 9053230 | 2014-11-315 | 1 | |
| 5930-01-005-6475 | 2014-11-312 | 1 | NECO |
Cross Reference | NSN 5930-01-005-6475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00025-7A | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
| 4055-293 ITEM 90 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 700652-1 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 9053230 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| MIL-S-24187/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-24187/1-R2LS4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R053230 | 89914 | I-T-E IMPERIAL CORP SUBSIDIARY OF GOULD INC ATLANTA MARINE DEPT |
| R2LS4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| R2LS4 | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-005-6475
Related Products | NSN 5930-01-005-6475
Technical Data | NSN 5930-01-005-6475
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | INCLUDES FOUR EXTRA FUSEHOLDERS; REMOTE OPERATED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24187/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24187/1-R2LS4 |
Restrictions/Controls & Freight Information | NSN 5930-01-005-6475
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-005-6475
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
