NSN 5930-01-080-2274 18003208140, 1800-3208-140, 2592926140
Product Details | ROTARY SWITCH
5930-01-080-2274 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 18003208140, 1800-3208-140, 2592926140, 259-2926-140, 50YY23383110N, 50YY23383-1-10N, 50YY23470, 50-YY-23470, 5930-01-080-2274, 01-080-2274, 5930010802274, 010802274
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JUL 1979 | 01-080-2274 | 02134 ( SWITCH, ROTARY ) |

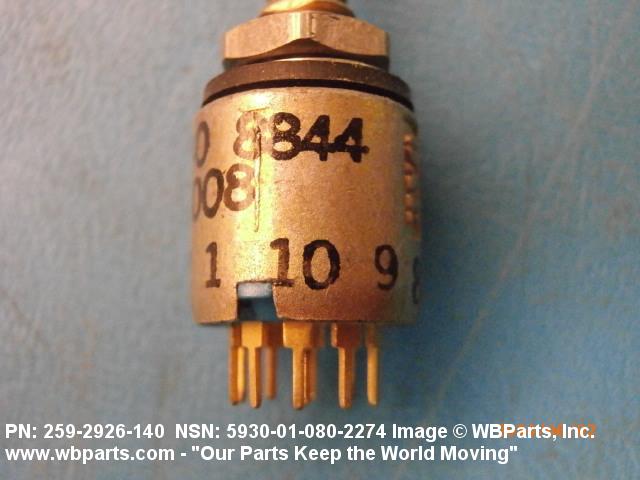

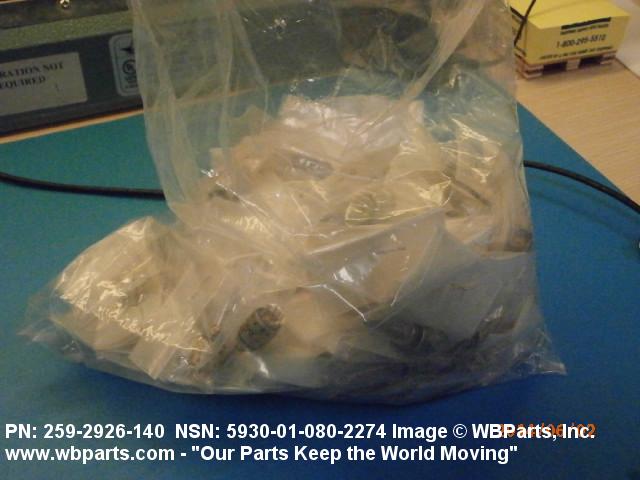

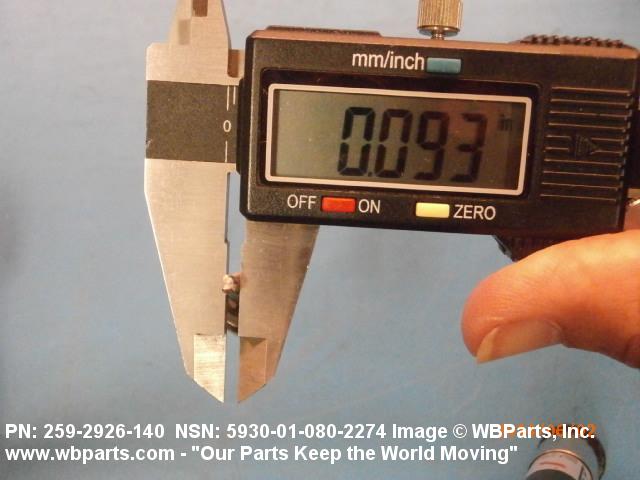

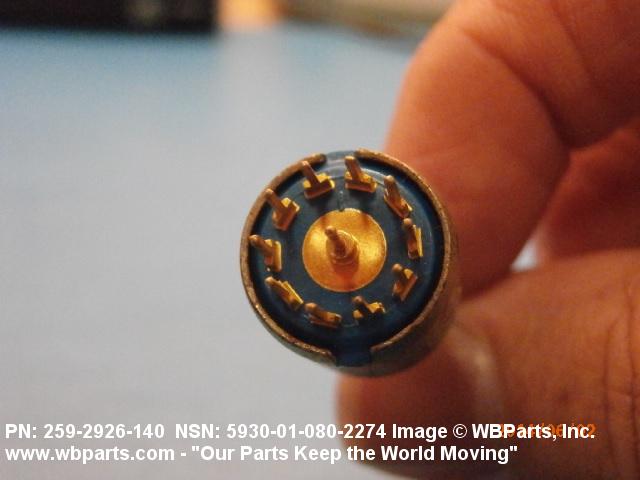

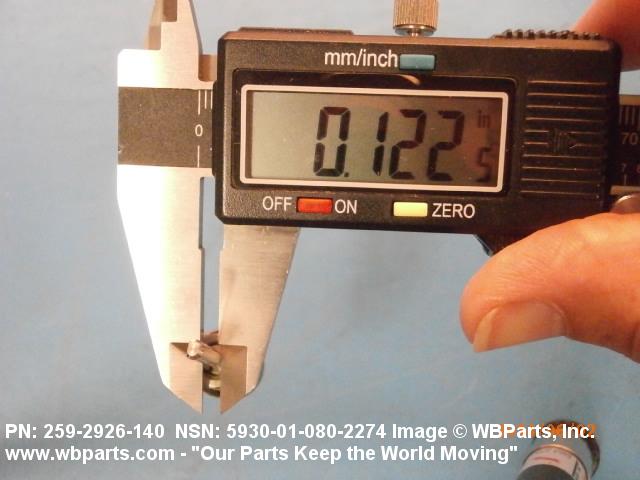

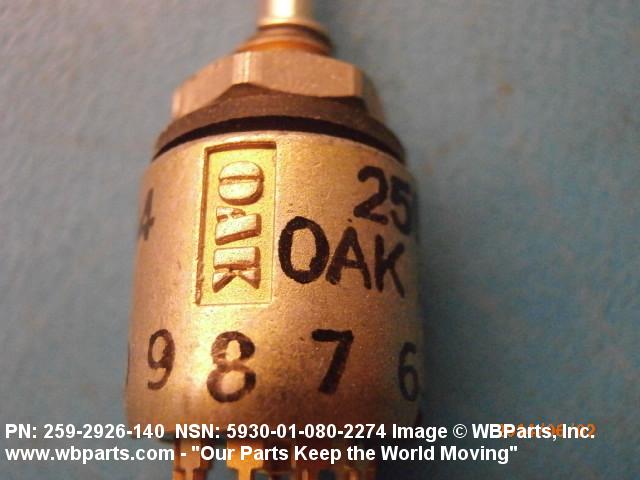

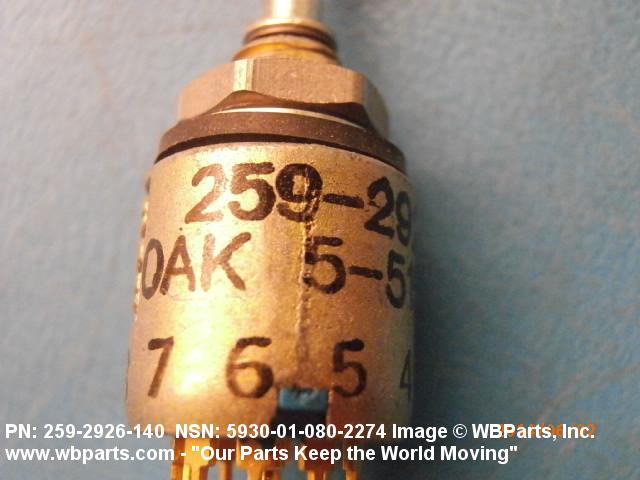

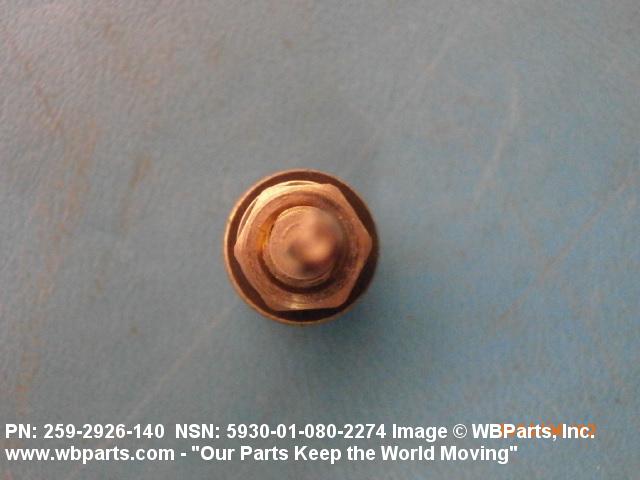

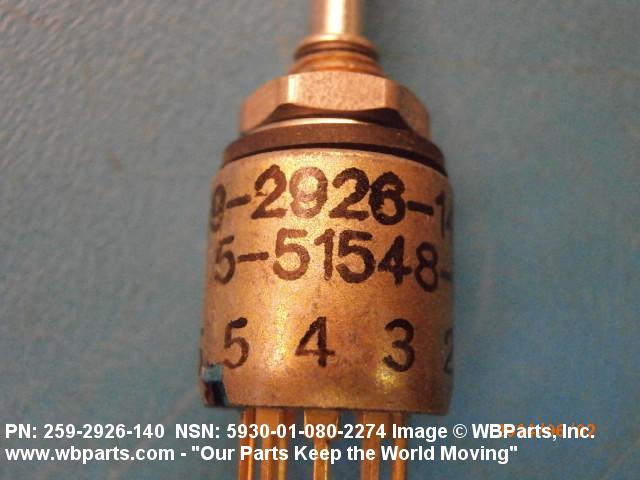

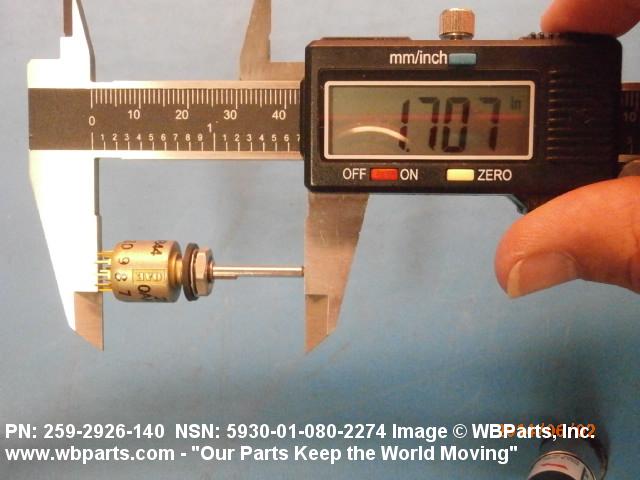

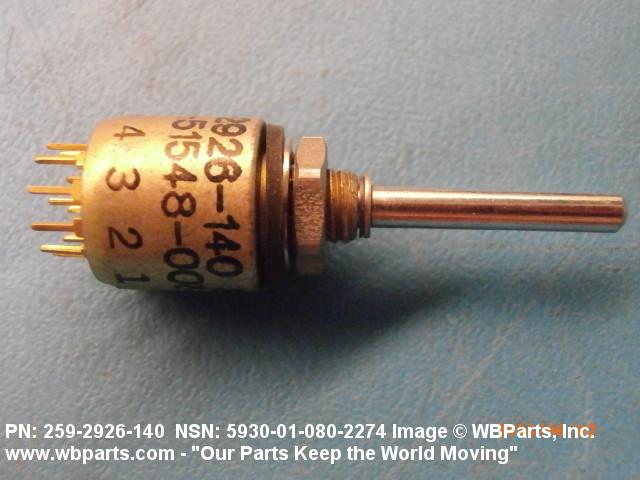

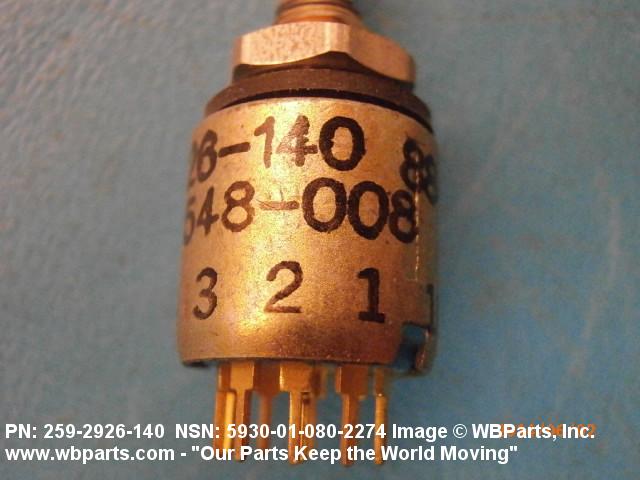

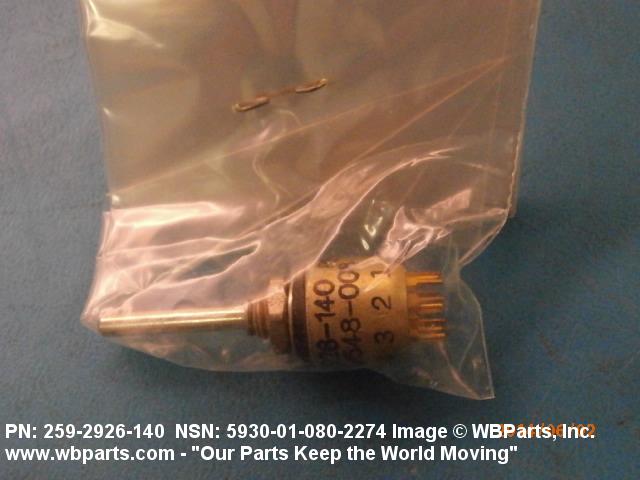

Drawings & Photos | NSN 5930-01-080-2274
Demand History | NSN 5930-01-080-2274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-080-2274 | 2016-06-158 | 104 | DIBBS |
| 5930-01-080-2274 | 2016-05-146 | 104 | DIBBS |
| 2592926140 | 2014-06-153 | 11 | United States |
| 2592926140 | 2014-05-147 | 120 | United States |
| 50YY23470 | 2014-05-147 | 120 | United States |
| 50YY23470 | 2014-05-136 | 120 | United States |
| 5930-01-080-2274 | 2013-09-258 | 79 | DIBBS |
| 5930-01-080-2274 | 2012-12-352 | 45 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-080-2274
Related Products | NSN 5930-01-080-2274
Technical Data | NSN 5930-01-080-2274
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |
| OVERALL LENGTH | 1.387 INCHES NOMINAL |

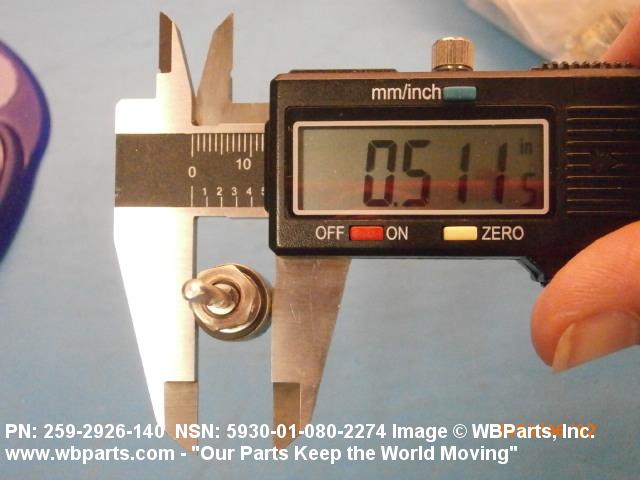

| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 SINGLE SECTION REAR |
| THROW QUANTITY | 10 SINGLE SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 115.0 AC AT ALTITUDE 28.0 DC AT SEA LEVEL 28.0 DC AT ALTITUDE |
| CONTACT LOAD CURRENT RATING | 150.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 150.0 MILLIAMPERES RESISTIVE LOAD AC AT ALTITUDE 200.0 MILLIAMPERES RESISTIVE LOAD AND 30.0 MILLIAMPERES INDUCTIVE LOAD AND 100.0 MILLIAMPERES LAMP LOAD DC AT SEA LEVEL 200.0 MILLIAMPERES RESISTIVE LOAD DC AT ALTITUDE |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 10 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 36.0 DEGREES SINGLE ACTUATOR |

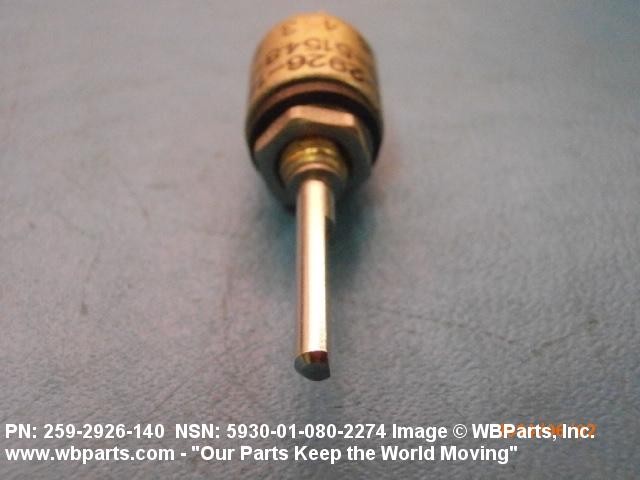

| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |

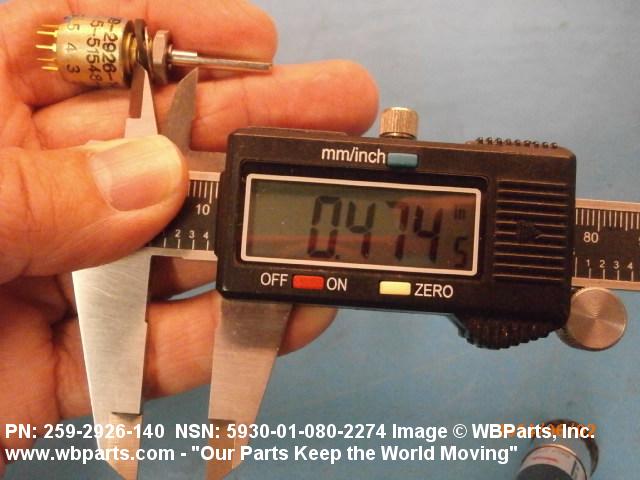

| FIRST FLAT LENGTH | 0.475 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.094 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.500 INCHES NOMINAL SINGLE ACTUATOR |

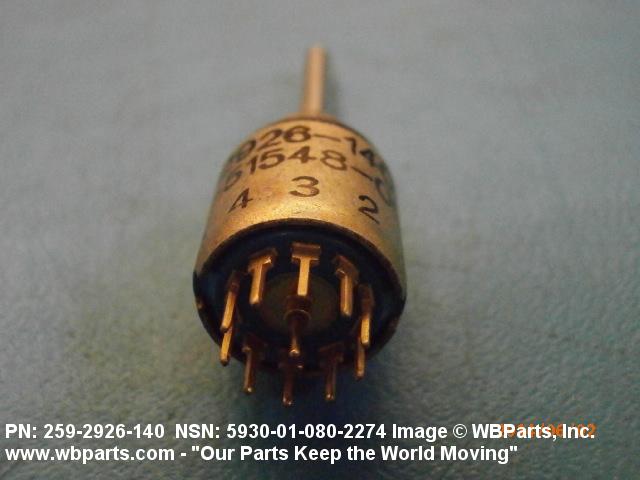

| TERMINAL TYPE | PRINTED CIRCUIT |
| NONTURN DEVICE TYPE | FLATTED BUSHING AT 3:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING W/PANEL SEAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNF SINGLE MOUNTING FACILITY |

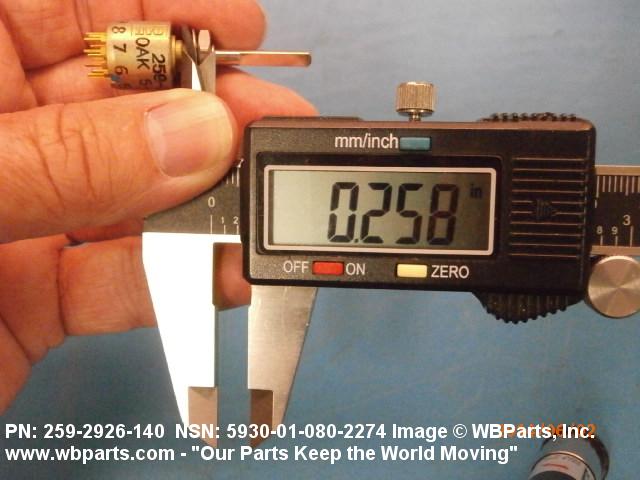

| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 108.0 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR |
| III OPERATING TEMP RANGE | -65.0 TO 105.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
| III END ITEM IDENTIFICATION | C-135,AC,MC,EC,HC,C-130,H-53,HH/U H-1 |
Restrictions/Controls & Freight Information | NSN 5930-01-080-2274
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-080-2274
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
