NSN 5930-01-081-5091 0160471, 016047-1, 11700113
Product Details | ROTARY SWITCH
5930-01-081-5091 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 0160471, 016047-1, 11700113, 11700-113, 5930-01-081-5091, 01-081-5091, 5930010815091, 010815091
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 AUG 1979 | 01-081-5091 | 02134 ( SWITCH, ROTARY ) |

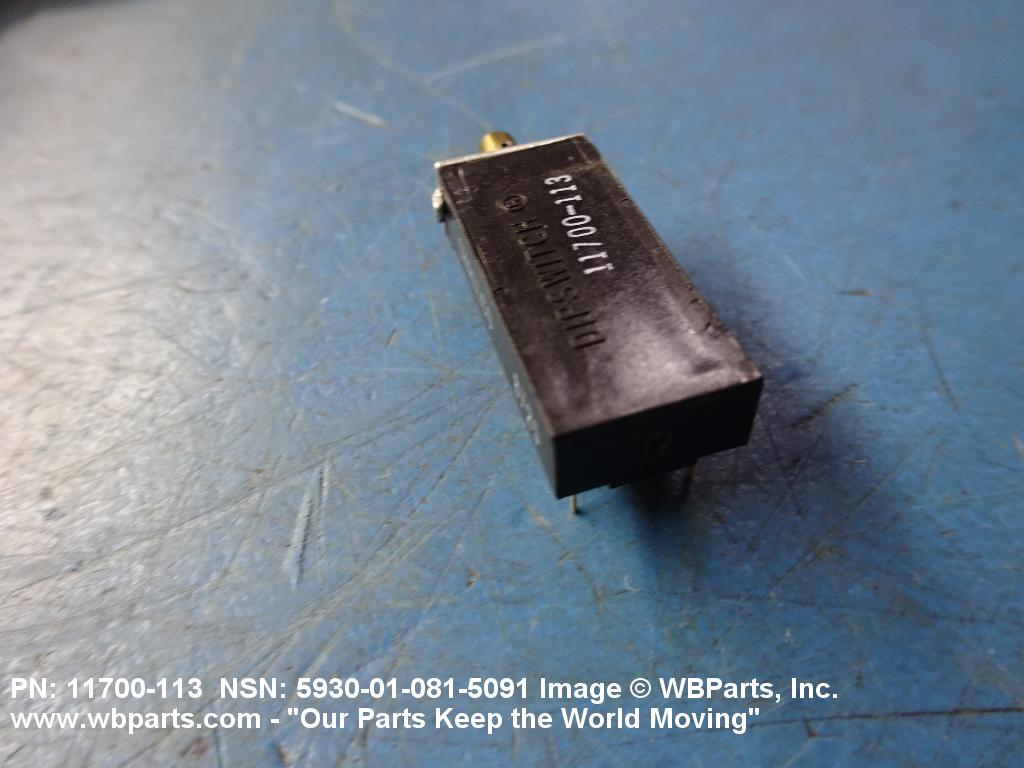

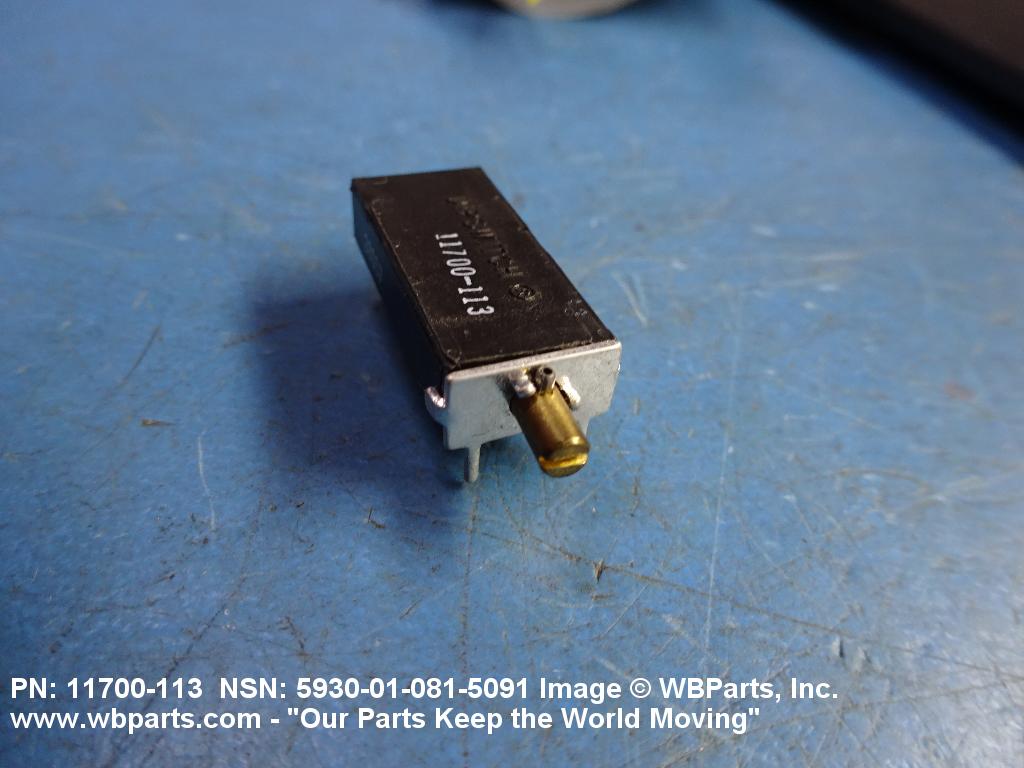

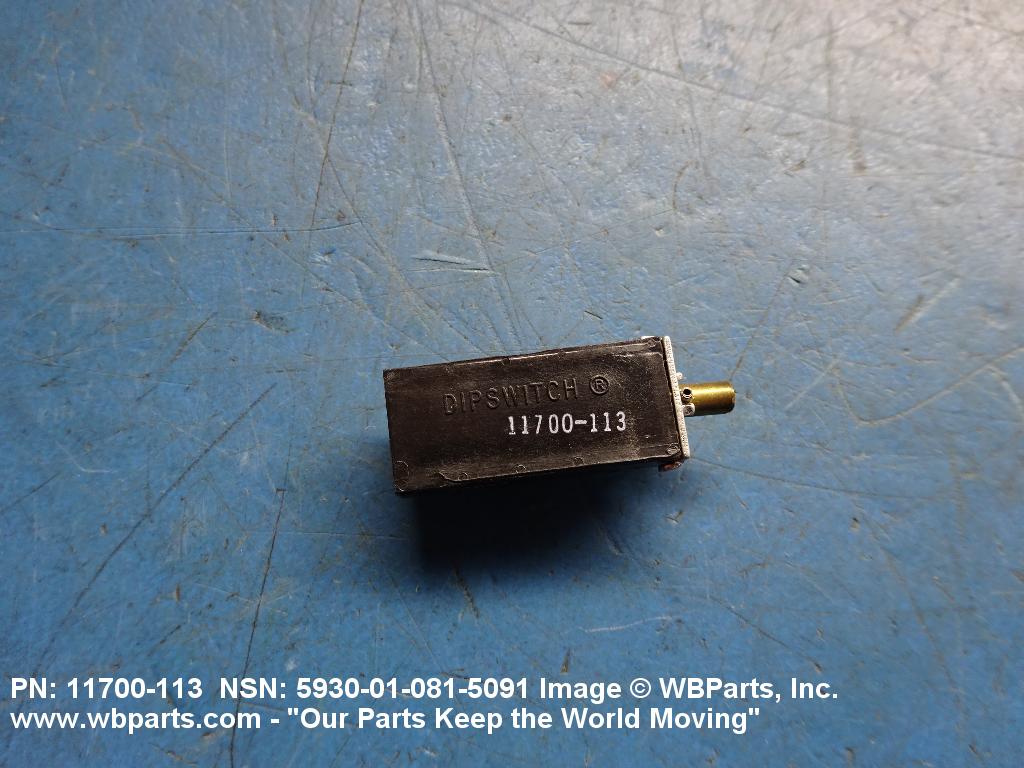

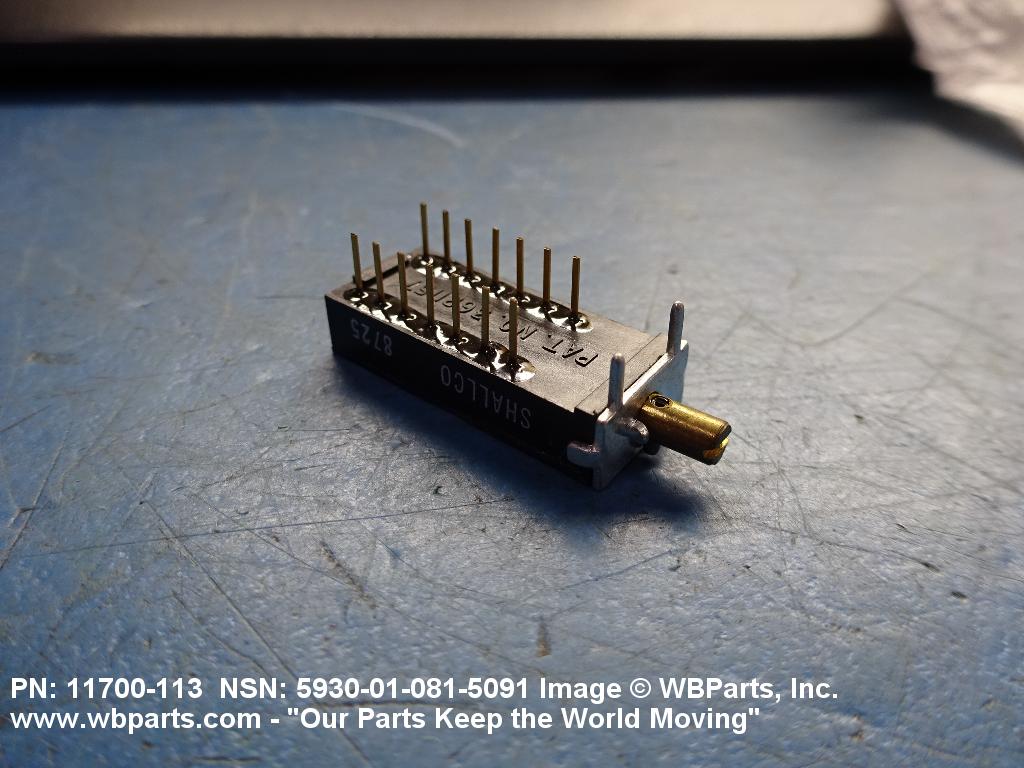

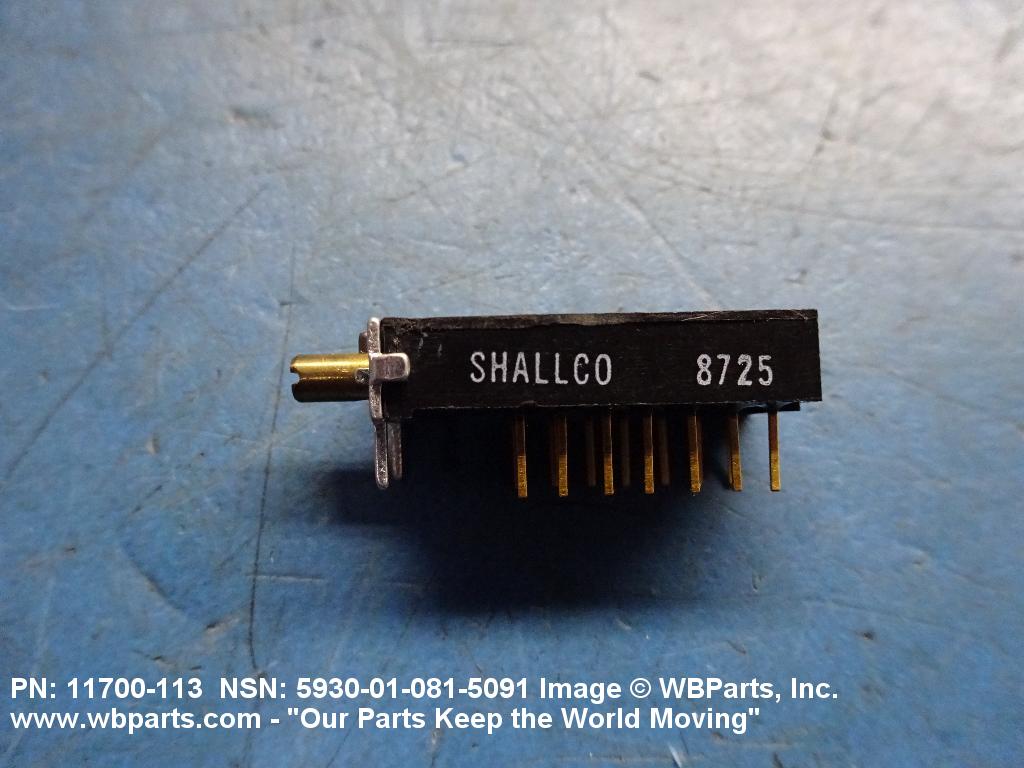

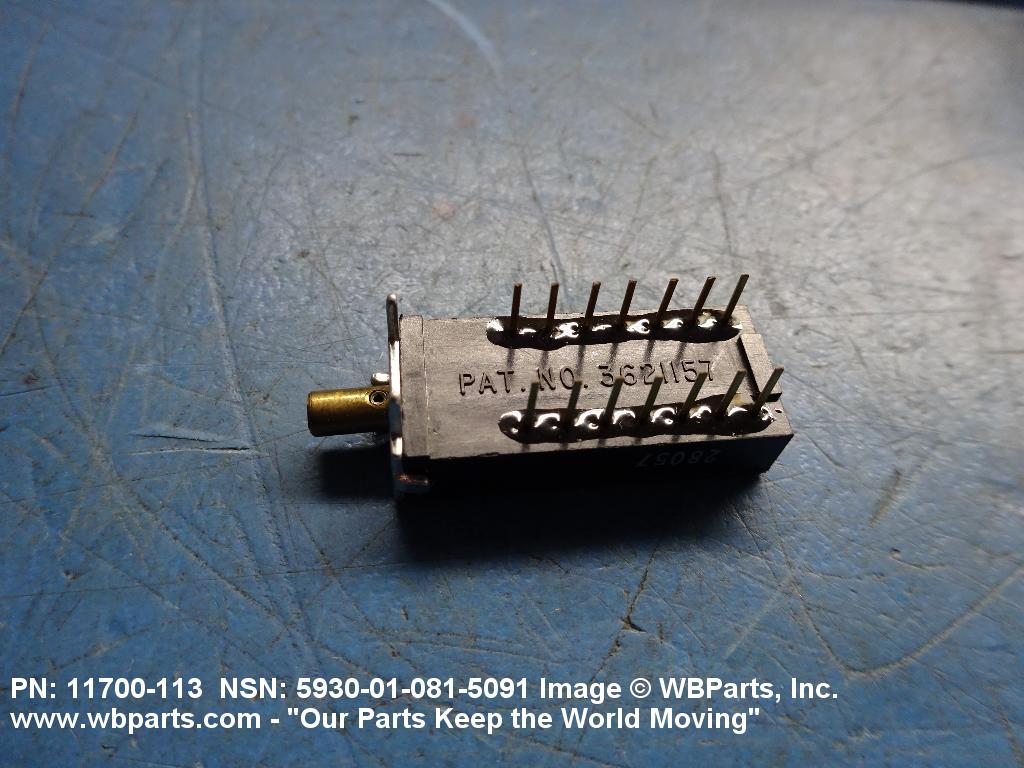

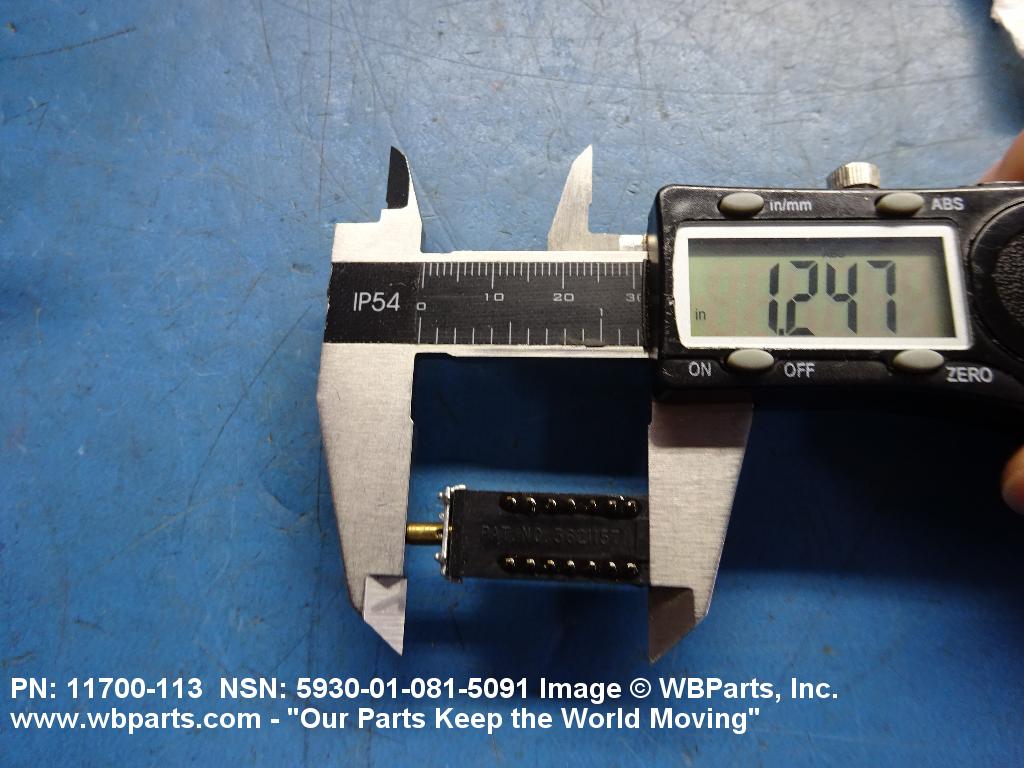

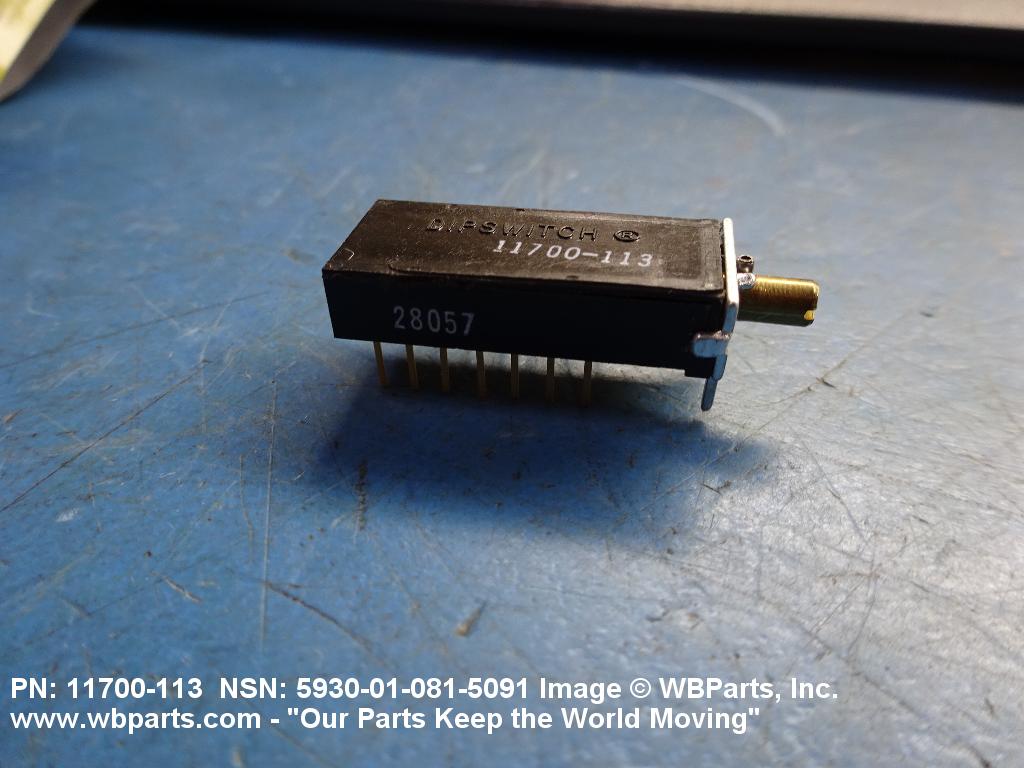

Drawings & Photos | NSN 5930-01-081-5091
Demand History | NSN 5930-01-081-5091
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-081-5091 | 2023-11-334 | 5 | AE |
| 5930-01-081-5091 | 2023-11-319 | 4 | PK |
| 5930-01-081-5091 | 2022-08-227 | 2 | United States |
| 5930-01-081-5091 | 2015-06-155 | 20 | US |
| 5930-01-081-5091 | 2014-10-280 | 12 | US |
| 0160471 | 2011-09-266 | 16 | US |
| 5930-01-081-5091 | 2010-08-242 | 44 | US |
| 5930-01-081-5091 | 2006-01-19 | 42 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-081-5091
Related Products | NSN 5930-01-081-5091
Technical Data | NSN 5930-01-081-5091
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 17 IN-LINE, CAM ACTUATED |

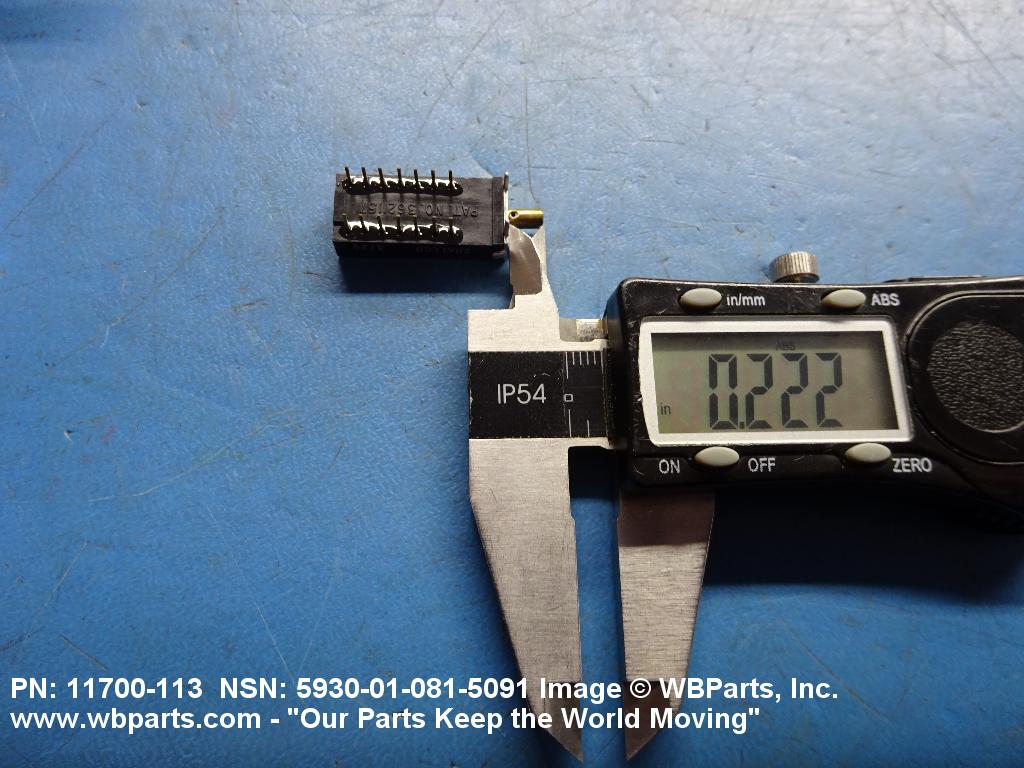

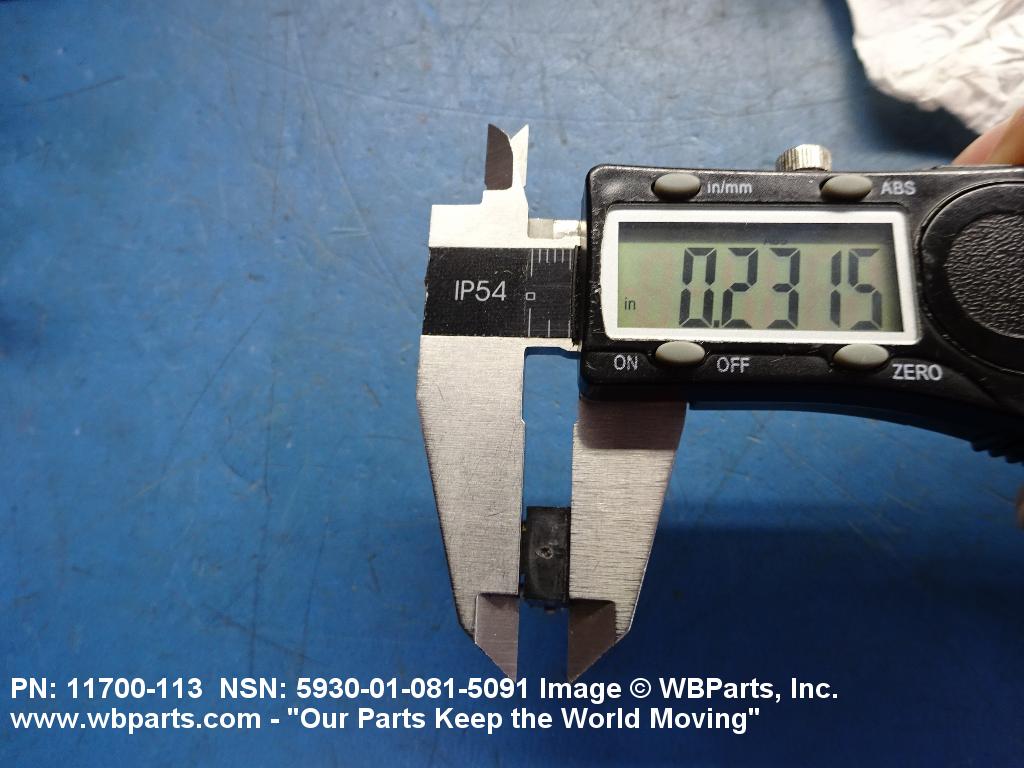

| OVERALL HEIGHT | 0.232 INCHES NOMINAL |

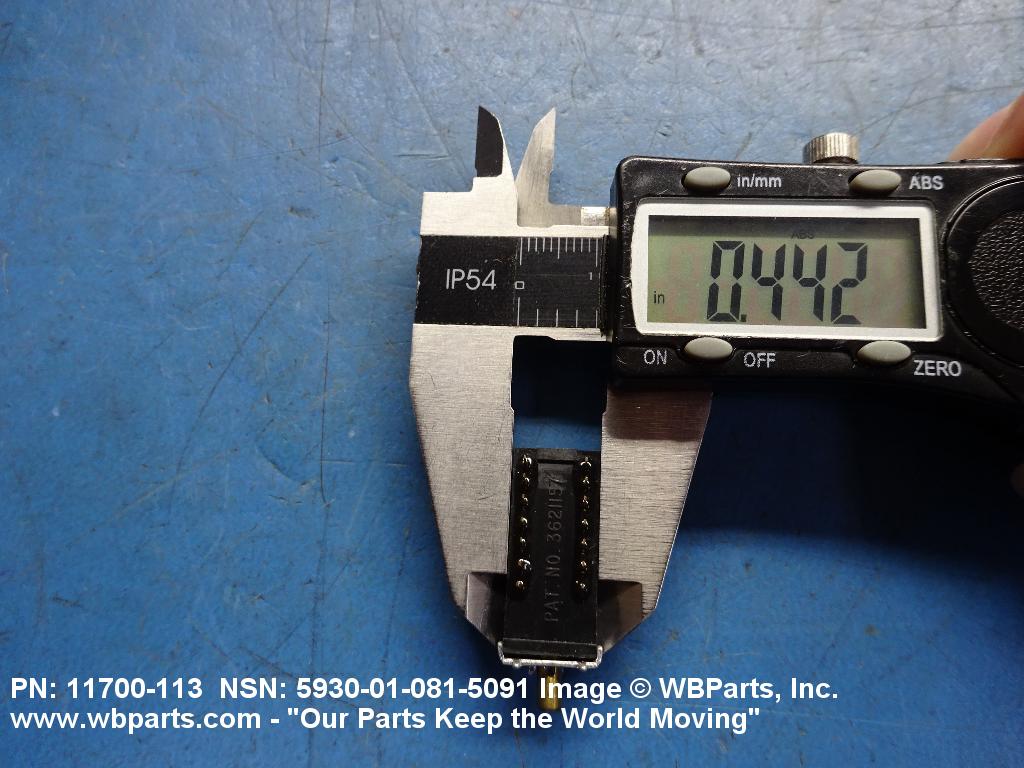

| OVERALL WIDTH | 0.440 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 6 SINGLE SECTION IN-LINE |
| THROW QUANTITY | 2 SINGLE SECTION IN-LINE |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION IN-LINE |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 125.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 125.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, SLOTTED SINGLE ACTUATOR |

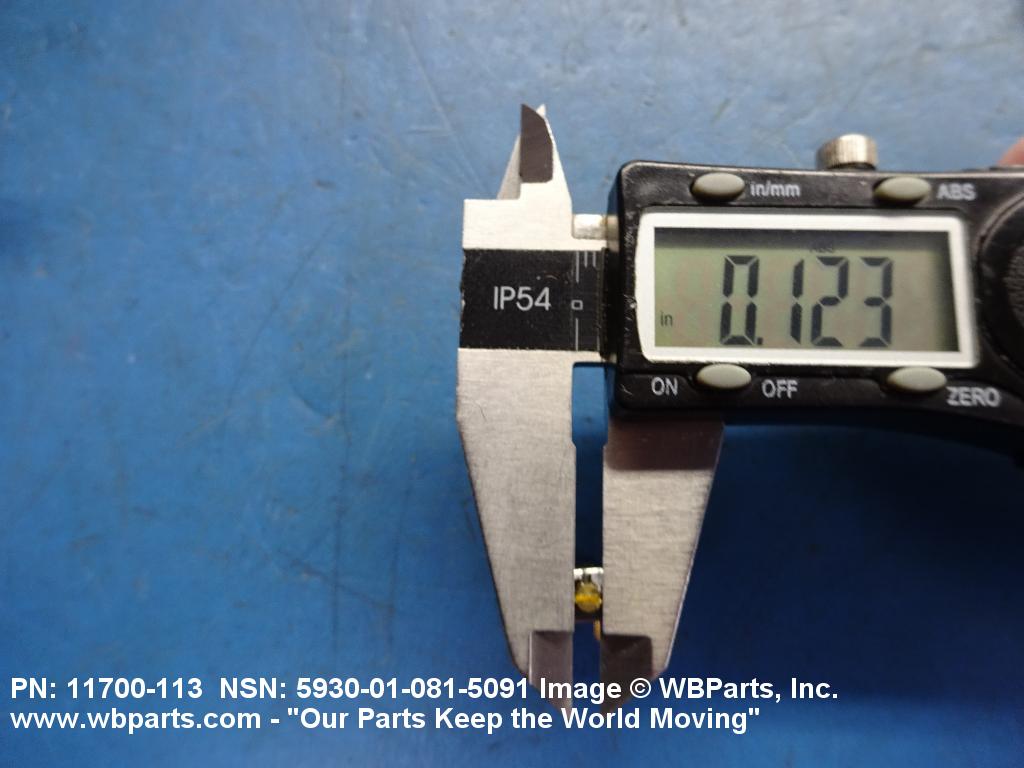

| SHAFT DIAMETER | 0.125 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | PRINTED CIRCUIT SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | METALLIC INCLOSURE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SHOCK PROOF |
| III OPERATING TEMP RANGE | -40.0 TO 185.0 DEG FAHRENHEIT |
| III DETENT ROTATIONAL TORQUE RANGE | 0.500 TO 8.000 INCH-OUNCES SINGLE ACTUATOR |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| III END ITEM IDENTIFICATION | F15A 76301 |
