NSN 5930-01-098-0762 1033101, 103-3101, 1033102
Product Details | ROTARY SWITCH
5930-01-098-0762 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 1033101, 103-3101, 1033102, 103-3102, 11444459, 5930-01-098-0762, 01-098-0762, 5930010980762, 010980762
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUL 1980 | 01-098-0762 | 02134 ( SWITCH, ROTARY ) |

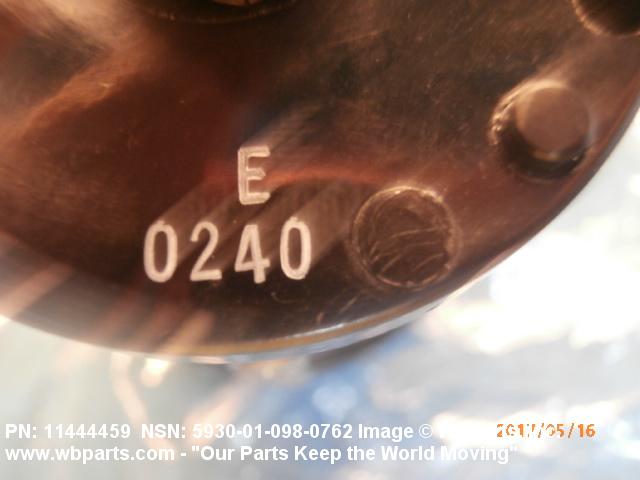

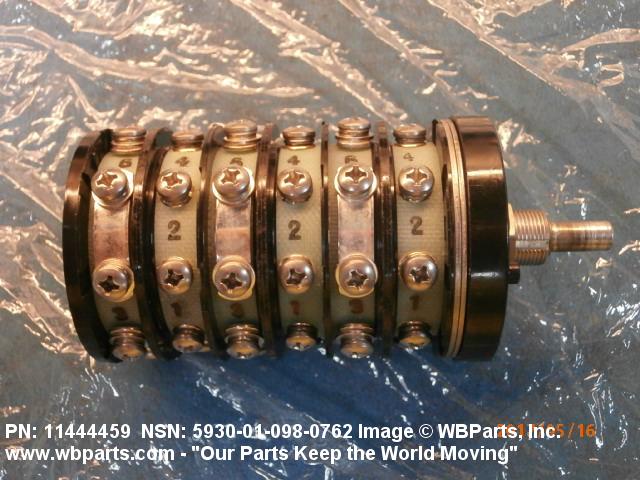

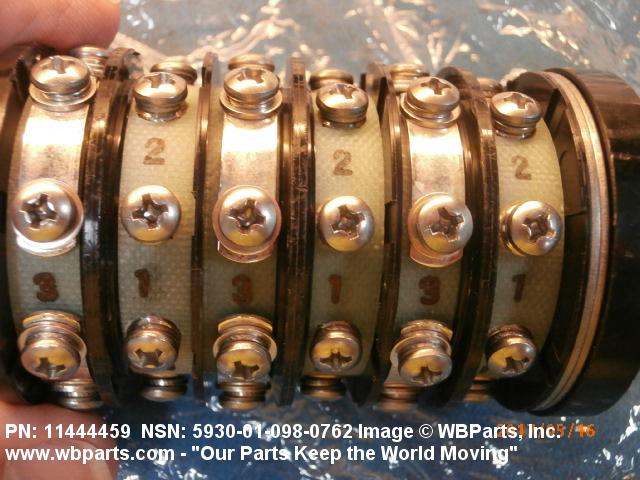

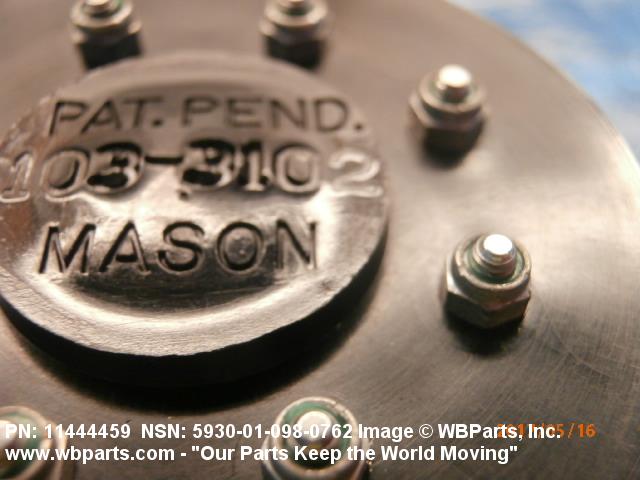

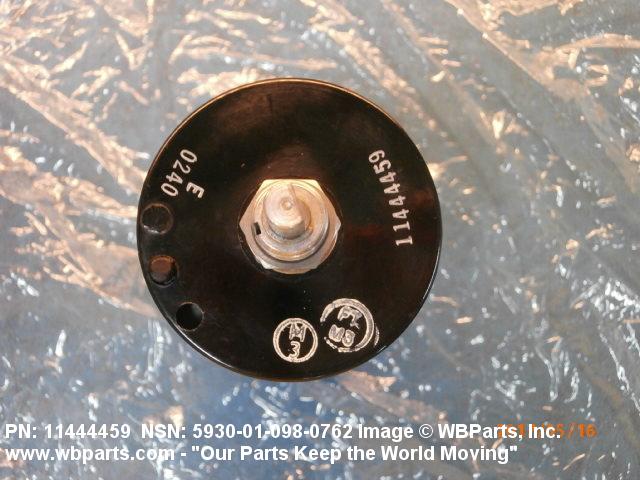

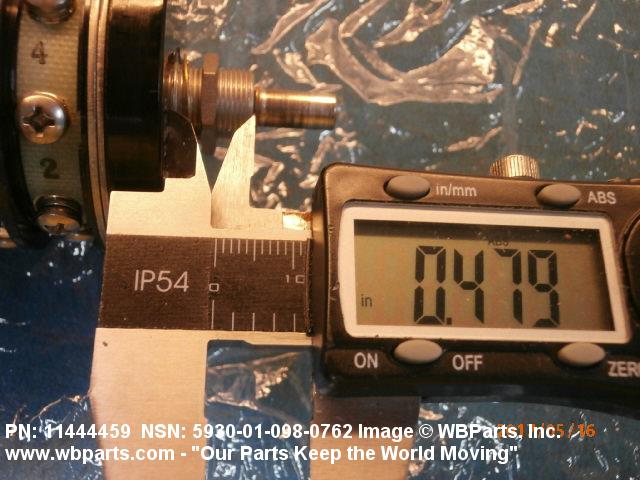

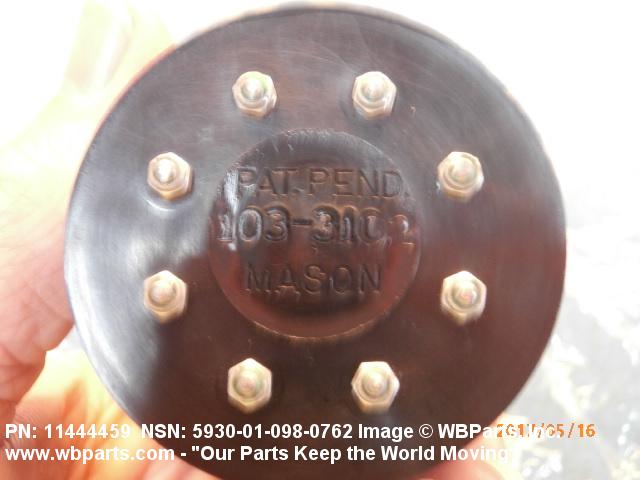

Drawings & Photos | NSN 5930-01-098-0762
Demand History | NSN 5930-01-098-0762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 103-3102 | 2025-04-112 | 35 | DIBBS |
| 11444459 | 2025-04-112 | 35 | DIBBS |
| 103-3102 | 2024-10-295 | 10 | DIBBS |
| 11444459 | 2024-10-295 | 10 | DIBBS |
| 5930-01-098-0762 | 2024-04-115 | 2 | us |
| 103-3102 | 2024-02-43 | 12 | DIBBS |
| 11444459 | 2024-02-43 | 12 | DIBBS |
| 103-3102 | 2024-02-39 | 9 | DIBBS |
| 11444459 | 2024-02-39 | 9 | DIBBS |
| 5930-01-098-0762 | 2023-07-201 | 6 | DIBBS |
| 5930-01-098-0762 | 2023-07-201 | 4 | DIBBS |
| 5930-01-098-0762 | 2023-07-201 | 3 | DIBBS |
| 5930-01-098-0762 | 2023-07-201 | 3 | DIBBS |
| 5930-01-098-0762 | 2023-02-38 | 6 | DIBBS |
| 5930-01-098-0762 | 2023-01-17 | 3 | DIBBS |
| 5930-01-098-0762 | 2022-12-346 | 3 | DIBBS |
| 5930-01-098-0762 | 2022-11-317 | 4 | DIBBS |
| 5930-01-098-0762 | 2022-04-118 | 4 | DIBBS |
| 5930-01-098-0762 | 2018-06-164 | 8 | DIBBS |
| 5930-01-098-0762 | 2018-04-113 | 30 | DIBBS |
| 5930-01-098-0762 | 2018-02-57 | 1 | Greece |
| 5930-01-098-0762 | 2018-02-36 | 7 | DIBBS |
| 5930-01-098-0762 | 2018-01-23 | 7 | DIBBS |
| 5930-01-098-0762 | 2018-01-18 | 8 | DIBBS |
| 5930-01-098-0762 | 2017-12-354 | 5 | DIBBS |
| 5930-01-098-0762 | 2017-10-299 | 5 | DIBBS |
| 5930-01-098-0762 | 2017-05-137 | 6 | DIBBS |
| 5930-01-098-0762 | 2017-03-72 | 9 | DIBBS |
| 5930-01-098-0762 | 2017-03-61 | 9 | DIBBS |
| 5930-01-098-0762 | 2017-02-37 | 6 | DIBBS |
| 5930-01-098-0762 | 2017-02-32 | 1 | Greece |
| 5930-01-098-0762 | 2017-01-24 | 6 | DIBBS |
| 5930-01-098-0762 | 2011-05-131 | 14 | DIBBS |
| 5930-01-098-0762 | 2011-04-105 | 25 | DIBBS |
| 5930-01-098-0762 | 2011-02-34 | 19 | DIBBS |
| 5930-01-098-0762 | 2011-01-06 | 5 | DIBBS |
| 5930-01-098-0762 | 2010-09-252 | 41 | DIBBS |
| 5930-01-098-0762 | 2009-04-117 | 8 | DIBBS |
| 5930-01-098-0762 | 2009-02-44 | 6 | DIBBS |
| 5930-01-098-0762 | 2009-02-44 | 8 | DIBBS |
| 5930-01-098-0762 | 2008-11-318 | 8 | DIBBS |
| 5930-01-098-0762 | 2008-04-102 | 12 | DIBBS |
| 5930-01-098-0762 | 2008-03-87 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-098-0762
Related Products | NSN 5930-01-098-0762
Technical Data | NSN 5930-01-098-0762
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |
| OVERALL LENGTH | 4.340 INCHES NOMINAL |

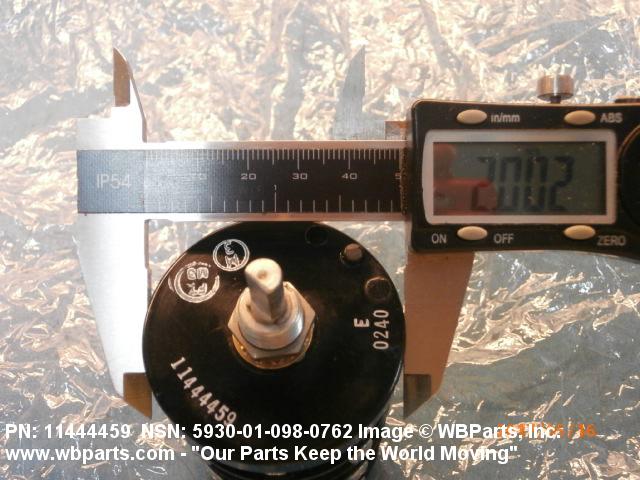

| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| ROTOR THROUGH CONNECTION QUANTITY | 4 EACH SECTION |
| POLE QUANTITY | 4 EACH SECTION REAR |
| THROW QUANTITY | 2 EACH SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD AND 10.0 AMPERES INDUCTIVE LOAD AC AT SEA LEVEL 15.0 AMPERES RESISTIVE LOAD AND 10.0 AMPERES INDUCTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.190 INCHES NOMINAL SINGLE ACTUATOR |

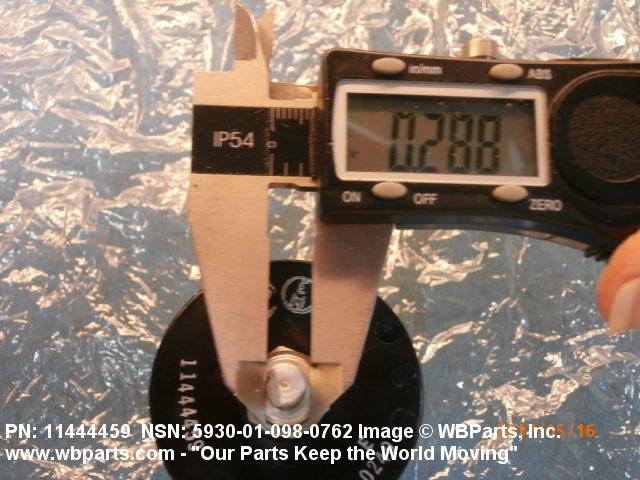

| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |

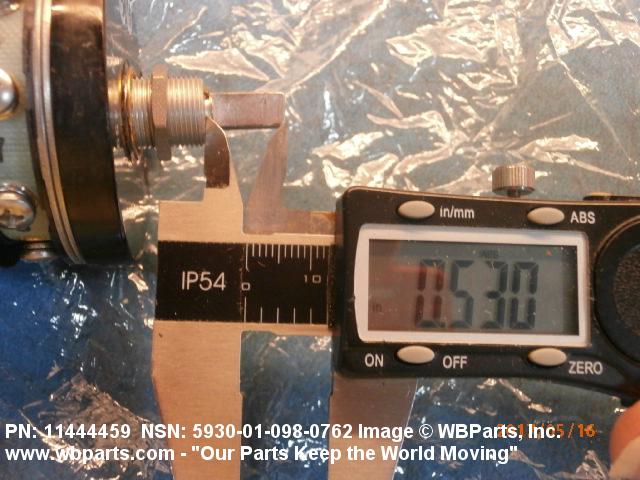

| SHAFT LENGTH | 0.530 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| NONTURN DEVICE TYPE | SLOTTED BUSHING AT 12:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNS SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.046 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.470 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 0.0 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR |
| III OPERATING TEMP RANGE | -65.0 TO 85.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | FLAT WASHER SURFACES AND CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-098-0762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-098-0762
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
