NSN 5930-01-128-1126 SMA858421, SM-A-858421, 44MY24571
Product Details | ROTARY SWITCH
5930-01-128-1126 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SMA858421, SM-A-858421, 44MY24571, 5930-01-128-1126, 01-128-1126, 5930011281126, 011281126
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1982 | 01-128-1126 | 02134 ( SWITCH, ROTARY ) |

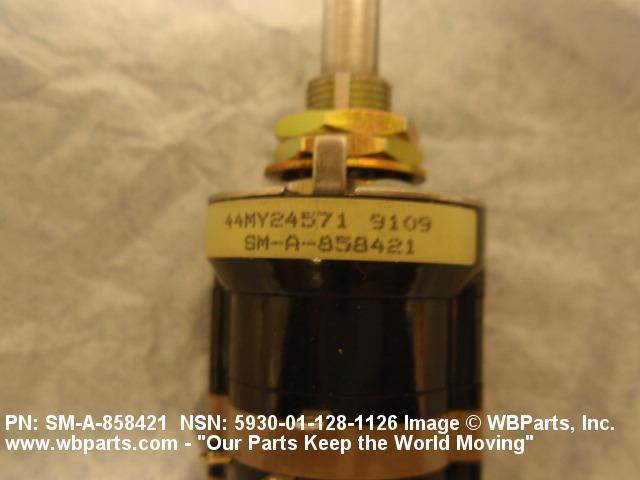

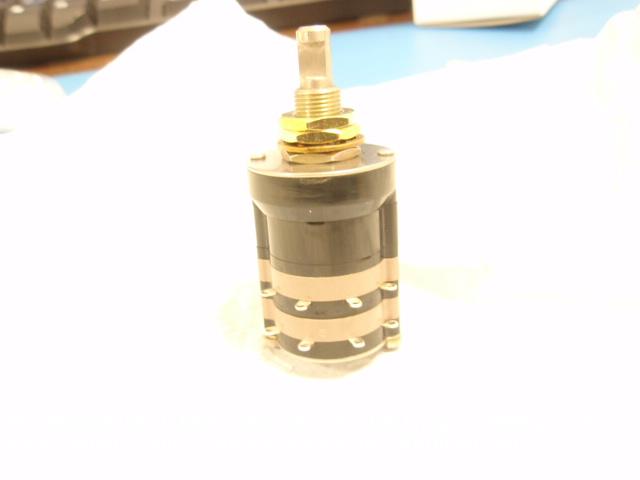

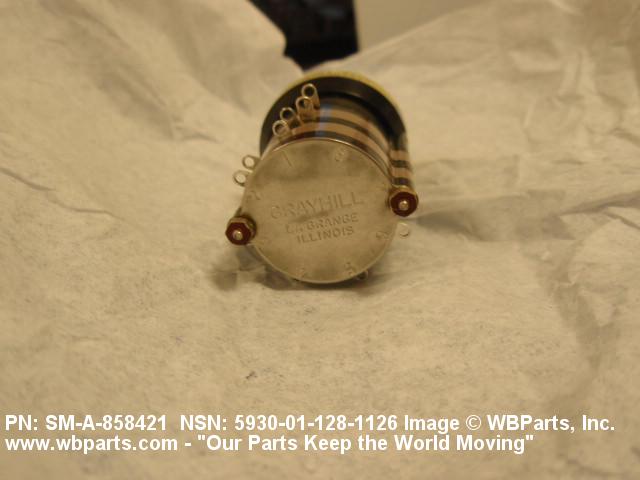

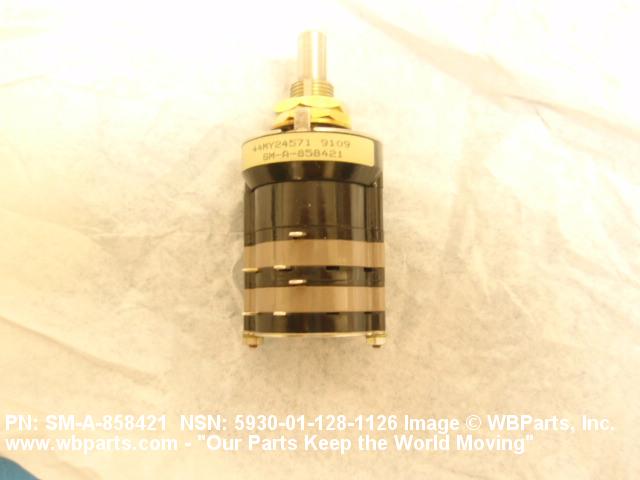

Drawings & Photos | NSN 5930-01-128-1126
Demand History | NSN 5930-01-128-1126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-128-1126 | 2021-07-196 | 1 | United States |
| 5930-01-128-1126 | 2013-05-132 | 44 | DIBBS |
| 5930-01-128-1126 | 2013-04-107 | 49 | DIBBS |
| 5930-01-128-1126 | 2012-08-226 | 56 | DIBBS |
| 5930-01-128-1126 | 2012-05-122 | 0 | DIBBS |
| 5930-01-128-1126 | 2012-03-80 | 29 | DIBBS |
| 5930-01-128-1126 | 2011-10-298 | 11 | DIBBS |
| 5930-01-128-1126 | 2011-06-162 | 0 | DIBBS |
| 5930-01-128-1126 | 2011-04-91 | 30 | DIBBS |
| 5930-01-128-1126 | 2011-01-21 | 7 | DIBBS |
| 5930-01-128-1126 | 2010-08-224 | 6 | DIBBS |
| 5930-01-128-1126 | 2010-08-215 | 29 | DIBBS |
| 5930-01-128-1126 | 2010-06-173 | 8 | DIBBS |
| 5930-01-128-1126 | 2010-03-67 | 25 | DIBBS |
| 5930-01-128-1126 | 2010-02-58 | 6 | DIBBS |
| 5930-01-128-1126 | 2010-01-22 | 6 | DIBBS |
| 5930-01-128-1126 | 2009-11-313 | 1 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-128-1126
Related Products | NSN 5930-01-128-1126
Technical Data | NSN 5930-01-128-1126
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |
| OVERALL LENGTH | 2.653 INCHES NOMINAL |
| OVERALL DIAMETER | 1.152 INCHES MINIMUM AND 1.172 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 2 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION REAR |
| THROW QUANTITY | 6 EACH SECTION REAR |
| CONTACT SWITCHING ACTION | MAKES BEFORE BREAKS 1ST SECTION REAR BREAKS BEFORE MAKES 2ND SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 HIGHEST DC VOLTAGE RATING AT SEA LEVEL 6.0 LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD AND 2.0 AMPERES INDUCTIVE LOAD AC AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD HIGHEST DC VOLTAGE RATING AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 6 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.248 INCHES MINIMUM AND 0.251 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT LENGTH | 0.417 INCHES MINIMUM AND 0.457 INCHES MAXIMUM SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 6:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM AT 6:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.417 INCHES MINIMUM AND 0.457 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | METALLIC INCLOSURE AND PULL TO TURN |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-128-1126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-128-1126
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
