NSN 5930-01-160-0955 SW62S7, SW62S-7, 40P22801701
Product Details | ROTARY SWITCH
5930-01-160-0955 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SW62S7, SW62S-7, 40P22801701, 40P228017-01, 5930-01-160-0955, 01-160-0955, 5930011600955, 011600955
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 AUG 1983 | 01-160-0955 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-160-0955
Demand History | NSN 5930-01-160-0955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-160-0955 | 2012-07-187 | 1 | US |
| 5930-01-160-0955 | 2012-04-114 | 30 | us |
| 5930-01-160-0955 | 2012-03-82 | 2 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-160-0955
Related Products | NSN 5930-01-160-0955
Technical Data | NSN 5930-01-160-0955
| Characteristic | Specifications |
|---|---|

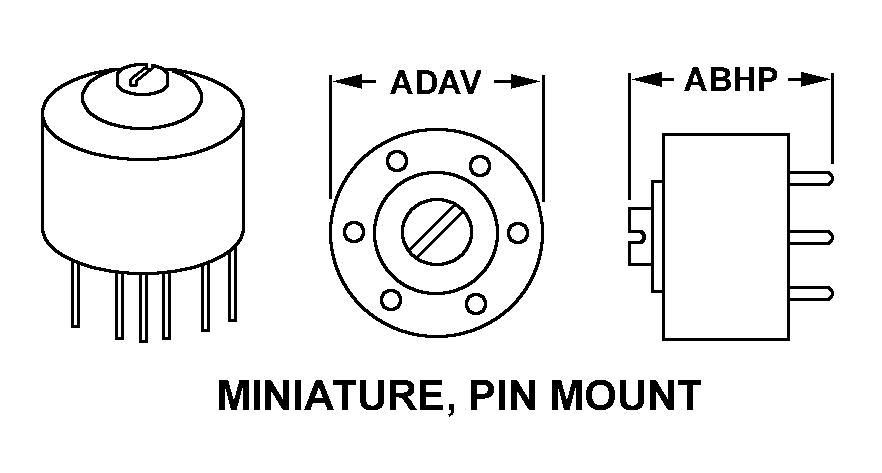

| STYLE DESIGNATOR | 19 MINIATURE, PIN MOUNT |
| OVERALL LENGTH | 0.460 INCHES NOMINAL |
| OVERALL DIAMETER | 0.570 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 SINGLE SECTION REAR |
| THROW QUANTITY | 7 SINGLE SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 250.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 7 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 36.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, SLOTTED SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.100 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.040 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | PRINTED CIRCUIT SINGLE MOUNTING FACILITY |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD |
| III END ITEM IDENTIFICATION | MODIFICATION KIT,AN/URT-23C |
Restrictions/Controls & Freight Information | NSN 5930-01-160-0955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-160-0955
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
