NSN 5930-01-249-7577 4809047, 480904-7, 5-25635-262
Product Details | ROTARY SWITCH
5930-01-249-7577 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 4809047, 480904-7, 5-25635-262, 5930-01-249-7577, 01-249-7577, 5930012497577, 012497577, 525635262
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1987 | 01-249-7577 | 02134 ( SWITCH, ROTARY ) |

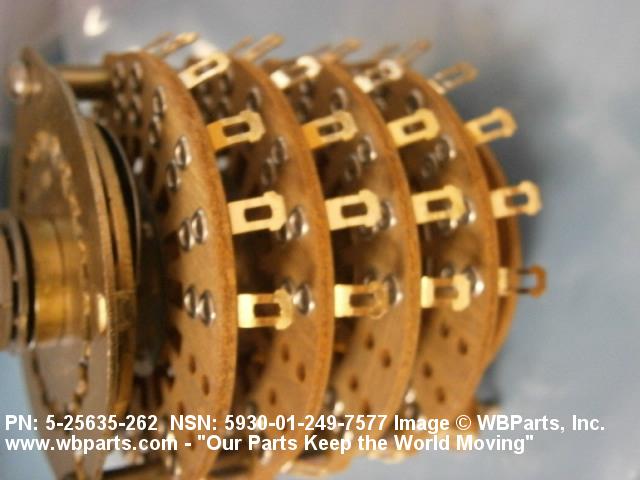

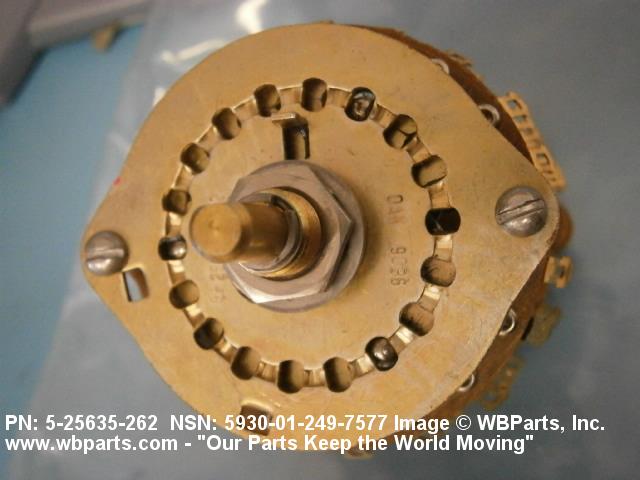

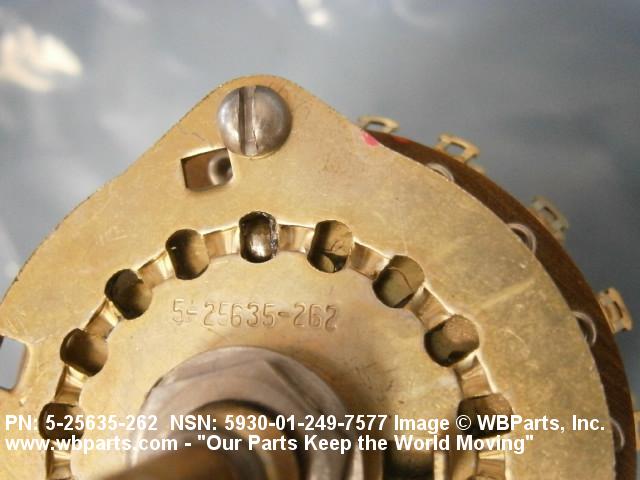

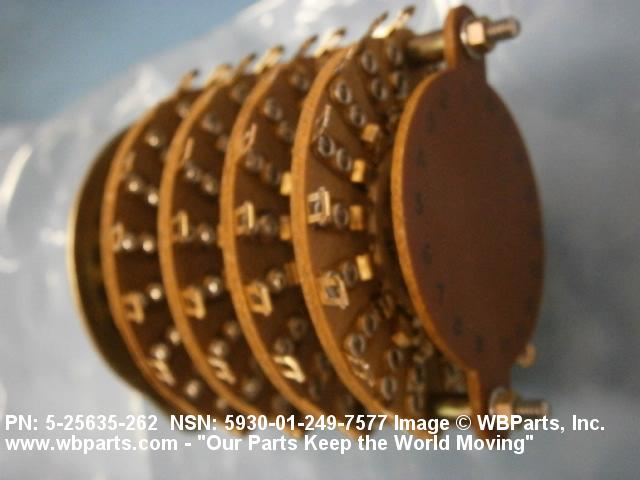

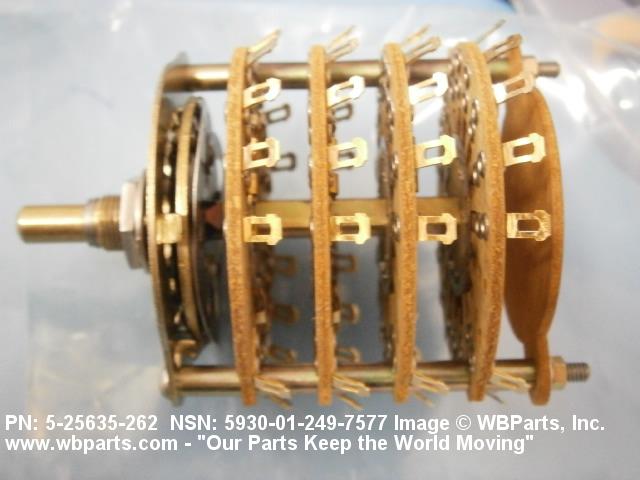

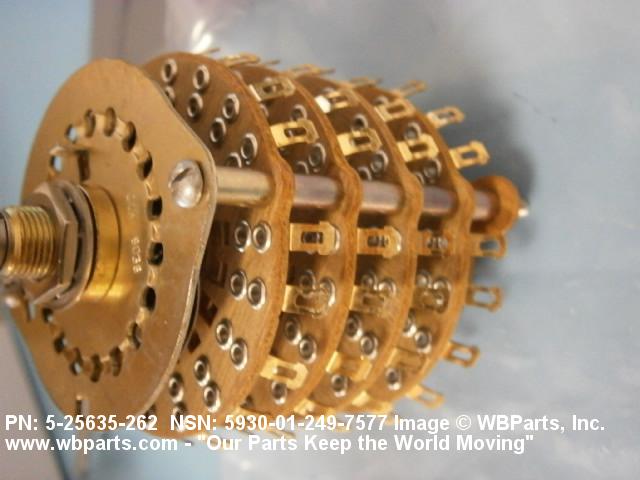

Drawings & Photos | NSN 5930-01-249-7577
Demand History | NSN 5930-01-249-7577
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5-25635-262 | 2021-01-20 | 1 | DIBBS |
| 5930-01-249-7577 | 2012-05-129 | 1 | DIBBS |
| 5930-01-249-7577 | 2012-02-57 | 1 | DIBBS |
| 525635262 | 2012-02-54 | 1 | United States |
| 5930-01-249-7577 | 2012-02-52 | 1 | DIBBS |
| 5930-01-249-7577 | 2012-02-47 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-249-7577
Related Products | NSN 5930-01-249-7577
Technical Data | NSN 5930-01-249-7577
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 CIRCULAR WAFER, BUSHING MOUNT |
| OVERALL LENGTH | 3.130 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.330 INCHES MAXIMUM |
| OVERALL WIDTH | 1.990 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 4 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION REAR |
| THROW QUANTITY | 15 EACH SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 110.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 2.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 2.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 15 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 20.0 DEGREES SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.405 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.211 INCHES MINIMUM AND 0.221 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.247 INCHES MINIMUM AND 0.250 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT LENGTH | 0.495 INCHES MINIMUM AND 0.510 INCHES MAXIMUM SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 3:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL AT 3:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.365 INCHES MINIMUM AND 0.380 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SALT SPRAY RESISTANT |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
| III END ITEM IDENTIFICATION | 6625-01-183-8962 LOOP TEST SET |
Restrictions/Controls & Freight Information | NSN 5930-01-249-7577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-249-7577
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
