NSN 5930-01-263-5024 M15743/3-001, M157433001, SYM 801.2
Product Details | ROTARY SWITCH
5930-01-263-5024 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: M15743/3-001, M157433001, SYM 801.2, SYM8012, MIL-DTL-15743/3, MILDTL157433, MIL-S-15743/3, MILS157433, 5930-01-263-5024, 01-263-5024, 5930012635024, 012635024
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 SEP 1987 | 01-263-5024 | 02134 ( SWITCH, ROTARY ) |

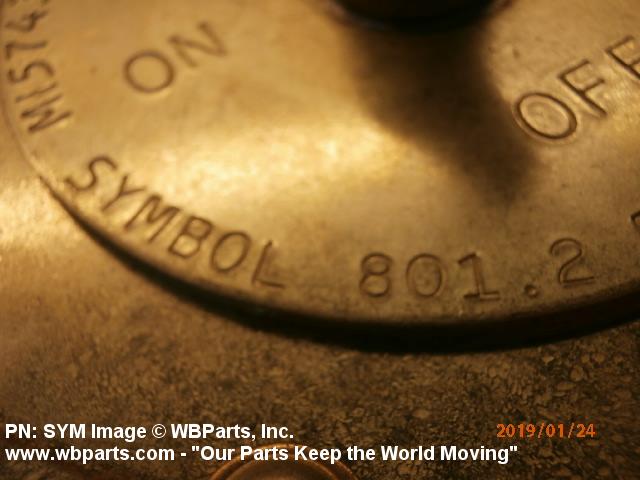

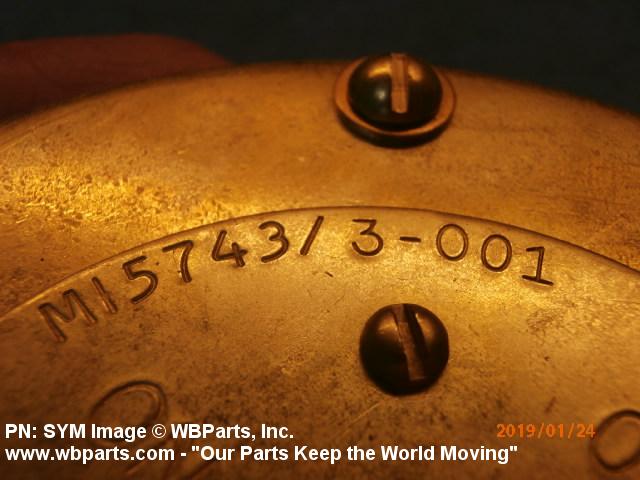

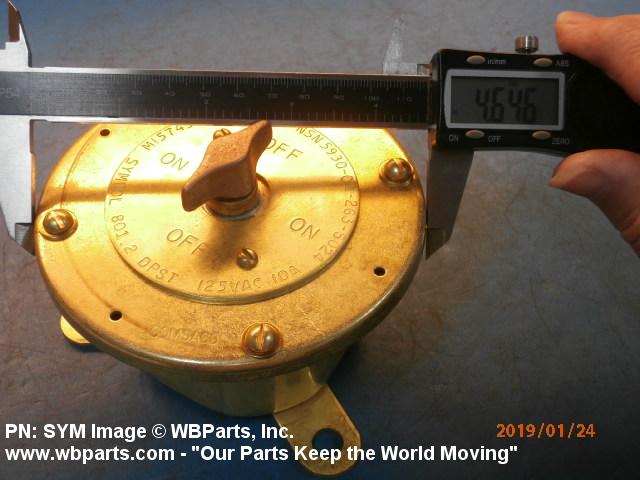

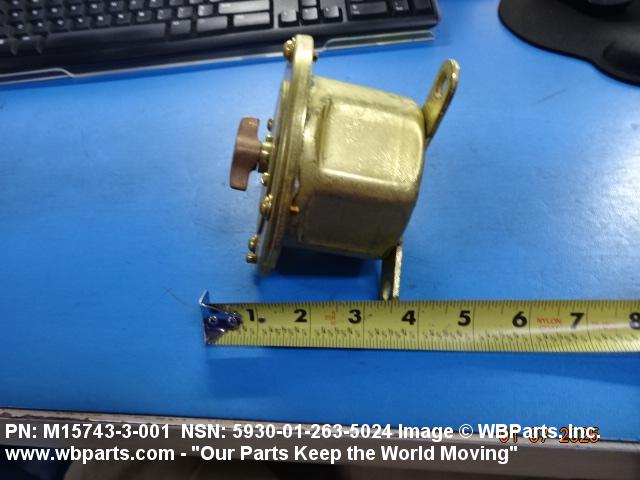

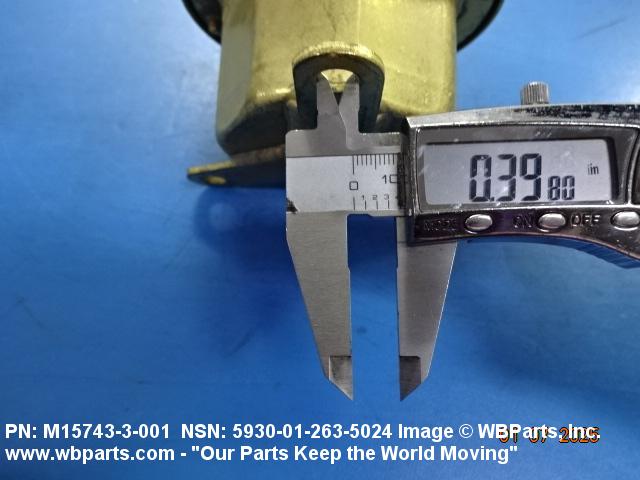

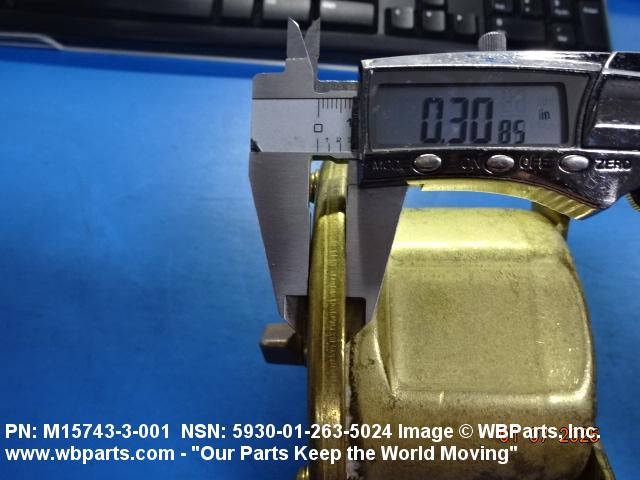

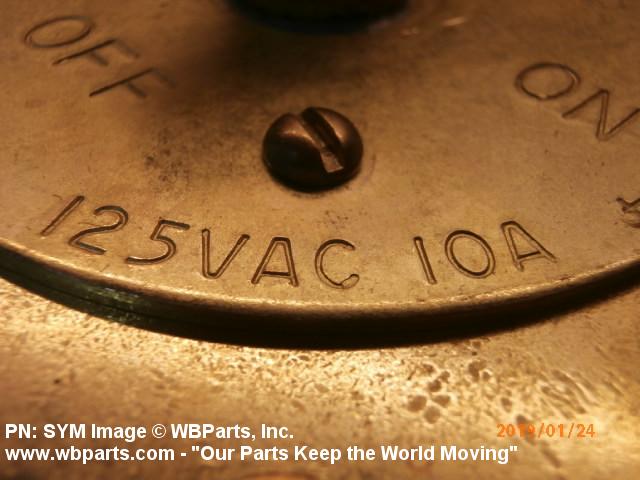

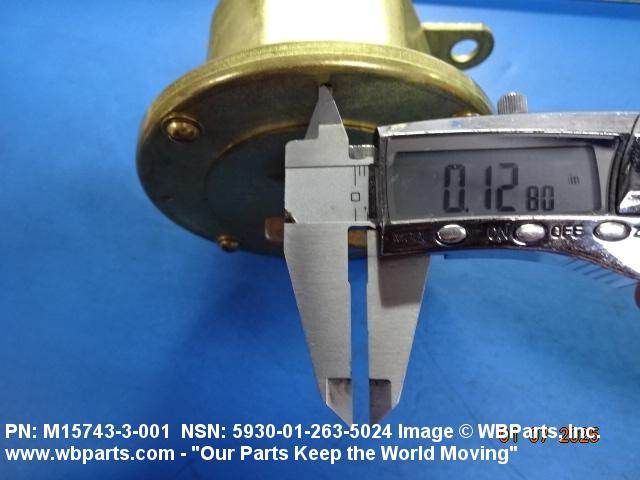

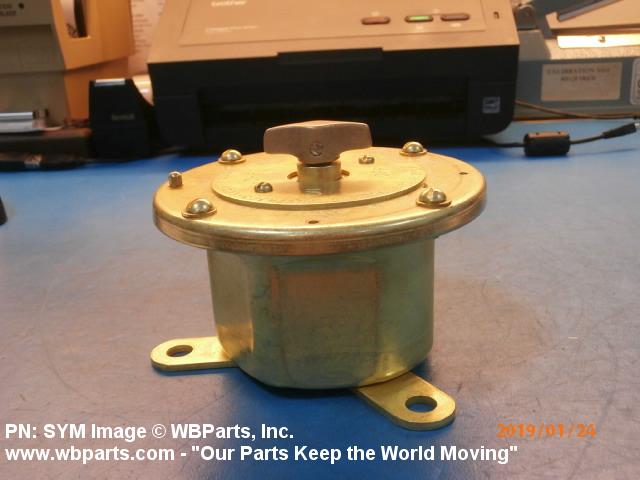

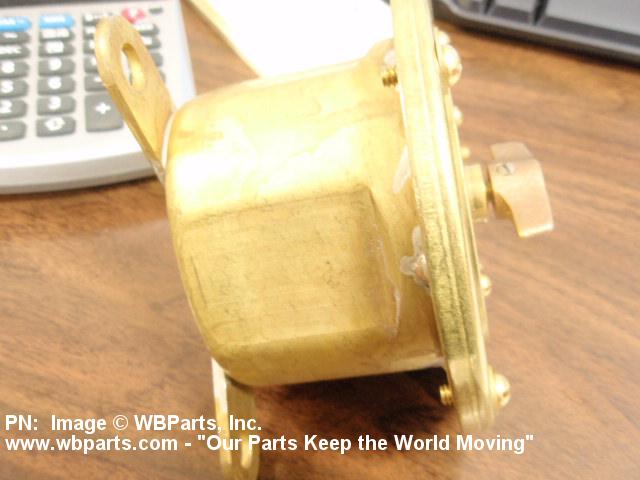

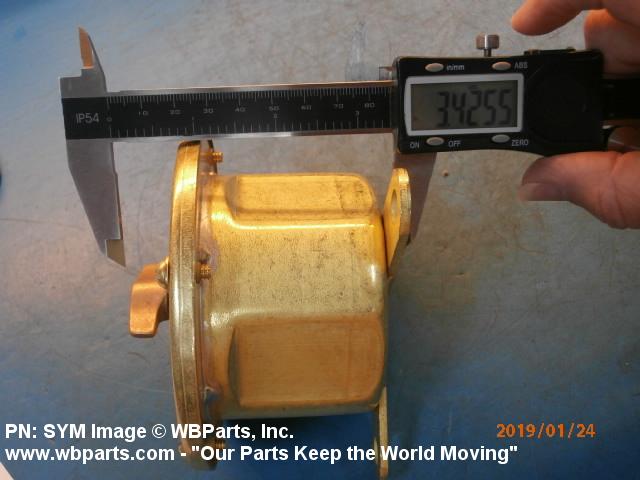

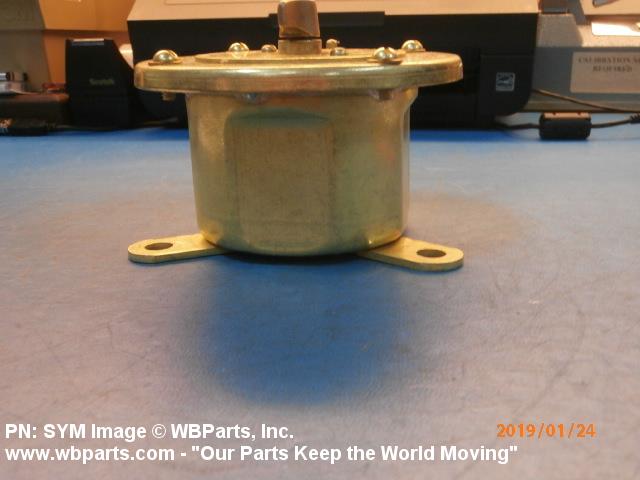

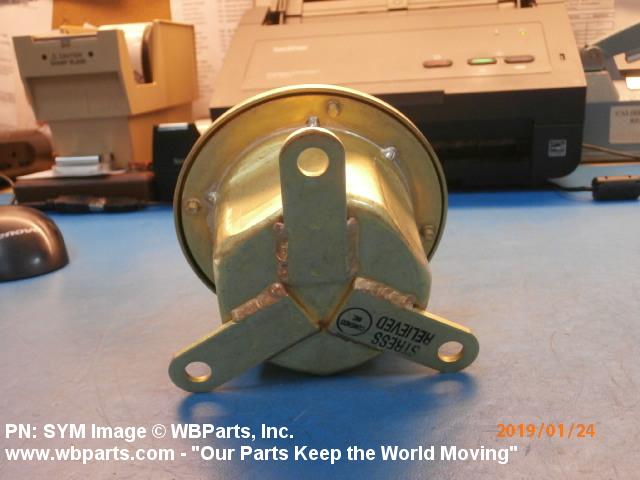

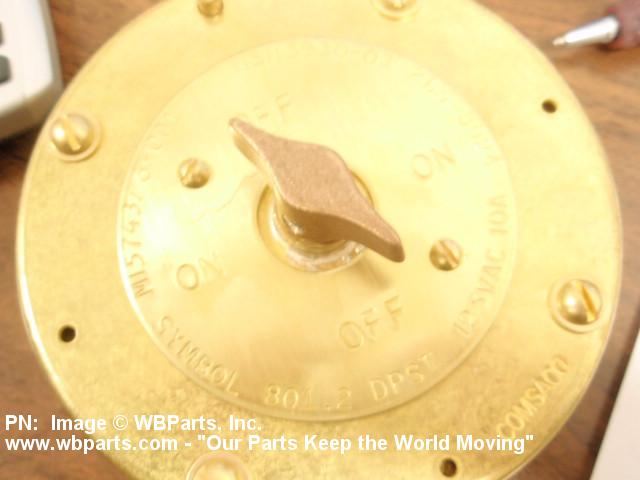

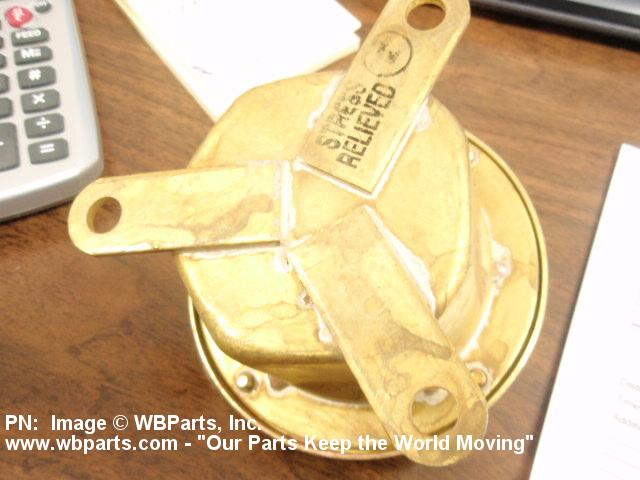

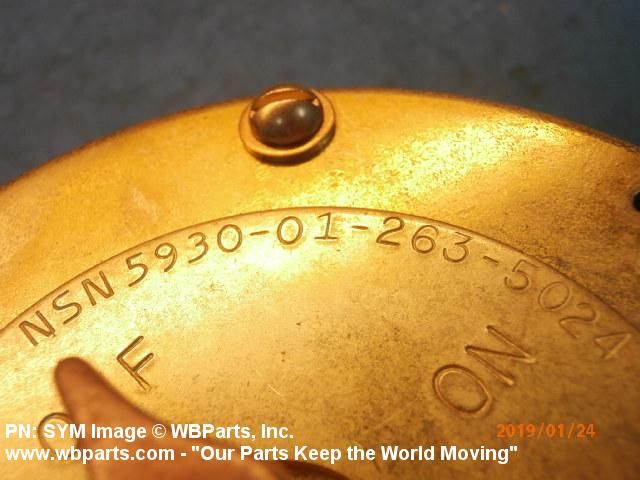

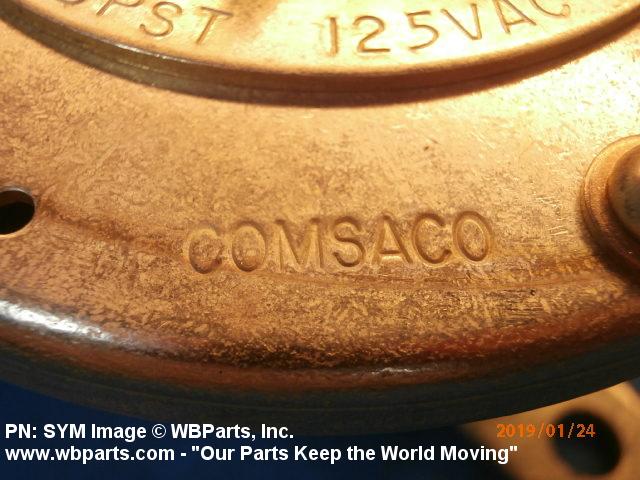

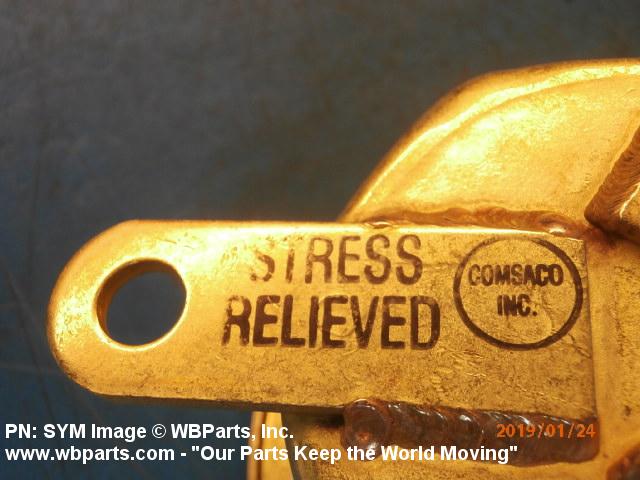

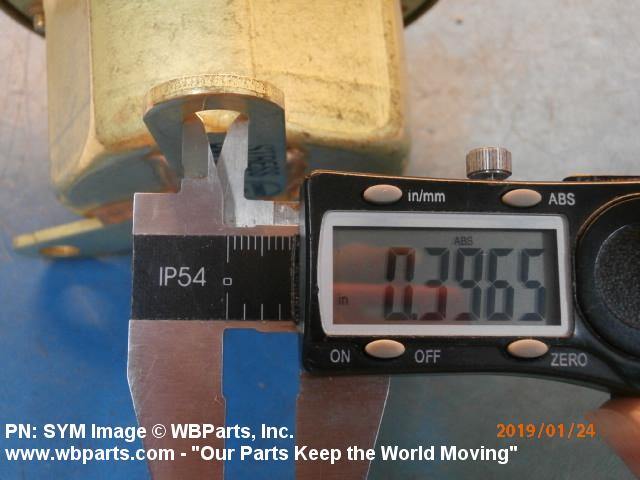

Drawings & Photos | NSN 5930-01-263-5024
Demand History | NSN 5930-01-263-5024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-263-5024 | 2026-02-51 | 1 | US |
| 5930-01-263-5024 | 2026-02-35 | 1 | United States |
| 5930-01-263-5024 | 2026-02-35 | 1 | United States |
| 5930-01-263-5024 | 2026-02-34 | 1 | US |
| 5930-01-263-5024 | 2025-12-349 | 6 | AU |
| 5930-01-263-5024 | 2025-04-100 | 96 | DIBBS |
| 5930-01-263-5024 | 2024-12-348 | 1 | United States |
| M157433001 | 2024-11-331 | 1 | United States |
| 5930-01-263-5024 | 2024-05-129 | 13 | United States |
| 5930-01-263-5024 | 2024-04-106 | 2 | United States |
| 5930-01-263-5024 | 2024-04-103 | 2 | US |
| 5930-01-263-5024 | 2024-03-84 | 66 | DIBBS |
| SYM8012 | 2023-12-356 | 2 | US |
| 5930-01-263-5024 | 2023-07-183 | 112 | DIBBS |
| 5930-01-263-5024 | 2023-06-179 | 10 | US |
| 5930-01-263-5024 | 2023-06-167 | 1 | United States |
| MILDTL157433 | 2023-02-58 | 14 | US |
| 5930-01-263-5024 | 2022-12-349 | 148 | DIBBS |
| SYM8012 | 2022-12-346 | 5 | US |
| 5930-01-263-5024 | 2022-10-292 | 31 | us |
| 5930-01-263-5024 | 2022-10-279 | 87 | DIBBS |
| 5930-01-263-5024 | 2022-06-167 | 6 | US |
| 5930-01-263-5024 | 2022-06-166 | 1 | US |
| 5930-01-263-5024 | 2022-02-34 | 15 | UK |
| 5930-01-263-5024 | 2022-01-27 | 13 | Japan |
| 5930-01-263-5024 | 2022-01-27 | 78 | DIBBS |
| 5930-01-263-5024 | 2021-04-102 | 100 | US |
| 5930-01-263-5024 | 2021-04-98 | 97 | DIBBS |
| 5930-01-263-5024 | 2021-03-70 | 1 | US |
| 5930-01-263-5024 | 2020-11-317 | 100 | DIBBS |
| 5930-01-263-5024 | 2020-09-259 | 2 | ID |
| SYM8012 | 2020-09-259 | 2 | ID |
| 5930-01-263-5024 | 2020-08-219 | 68 | DIBBS |
| 5930-01-263-5024 | 2020-04-106 | 1 | US |
| 5930-01-263-5024 | 2020-02-51 | 1 | US |
| 5930-01-263-5024 | 2019-12-350 | 1 | US |
| 5930-01-263-5024 | 2019-11-325 | 86 | DIBBS |
| 5930-01-263-5024 | 2019-08-232 | 1 | US |
| 5930-01-263-5024 | 2019-03-70 | 80 | DIBBS |
| 5930-01-263-5024 | 2018-11-310 | 6 | United States |
| 5930-01-263-5024 | 2018-09-264 | 2 | US |
| M157433001 | 2018-07-207 | 3 | United States |
| 5930-01-263-5024 | 2017-11-318 | 111 | DIBBS |
| 5930-01-263-5024 | 2017-06-158 | 105 | DIBBS |
| 5930-01-263-5024 | 2016-10-285 | 103 | DIBBS |
| 5930-01-263-5024 | 2016-07-192 | 69 | DIBBS |
| 5930-01-263-5024 | 2015-01-21 | 2 | United States |
| M157433001 | 2014-01-16 | 1 | United States |
| 5930-01-263-5024 | 2012-09-269 | 2 | US |
| 5930-01-263-5024 | 2011-10-278 | 144 | DIBBS |
| 5930-01-263-5024 | 2011-10-278 | 274 | DIBBS |
| 5930-01-263-5024 | 2011-05-131 | 2 | US |
| 5930-01-263-5024 | 2011-03-89 | 12 | US |
| 5930-01-263-5024 | 2011-01-04 | 186 | DIBBS |
| 5930-01-263-5024 | 2010-11-320 | 4 | US |
| 5930-01-263-5024 | 2010-11-316 | 4 | United States |
| 5930-01-263-5024 | 2010-11-315 | 4 | United States |
| 5930-01-263-5024 | 2010-10-285 | 48 | DIBBS |
| SYM8012 | 2010-05-126 | 2 | US |
| SYM8012 | 2009-12-355 | 1 | US |
| 5930-01-263-5024 | 2009-09-253 | 62 | DIBBS |
| 5930-01-263-5024 | 2008-10-305 | 110 | DIBBS |
| 5930-01-263-5024 | 2008-08-242 | 51 | DIBBS |
| 5930-01-263-5024 | 2008-04-102 | 36 | DIBBS |
| 5930-01-263-5024 | 2008-02-35 | 20 | DIBBS |
| 5930-01-263-5024 | 2007-05-122 | 28 | DIBBS |
| 5930-01-263-5024 | 2007-03-81 | 14 | DIBBS |
| 5930-01-263-5024 | 2007-03-81 | 18 | DIBBS |
Cross Reference | NSN 5930-01-263-5024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M15743/3-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-15743/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-15743/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM 801.2 | 44291 | U.S. PIONEER, L.L.C. DBA U.S. PIONEER |
| SYM 801.2 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| SYM 801.2 | 77096 | PALMER ELECTRIC CO DIV TABET MFG CO INC |
| SYM 801.2 | 86796 | ROFLAN ASSOCIATES INC |
| SYM 801.2 | 88829 | TABET MANUFACTURING COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-263-5024
Related Products | NSN 5930-01-263-5024
Technical Data | NSN 5930-01-263-5024
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 TAP, CIRCUIT SELECTOR |
| OVERALL LENGTH | 3.410 INCHES NOMINAL |
| OVERALL HEIGHT | 4.620 INCHES NOMINAL |
| OVERALL WIDTH | 4.620 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 2 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 90.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY CIRCLE RADIUS | 2.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB AND METALLIC INCLOSURE |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| TEST DATA DOCUMENT | 81349-MIL-S-15743 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-15743/3 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-15743/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M15743/3-001 |
Restrictions/Controls & Freight Information | NSN 5930-01-263-5024
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-263-5024
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
