NSN 5930-01-265-8017 M15743/9-001, M157439001, SYM 839.1
Product Details | ROTARY SWITCH
5930-01-265-8017 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: M15743/9-001, M157439001, SYM 839.1, SYM8391, MIL-DTL-15743/9, MILDTL157439, MIL-S-15743/9, MILS157439, 5930-01-265-8017, 01-265-8017, 5930012658017, 012658017
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 OCT 1987 | 01-265-8017 | 02134 ( SWITCH, ROTARY ) |

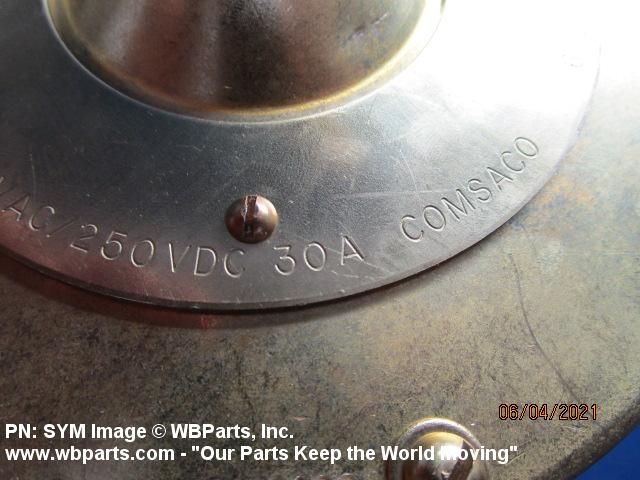

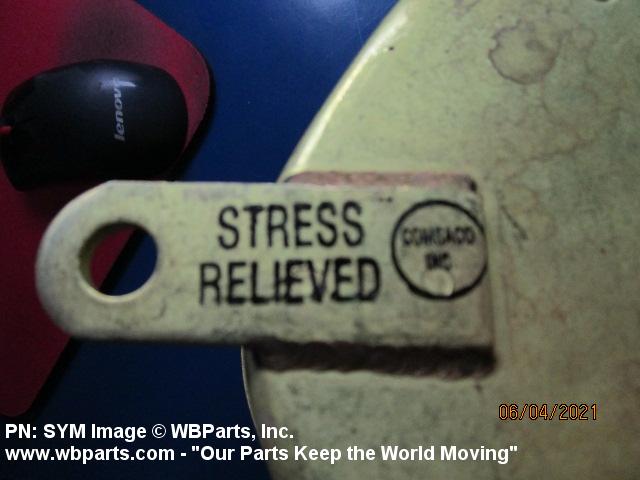

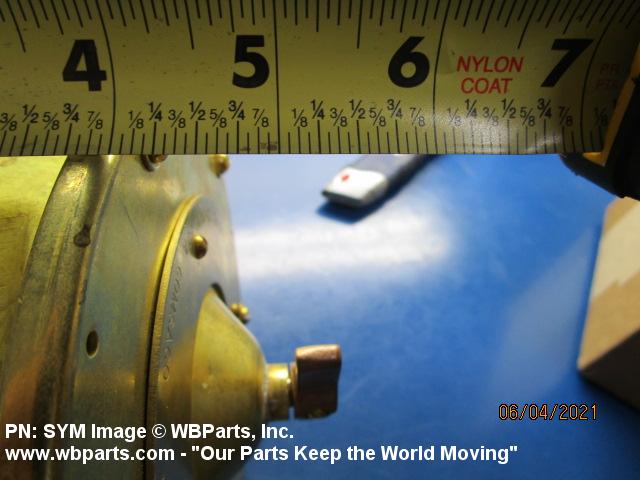

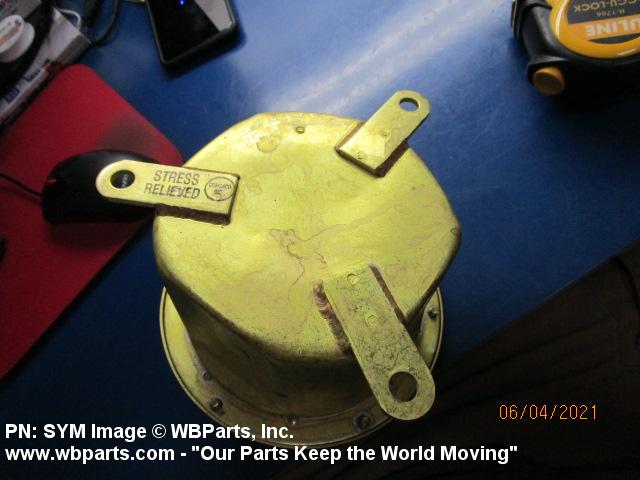

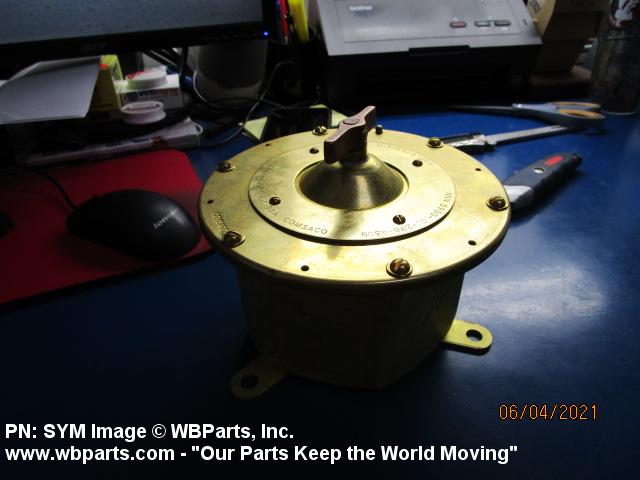

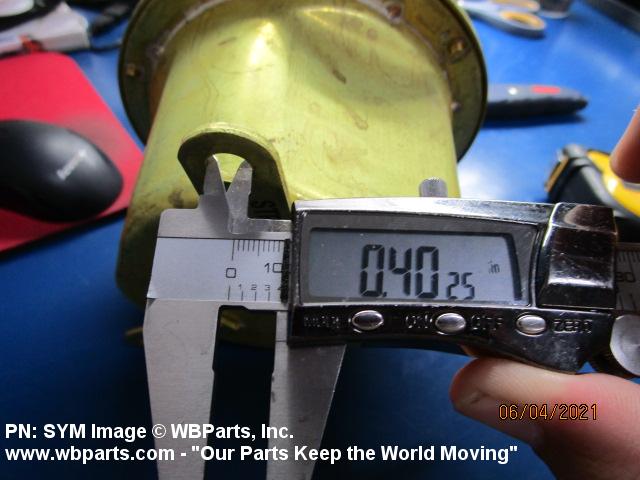

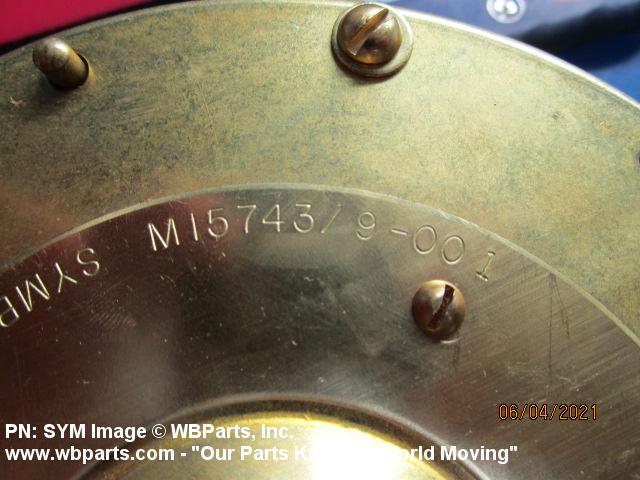

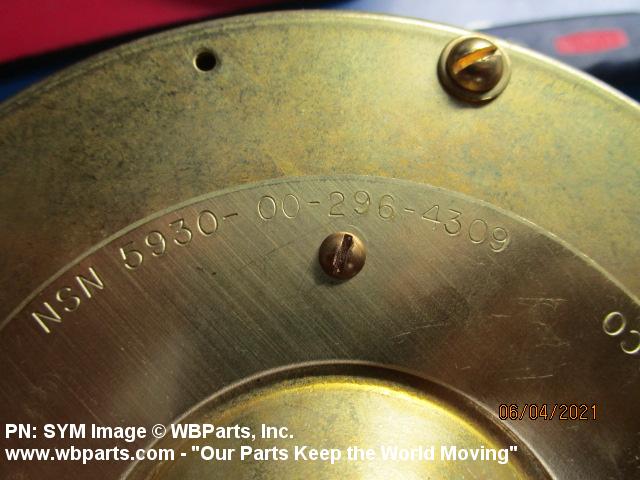

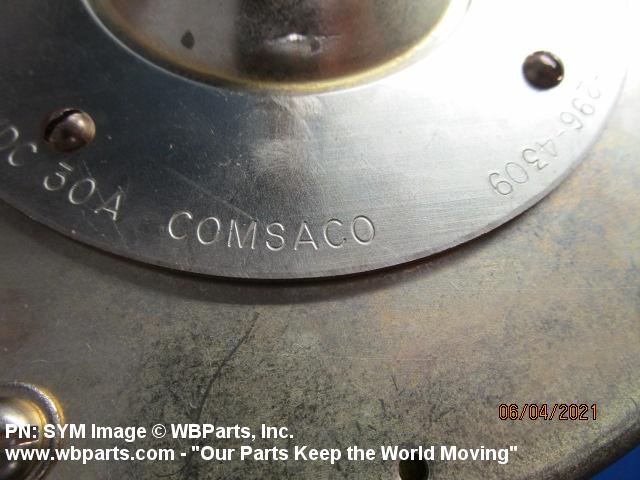

Drawings & Photos | NSN 5930-01-265-8017
Demand History | NSN 5930-01-265-8017
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M157439001 | 2025-09-267 | 5 | United States |
| 5930-01-265-8017 | 2022-07-188 | 16 | DIBBS |
| 5930-01-265-8017 | 2021-05-130 | 2 | United States |
| 5930-01-265-8017 | 2018-03-67 | 15 | DIBBS |
| 5930-01-265-8017 | 2015-08-237 | 17 | DIBBS |
| 5930-01-265-8017 | 2013-04-120 | 19 | DIBBS |
Cross Reference | NSN 5930-01-265-8017
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-265-8017
Related Products | NSN 5930-01-265-8017
Technical Data | NSN 5930-01-265-8017
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10A TAP, CIRCULAR FRAME |
| OVERALL LENGTH | 5.560 INCHES NOMINAL |

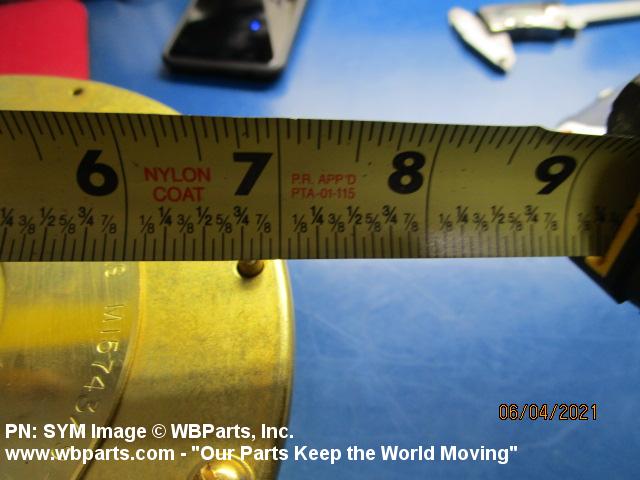

| OVERALL DIAMETER | 7.370 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 4 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION PERIPHERY |
| THROW QUANTITY | 4 EACH SECTION PERIPHERY |

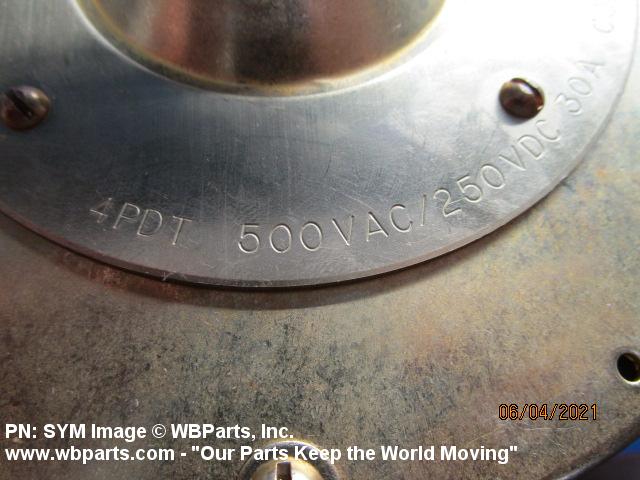

| CONTACT VOLTAGE RATING IN VOLTS | 500.0 AC AT SEA LEVEL 250.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 30.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 30.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 4 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 90.0 DEGREES SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY CIRCLE RADIUS | 3.310 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| TEST DATA DOCUMENT | 81349-MIL-S-15743 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-15743/9 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-15743/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M15743/9-001 |
Restrictions/Controls & Freight Information | NSN 5930-01-265-8017
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-265-8017
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
