NSN 5930-01-362-8908 330134GSK, 01-362-8908, 013628908
Product Details | ROTARY SWITCH
5930-01-362-8908 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 330134GSK, 5930-01-362-8908, 01-362-8908, 5930013628908, 013628908
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 AUG 1992 | 01-362-8908 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-362-8908
Cross Reference | NSN 5930-01-362-8908
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 330134GSK | 97525 | TRANSICO INC. DBA EECO SWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-362-8908
Technical Data | NSN 5930-01-362-8908
| Characteristic | Specifications |
|---|---|

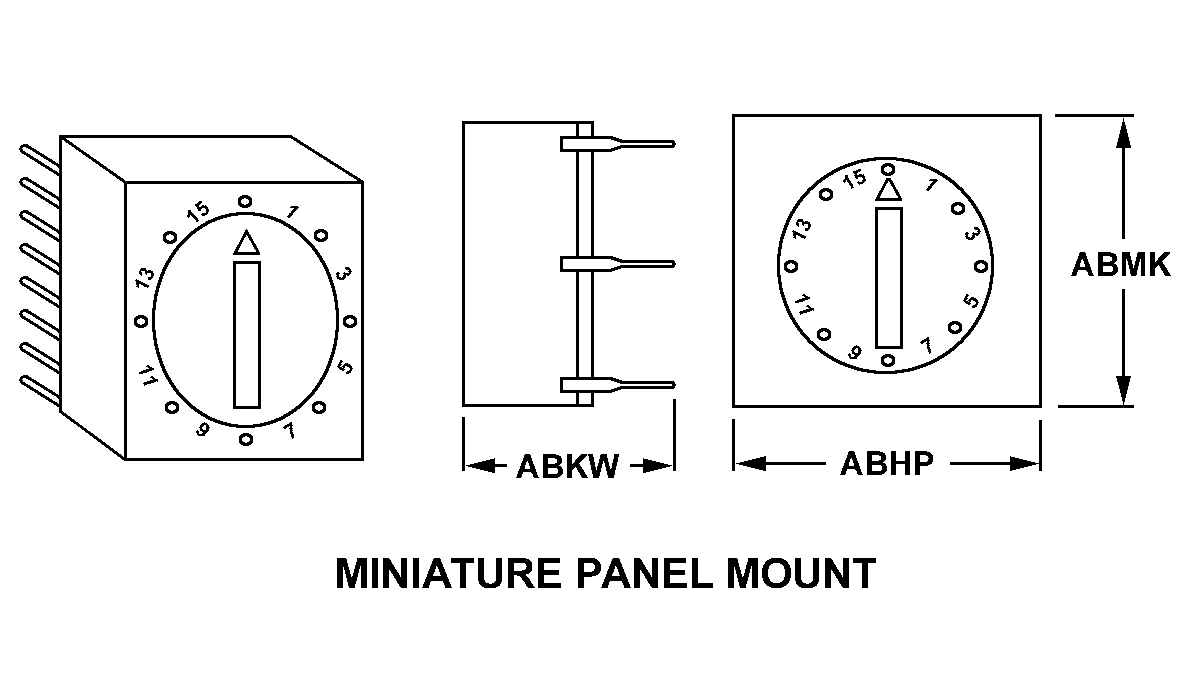

| STYLE DESIGNATOR | 28 MINIATURE PANEL MOUNT |
| OVERALL LENGTH | 0.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.325 INCHES MAXIMUM |
| OVERALL WIDTH | 0.380 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | CODED |
| CONTACT ARRANGEMENT TRUTH TABLE | BINARY COMPLEMENT ONLY, 1 POLE - 16 POSITIONS SINGLE SECTION |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 16 SINGLE ACTUATOR |
Restrictions/Controls & Freight Information | NSN 5930-01-362-8908
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
