NSN 5930-01-478-0101 HW1BY2C02R, HW1B-Y2C02-R, 9819540
Product Details | PUSH-PULL SWITCH
5930-01-478-0101 A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY.
Part Alternates: HW1BY2C02R, HW1B-Y2C02-R, 9819540, 98-19540, 5930-01-478-0101, 01-478-0101, 5930014780101, 014780101
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 AUG 2000 | 01-478-0101 | 00407 ( SWITCH, PUSH-PULL ) |

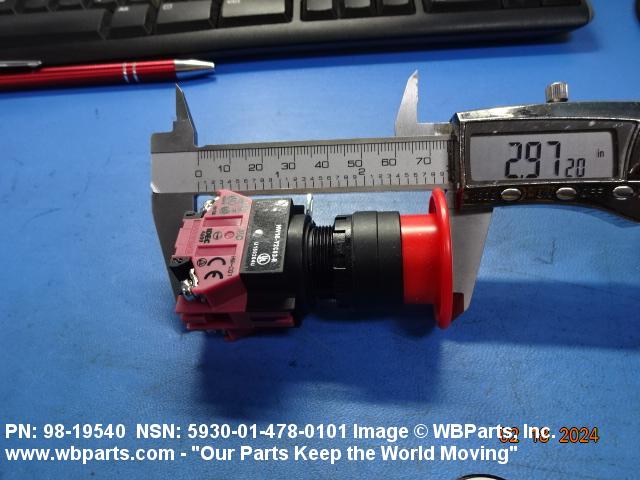

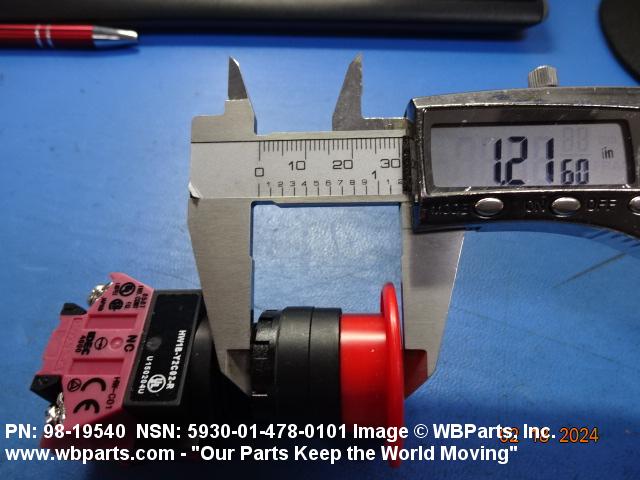

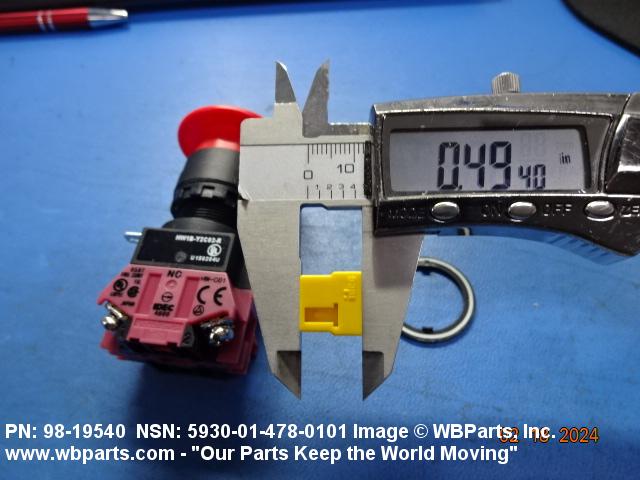

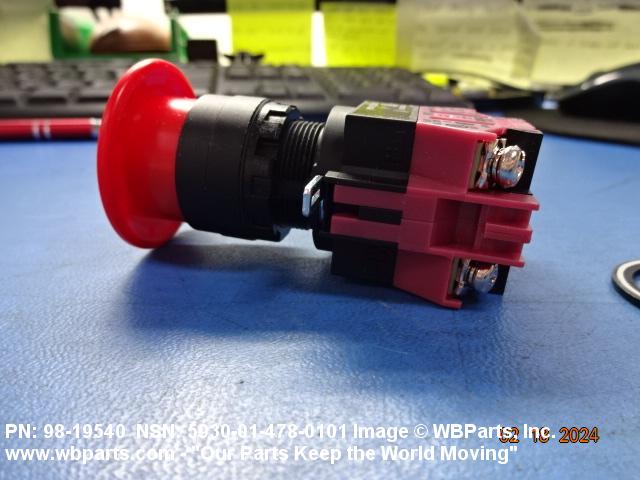

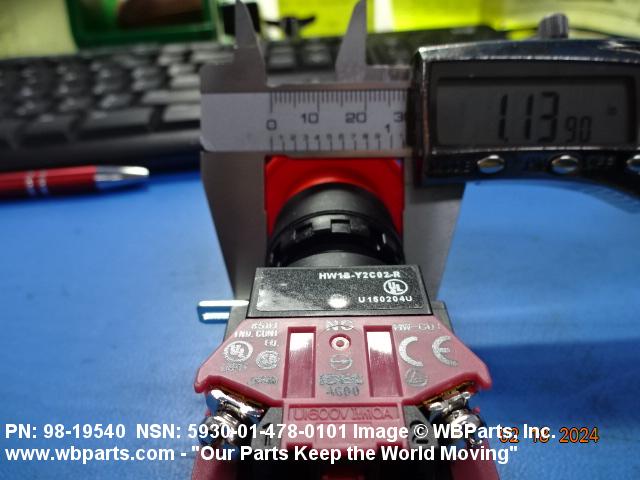

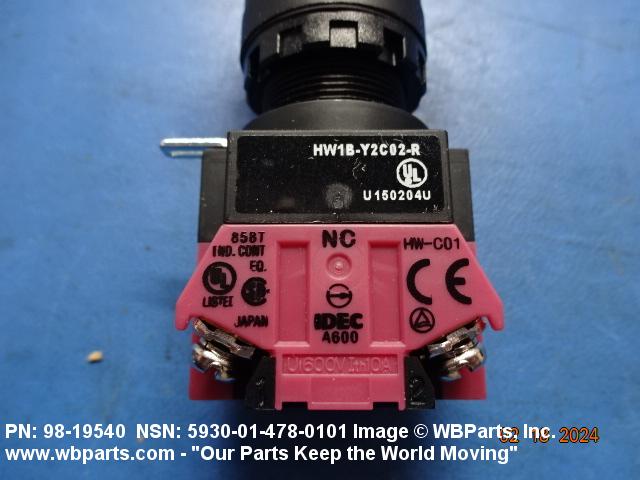

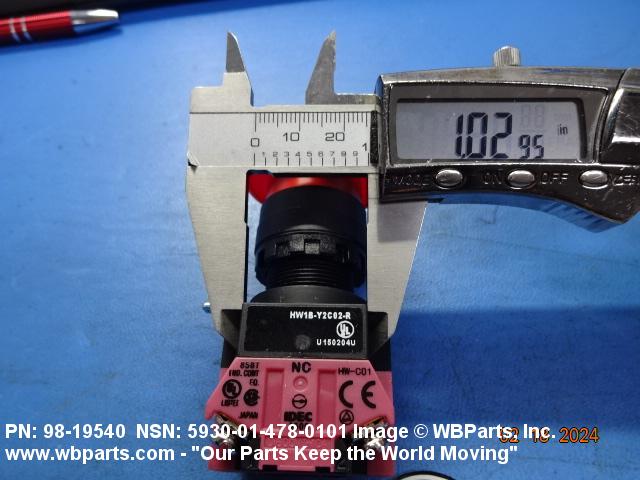

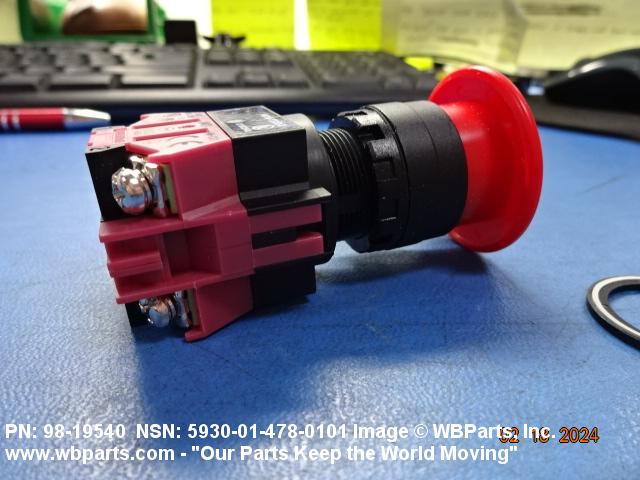

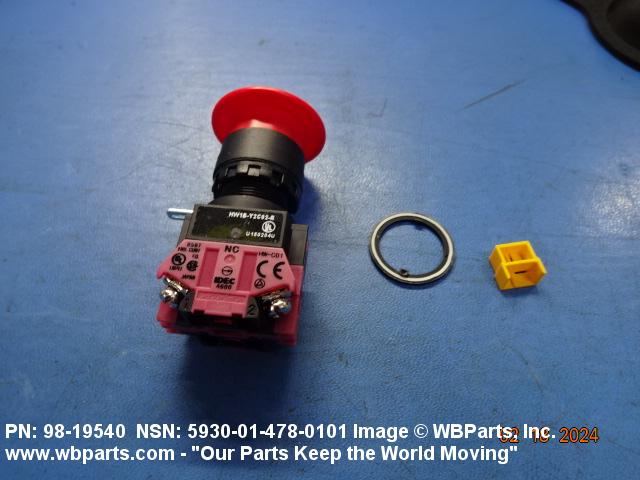

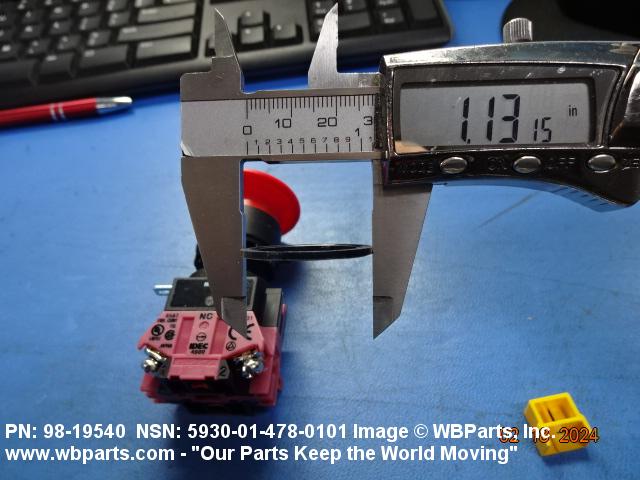

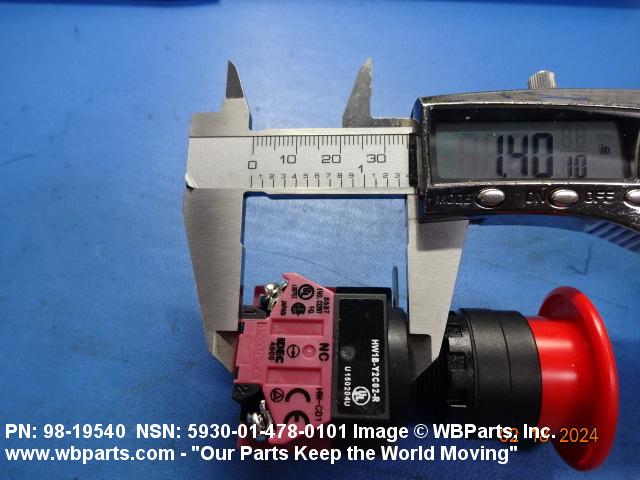

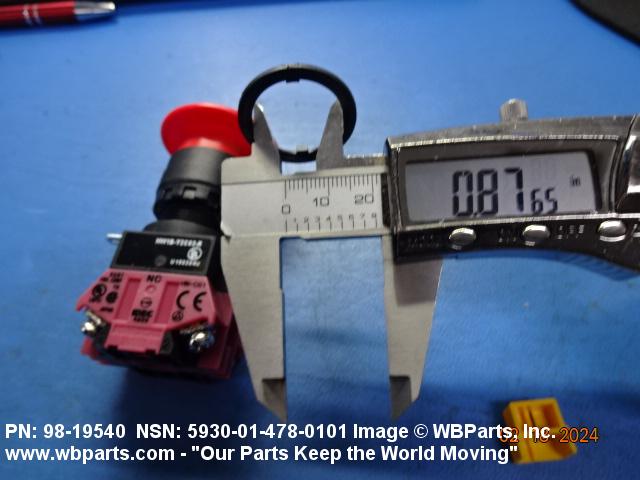

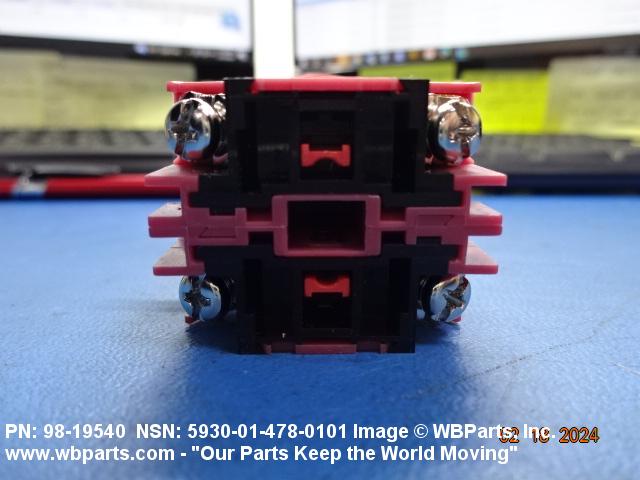

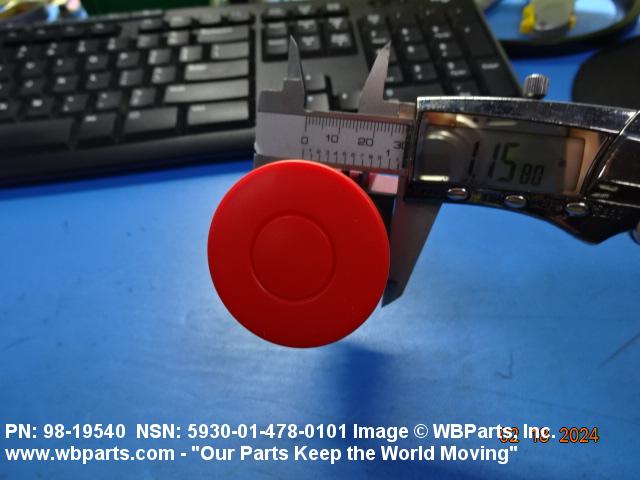

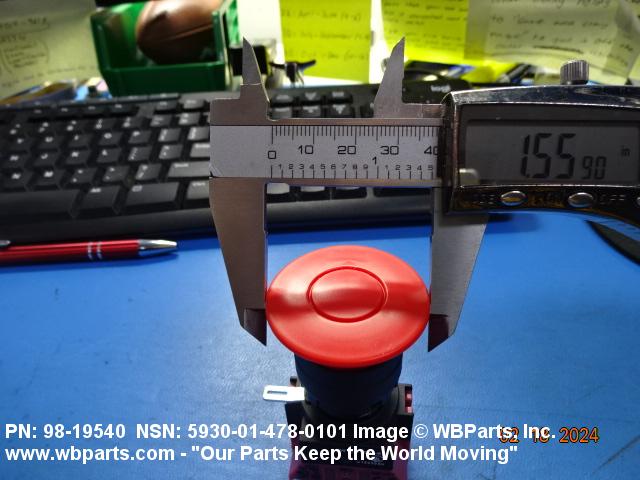

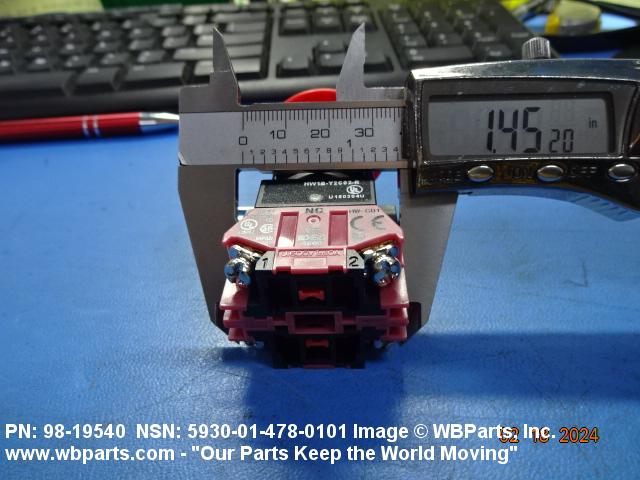

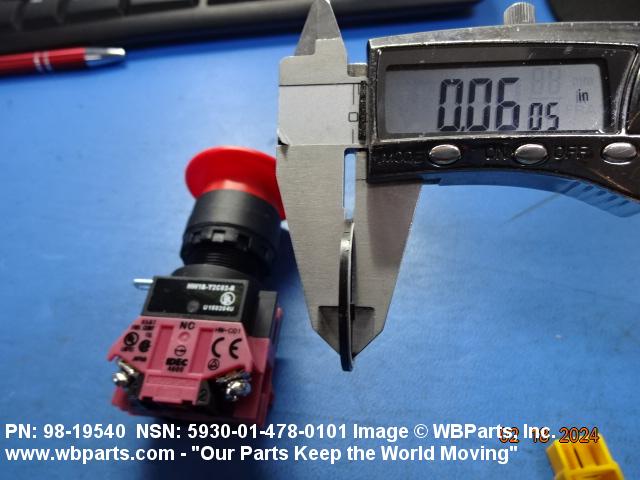

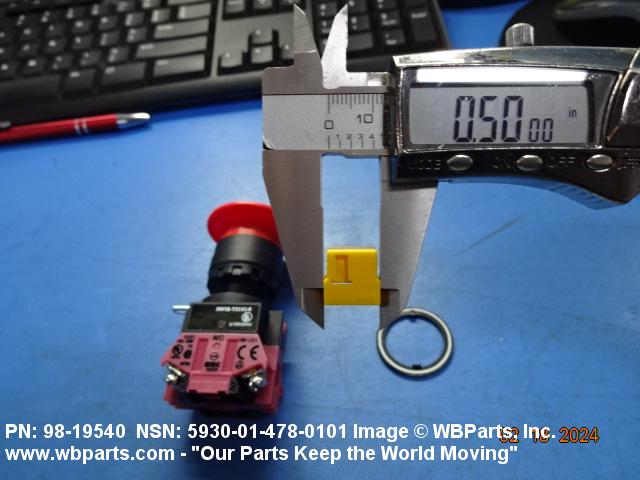

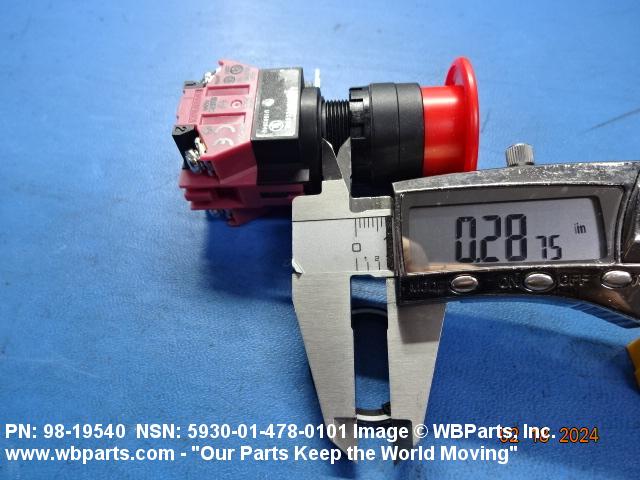

Drawings & Photos | NSN 5930-01-478-0101
Demand History | NSN 5930-01-478-0101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HW1B-Y202-R | 2024-06-168 | 1700 | DIBBS |
| 5930-01-478-0101 | 2024-01-03 | 3 | United States |
| HW1B-Y2C02-R | 2023-12-339 | 1230 | DIBBS |
| HW1B-Y2C02-R | 2023-11-305 | 351 | DIBBS |
| HW1B-Y2C02-R | 2023-03-82 | 493 | DIBBS |
| HW1B-Y2C02-R | 2023-01-23 | 506 | DIBBS |
| HW1B-Y2C02-R | 2022-11-334 | 98 | DIBBS |
| HW1B-Y2C02-R | 2022-09-261 | 64 | DIBBS |
| HW1B-Y2C02-R | 2022-07-195 | 98 | DIBBS |
| HW1B-Y2C02-R | 2021-04-94 | 164 | DIBBS |
| 5930-01-478-0101 | 2019-11-330 | 1 | US |
| 5930-01-478-0101 | 2019-04-114 | 1 | DIBBS-RFPs |
| 5930-01-478-0101 | 2018-03-66 | 1426 | DIBBS |
| 5930-01-478-0101 | 2017-10-295 | 500 | DIBBS |
| 5930-01-478-0101 | 2017-08-215 | 590 | DIBBS |
| 5930-01-478-0101 | 2016-07-193 | 549 | DIBBS |
| 5930-01-478-0101 | 2015-02-37 | 1 | US |
| 5930-01-478-0101 | 2015-02-37 | 1 | US |
| 5930-01-478-0101 | 2014-10-303 | 1025 | DIBBS |
| 5930-01-478-0101 | 2014-07-187 | 823 | DIBBS |
| 5930-01-478-0101 | 2014-02-48 | 345 | DIBBS |
| 5930-01-478-0101 | 2012-08-243 | 701 | DIBBS |
| 5930-01-478-0101 | 2012-06-181 | 262 | DIBBS |
| 5930-01-478-0101 | 2012-03-75 | 391 | DIBBS |
| 5930-01-478-0101 | 2011-11-307 | 441 | DIBBS |
| 5930-01-478-0101 | 2011-08-224 | 354 | DIBBS |
| 5930-01-478-0101 | 2011-07-210 | 323 | DIBBS |
| 5930-01-478-0101 | 2011-06-167 | 260 | DIBBS |
| 5930-01-478-0101 | 2011-04-102 | 150 | DIBBS |
| 5930-01-478-0101 | 2011-04-91 | 155 | DIBBS |
| 5930-01-478-0101 | 2011-01-08 | 355 | DIBBS |
| 5930-01-478-0101 | 2010-07-211 | 303 | DIBBS |
| 5930-01-478-0101 | 2010-04-102 | 259 | DIBBS |
| 5930-01-478-0101 | 2010-03-84 | 267 | DIBBS |
| 5930-01-478-0101 | 2010-01-06 | 255 | DIBBS |
| 5930-01-478-0101 | 2009-10-302 | 229 | DIBBS |
| 5930-01-478-0101 | 2009-09-254 | 169 | DIBBS |
| 5930-01-478-0101 | 2009-07-212 | 145 | DIBBS |
| 5930-01-478-0101 | 2009-05-138 | 189 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 110 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 114 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 119 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 153 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 163 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 164 | DIBBS |
| 5930-01-478-0101 | 2009-05-134 | 168 | DIBBS |
| 5930-01-478-0101 | 2009-05-125 | 3 | DIBBS |
| 5930-01-478-0101 | 2009-05-122 | 164 | DIBBS |
| 5930-01-478-0101 | 2009-04-117 | 153 | DIBBS |
| 5930-01-478-0101 | 2009-04-100 | 119 | DIBBS |
| 5930-01-478-0101 | 2009-04-98 | 163 | DIBBS |
| 5930-01-478-0101 | 2009-03-77 | 114 | DIBBS |
| 5930-01-478-0101 | 2009-02-49 | 119 | DIBBS |
| 5930-01-478-0101 | 2009-02-36 | 23 | DIBBS |
| 5930-01-478-0101 | 2009-01-29 | 168 | DIBBS |
| 5930-01-478-0101 | 2008-11-316 | 385 | DIBBS |
| 5930-01-478-0101 | 2008-10-281 | 91 | DIBBS |
| 5930-01-478-0101 | 2008-09-267 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-478-0101
Related Products | NSN 5930-01-478-0101
Technical Data | NSN 5930-01-478-0101
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 4.000 AMPERES INDUCTIVE DC |
| BODY STYLE | 52K PANEL MOUNT |
| BODY LENGTH | 1.600 INCHES MAXIMUM |
| BODY HEIGHT | 2.000 INCHES MAXIMUM |
| ACTUATOR STYLE | 4 ROUND |
| ACTUATOR DIAMETER | 1.600 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 1.200 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| INCLOSURE TYPE | UNINCLOSED |
| MOUNTING METHOD | PANEL |
| III END ITEM IDENTIFICATION | 6115-01-285-3012, P/N MEP831A, 3 KW GEN SET |
Restrictions/Controls & Freight Information | NSN 5930-01-478-0101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-478-0101
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
