NSN 5930-01-584-6717 MS27724, MS277241, MS27724-1
Product Details | TOGGLE SWITCH
5930-01-584-6717 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS27724, MS277241, MS27724-1, 5930-01-584-6717, 01-584-6717, 5930015846717, 015846717
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 MAY 2010 | 01-584-6717 | 00184 ( SWITCH, TOGGLE ) |

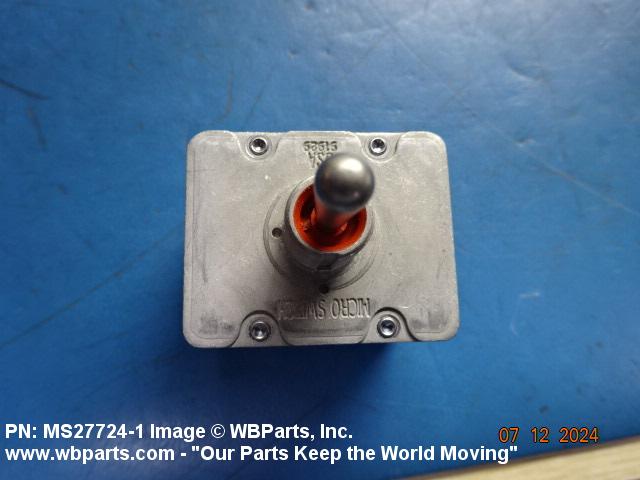

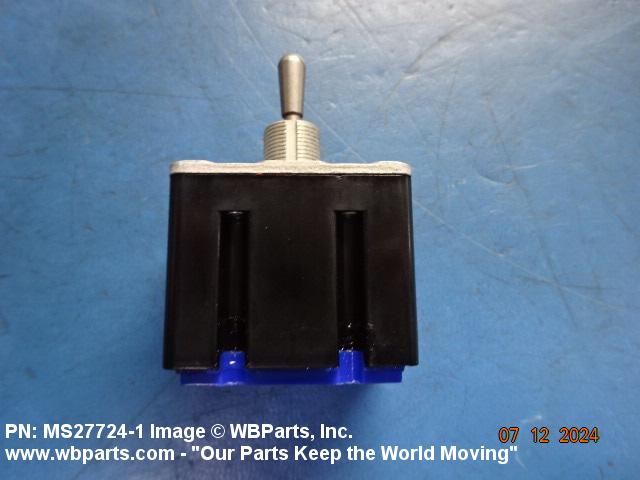

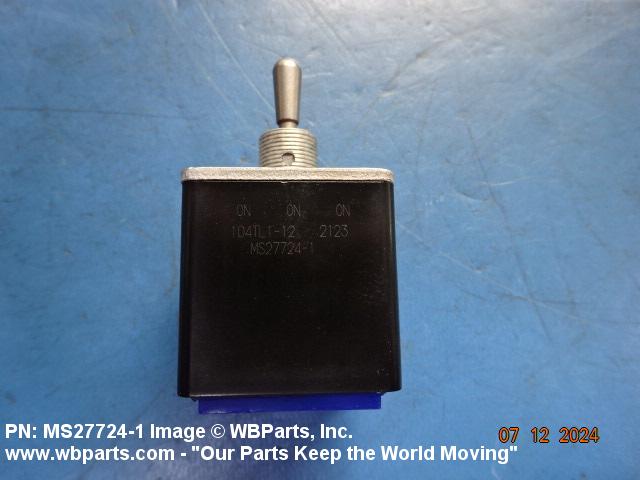

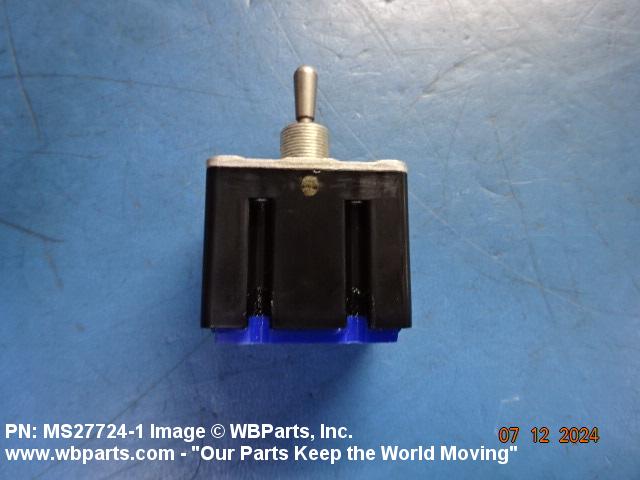

Drawings & Photos | NSN 5930-01-584-6717
Demand History | NSN 5930-01-584-6717
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS277241 | 2024-06-166 | 40 | United States |
| 5930-01-584-6717 | 2015-08-230 | 3 | United States |
| 5930-01-584-6717 | 2015-05-131 | 13 | DIBBS |
| 5930-01-584-6717 | 2014-06-160 | 5 | DIBBS |
| 5930-01-584-6717 | 2012-08-244 | 5 | DIBBS |
| 5930-01-584-6717 | 2012-02-46 | 5 | DIBBS |
| 5930-01-584-6717 | 2010-11-328 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-584-6717
Related Products | NSN 5930-01-584-6717
Technical Data | NSN 5930-01-584-6717
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 12 SCREW |
| ACTUATOR HEIGHT | 0.670 INCHES NOMINAL |
| BODY LENGTH | 1.706 INCHES MAXIMUM |
| BODY HEIGHT | 1.340 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND CENTER POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| BODY WIDTH | 1.660 INCHES MAXIMUM |
| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |
| BUSHING LENGTH | 0.470 INCHES NOMINAL |
| ACTUATOR STYLE | ROUND |
| MOUNTING METHOD | PANEL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 4.000 AMPERES LAMP AC AND 15.000 AMPERES RESISTIVE AC AND 5.000 AMPERES LAMP DC AND 20.000 AMPERES RESISTIVE DC AND 12.000 AMPERES INDUCTIVE DC |
| BODY STYLE | BUSHING MOUNT |
Restrictions/Controls & Freight Information | NSN 5930-01-584-6717
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-584-6717
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
