NSN 5935-00-018-1415 MRS0158S03PN000, 3727869040, 372-7869-040
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY

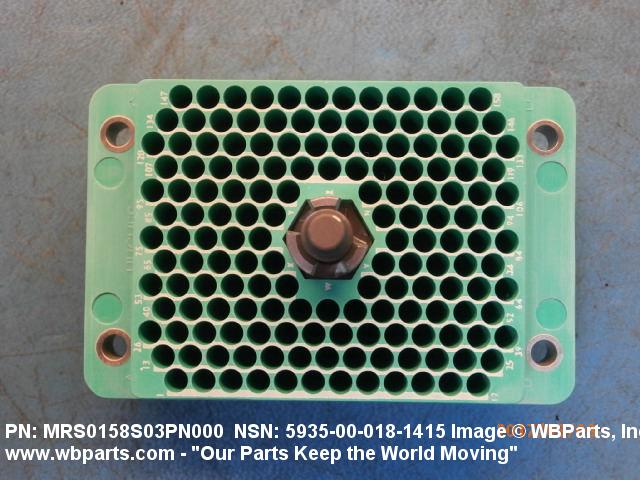

5935-00-018-1415 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MRS0158S03PN000, 3727869040, 372-7869-040, 3935, 5935-00-018-1415, 00-018-1415, 5935000181415, 000181415
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 MAY 1968 | 00-018-1415 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

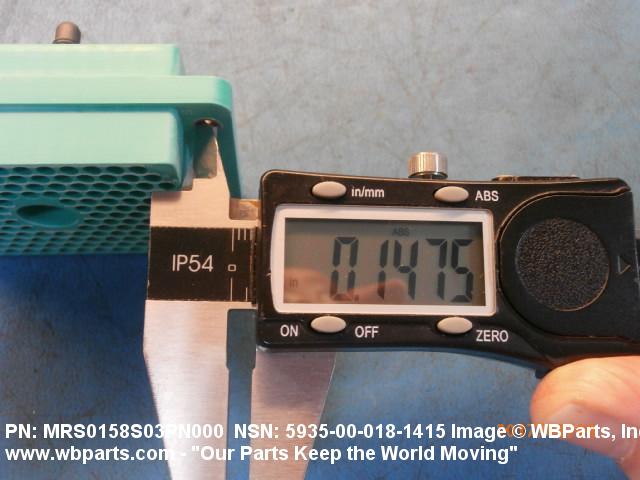

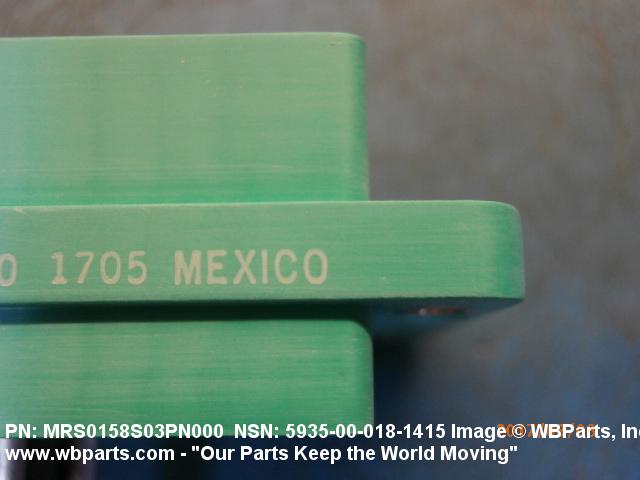

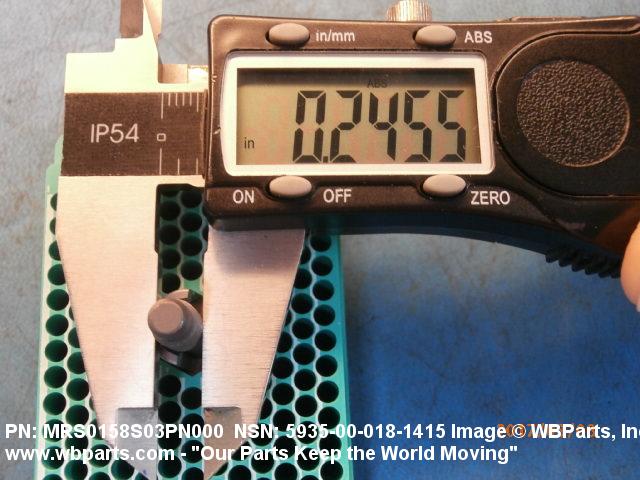

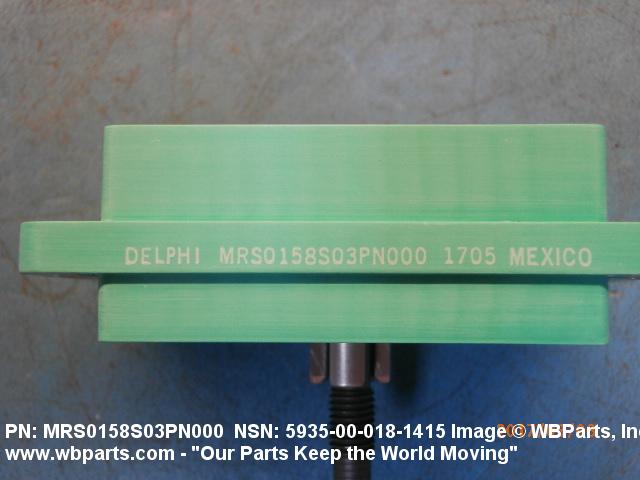

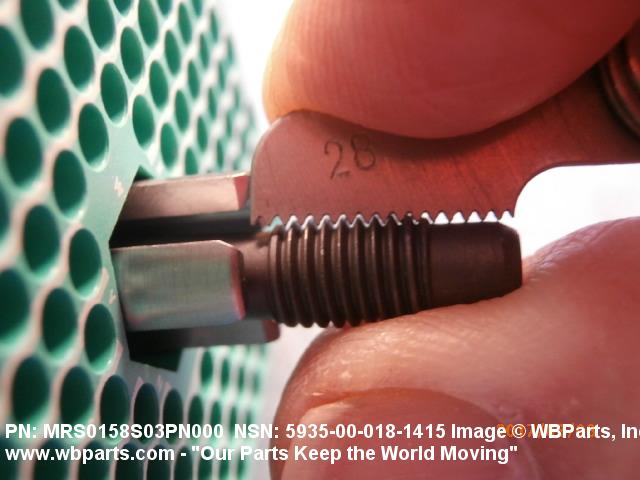

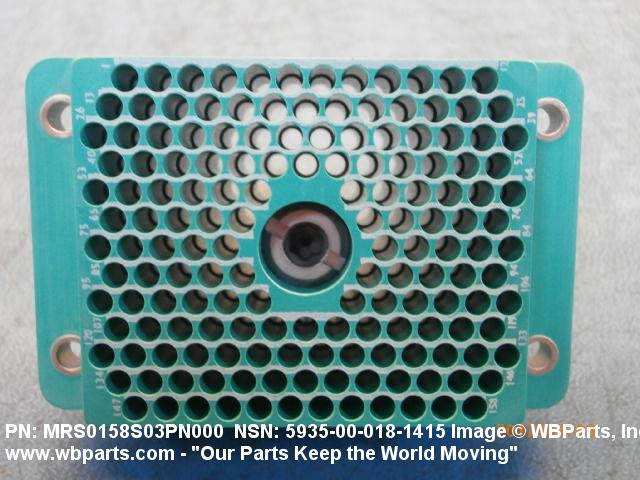

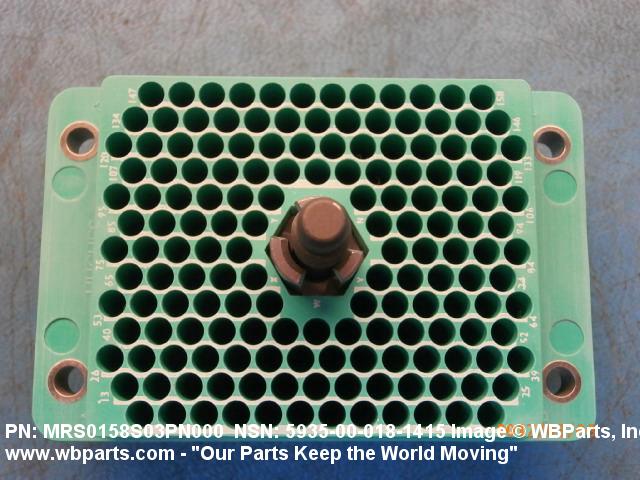

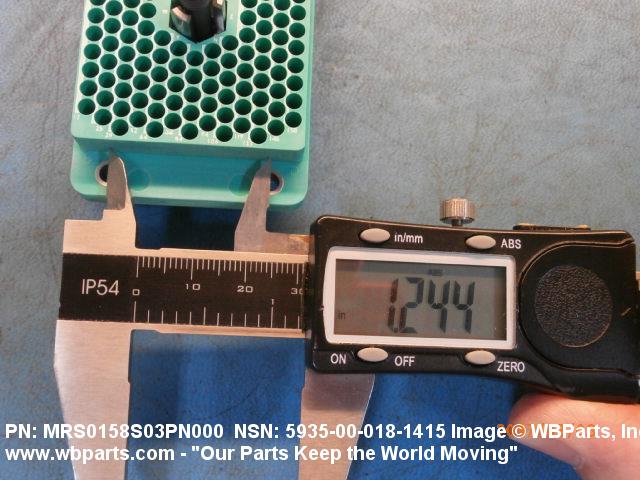

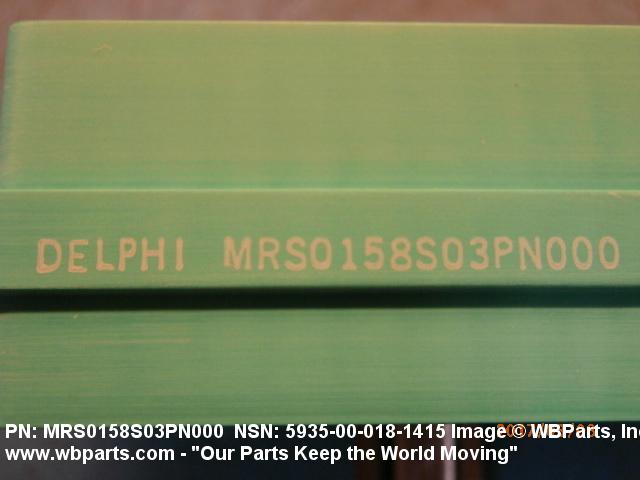

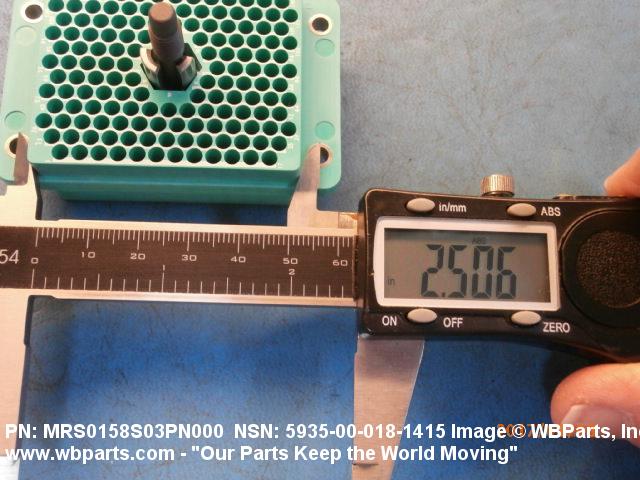

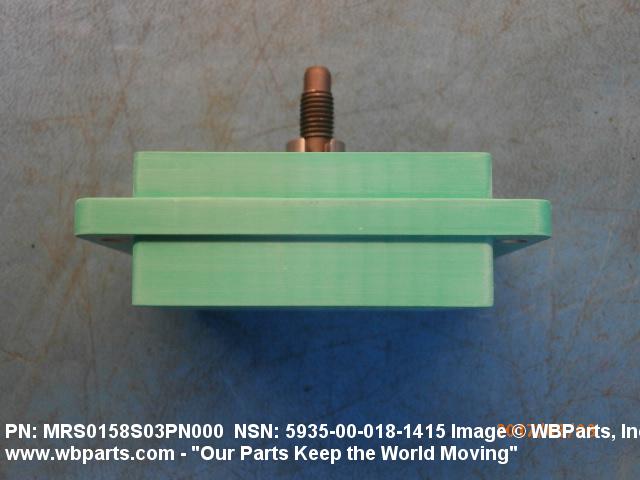

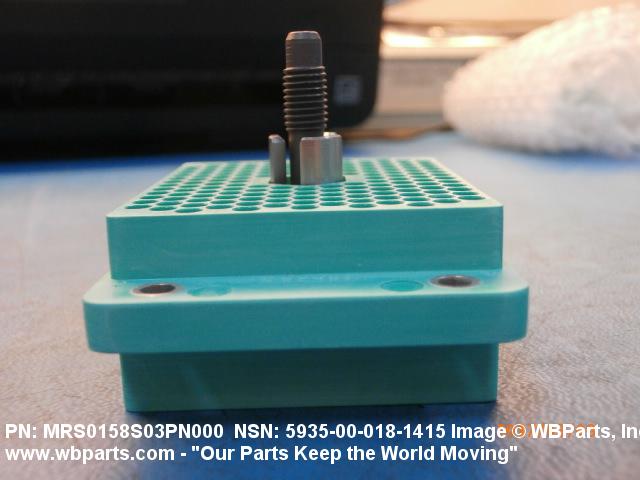

Drawings & Photos | NSN 5935-00-018-1415
Demand History | NSN 5935-00-018-1415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MRS0158S03PN000 | 2023-11-332 | 17 | DIBBS |
| 5935-00-018-1415 | 2023-10-296 | 1 | US |
| 5935-00-018-1415 | 2023-09-248 | 1 | US |
| MRS0158S03PN000 | 2023-02-40 | 6 | DIBBS |
| 5935-00-018-1415 | 2019-01-29 | 1 | United States |
| 5935-00-018-1415 | 2018-11-309 | 1 | US |
| 5935-00-018-1415 | 2017-09-272 | 6 | TW |
| 5935-00-018-1415 | 2017-01-26 | 2 | Canada |
| 5935-00-018-1415 | 2015-11-314 | 44 | DIBBS |
| 5935-00-018-1415 | 2015-10-302 | 44 | DIBBS |
| 5935-00-018-1415 | 2013-11-308 | 36 | DIBBS |
| 5935-00-018-1415 | 2013-02-58 | 17 | DIBBS |
| 5935-00-018-1415 | 2012-03-68 | 0 | DIBBS |
| MRS0158S03PN000 | 2012-02-45 | 1 | UK |
| MRS0158S03PN000 | 2011-11-318 | 5 | US |
| 5935-00-018-1415 | 2011-04-91 | 35 | DIBBS |
| 3727869040 | 2010-11-305 | 1 | US |
| MRS0158S03PN000 | 2010-02-54 | 8 | US |
| 5935-00-018-1415 | 2009-04-104 | 29 | DIBBS |
| MRS0158S03PN000 | 2008-10-281 | 1 | Korea |
| 5935-00-018-1415 | 2006-03-75 | 36 | DIBBS |
Cross Reference | NSN 5935-00-018-1415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 372-7869-040 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 3935 | 02227 | NAVAL ELECTRONIC SYSTEMS SECURITY ENGINEERING CENTER |
| MRS0158S03PN000 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
| MRS0158S03PN000 | 73293 | L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-018-1415
Related Products | NSN 5935-00-018-1415
Technical Data | NSN 5935-00-018-1415
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31G STRAIGHT SHAPE, RECTANGULAR |

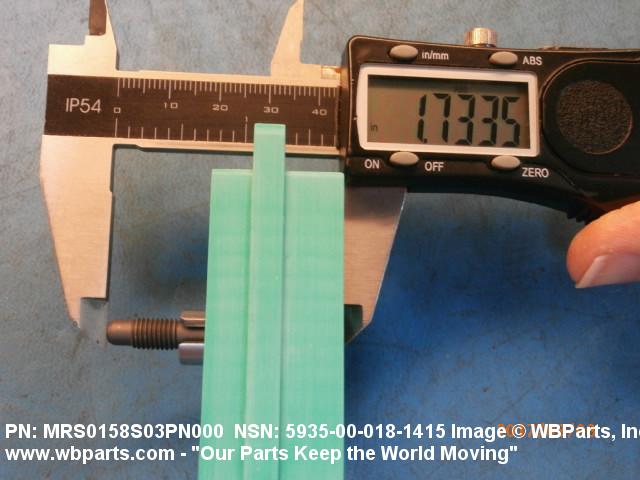

| OVERALL LENGTH | 1.740 INCHES NOMINAL |

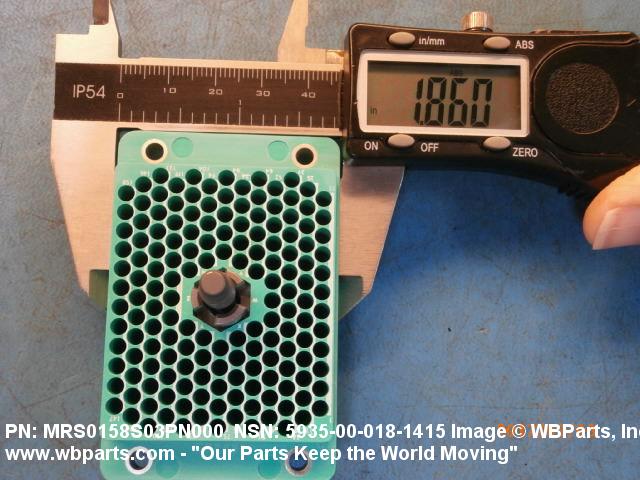

| OVERALL HEIGHT | 1.860 INCHES NOMINAL |

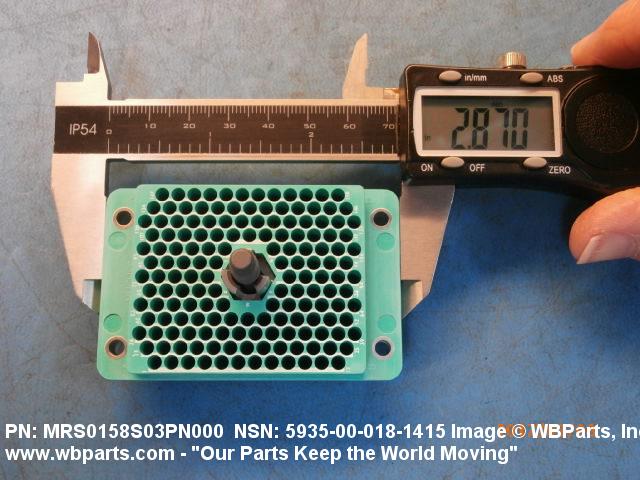

| OVERALL WIDTH | 2.875 INCHES NOMINAL |
