NSN 5935-00-146-2393 DBMB17W2P9, 1142520018, 114-252-0018
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-146-2393 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DBMB17W2P9, 1142520018, 114-252-0018, 5935-00-146-2393, 00-146-2393, 5935001462393, 001462393
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 SEP 1971 | 00-146-2393 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-146-2393
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-146-2393
Technical Data | NSN 5935-00-146-2393
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 17G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.073 INCHES MINIMUM AND 2.103 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| OVERALL WIDTH | 0.699 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.847 INCHES MINIMUM AND 1.857 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | METAL |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

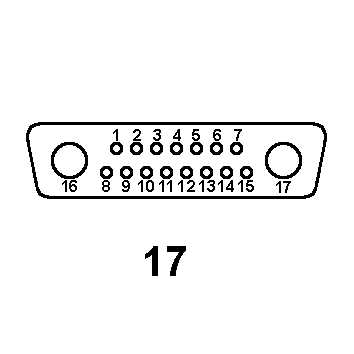

| CONTACT POSITION ARRANGEMENT STYLE | ATBC 17 SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 2 ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING 1ST ACCOMMODATED CONTACT TYPE 15 ROUND PIN SINGLE MATING END 2ND CONTACT GROUPING 2ND ACCOMMODATED CONTACT TYPE |
