NSN 5935-00-192-4753 M642/5-1, M642/5-1 480, M64251

Product Details | TELEPHONE PLUG

5935-00-192-4753 A concentric type electrical fitting consisting of two or more conductors on a common shank. The contacts on two or three conductor plugs are termed sleeve, tip, or ring. It includes multiple shank plugs of this type. Excludes PLUG, TIP.

Part Alternates: M642/5-1, M642/5-1 480, M64251, M64251480, AG285121, AG28512-1, ASC1390521, SCD375, MILP642, MIL-P-642, PJ068, PJ-068, JANP642, KS1088, 666068-523, 0284505, 3610001000, 361-0001-000, 480, 480X, 5M454122346, 5M4541-223-46, 6100.008, 6100008, 5935-00-192-4753, 00-192-4753, 5935001924753, 666068523, 001924753

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-192-4753	00178 ( PLUG, TELEPHONE )

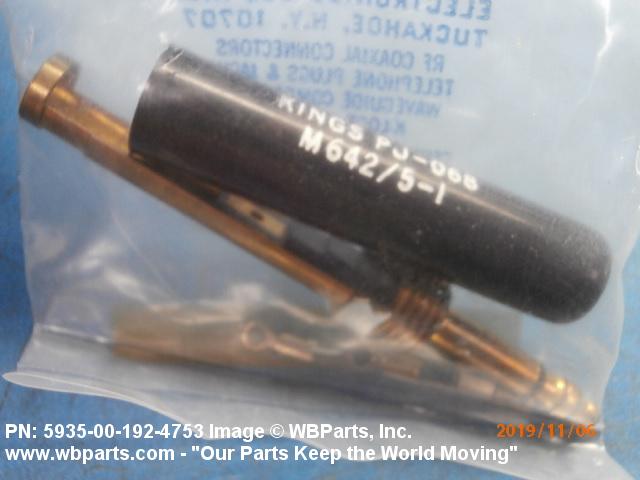

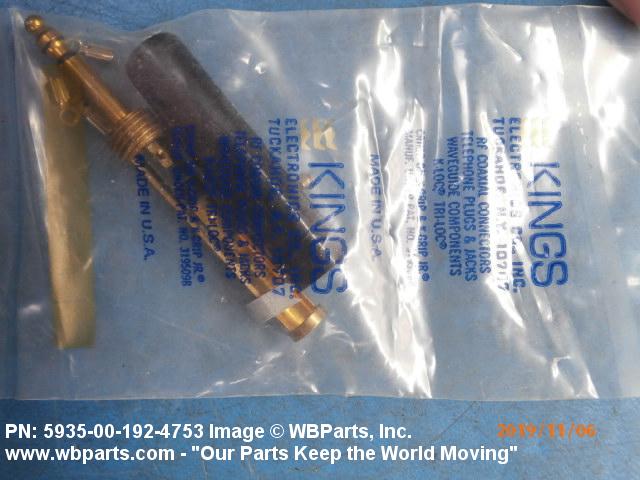

Drawings & Photos | NSN 5935-00-192-4753

Part Number	Request Date	QTY	Origin
480X	2023-08-215	475	DIBBS
480X	2023-01-12	65	DIBBS
480X	2022-12-349	38	DIBBS
480X	2022-10-296	37	DIBBS
480X	2021-11-307	150	DIBBS
480X	2021-10-292	150	DIBBS
6100008	2021-09-263	1	AE
480X	2020-10-301	316	DIBBS
480X	2020-10-287	316	DIBBS
5935-00-192-4753	2020-08-231	5	US
5935-00-192-4753	2019-10-294	15	United States
5935-00-192-4753	2019-10-294	15	United States
5935-00-192-4753	2018-08-214	358	DIBBS
5935-00-192-4753	2016-07-213	186	DIBBS
5935-00-192-4753	2016-01-10	372	DIBBS
5935-00-192-4753	2015-07-200	313	DIBBS
5935-00-192-4753	2014-09-247	415	DIBBS
5935-00-192-4753	2013-11-325	519	DIBBS
5935-00-192-4753	2013-05-134	482	DIBBS
5935-00-192-4753	2013-05-121	292	DIBBS
5935-00-192-4753	2013-03-84	10	CN
5935-00-192-4753	2012-12-353	236	DIBBS
5935-00-192-4753	2012-08-243	218	DIBBS
5935-00-192-4753	2012-05-137	231	DIBBS
M64251	2011-08-242	50	France
M64251	2011-08-236	1	CN
5935-00-192-4753	2011-02-46	369	DIBBS
PJ068	2011-02-35	0	US
M64251	2011-01-09	50	IL
PJ068	2011-01-09	50	IL
5935-00-192-4753	2010-07-210	289	DIBBS
M64251	2010-03-67	1	US
M64251	2010-03-67	1	US
5935-00-192-4753	2010-03-63	323	DIBBS
5935-00-192-4753	2008-05-126	861	DIBBS
5935-00-192-4753	2008-04-121	420	DIBBS
5935-00-192-4753	2007-03-72	300	DIBBS
5935-00-192-4753	2007-02-36	600	DIBBS

Cross Reference | NSN 5935-00-192-4753

Part Number	Cage Code	Manufacturer
0284505	D0733	HEIDELBERGER DRUCKMASCHINEN AGPLANNING SERVICE PARTS PREPRESS
361-0001-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
480	82389	SWITCHCRAFT INC.
480X	82389	SWITCHCRAFT INC.
5M4541-223-46	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6100.008	D8875	DAMAR & HAGEN
666068-523	14100	STROMBERG-CARLSON CORP A PLESSEY TELECOMMUNICATIONS CO
AG28512-1	06845	RAYTHEON COMPANY DBA RAYTHEON
ASC1390521	Z4779	ASC PTY LTD
JANP642	81350	JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS
KS1088	92755	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM
M642/5-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M642/5-1 480	82389	SWITCHCRAFT INC.
MIL-P-642	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PJ-068	23338	WAVETEK U S INC DIV OF WAVETEK CORP
PJ-068	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
PJ068	43249	SCHLUMBERGER ELECTRICITIES INC DBA NEPTUNE MEASURE
PJ068	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PJ068	81350	JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS
SCD375	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-192-4753

Compare

Related Products | NSN 5935-00-192-4753

5935-00-192-4754, 5935-00-192-4756, 5935-00-192-4757, 5935-00-192-4758, 5935-00-192-4760

Technical Data | NSN 5935-00-192-4753

Characteristic	Specifications
FINGER TYPE	THREE CONDUCTOR, SLENDER SPHERICAL TIP SINGLE FINGER
FINGER LENGTH	1.093 INCHES NOMINAL SINGLE FINGER
FINGER DIAMETER	0.207 INCHES NOMINAL SINGLE FINGER
BODY STYLE	7 STRAIGHT HANDLE
OVERALL LENGTH	3.156 INCHES NOMINAL
BODY LENGTH	2.125 INCHES NOMINAL
OVERALL DIAMETER	0.500 INCHES NOMINAL
CABLE ENTRANCE DIAMETER	0.296 INCHES NOMINAL
ELECTRICAL INSULATION FEATURE	INSULATED COMPLETELY
MATERIAL	METAL FINGER PLASTIC HANDLE PLASTIC INSULATOR METAL TERMINAL
SURFACE TREATMENT	ANY ACCEPTABLE FINGER ANY ACCEPTABLE TERMINAL
IDENTIFICATION CODE COLOR	BLACK
TERMINAL TYPE	SCREW
MAXIMUM VOLTAGE RATING IN VOLTS	NOT RATED
CURRENT RATING IN AMPS	NOT RATED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-P-642
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M642/5-1

Restrictions/Controls & Freight Information | NSN 5935-00-192-4753

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063300	TELEPHONE TELEPHONE PART ARTICLE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	774	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-192-4753

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
