NSN 5935-00-247-0063 MIS-17259/4-1, MIS1725941, 00-247-0063
Product Details | ELECTRICAL CONNECTOR COVER
5935-00-247-0063 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: MIS-17259/4-1, MIS1725941, 5935-00-247-0063, 00-247-0063, 5935002470063, 002470063
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 FEB 1969 | 00-247-0063 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |

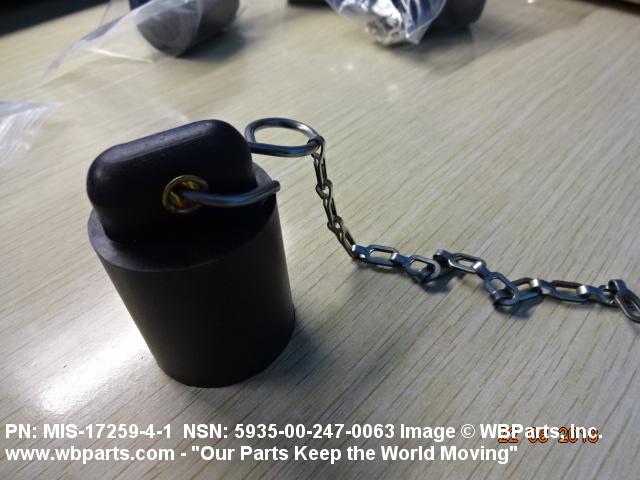

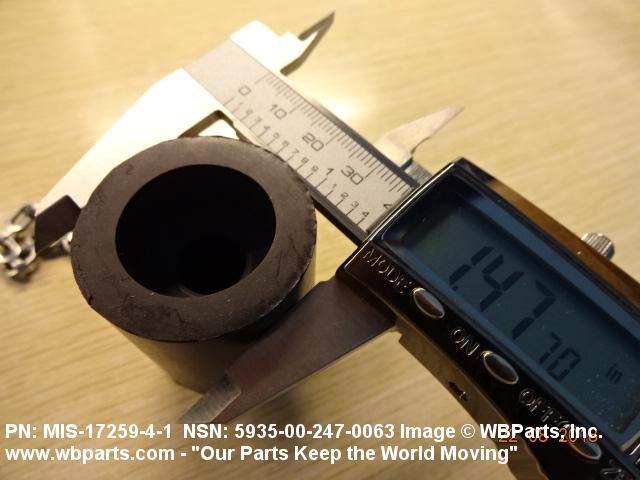

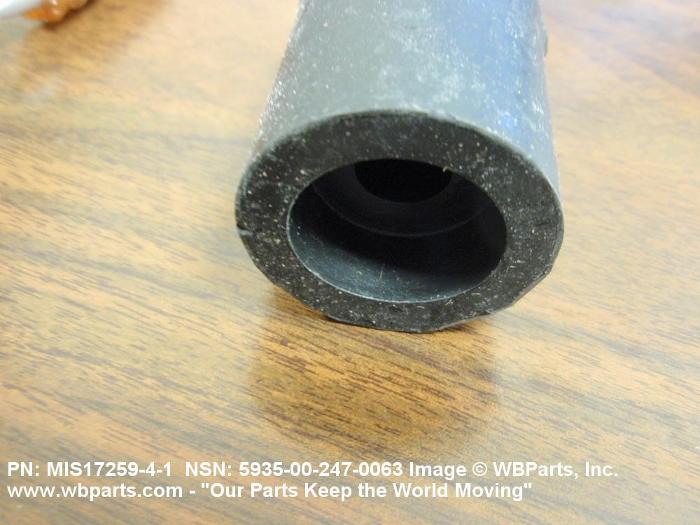

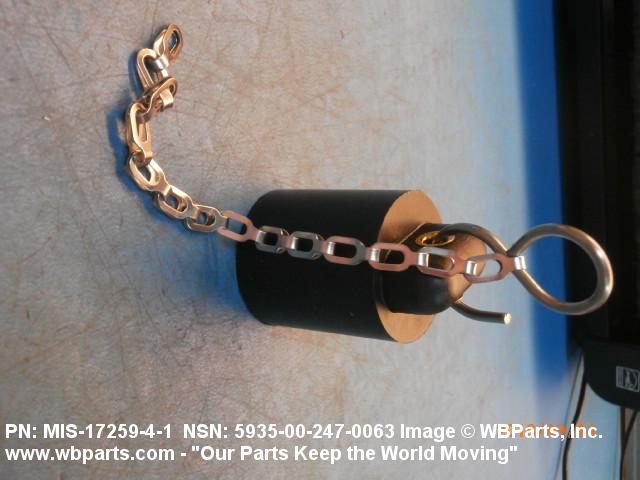

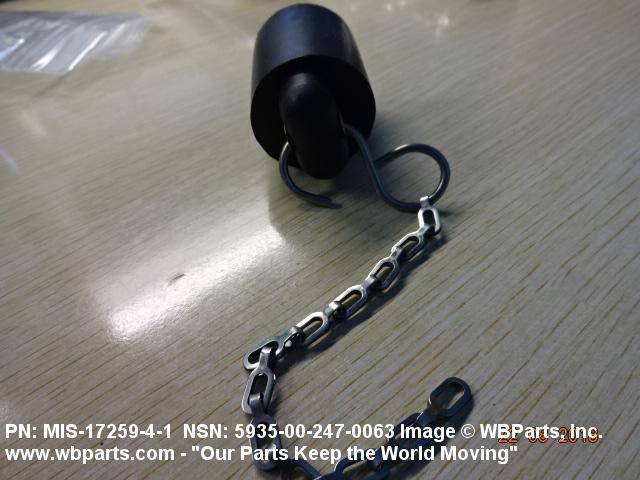

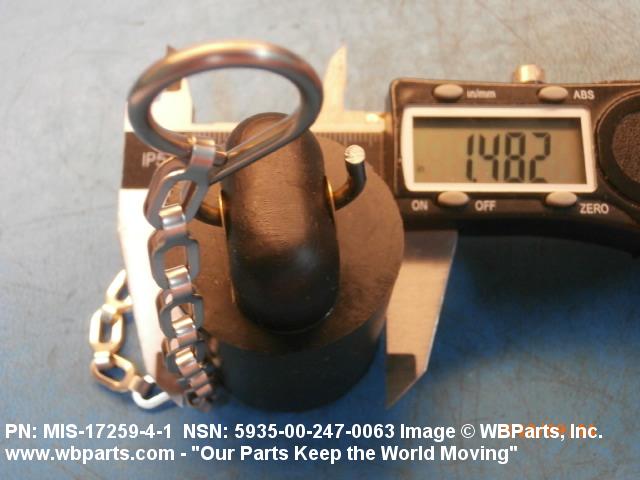

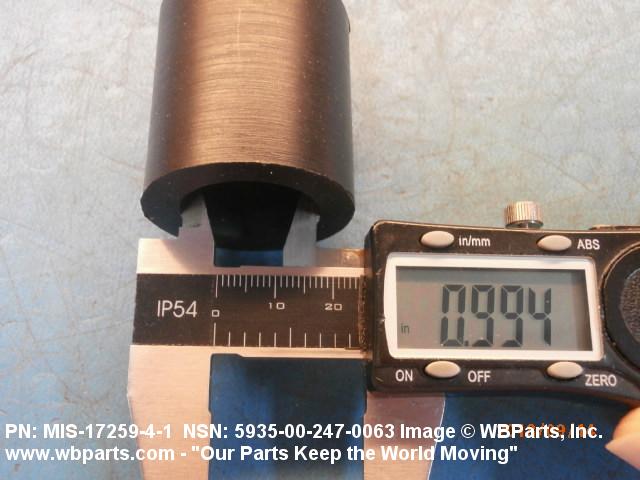

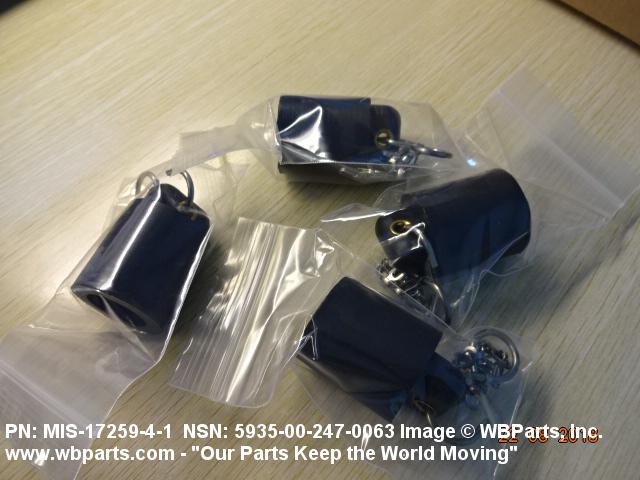

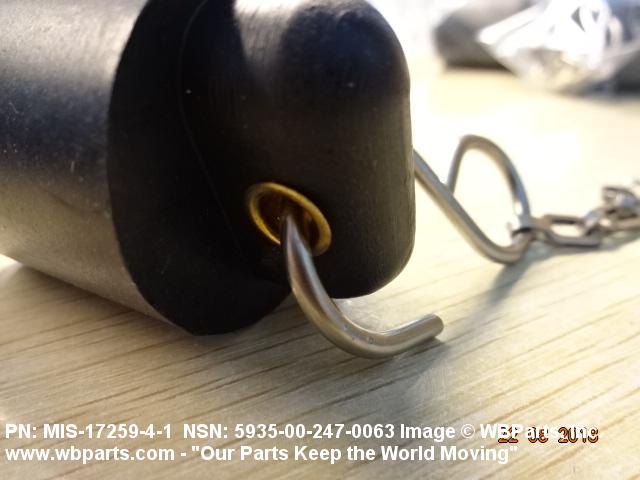

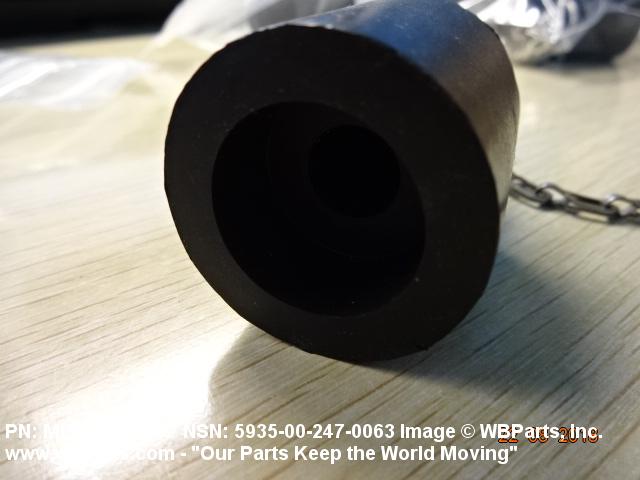

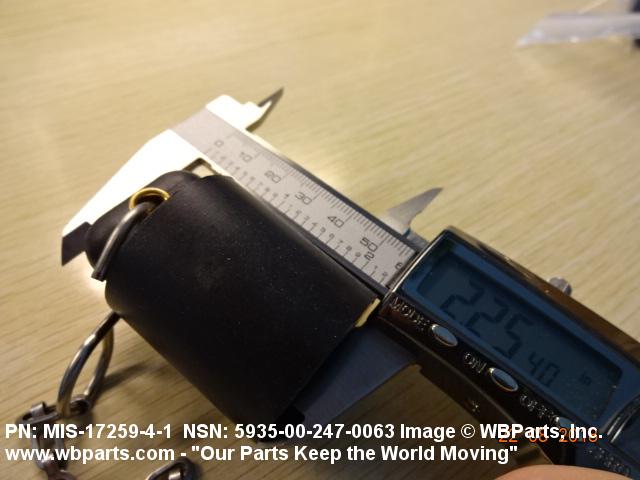

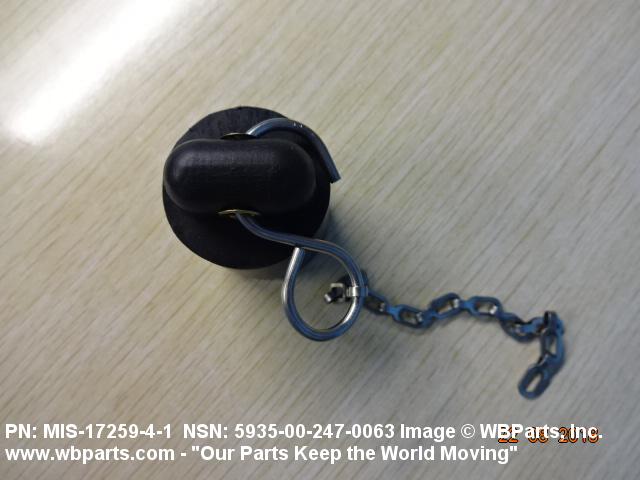

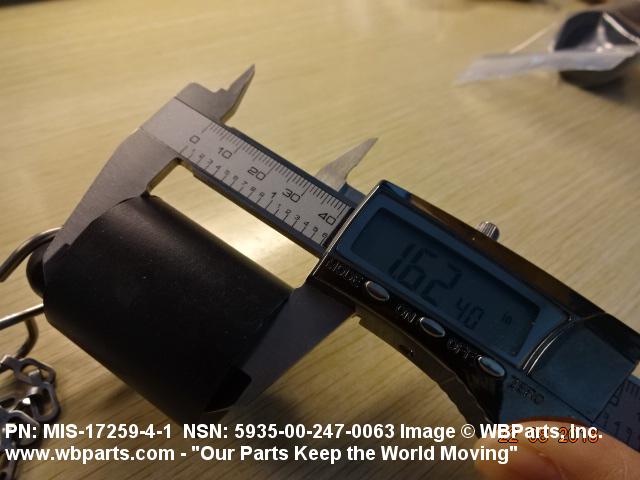

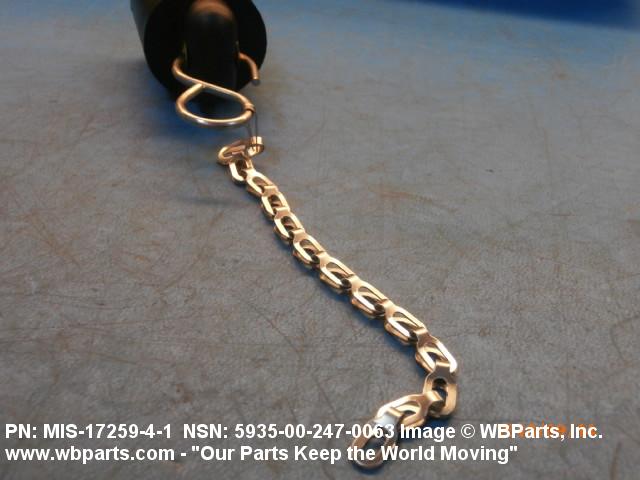

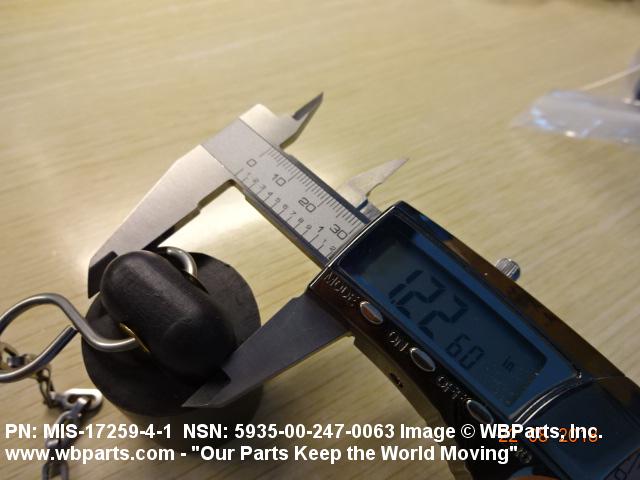

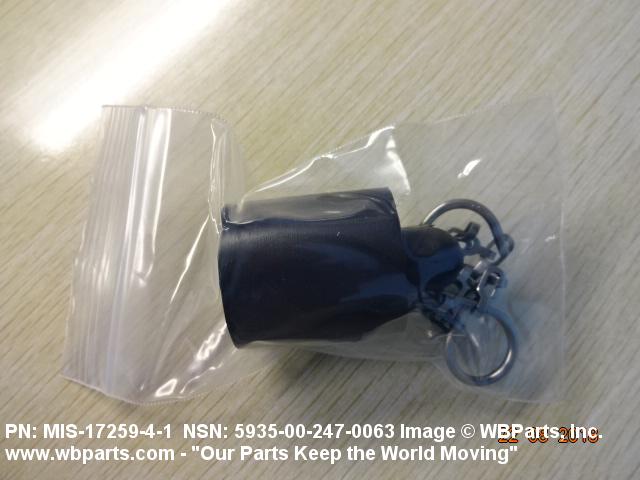

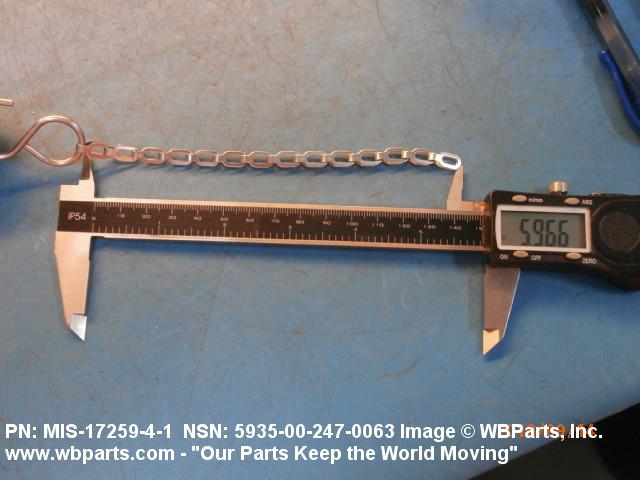

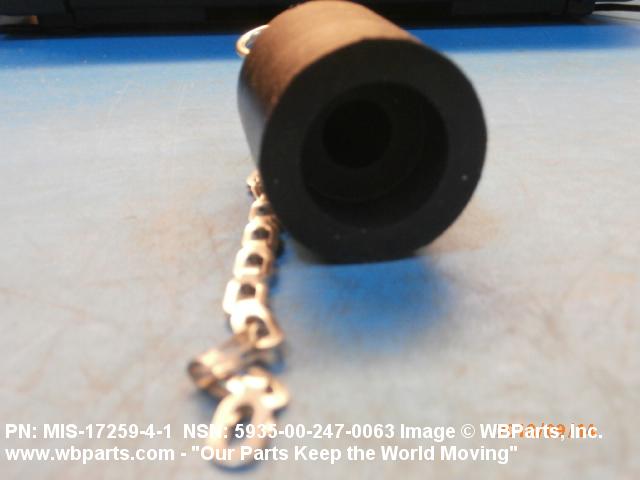

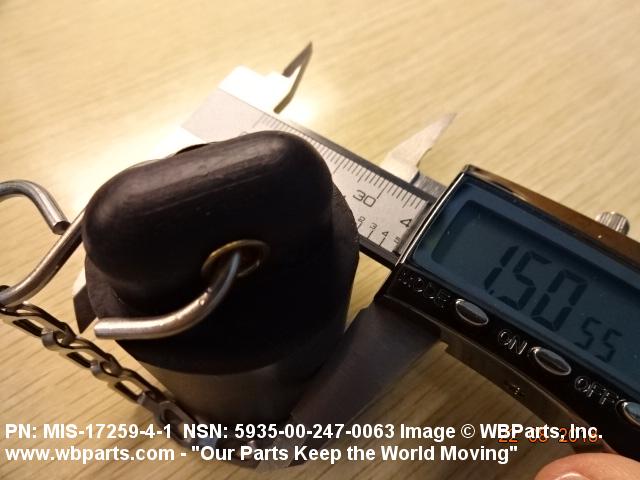

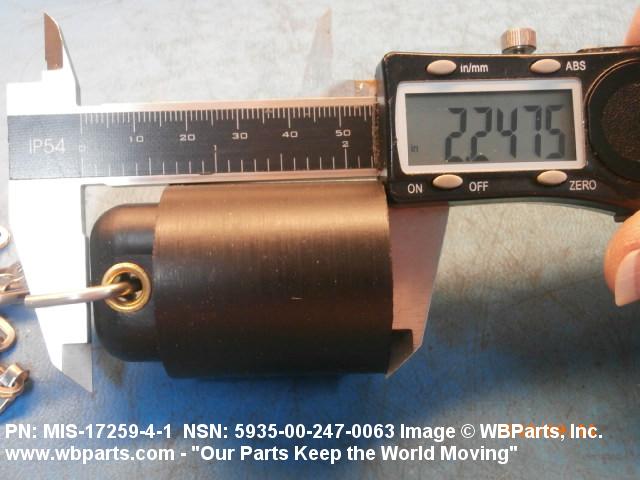

Drawings & Photos | NSN 5935-00-247-0063
Demand History | NSN 5935-00-247-0063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-247-0063 | 2023-08-243 | 260 | United States |
| 5935-00-247-0063 | 2023-08-216 | 360 | US |
| 5935-00-247-0063 | 2022-03-88 | 325 | US |
| 5935-00-247-0063 | 2019-09-263 | 5 | Greece |
| 5935-00-247-0063 | 2019-03-84 | 31 | US |
| 5935-00-247-0063 | 2018-11-325 | 70 | us |
| 5935-00-247-0063 | 2018-06-154 | 100 | United States |
| 5935-00-247-0063 | 2018-05-151 | 15 | United States |
| 5935-00-247-0063 | 2012-12-353 | 1 | US |
| 5935-00-247-0063 | 2010-11-325 | 30 | United States |
| 5935-00-247-0063 | 2010-11-321 | 25 | US |
Cross Reference | NSN 5935-00-247-0063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIS-17259/4-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-247-0063
Technical Data | NSN 5935-00-247-0063
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9A INTERNAL BAYONET |
| BODY HEIGHT | 2.380 INCHES NOMINAL |
| OVERALL DIAMETER | 1.570 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BAYONET LOCK |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | MIS-17259/4-1 |
Restrictions/Controls & Freight Information | NSN 5935-00-247-0063
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
