Product Details | ELECTRICAL CONNECTOR COVER
5935-01-172-7333 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: 10189066285, 10-189066-285, 11568568-1, 5935-01-172-7333, 01-172-7333, 5935011727333, 011727333, 115685681
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 FEB 1984 | 01-172-7333 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-172-7333
Demand History | NSN 5935-01-172-7333
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-172-7333 | 2016-05-01 | 4 | DIBBS |
| 5935-01-172-7333 | 2014-04-10 | 2 | DIBBS |
| 5935-01-172-7333 | 2014-02-18 | 2 | DIBBS |
| 5935-01-172-7333 | 2013-01-18 | 1 | DIBBS |
| 5935-01-172-7333 | 2011-01-06 | 4 | DIBBS |
| 5935-01-172-7333 | 2009-11-26 | 1 | DIBBS |
| 115685681 | 2008-09-02 | 1 | France |
| 115685681 | 2008-06-06 | 1 | France |
| 5935-01-172-7333 | 2008-03-11 | 3 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-01-172-7333
Related Products | NSN 5935-01-172-7333
5935-01-172-7334, 5935-01-172-7352, 5935-01-172-7353, 5935-01-172-7355, 5935-01-172-7356
Technical Data | NSN 5935-01-172-7333
| Characteristic | Specifications |
|---|---|

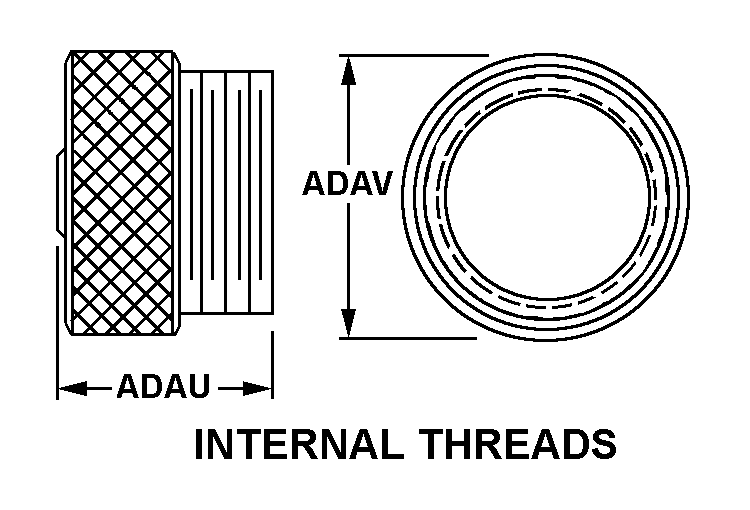

| STYLE DESIGNATOR | 8A INTERNAL THREADS |
| BODY HEIGHT | 0.734 INCHES NOMINAL |
| OVERALL DIAMETER | 1.934 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 10 |
| THREAD DIRECTION | RIGHT-HAND |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER, SYNTHETIC |
| III END ITEM IDENTIFICATION | 1430-01-078-9643 |
Restrictions/Controls & Freight Information | NSN 5935-01-172-7333
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-172-7333
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
