NSN 5935-00-259-0205 M55339/20, M55339/20-00201, M5533920

Product Details | CONNECTOR ADAPTER

5935-00-259-0205 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: M55339/20, M55339/20-00201, M5533920, M553392000201, M55339-20-00201, M55339200021, M55339-20-0021, A1686, A2130071ISSUEC, KN9405, KN94-05, KN9935TR5, KN99-35TR5, MIL-A-55339/20, MILA5533920, MIL-PRF-55339/20, MILPRF5533920, PM9063, Q 5 3142 7033, Q531427033, REB49324, TR201A, UG-201/U, UG201A, UG-201A/4, UG201A/U, UG-201A/U, UG201A4, UG201AU, UG-201-AU, UG201U, 374-079-003, 54311092P, 54311-092P, 5M.4584.220.24, 5M458422024, 5M4584-220-24, 825, 8755280014, 875528-0014, 8991, 899-1, 8992, 899-2, 103-0045-00, 1250 780, 12501476, 1250-1476, 1250780, 12621A, 1701, 178.138-4, 1781384, 25223961C, 252-23961C, 31-216 OR 31-830, 31216102012500780, 31216-10201250-0780, 0630200017, 063-02-00017, 31216OR31830, 31830, 31-830, 33NBNC501, 33N-BNC-50-1, 5935-00-259-0205, 31-216-1050, 00-259-0205, 5935002590205, 002590205, 103004500, 374079003, 312161050

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-259-0205	15091 ( ADAPTER, CONNECTOR )

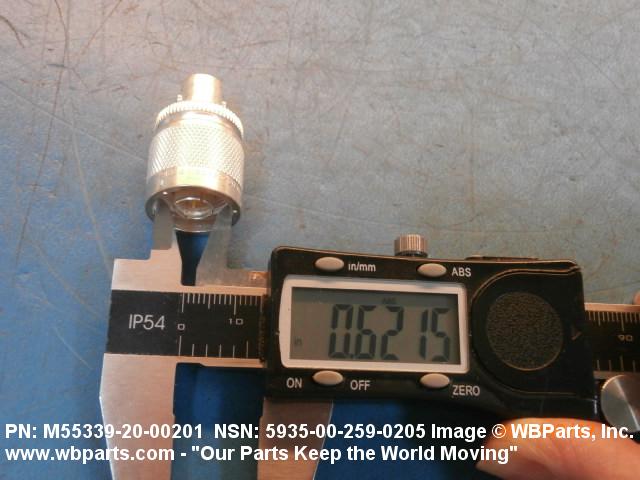

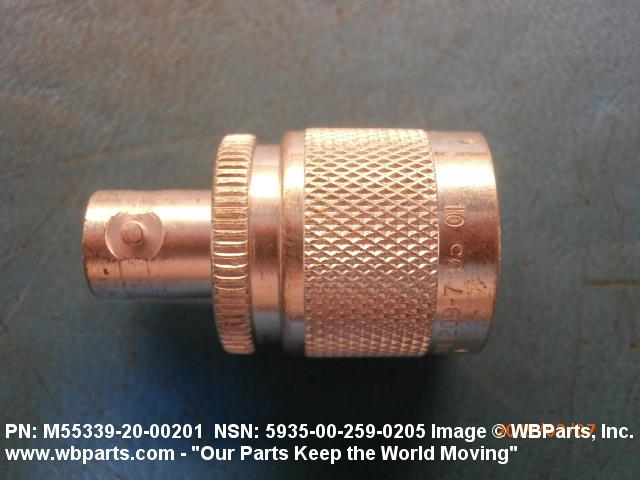

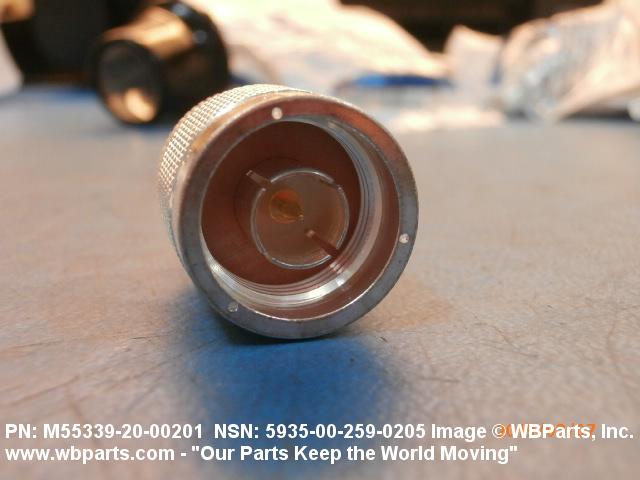

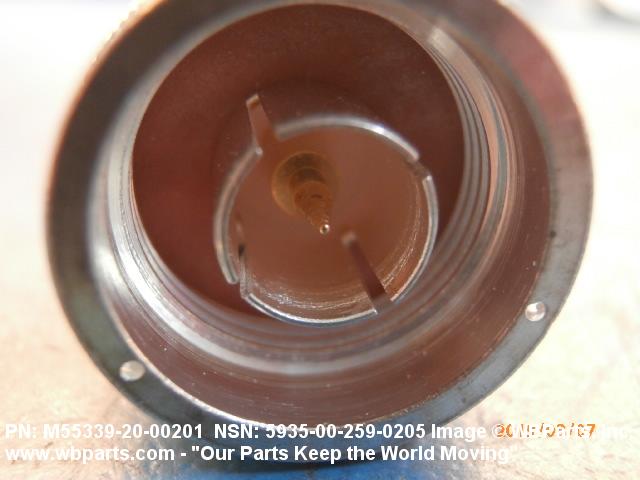

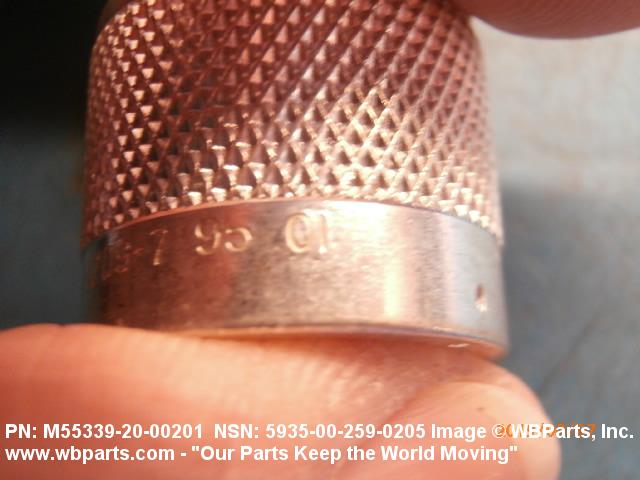

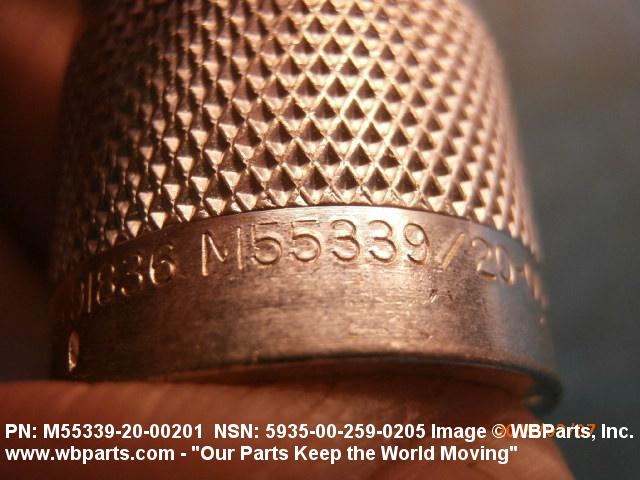

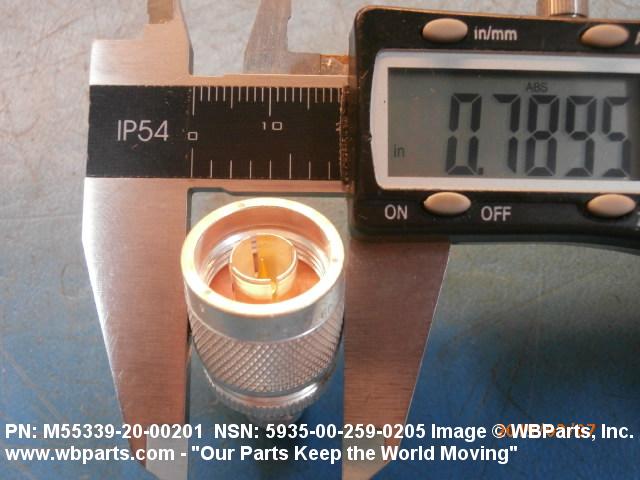

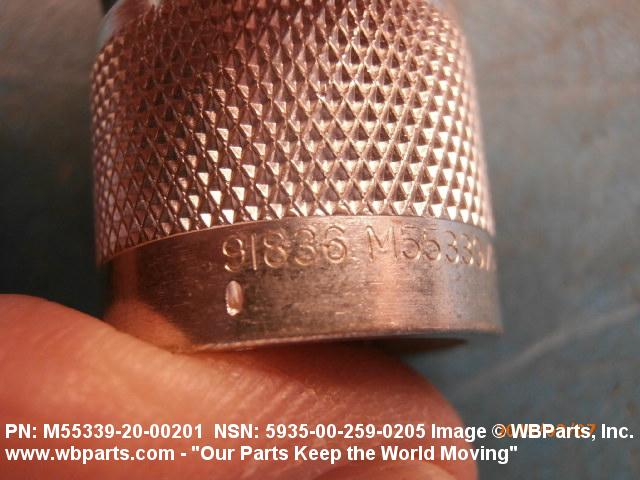

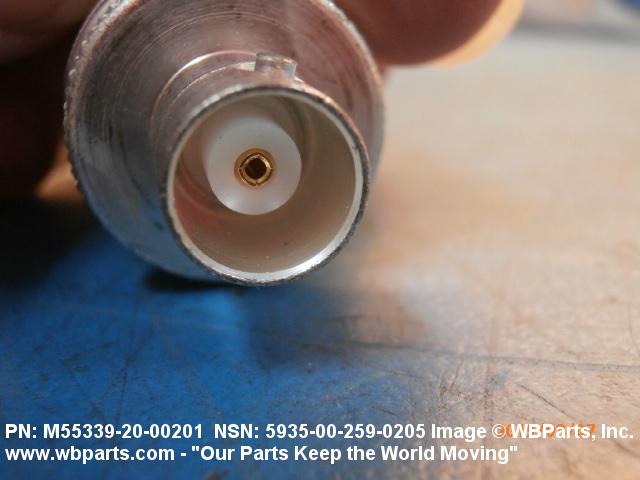

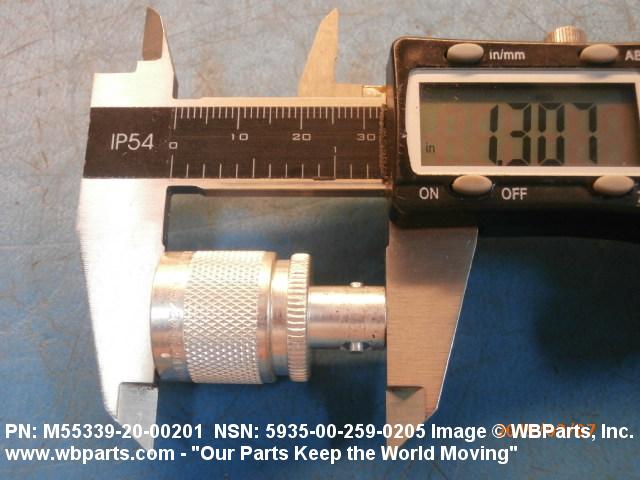

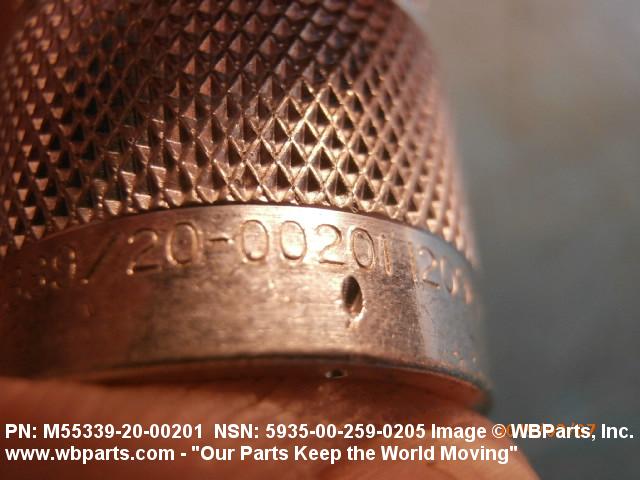

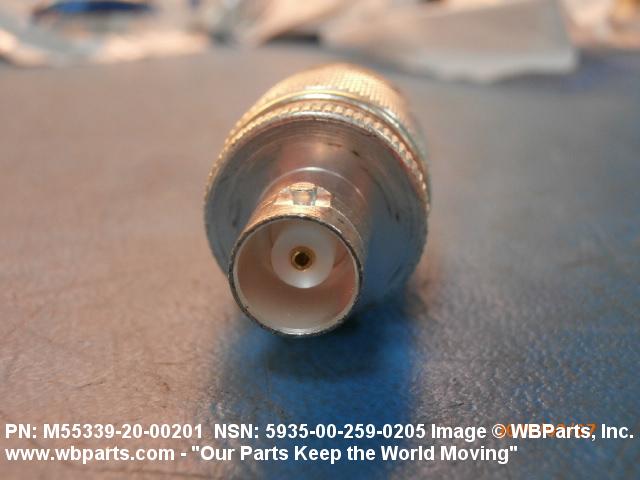

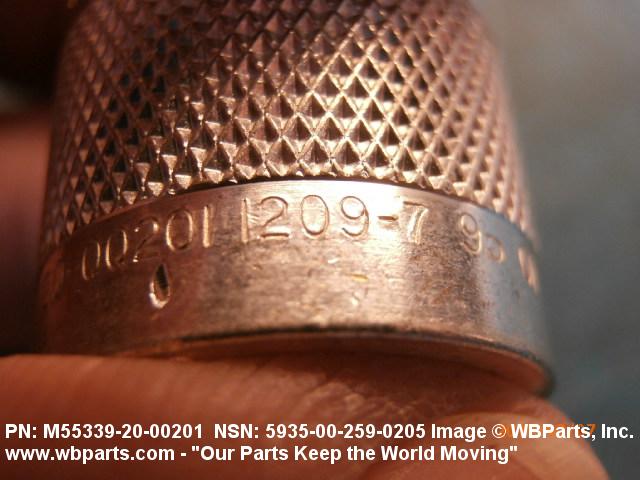

Drawings & Photos | NSN 5935-00-259-0205

Part Number	Request Date	QTY	Origin
5935-00-259-0205	2025-10-296	4090	DIBBS
5935-00-259-0205	2025-09-255	12	US
5935-00-259-0205	2025-05-149	2	us
5935-00-259-0205	2025-03-64	4	United States
5935-00-259-0205	2023-12-355	5147	DIBBS
5935-00-259-0205	2023-04-117	3821	DIBBS
5935-00-259-0205	2022-07-202	3	United States
5935-00-259-0205	2019-11-330	30	United States
5935-00-259-0205	2019-03-77	1	US
5935-00-259-0205	2019-02-53	15	Djibouti
5935-00-259-0205	2018-11-311	4800	DIBBS
5935-00-259-0205	2018-10-298	800	DIBBS
5935-00-259-0205	2018-09-269	15	US
5935-00-259-0205	2018-08-228	5500	DIBBS
5935-00-259-0205	2018-07-207	2330	DIBBS
8991	2018-03-81	1	Norway
8992	2018-03-81	1	Norway
5935-00-259-0205	2017-08-243	2350	DIBBS
5935-00-259-0205	2017-07-185	5200	DIBBS
5935-00-259-0205	2016-11-312	2400	DIBBS
5935-00-259-0205	2015-12-337	3000	DIBBS
5935-00-259-0205	2014-10-289	1	United States
5935-00-259-0205	2014-06-161	3600	DIBBS
5935-00-259-0205	2013-08-231	1550	DIBBS
5935-00-259-0205	2013-07-212	1	MANUAL
M55339/20-00201	2013-07-212	1	US
5935-00-259-0205	2012-12-340	14	MANUAL
M55339/20-00201	2012-12-340	14	United States
5935-00-259-0205	2012-06-182	1540	DIBBS
5935-00-259-0205	2012-04-114	1456	DIBBS
5935-00-259-0205	2010-09-258	2058	DIBBS
5935-00-259-0205	2010-02-36	9000	DIBBS
5935-00-259-0205	2009-12-362	1091	DIBBS
5935-00-259-0205	2009-12-336	836	DIBBS
5935-00-259-0205	2009-10-282	1253	DIBBS
5935-00-259-0205	2009-10-282	3644	DIBBS
5935-00-259-0205	2009-08-223	5900	DIBBS
5935-00-259-0205	2009-01-20	4566	DIBBS
5935-00-259-0205	2008-07-183	781	DIBBS
5935-00-259-0205	2008-05-149	2413	DIBBS
UG201AU	2008-04-99	25	us

Cross Reference | NSN 5935-00-259-0205

Part Number	Cage Code	Manufacturer
063-02-00017	06141	L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION
103-0045-00	80009	TEKTRONIX, INC. DBA TEKTRONIX
103-0045-00	K3976	TEKTRONIX UK LTD
1250 780	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
1250-1476	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
12621A	50423	BALLANTINE LABORATORIES INC
1701	83330	DIALIGHT CORPORATION
1701	91967	ABBATRON, LLC DIV ABBATRON LLC
178.138-4	C1798	AEROMARITIME SYSTEMBAU GMBH
252-23961C	K1831	APW ELECTRONICS LTD
252-23961C	K4491	VERO ELECTRONICS LTD
31-216 OR 31-830	74868	AMPHENOL CORPORATION
31-216-1050	74868	AMPHENOL CORPORATION
31-830	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
31-830	88033	STEWART-WARNER ALEMITE SALES CO INC
31216-10201250-0780	74868	AMPHENOL CORPORATION
33N-BNC-50-1	S3708	HUBER AND SUHNER LTD
374-079-003	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
54311-092P	K0433	AEROFLEX SERVICES LIMITED
5M.4584.220.24	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
5M4584-220-24	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
825	D2630	TELEGAERTNER KARL GAERTNER GMBH
875528-0014	65597	THALES DEFENSE & SECURITY, INC.
899-1	74868	AMPHENOL CORPORATION
899-2	74868	AMPHENOL CORPORATION
A1686	81535	AERONAUTICAL COMMUNICATIONS EQUIPMENT INC
A2130071ISSUEC	28528	ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS
KN94-05	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
KN99-35TR5	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
M55339-20-00201	00795	DELTA ELECTRONICS MFG CORP
M55339-20-00201	0B1C1	DENELEX COMPONENTS CO. INC. DBA DENELEX COMPONENTS CO
M55339-20-00201	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
M55339-20-00201	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M55339-20-0021	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M55339/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M55339/20-00201	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-A-55339/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-55339/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PM9063	D2332	PMA PROZESS- UNDMASCHINEN-AUTOMATION GMBH
Q 5 3142 7033	S3092	RHEINMETALL AIR DEFENCE AG
REB49324	80064	NAVAL SHIP SYSTEMS COMMAND
TR201A	K2760	AMERICAN POWER CONVERSION UK LTD
UG-201-AU	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
UG-201/U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG-201A/4	80064	NAVAL SHIP SYSTEMS COMMAND
UG-201A/U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG-201A/U	80064	NAVAL SHIP SYSTEMS COMMAND
UG201A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG201A/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG201AU	18323	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS
UG201AU	28528	ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS
UG201AU	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
UG201U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG201U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-259-0205

Compare

Related Products | NSN 5935-00-259-0205

5935-00-259-0206, 5935-00-259-0207, 5935-00-259-0208, 5935-00-259-0210, 5935-00-259-0212

Technical Data | NSN 5935-00-259-0205

Characteristic	Specifications
BODY STYLE	1N STRAIGHT SHAPE, EXTERNAL/INTERNAL COUPLING
OVERALL LENGTH	1.356 INCHES MAXIMUM
OVERALL DIAMETER	0.827 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET PIN AND INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	SILVER
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	2
CONTACT POSITION ARRANGEMENT STYLE	ABBJ BNC 1ST MATING END ABCE N 2ND MATING END
INSERT MATERIAL	PLASTIC FLUORINATED ETHYLENE PROPYLENE OR PLASTIC POLYTETRAFLUOROETHYLENE ALL MATING ENDS
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	L-P-389 FED SPEC 1ST MATERIAL RESPONSE OR L-P-403 FED SPEC 2ND MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL SOCKET 1ST MATING END SINGLE CONTACT GROUPING COAXIAL PIN 2ND MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	500.0 ALL MATING ENDS SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING	4.0 GIGAHERTZ ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 1,CLASS 2,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND

Restrictions/Controls & Freight Information | NSN 5935-00-259-0205

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	C	Item contains two or more precious metals
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-259-0205

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
