NSN 5935-00-433-6167 5000205, 00-433-6167, 004336167
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-433-6167 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: 5000205, 5935-00-433-6167, 00-433-6167, 5935004336167, 004336167
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUL 1970 | 00-433-6167 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-433-6167
Cross Reference | NSN 5935-00-433-6167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5000205 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-433-6167
Technical Data | NSN 5935-00-433-6167
| Characteristic | Specifications |
|---|---|

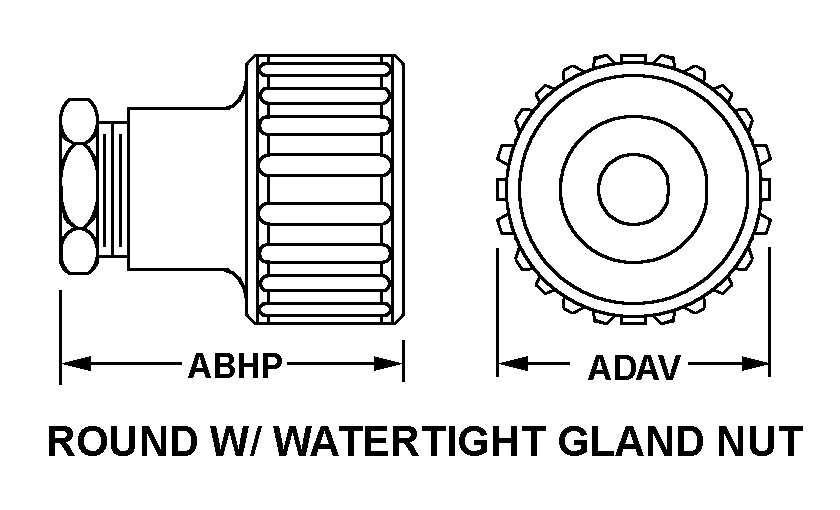

| STYLE DESIGNATOR | 31D ROUND W/WATERTIGHT GLAND NUT |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.406 INCHES |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | ANY ACCEPTABLE |
| SPECIAL FEATURES | 3 .040 DIA HOLES EQUALLY SPACED FOR LOCKWIRE |
Restrictions/Controls & Freight Information | NSN 5935-00-433-6167
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-433-6167
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
