NSN 5935-00-436-0927 MLS0158S03BN300, MRS0158S03BN000, MRS0158S03BN300

Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY

5935-00-436-0927 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MLS0158S03BN300, MRS0158S03BN000, MRS0158S03BN300, 10652664, 712228-195, 5935-00-436-0927, 00-436-0927, 5935004360927, 004360927, 712228195

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 MAR 1969	00-436-0927	61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL )

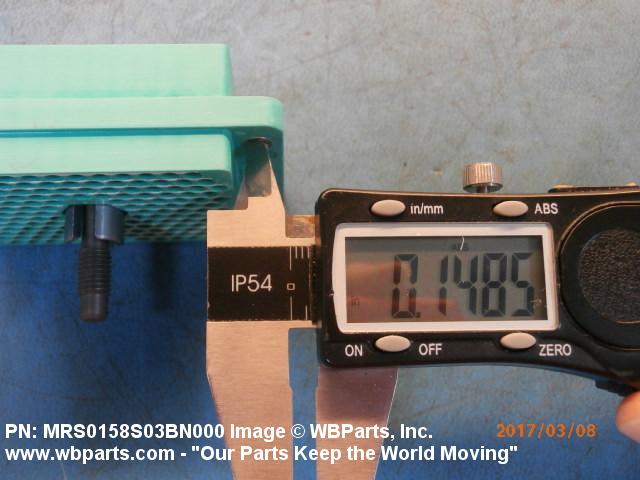

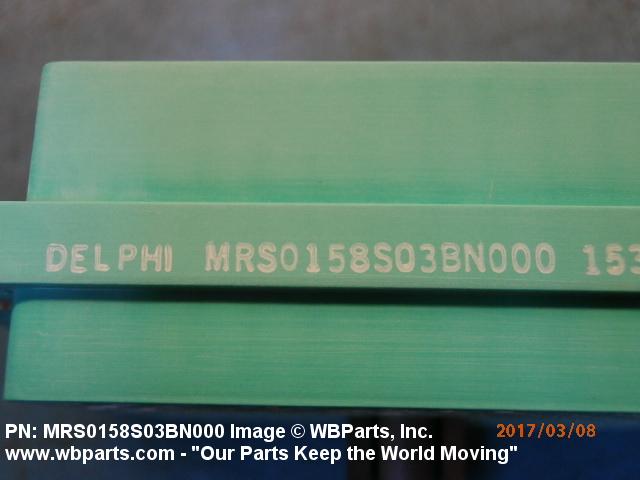

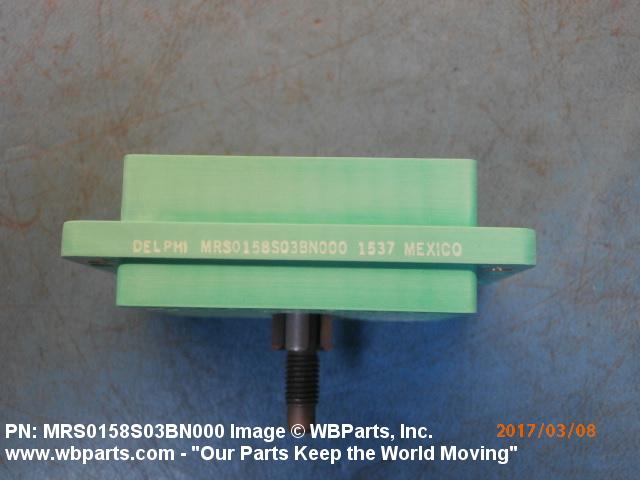

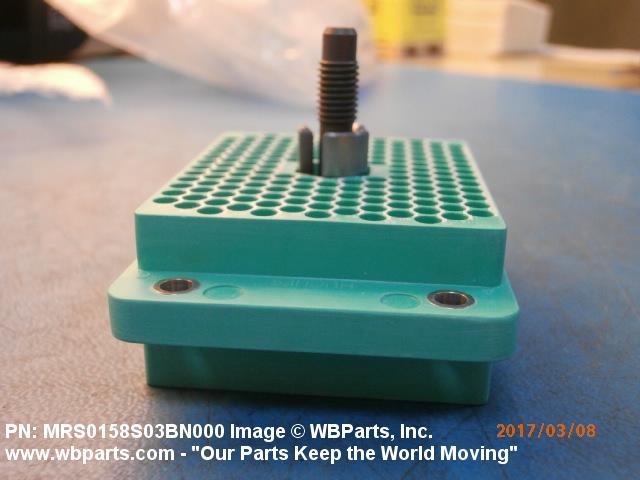

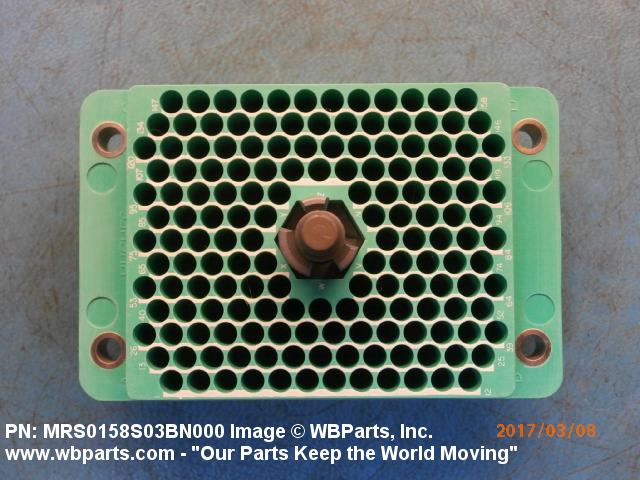

Drawings & Photos | NSN 5935-00-436-0927

Part Number	Request Date	QTY	Origin
5935-00-436-0927	2025-10-288	1	TW
5935-00-436-0927	2023-10-296	1	US
5935-00-436-0927	2023-09-248	1	US
5935-00-436-0927	2022-06-166	1	RO
5935-00-436-0927	2022-06-166	1	RO
5935-00-436-0927	2021-09-250	12	AE
5935-00-436-0927	2021-03-76	20	US
MRS0158S03BN000	2020-12-352	3	US
712228-195	2020-10-294	42	DIBBS
MLS0158S03BN300	2020-10-294	42	DIBBS
MRS0158S03BN300	2020-10-294	42	DIBBS
712228-195	2020-06-163	35	DIBBS
MLS0158S03BN300	2020-06-163	35	DIBBS
MRS0158S03BN300	2020-06-163	35	DIBBS
5935-00-436-0927	2018-12-361	1	United States
5935-00-436-0927	2017-09-272	6	TW
5935-00-436-0927	2017-02-37	35	DIBBS
5935-00-436-0927	2017-01-26	2	Canada
5935-00-436-0927	2015-10-301	45	DIBBS
MRS0158S03BN000	2015-06-169	2	Canada
5935-00-436-0927	2013-05-149	38	DIBBS
MRS0158S03BN000	2011-11-318	5	US
MRS0158S03BN000	2011-11-318	5	US
MRS0158S03BN000	2011-05-147	2	Canada
5935-00-436-0927	2010-08-242	20	DIBBS
MRS0158S03BN000	2010-02-54	8	US
5935-00-436-0927	2009-03-89	22	DIBBS
MLS0158S03BN300	2008-12-343	26	us
5935-00-436-0927	2008-12-338	26	DIBBS
5935-00-436-0927	2008-10-301	26	DIBBS
MRS0158S03BN000	2008-10-281	1	Korea
5935-00-436-0927	2008-04-99	20	DIBBS
5935-00-436-0927	2006-05-133	31	DIBBS

Cross Reference | NSN 5935-00-436-0927

Part Number	Cage Code	Manufacturer
10652664	18876	U S ARMY AVIATION AND MISSILE COMMAND
712228-195	05869	RAYTHEON COMPANY DBA RAYTHEON
MLS0158S03BN300	53669	DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS
MRS0158S03BN000	73293	L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC.
MRS0158S03BN300	53669	DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS
MRS0158S03BN300	73293	L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-436-0927

Compare

Related Products | NSN 5935-00-436-0927

5935-00-436-0928, 5935-00-436-0933, 5935-00-436-0934, 5935-00-436-0937, 5935-00-436-0938

Technical Data | NSN 5935-00-436-0927

Characteristic	Specifications
BODY STYLE	31G STRAIGHT SHAPE, RECTANGULAR

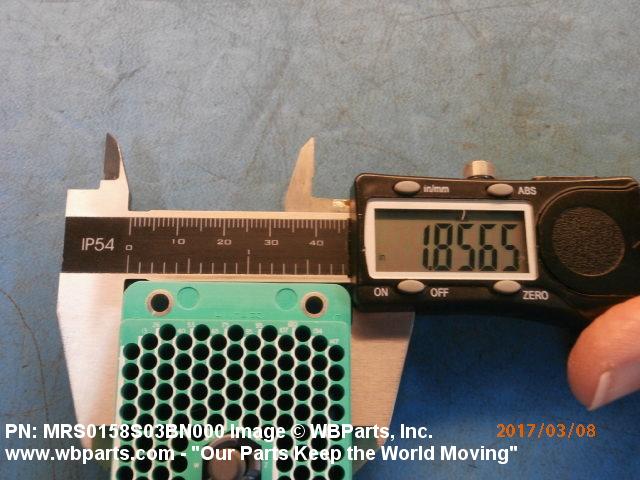

OVERALL LENGTH	1.600 INCHES NOMINAL
OVERALL HEIGHT	1.860 INCHES NOMINAL

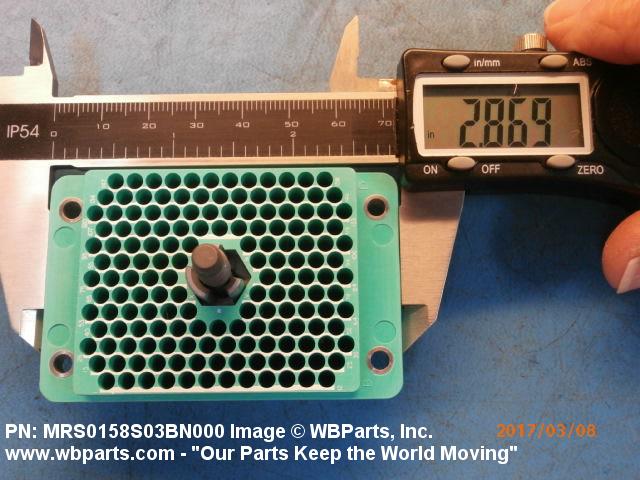

OVERALL WIDTH	2.875 INCHES NOMINAL

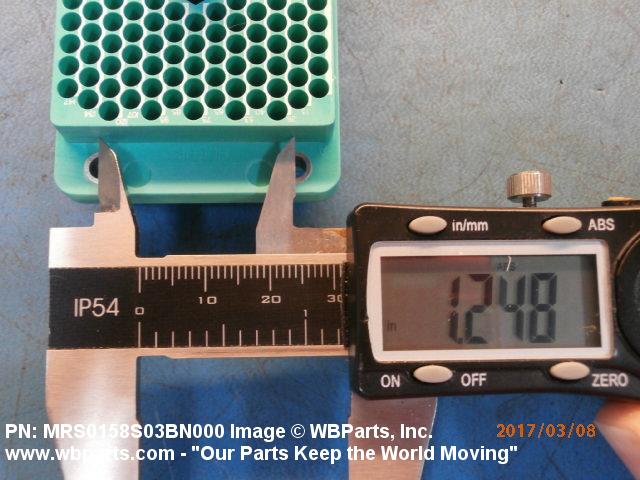

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	1.250 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	2.500 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.094 INCHES NOMINAL
CONNECTOR LOCKING METHOD	JACKSCREW
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNF

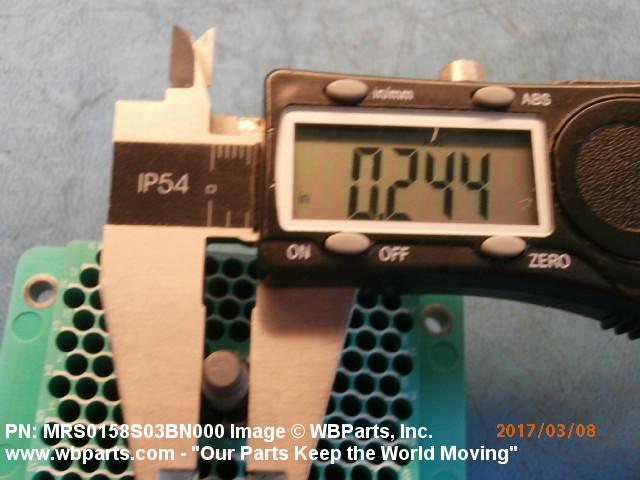

NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	2A

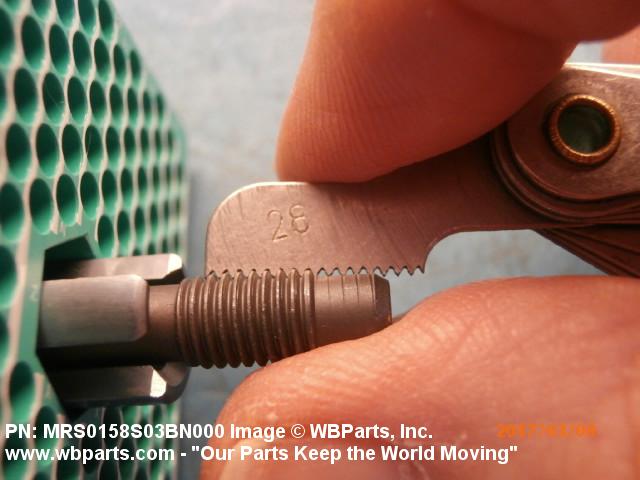

THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
POLARIZATION METHOD	POLARIZATION BOSS
BOSS TYPE AND LOCATION DESIGNATOR	BN PIN
MATING END QUANTITY	1

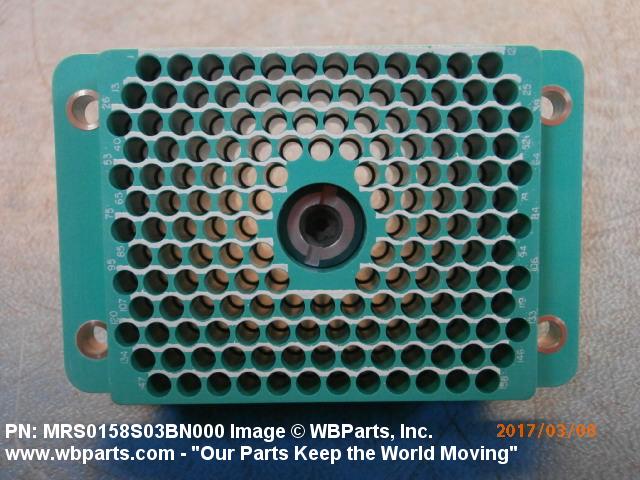

CONTACT POSITION ARRANGEMENT STYLE	GJAA 158 SINGLE MATING END
INSERT MATERIAL	PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
MISSING CONTACT TYPE AND QUANTITY	158 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE
