NSN 5935-00-443-9401 MRS0212P03CX300, 1942539-33, 00-443-9401
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-443-9401 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MRS0212P03CX300, 1942539-33, 5935-00-443-9401, 00-443-9401, 5935004439401, 194253933, 004439401
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAY 1974 | 00-443-9401 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

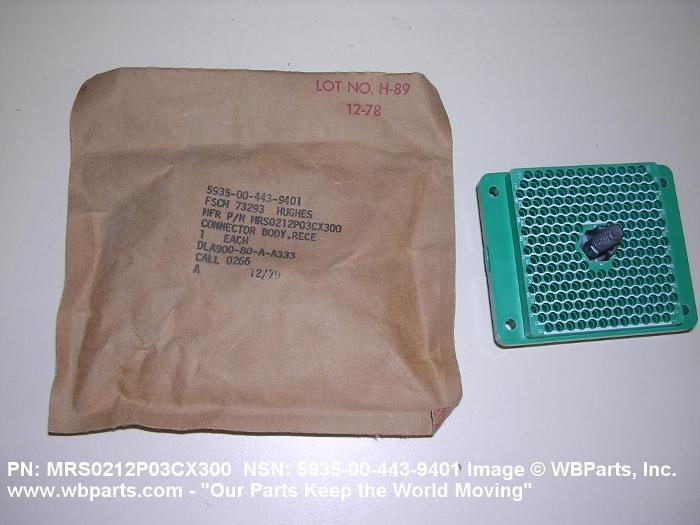

Drawings & Photos | NSN 5935-00-443-9401
Demand History | NSN 5935-00-443-9401
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-443-9401 | 2019-08-214 | 4 | United States |
| 5935-00-443-9401 | 2019-07-212 | 14 | US |
| 5935-00-443-9401 | 2019-02-42 | 26 | United States |
| MRS0212P03CX300 | 2010-03-63 | 33 | United States |
Cross Reference | NSN 5935-00-443-9401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1942539-33 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 1942539-33 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| MRS0212P03CX300 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
| MRS0212P03CX300 | 73293 | L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-443-9401
Technical Data | NSN 5935-00-443-9401
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31G STRAIGHT SHAPE, RECTANGULAR |
| OVERALL LENGTH | 1.560 INCHES MINIMUM AND 1.620 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.380 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| OVERALL WIDTH | 2.865 INCHES MINIMUM AND 2.885 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.840 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.490 INCHES MINIMUM AND 2.510 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | POLARIZATION BOSS |
| BOSS TYPE AND LOCATION DESIGNATOR | CX PIN |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | HEAA 212 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 212 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | THERMAL SHOCK RESISTANT |
| III OPERATING TEMP RATING | -54.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5935-00-443-9401
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
