NSN 5935-00-493-1809 L22TF95S6N1, 5334512, 533451-2
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-493-1809 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: L22TF95S6N1, 5334512, 533451-2, 5935-00-493-1809, 00-493-1809, 5935004931809, 004931809
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1972 | 00-493-1809 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-493-1809
Demand History | NSN 5935-00-493-1809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| L22TF95S6N1 | 2017-04-95 | 5 | TW |
| L22TF95S6N1 | 2010-03-90 | 22 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-493-1809
Related Products | NSN 5935-00-493-1809
Technical Data | NSN 5935-00-493-1809
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 2.129 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.656 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

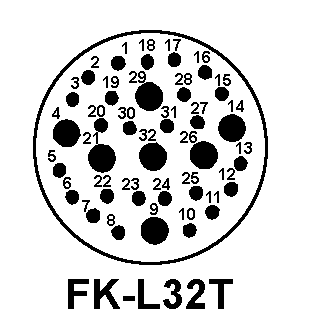

| CONTACT POSITION ARRANGEMENT STYLE | BJAM FK-L32T SINGLE MATING END |
| INSERT MATERIAL | RUBBER SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 32 ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MANUFACTURERS CODE | 09922 |
| DESIGN CONTROL REFERENCE | L22TF95S6N1 |
Restrictions/Controls & Freight Information | NSN 5935-00-493-1809
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
