NSN 5935-00-505-0813 008026079000146, 00-8026-079-000-146, 8671720046
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-505-0813 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 008026079000146, 00-8026-079-000-146, 8671720046, 867172-0046, 86717246, 867172-46, 5935-00-505-0813, 00-505-0813, 5935005050813, 005050813
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUL 1974 | 00-505-0813 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-505-0813
Cross Reference | NSN 5935-00-505-0813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00-8026-079-000-146 | 91662 | AVX CORPORATION |
| 867172-0046 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 867172-0046 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 867172-46 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 867172-46 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-505-0813
Technical Data | NSN 5935-00-505-0813
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9G STRAIGHT SHAPE W/JACKSCREW |
| OVERALL LENGTH | 2.592 INCHES NOMINAL |
| OVERALL HEIGHT | 2.290 INCHES NOMINAL |
| OVERALL WIDTH | 0.870 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.280 INCHES NOMINAL |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
| MATING END QUANTITY | 1 |

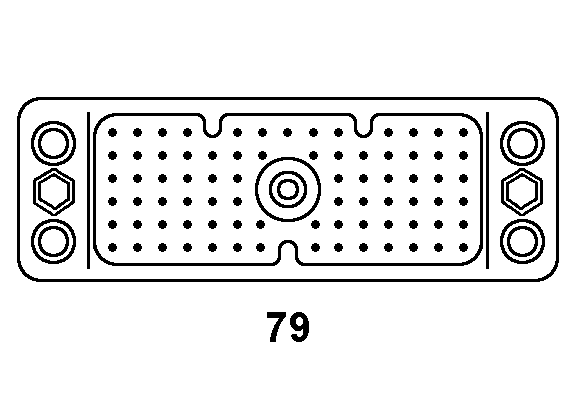

| CONTACT POSITION ARRANGEMENT STYLE | DJAJ 79 SINGLE MATING END |
