Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-575-1185 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 008026033000111, 00-8026-033-000-111, 3019971001, 3019971-001, 5935-00-575-1185, 00-575-1185, 5935005751185, 005751185
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 DEC 1974 | 00-575-1185 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-575-1185
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-575-1185
Technical Data | NSN 5935-00-575-1185
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.392 INCHES MINIMUM AND 1.408 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| OVERALL WIDTH | 0.865 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.085 INCHES MINIMUM AND 1.095 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

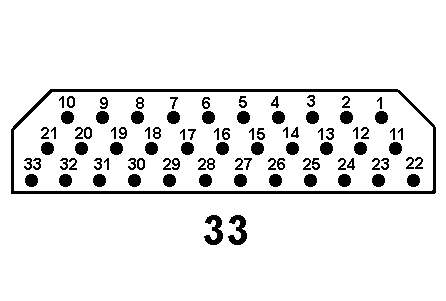

| CONTACT POSITION ARRANGEMENT STYLE | BKAE 33 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 33 ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-28731 SPECIFICATION |
| MANUFACTURERS CODE | 11769 |
| DESIGN CONTROL REFERENCE | 00-8026-033-000-111 |
