NSN 5935-00-763-0858 SMA6179203, SM-A-617920-3, 2231109
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-763-0858 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SMA6179203, SM-A-617920-3, 2231109, 223-1109, 223-11-09, 50081, 5935-00-763-0858, 00-763-0858, 5935007630858, 007630858
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1968 | 00-763-0858 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

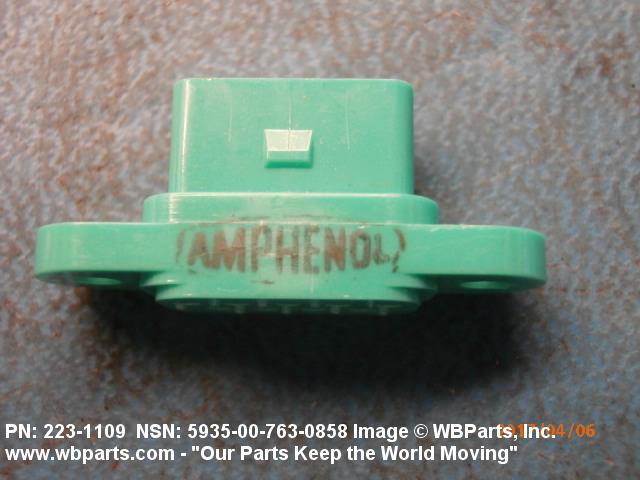

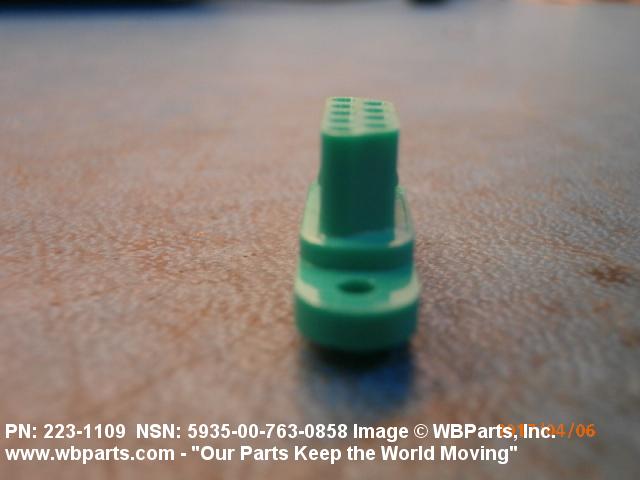

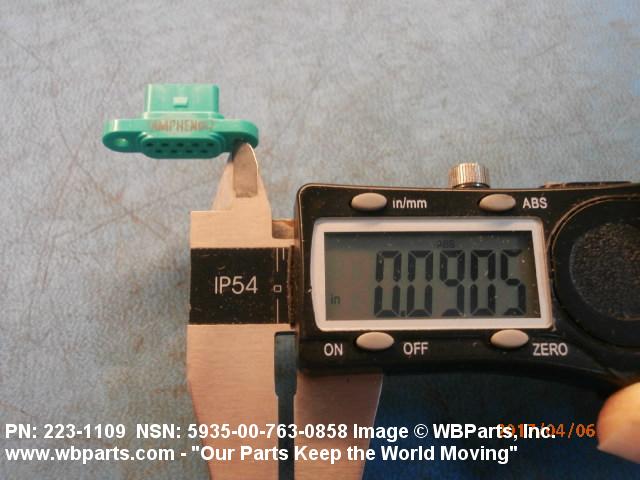

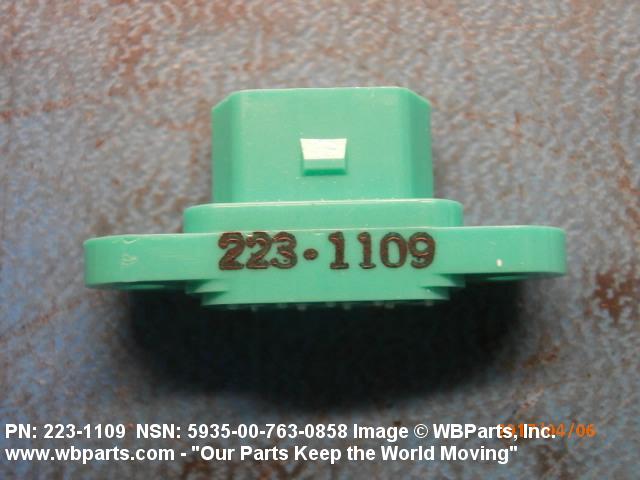

Drawings & Photos | NSN 5935-00-763-0858
Demand History | NSN 5935-00-763-0858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-763-0858 | 2017-03-80 | 5 | United States |
| 50081 | 2015-01-29 | 4 | IN |
| 50081 | 2015-01-13 | 4 | IN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-763-0858
Technical Data | NSN 5935-00-763-0858
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 30G STRAIGHT SHAPE, RECTANGULAR |

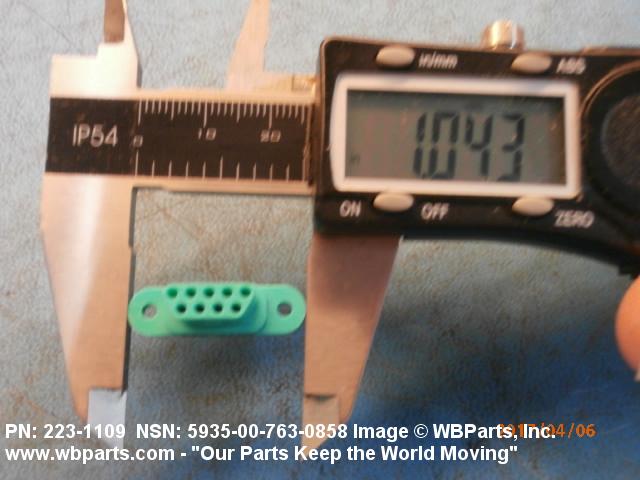

| OVERALL LENGTH | 1.043 INCHES NOMINAL |

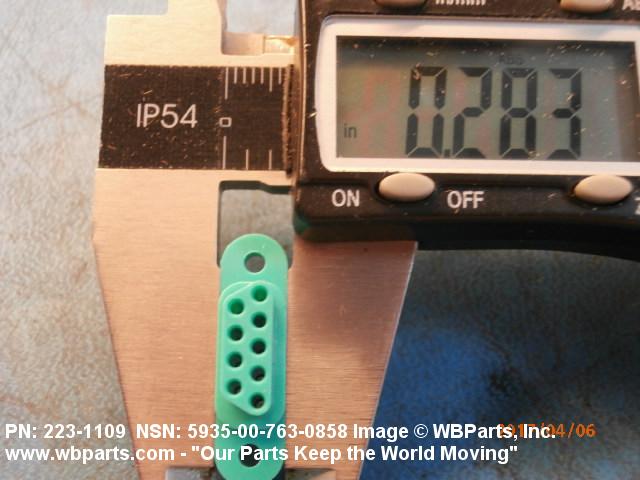

| OVERALL WIDTH | 0.282 INCHES NOMINAL |

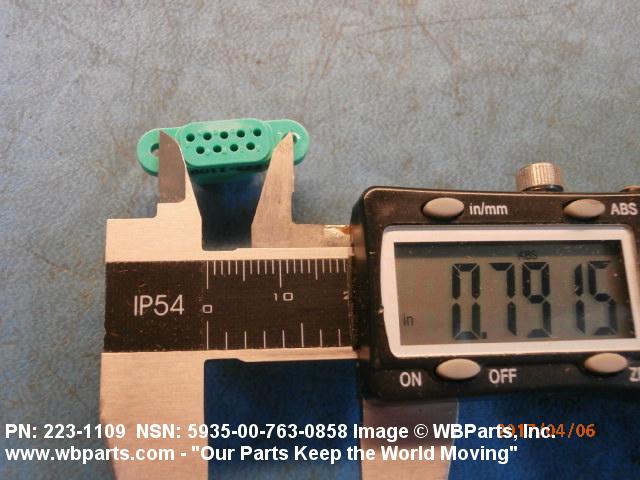

| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.793 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

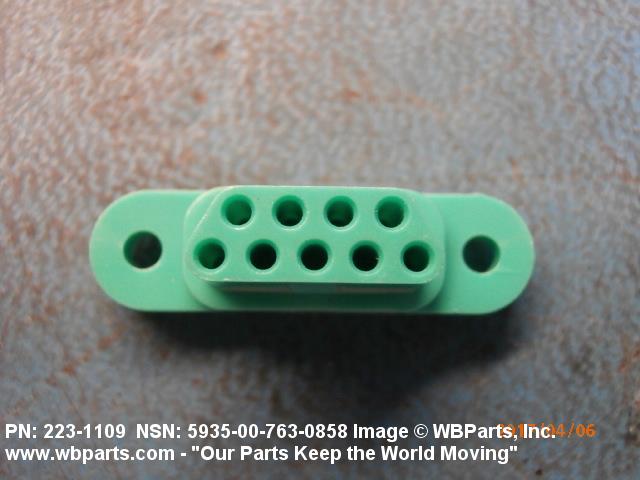

| CONTACT POSITION ARRANGEMENT STYLE | AKAU 9 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |

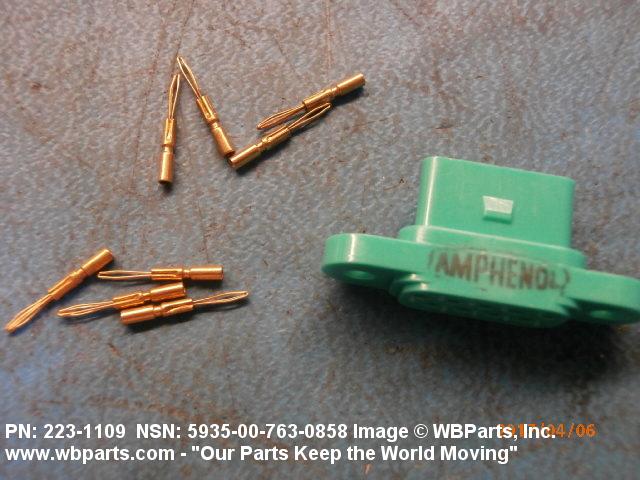

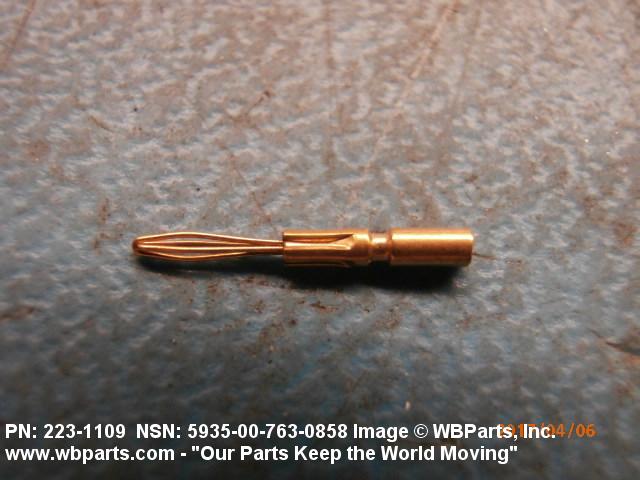

| MISSING CONTACT TYPE AND QUANTITY | 9 ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
