NSN 5935-00-763-3397 1644991000, 164-499-1000, 1644991001
Product Details | ELECTRICAL CONNECTOR COVER
5935-00-763-3397 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: 1644991000, 164-499-1000, 1644991001, 164-499-1001 , 3721893000, 372-1893-000, 58P2062952, 58P206295-2, 5935-00-763-3397, 00-763-3397, 5935007633397, 372189300, 007633397
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 MAR 1968 | 00-763-3397 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-763-3397
Cross Reference | NSN 5935-00-763-3397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 164-499-1000 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 164-499-1000 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 164-499-1001 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 164-499-1001 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 372-1893-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 372189300 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 58P206295-2 | 97838 | SOUTHERN PINE INSPECTION BUREAU |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-763-3397
Technical Data | NSN 5935-00-763-3397
| Characteristic | Specifications |
|---|---|

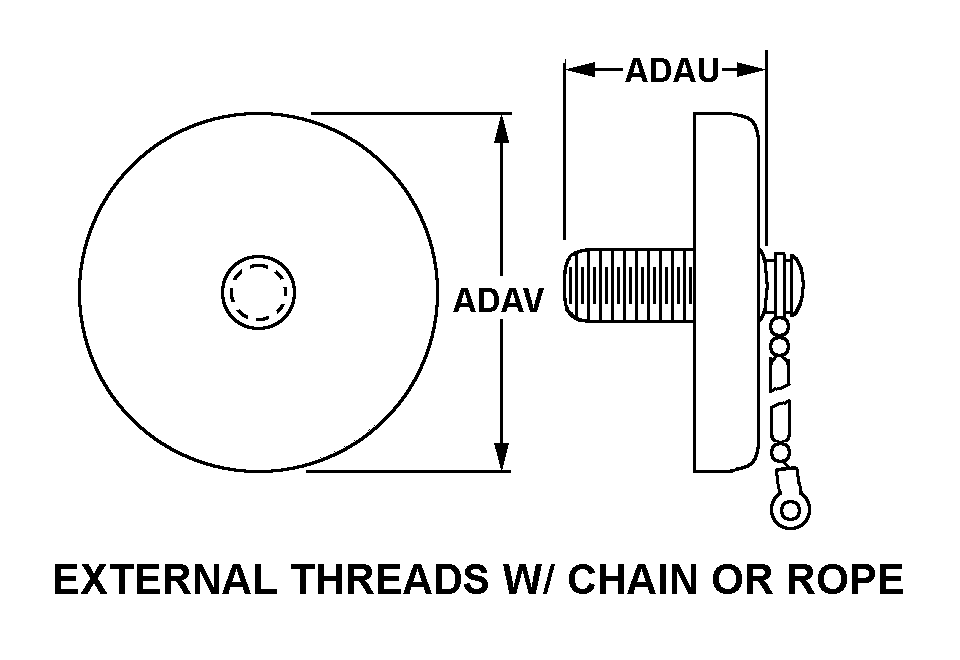

| STYLE DESIGNATOR | 23A EXTERNAL THREADS W/CHAIN OR ROPE |
| BODY HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL DIAMETER | 1.375 INCHES NOMINAL |
| MATERIAL | BRASS |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SCREW |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | CHAIN |
| ATTACHMENT FEATURE LENGTH | 3.125 INCHES NOMINAL |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER |
Restrictions/Controls & Freight Information | NSN 5935-00-763-3397
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
