NSN 5935-00-810-5962 FB32F59, FB-32-F59, LS444610

Product Details | CONNECTOR ADAPTER

5935-00-810-5962 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: FB32F59, FB-32-F59, LS444610, LS4446-10 , 1274451, 1274-451, 86A7409 , 5935-00-810-5962, 00-810-5962, 5935008105962, 008105962

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	22 MAR 1968	00-810-5962	15091 ( ADAPTER, CONNECTOR )

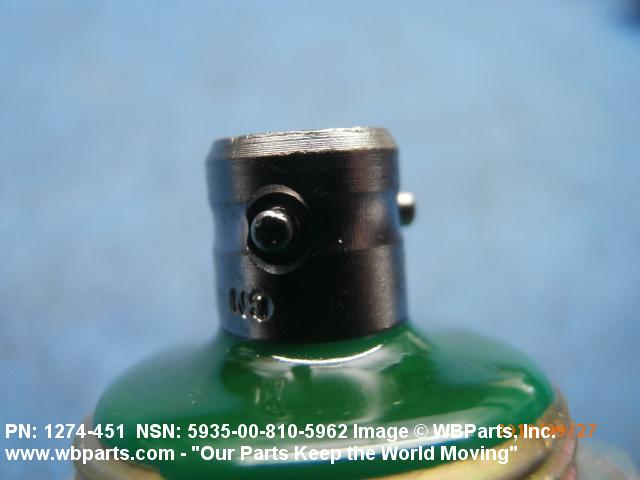

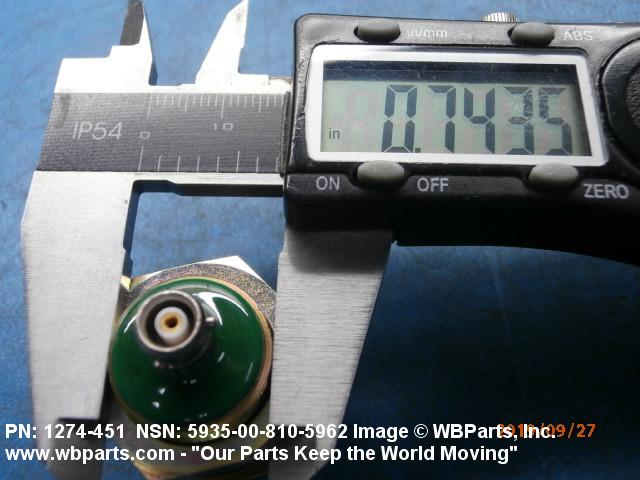

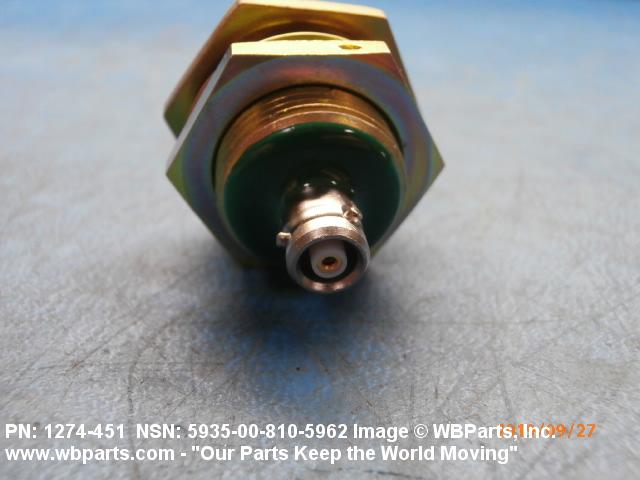

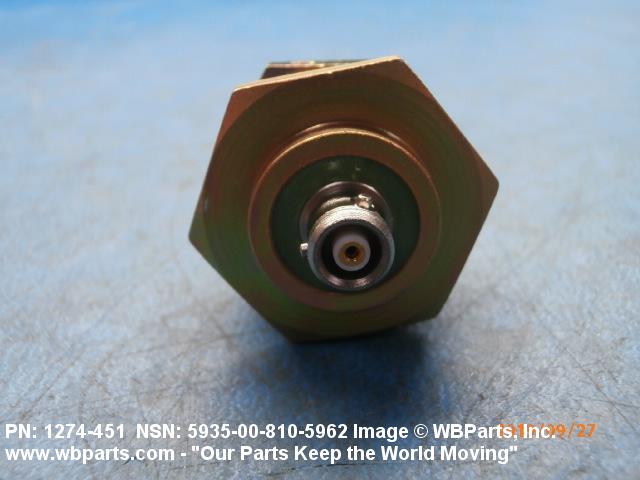

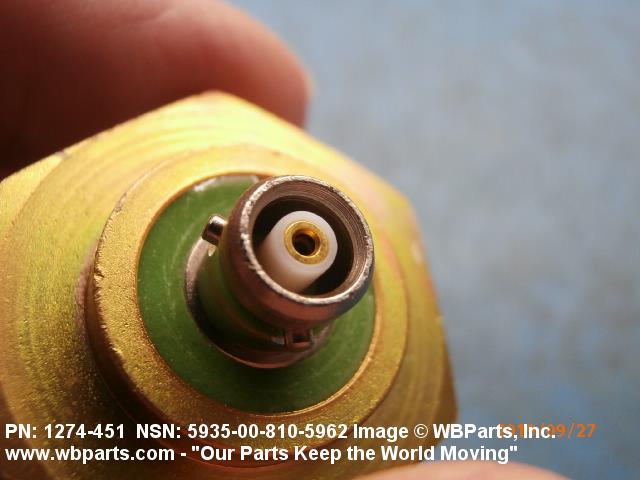

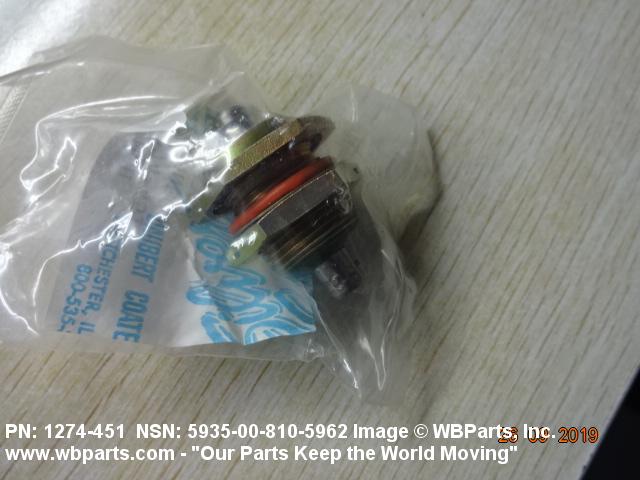

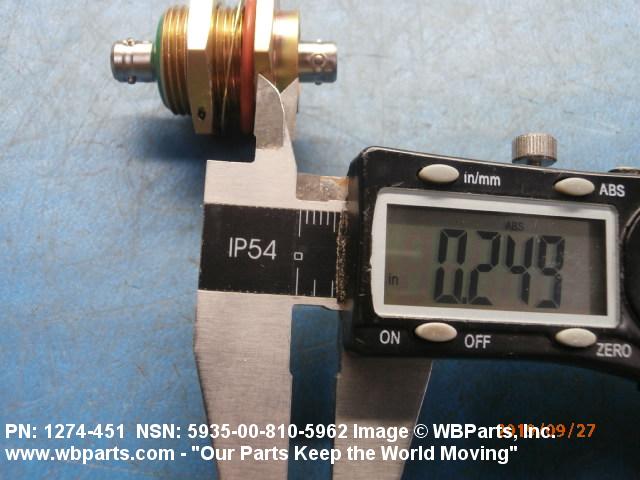

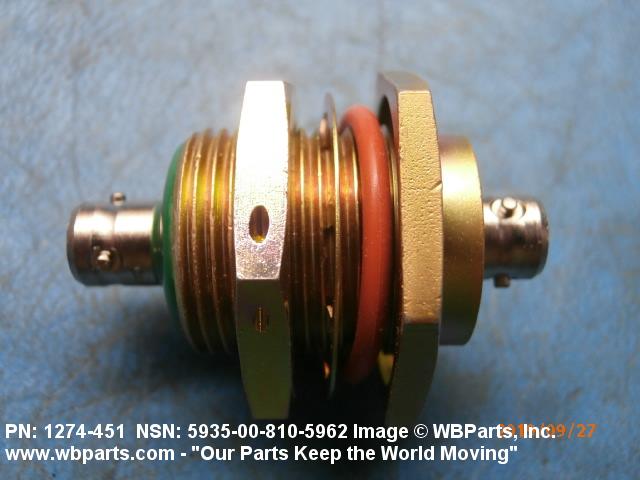

Drawings & Photos | NSN 5935-00-810-5962

Part Number	Request Date	QTY	Origin
1274-451	2025-10-288	95	DIBBS
FB-32-F59	2025-10-288	95	DIBBS
1274-451	2025-05-142	47	DIBBS
FB-32-F59	2025-05-142	47	DIBBS
1274-451	2024-07-207	87	DIBBS
FB-32-F59	2024-07-207	87	DIBBS
1274-451	2024-05-151	80	DIBBS
FB-32-F59	2024-05-151	80	DIBBS
1274-451	2023-12-348	61	DIBBS
FB-32-F59	2023-12-348	61	DIBBS
1274-451	2023-07-187	49	DIBBS
FB-32-F59	2023-07-187	49	DIBBS
1274-451	2023-04-96	69	DIBBS
FB-32-F59	2023-04-96	69	DIBBS
1274-451	2019-05-136	89	DIBBS
FB-32-F59	2019-05-136	89	DIBBS
1274-451	2019-02-56	42	DIBBS
FB-32-F59	2019-02-56	42	DIBBS
1274-451	2019-02-45	42	DIBBS
FB-32-F59	2019-02-45	42	DIBBS
5935-00-810-5962	2018-12-346	116	DIBBS
5935-00-810-5962	2018-11-312	116	DIBBS
5935-00-810-5962	2018-10-298	125	DIBBS
5935-00-810-5962	2018-01-16	79	DIBBS
5935-00-810-5962	2017-04-102	70	DIBBS
5935-00-810-5962	2016-09-273	68	DIBBS
5935-00-810-5962	2016-05-133	71	DIBBS
5935-00-810-5962	2015-04-120	73	DIBBS
5935-00-810-5962	2014-10-275	85	DIBBS
5935-00-810-5962	2014-06-170	81	DIBBS
5935-00-810-5962	2014-04-93	73	DIBBS
5935-00-810-5962	2012-10-284	34	DIBBS
5935-00-810-5962	2012-08-244	38	DIBBS
5935-00-810-5962	2012-08-227	42	DIBBS
1274-451	2012-06-178	2	PK
1274451	2012-06-172	4	US
5935-00-810-5962	2011-11-307	43	DIBBS
5935-00-810-5962	2011-05-130	100	DIBBS
5935-00-810-5962	2011-01-07	59	DIBBS
5935-00-810-5962	2010-11-328	70	DIBBS
5935-00-810-5962	2009-11-308	3	United Kingdom
5935-00-810-5962	2008-04-94	384	DIBBS
5935-00-810-5962	2007-06-159	59	DIBBS
5935-00-810-5962	2006-07-206	19	DIBBS

Cross Reference | NSN 5935-00-810-5962

Part Number	Cage Code	Manufacturer
1274-451	13556	LABINAL COMPONENTS AND SYSTEMS INC CINCH MILITARY AEROSPACE DIV
FB-32-F59	05209	TED MFG. CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-810-5962

Compare

Related Products | NSN 5935-00-810-5962

5935-00-810-5970, 5935-00-810-5973, 5935-00-810-6179, 5935-00-810-6196, 5935-00-810-6530

Technical Data | NSN 5935-00-810-5962

Characteristic	Specifications
BODY STYLE	22N STRAIGHT SHAPE QUICK CONNECT

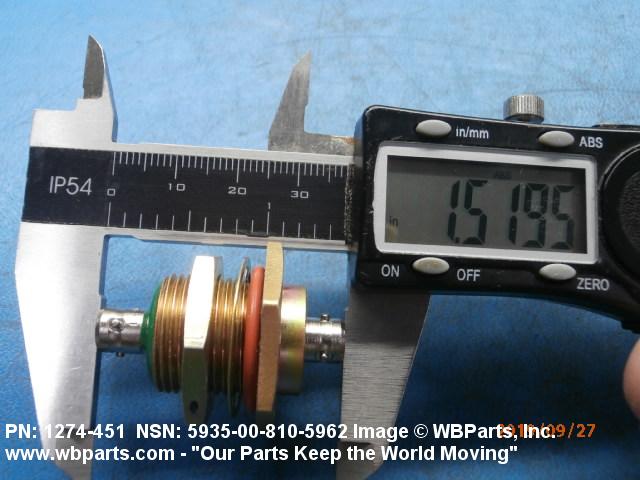

OVERALL LENGTH	1.524 INCHES MAXIMUM

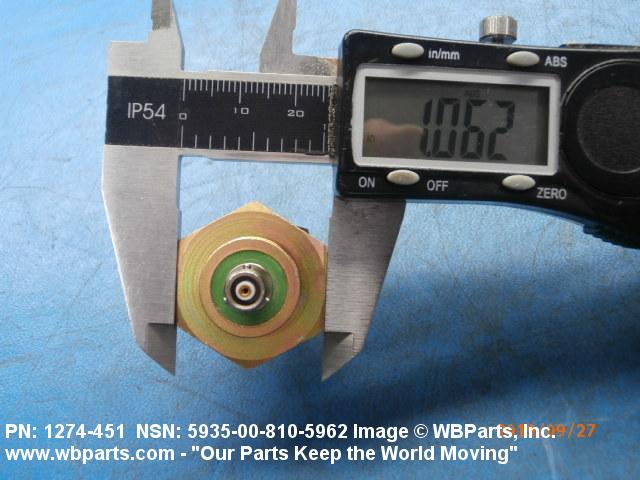

OVERALL WIDTH	1.062 INCHES MAXIMUM
MOUNTING FACILITY THICKNESS	0.406 INCHES MAXIMUM
BUSHING ACCOMMODATION HOLE SHAPE	ROUND
CONNECTOR LOCKING METHOD	BAYONET PIN
THREADED DEVICE TYPE	MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.062 INCHES
THREAD CLASS	2A

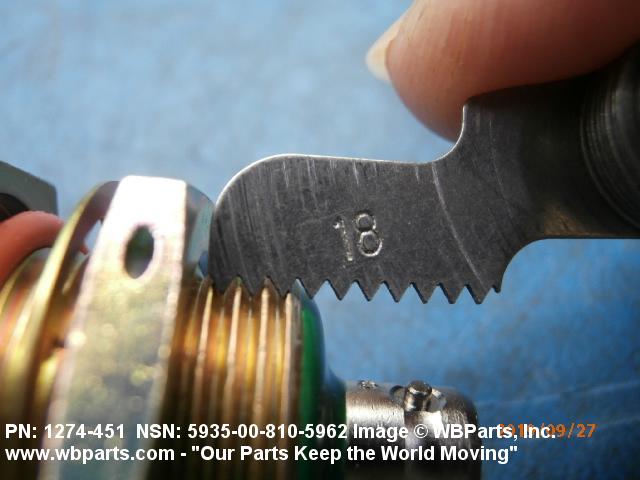

THREAD QUANTITY PER INCH	18
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	2
CONTACT POSITION ARRANGEMENT STYLE	ABCE N ALL MATING ENDS
INCLUDED CONTACT QUANTITY	1 ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT REMOVABILITY	NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	COAXIAL PIN ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-C-25516 MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD AND NICKEL ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-25516 MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.002 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-00-810-5962

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-810-5962

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
