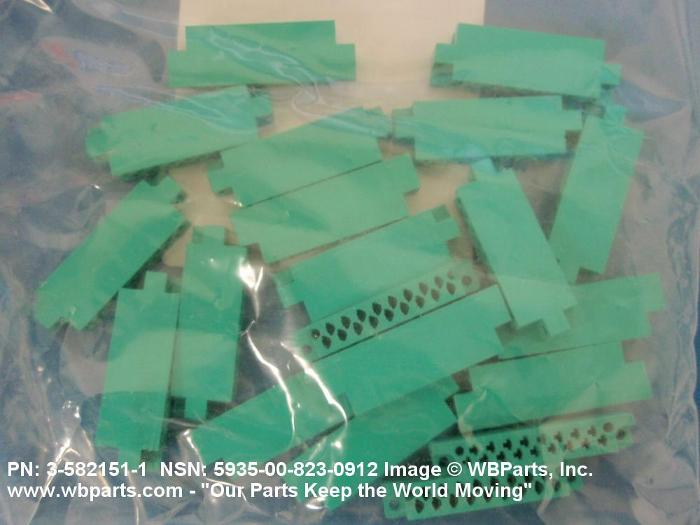

Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-823-0912 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 10300005001, 10320457, 23111990623, 23111-99-0623, 35821511, 3-582151-1, 45900544, 4590054-4, 5935-00-823-0912, 00-823-0912, 5935008230912, 008230912
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-823-0912 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-823-0912
Demand History | NSN 5935-00-823-0912
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 35821511 | 2011-04-98 | 20 | United States |
| 35821511 | 2011-03-71 | 20 | United States |
Cross Reference | NSN 5935-00-823-0912
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10300005001 | 87557 | LOCKHEED CORP LOCKHEED ELECTRONICS CO INC |
| 10300005001 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 23111-99-0623 | D1785 | HENSCHEL WEHRTECHNIK GMBH |
| 23111-99-0623 | D9448 | RHEINMETALL LANDSYSTEME GMBH DBA RHEINMETALL LAND- UN |
| 3-582151-1 | 00779 | TYCO ELECTRONICS CORPORATION |
| 4590054-4 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 4590054-4 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
