NSN 5935-00-904-4050 MS9015627, MS90156-27, MS9015627C

Product Details | CONNECTOR ADAPTER

5935-00-904-4050 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: MS9015627, MS90156-27, MS9015627C, MS90156-27C, MS9015627D, MS90156-27D, MS9015627DU, MS90156-27DU, MS9015627F, MS90156-27F, M55339/03-00027, M55339/3-00027, M553390300027, M55339300027, A3916, C68371, C6837-1, DIC27NA, MIL-A-55339/3, MILA553393, MIL-PRF-55339/3, MILPRF553393, Q431427132, UG27AU, UG27BU, UG27CU, UG27DU, UG27U, UG27-U, 400-010101, 4101300002, 4101300-002, 4163321, 416332-1, 04220063012, 042-20063-012, 1080466, 10804-66, 1503710000, 150371-0000, 1600156001, 16-00156-001, 229C070012, 229C07-0012 , 276MS160P001, 352250026506, 3843, 62871821, 6287182-1, 825551, 82-5551, 82641050, 82-64-1050, 8750040001, 875004-0001, 8750040003, 875004-0003, 8800700061, 880070006-1, 900338, 5935-00-904-4050, 00-904-4050, 5935009044050, 400010101, 009044050

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-904-4050	15091 ( ADAPTER, CONNECTOR )

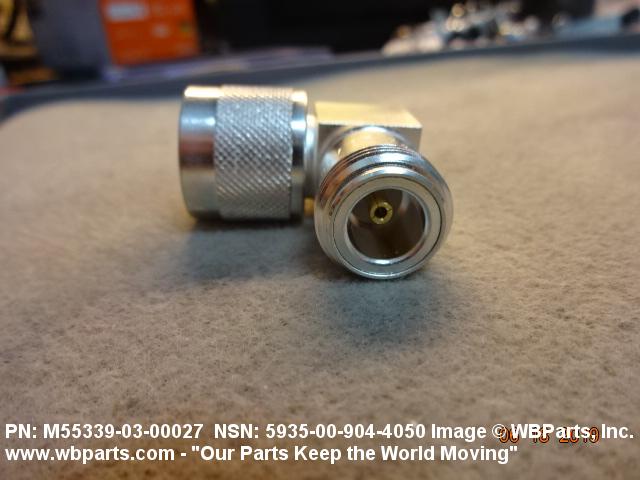

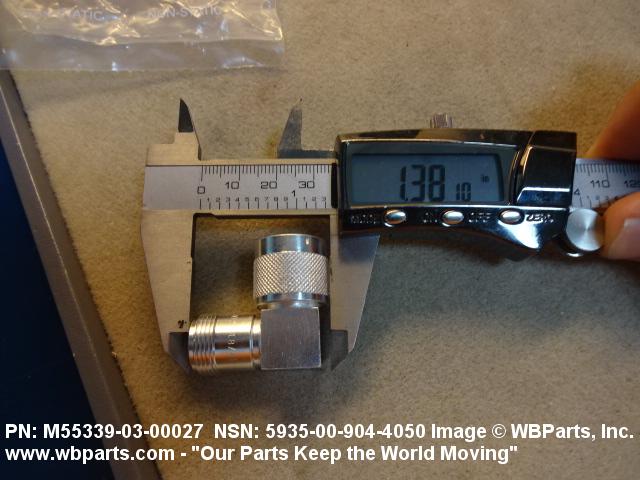

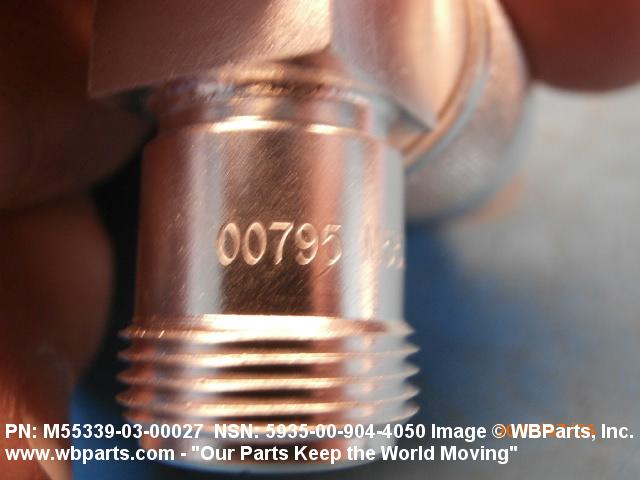

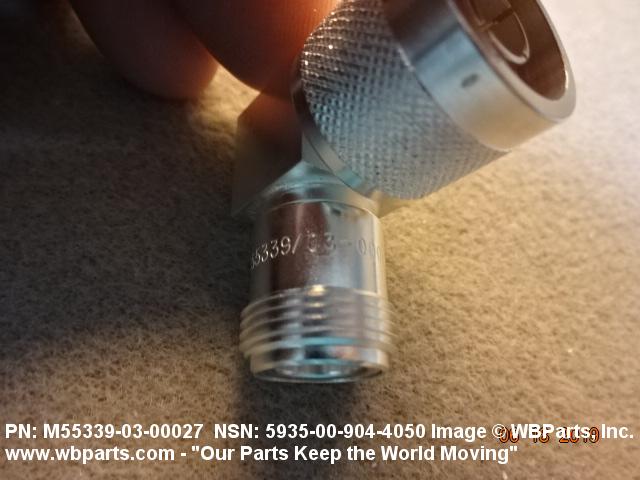

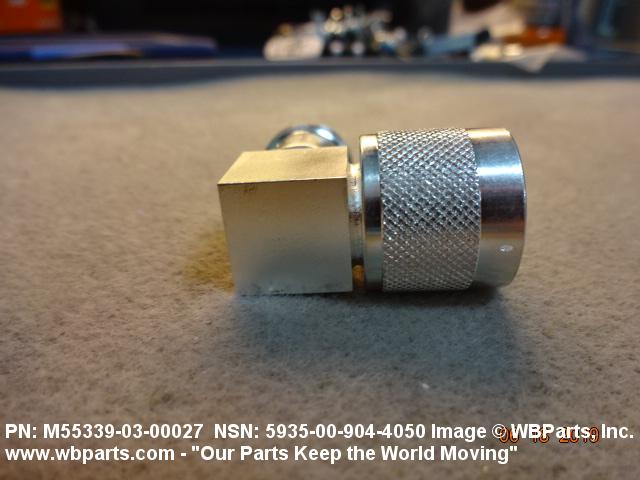

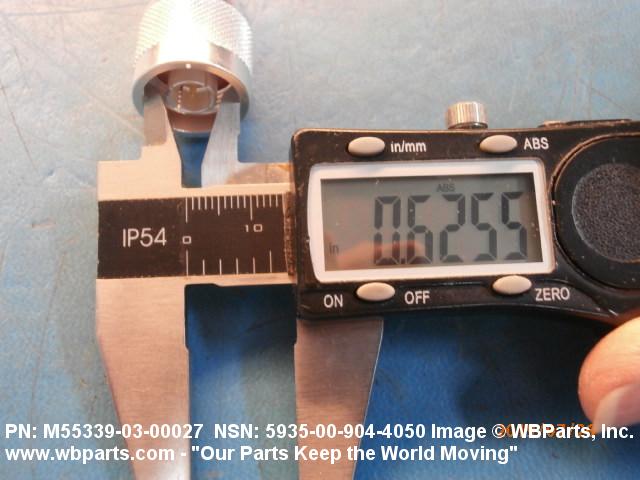

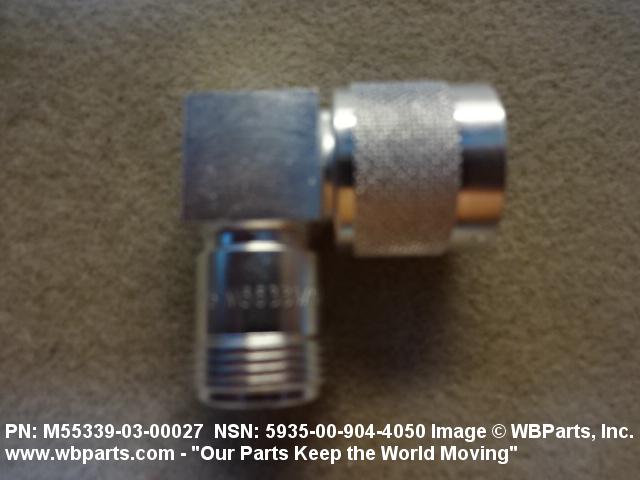

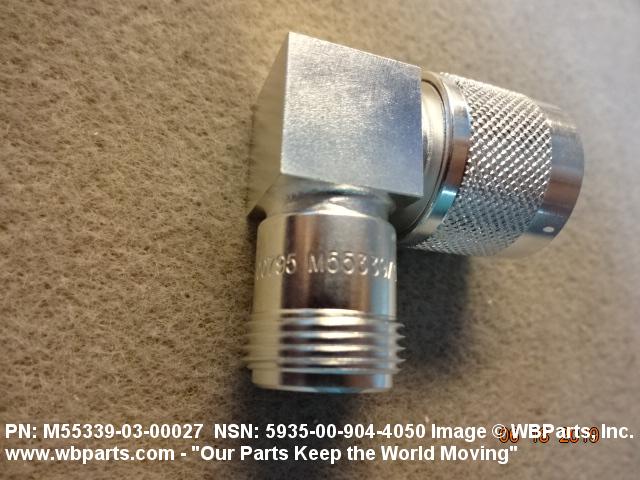

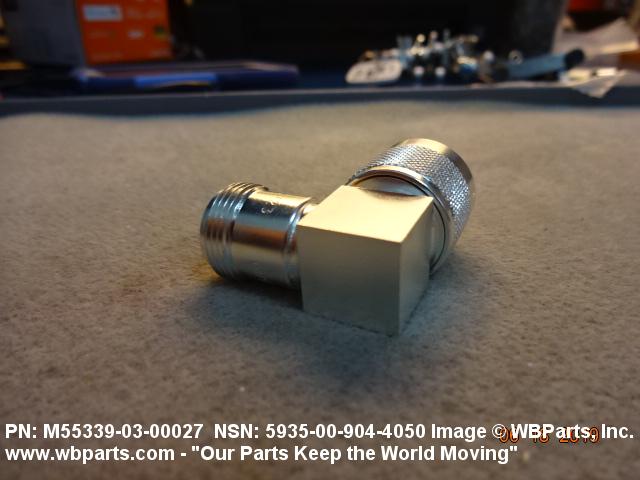

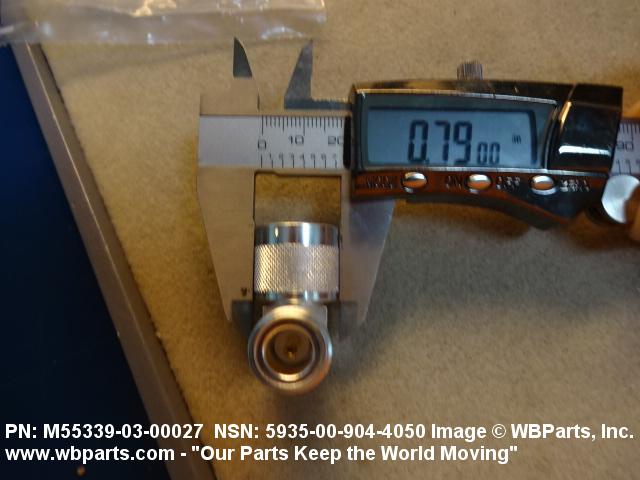

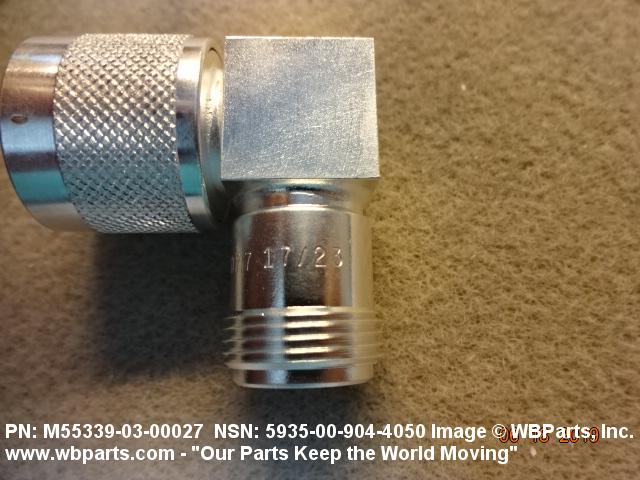

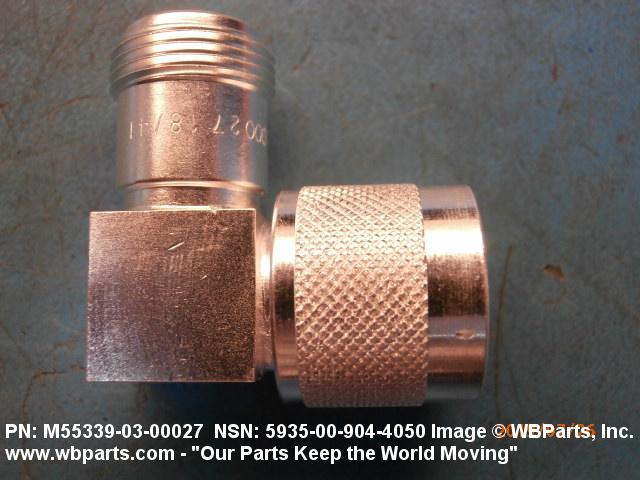

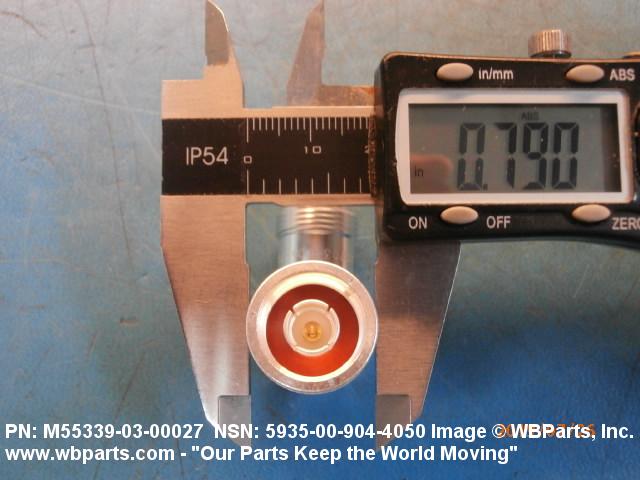

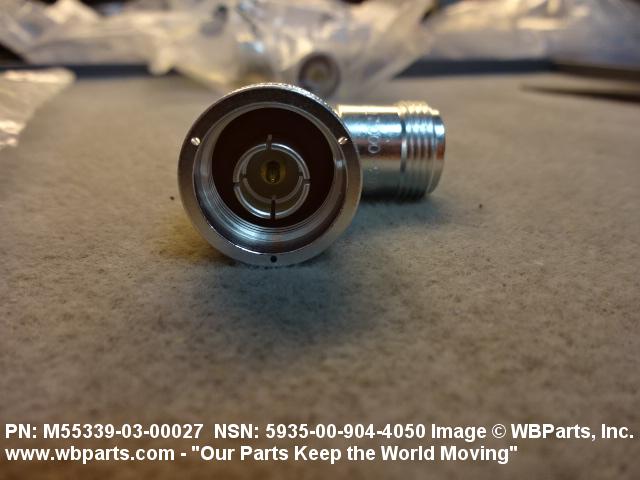

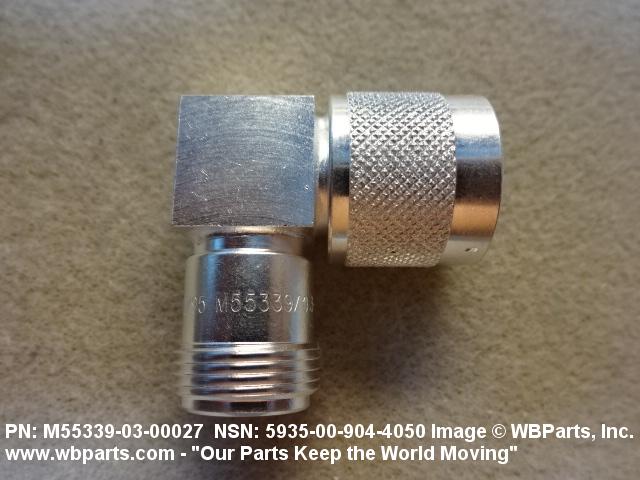

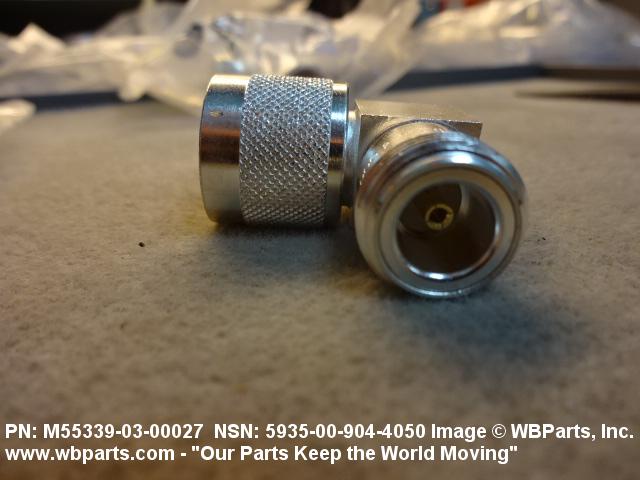

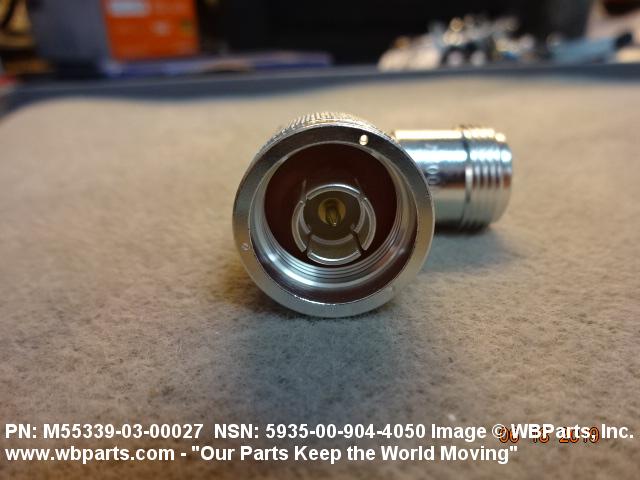

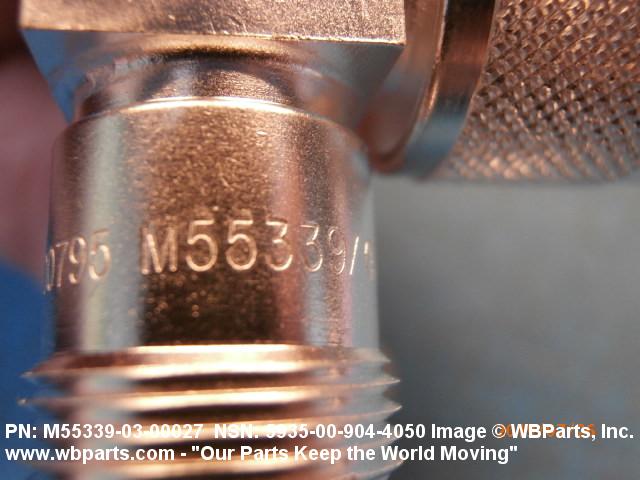

Drawings & Photos | NSN 5935-00-904-4050

Part Number	Request Date	QTY	Origin
5935-00-904-4050	2025-10-276	1894	DIBBS
5935-00-904-4050	2025-09-265	1894	US
5935-00-904-4050	2025-09-261	1894	DIBBS
5935-00-904-4050	2025-09-247	2	United States
5935-00-904-4050	2025-08-238	1	United States
5935-00-904-4050	2025-03-62	2542	DIBBS
5935-00-904-4050	2025-02-51	2542	DIBBS
5935-00-904-4050	2024-11-317	2269	DIBBS
5935-00-904-4050	2024-10-303	2269	DIBBS
5935-00-904-4050	2024-10-281	1172	DIBBS
5935-00-904-4050	2024-10-275	1	United States
5935-00-904-4050	2024-09-270	1172	DIBBS
5935-00-904-4050	2024-07-206	1097	DIBBS
5935-00-904-4050	2024-02-60	119	DIBBS
5935-00-904-4050	2024-02-53	64	DIBBS
5935-00-904-4050	2024-02-51	777	DIBBS
5935-00-904-4050	2024-01-07	1403	DIBBS
5935-00-904-4050	2024-01-02	25	United States
5935-00-904-4050	2023-10-274	613	DIBBS
5935-00-904-4050	2023-08-233	96	DIBBS
5935-00-904-4050	2023-08-227	45	DIBBS
5935-00-904-4050	2023-08-220	523	DIBBS
5935-00-904-4050	2023-08-214	28	DIBBS
5935-00-904-4050	2023-06-170	1880	DIBBS
5935-00-904-4050	2023-01-05	2290	DIBBS
5935-00-904-4050	2022-11-318	2290	DIBBS
5935-00-904-4050	2022-09-266	803	DIBBS
5935-00-904-4050	2022-09-255	803	DIBBS
5935-00-904-4050	2022-04-95	2447	DIBBS
5935-00-904-4050	2021-08-223	4	US
5935-00-904-4050	2019-07-188	100	United States
5935-00-904-4050	2019-06-156	50	United States
5935-00-904-4050	2019-01-08	8	United States
5935-00-904-4050	2018-07-200	3159	DIBBS
5935-00-904-4050	2018-07-189	3159	DIBBS
5935-00-904-4050	2017-09-254	1302	DIBBS
5935-00-904-4050	2017-08-243	1302	DIBBS
M553390300027	2013-10-284	16	us
M553390300027	2013-10-284	16	us
M553390300027	2013-10-280	16	us
5935-00-904-4050	2012-08-242	2	United States
5935-00-904-4050	2012-08-242	4	United States
5935-00-904-4050	2012-08-242	10	United States
5935-00-904-4050	2011-10-278	30	United Kingdom
UG27CU	2010-02-57	7	US
5935-00-904-4050	2009-07-195	3304	DIBBS
5935-00-904-4050	2008-09-256	10000	DIBBS
5935-00-904-4050	2008-07-199	5000	DIBBS
5935-00-904-4050	2008-06-158	5000	DIBBS
5935-00-904-4050	2008-01-31	1200	DIBBS
5935-00-904-4050	2007-10-296	1834	DIBBS
5935-00-904-4050	2007-08-243	750	DIBBS
5935-00-904-4050	2007-06-157	1390	DIBBS
5935-00-904-4050	2007-05-141	562	DIBBS
5935-00-904-4050	2007-03-69	1229	DIBBS
5935-00-904-4050	2006-09-255	12	US

Cross Reference | NSN 5935-00-904-4050

Part Number	Cage Code	Manufacturer
042-20063-012	12131	LH ENTERPRISE
10804-66	87147	METAL LUMBER CO THE
150371-0000	71468	ITT CORPORATION DBA I T T CANNON
16-00156-001	K0268	RAYTHEON SYSTEMS LTD
229C07-0012	65597	THALES DEFENSE & SECURITY, INC.
276MS160P001	49956	RAYTHEON COMPANY DBA RAYTHEON
352250026506	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
3843	05276	FLUKE ELECTRONICS CORP POMONA ELECTRONICS DIV
400-010101	01238	COMMUNICATIONS AND POWER INDUSTRIES SOLID STATE PRODUCTS DIV
4101300-002	05869	RAYTHEON COMPANY DBA RAYTHEON
416332-1	96214	RAYTHEON COMPANY DBA RAYTHEON
6287182-1	53711	NAVAL SEA SYSTEMS COMMAND
82-5551	74868	AMPHENOL CORPORATION
82-64-1050	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
875004-0001	65597	THALES DEFENSE & SECURITY, INC.
875004-0003	65597	THALES DEFENSE & SECURITY, INC.
880070006-1	57057	NAVCOM DEFENSE ELECTRONICS, INC.
900338	33013	LOGIMETRICS INC
A3916	81535	AERONAUTICAL COMMUNICATIONS EQUIPMENT INC
C6837-1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
DIC27NA	71468	ITT CORPORATION DBA I T T CANNON
M55339/03-00027	00795	DELTA ELECTRONICS MFG CORP
M55339/03-00027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M55339/3-00027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M55339/3-00027	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-A-55339/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-55339/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90156-27	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90156-27C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90156-27D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90156-27DU	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90156-27F	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Q431427132	A1508	RHEINMETALL ITALIA SPA
UG27-U	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
UG27AU	71468	ITT CORPORATION DBA I T T CANNON
UG27AU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
UG27BU	71468	ITT CORPORATION DBA I T T CANNON
UG27CU	80067	ARMED SERVICES ELECTRO STANDARDS AGENCY
UG27DU	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
UG27U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-904-4050

Compare

Related Products | NSN 5935-00-904-4050

5935-00-904-4051, 5935-00-904-4055, 5935-00-904-4284, 5935-00-904-4469, 5935-00-904-4546

Technical Data | NSN 5935-00-904-4050

Characteristic	Specifications
BODY STYLE	3N ANGLE SHAPE, EXTERNAL/INTERNAL COUPLING

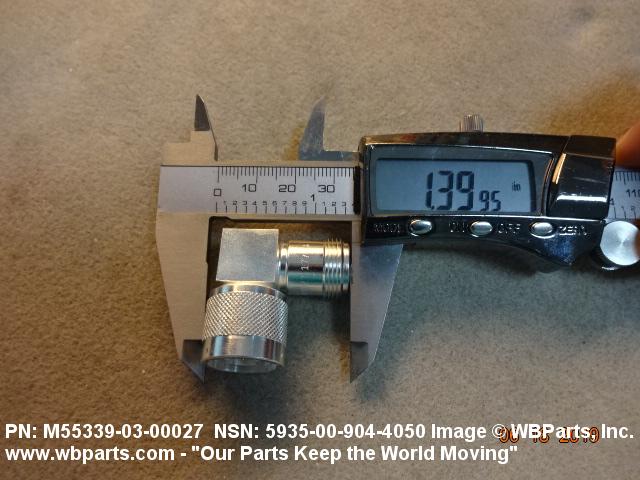

OVERALL LENGTH	1.400 INCHES NOMINAL

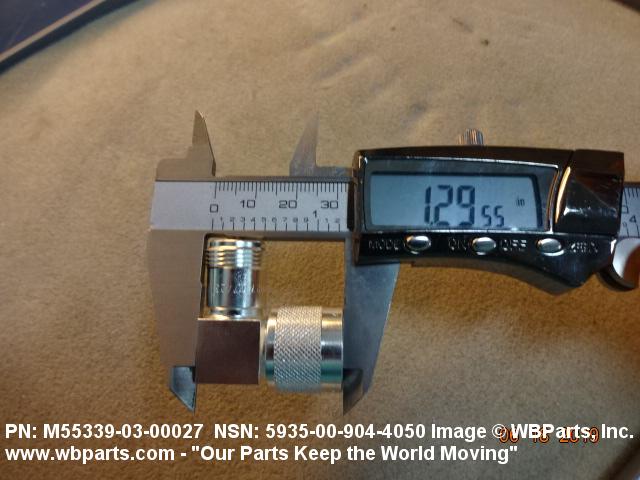

OVERALL HEIGHT	1.300 INCHES NOMINAL
OVERALL WIDTH	0.781 INCHES NOMINAL
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL AND INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF AND UNEF
NOMINAL THREAD SIZE	0.625 INCHES AND 0.625 INCHES
THREAD CLASS	2A AND 2B
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-613,COMP 11 FED SPEC SINGLE MATERIAL RESPONSE
MATING END QUANTITY	2
CONTACT POSITION ARRANGEMENT STYLE	ABCE N ALL MATING ENDS
INCLUDED CONTACT QUANTITY	1 1ST MATING END ALL CONTACT GROUPINGS 1 2ND MATING END ALL CONTACT GROUPINGS
CONTACT REMOVABILITY	NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	COAXIAL SOCKET 1ST MATING END 1ST CONTACT GROUPING COAXIAL PIN 2ND MATING END 2ND CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 1ST MATING END ALL CONTACT GROUPINGS 50.0 2ND MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY 1ST MATING END 1ST CONTACT GROUPING COPPER ALLOY 2ND MATING END 2ND CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-C-533,COMP HT FED SPEC SINGLE MATERIAL RESPONSE AND QQ-B-330,COMP A FED SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	SALT WATER RESISTANT
TEST DATA DOCUMENT	81349-MIL-A-27434 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-A-27434 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT	MIL-A-55339/3

Restrictions/Controls & Freight Information | NSN 5935-00-904-4050

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-904-4050

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
