Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-008-6893 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 13306162, 1-330616-2, 32552251, 3255225-1, 5935-01-008-6893, 01-008-6893, 5935010086893, 010086893
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 AUG 1975 | 01-008-6893 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-008-6893
Demand History | NSN 5935-01-008-6893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1-330616-2 | 2020-10-294 | 22 | DIBBS |
| 1-330616-2 | 2019-01-22 | 11 | DIBBS |
| 1-330616-2 | 2019-01-10 | 11 | DIBBS |
| 5935-01-008-6893 | 2018-11-305 | 2 | DIBBS |
| 5935-01-008-6893 | 2018-06-172 | 2 | United States |
| 5935-01-008-6893 | 2015-12-361 | 10 | DIBBS |
| 5935-01-008-6893 | 2014-09-258 | 1 | DIBBS |
| 5935-01-008-6893 | 2014-09-246 | 1 | DIBBS |
| 5935-01-008-6893 | 2014-06-181 | 1 | DIBBS |
| 5935-01-008-6893 | 2014-06-170 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-008-6893
Related Products | NSN 5935-01-008-6893
Technical Data | NSN 5935-01-008-6893
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL HEIGHT | 1.448 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW-SOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| SHELL TYPE | POTTING |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | JACKSCREW |
| MATING END QUANTITY | 1 |

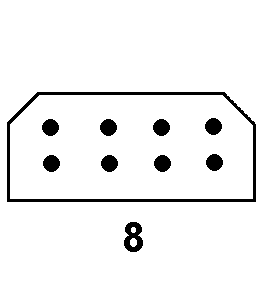

| CONTACT POSITION ARRANGEMENT STYLE | AJBE 8 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 8 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
