NSN 5935-01-024-2812 WA9A18244PN000, WA9A18-244PN000, WA9A18C244PN000
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-024-2812 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WA9A18244PN000, WA9A18-244PN000, WA9A18C244PN000, 5935-01-024-2812, 01-024-2812, 5935010242812, 010242812
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUL 1976 | 01-024-2812 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-024-2812
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-024-2812
Technical Data | NSN 5935-01-024-2812
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9G STRAIGHT SHAPE W/JACKSCREW |
| OVERALL LENGTH | 4.128 INCHES NOMINAL |
| OVERALL HEIGHT | 2.105 INCHES MAXIMUM |
| OVERALL WIDTH | 0.902 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.808 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL COMP 302 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE |
| POLARIZATION METHOD | POLARIZATION BOSS |
| MATING END QUANTITY | 1 |

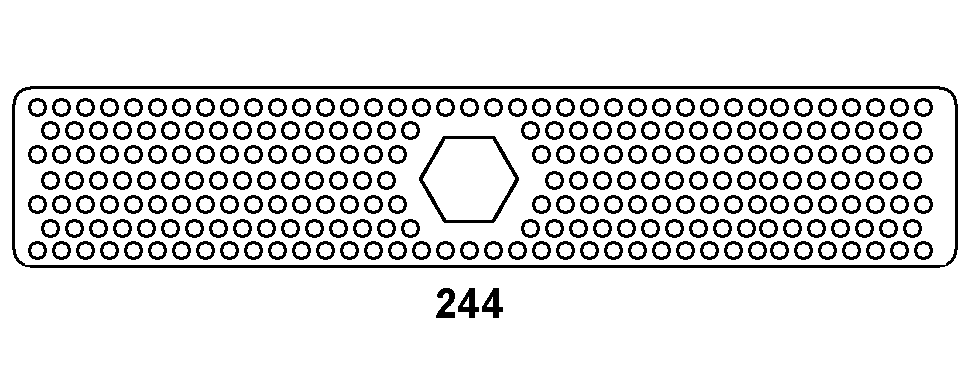

| CONTACT POSITION ARRANGEMENT STYLE | JAAA 244 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 244 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | THERMAL SHOCK RESISTANT |
| SPECIAL FEATURES | POLARIZED AT POSITION N |
Restrictions/Controls & Freight Information | NSN 5935-01-024-2812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-024-2812
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
