NSN 5935-01-049-2422 ST5M140217, ST5M1402-17, DRP07A17S
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-049-2422 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: ST5M140217, ST5M1402-17, DRP07A17S, G847217N, G8472-17-N, LE48200373017, LE482-0037-3017, 650FS001NF17, 10135555 , 10427405179, 10-427405-179, 1107-001-17, 1NF17, 5935-01-049-2422, 01-049-2422, 5935010492422, 010492422, 110700117
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 OCT 1977 | 01-049-2422 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

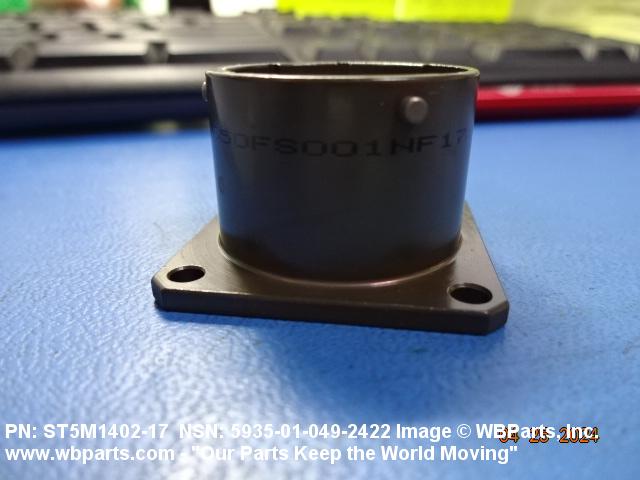

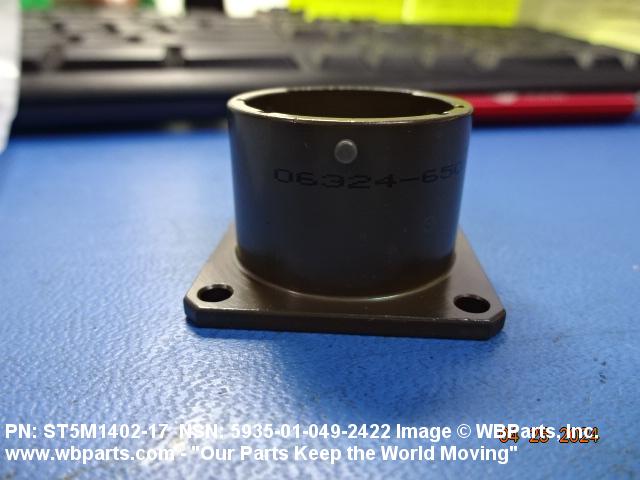

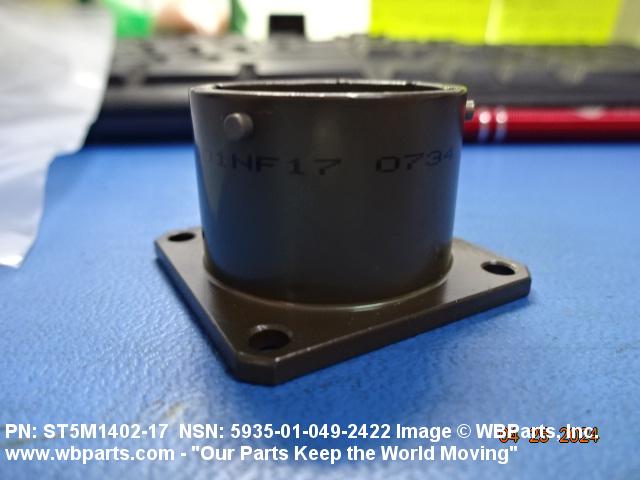

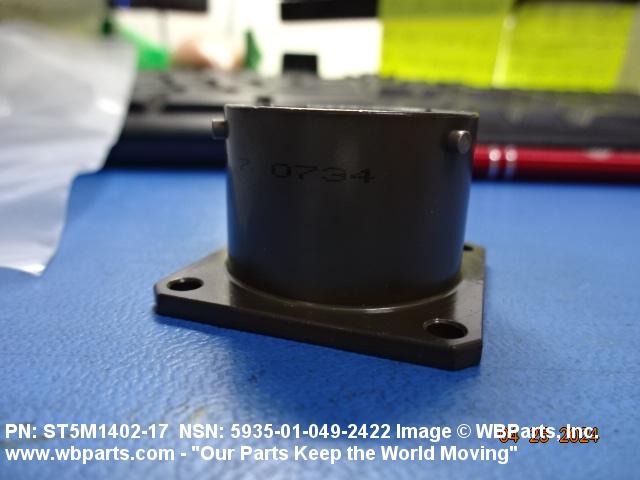

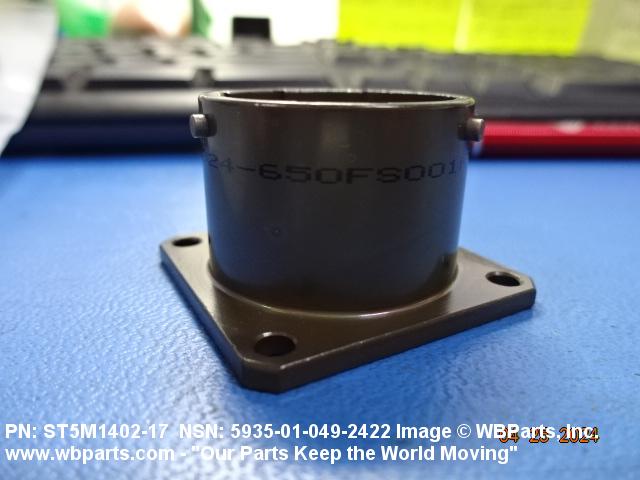

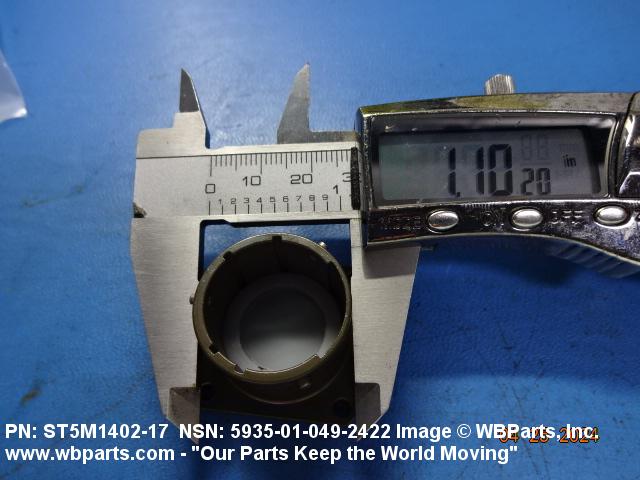

Drawings & Photos | NSN 5935-01-049-2422
Demand History | NSN 5935-01-049-2422
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST5M140217 | 2024-04-101 | 2 | United States |
| 10-427405-179 | 2020-04-113 | 398 | DIBBS |
| 1107-001-17 | 2020-04-113 | 398 | DIBBS |
| 1NF17 | 2020-04-113 | 398 | DIBBS |
| 650FS001NF17 | 2020-04-113 | 398 | DIBBS |
| G8472-17-N | 2020-04-113 | 398 | DIBBS |
| LE482-0037-3017 | 2020-04-113 | 398 | DIBBS |
| ST5M140217 | 2017-09-244 | 1 | United States |
| 5935-01-049-2422 | 2014-10-299 | 87 | DIBBS |
| 5935-01-049-2422 | 2013-11-321 | 87 | DIBBS |
| 5935-01-049-2422 | 2011-11-308 | 7 | DIBBS |
| 5935-01-049-2422 | 2009-10-281 | 35 | DIBBS |
| 5935-01-049-2422 | 2009-09-266 | 10 | DIBBS |
| 5935-01-049-2422 | 2009-09-260 | 9 | DIBBS |
| 5935-01-049-2422 | 2009-09-244 | 8 | DIBBS |
| 5935-01-049-2422 | 2009-08-225 | 10 | DIBBS |
| 5935-01-049-2422 | 2009-07-182 | 3 | DIBBS |
| 5935-01-049-2422 | 2007-11-313 | 4 | DIBBS |
Cross Reference | NSN 5935-01-049-2422
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-427405-179 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 1107-001-17 | 59976 | AERO-ELECTRIC CONNECTOR, INC. |
| 1NF17 | 06324 | GLENAIR, INC. |
| 650FS001NF17 | 06324 | GLENAIR, INC. |
| DRP07A17S | 24805 | ESC TECHNOLOGIES INC |
| G8472-17-N | 06324 | GLENAIR, INC. |
| LE482-0037-3017 | 43999 | BOEING COMPANY, THE DBA BOEING |
| ST5M1402-17 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-049-2422
Related Products | NSN 5935-01-049-2422
Technical Data | NSN 5935-01-049-2422
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |

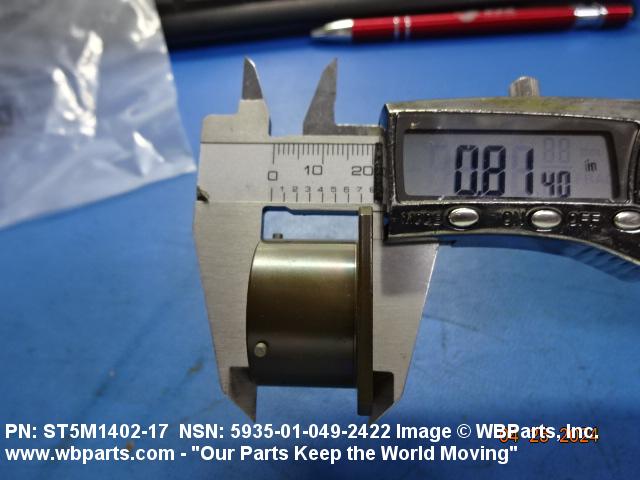

| OVERALL LENGTH | 0.812 INCHES MINIMUM AND 0.818 INCHES MAXIMUM |

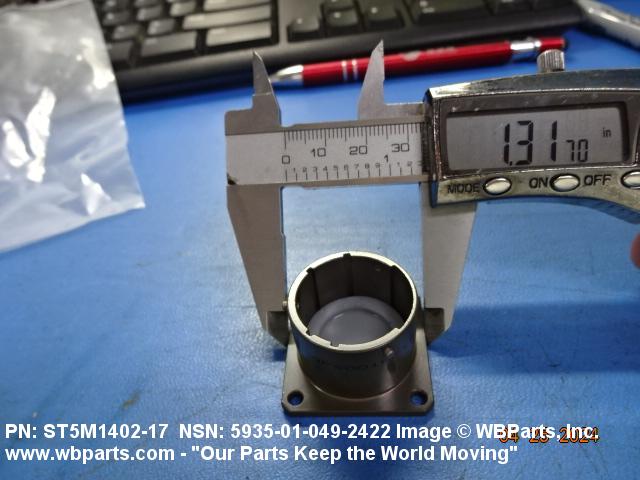

| OVERALL HEIGHT | 1.302 INCHES MINIMUM AND 1.323 INCHES MAXIMUM |
| OVERALL WIDTH | 1.302 INCHES MINIMUM AND 1.323 INCHES MAXIMUM |

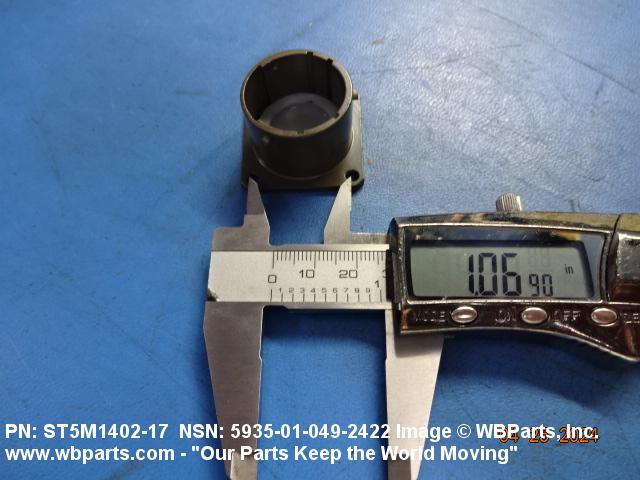

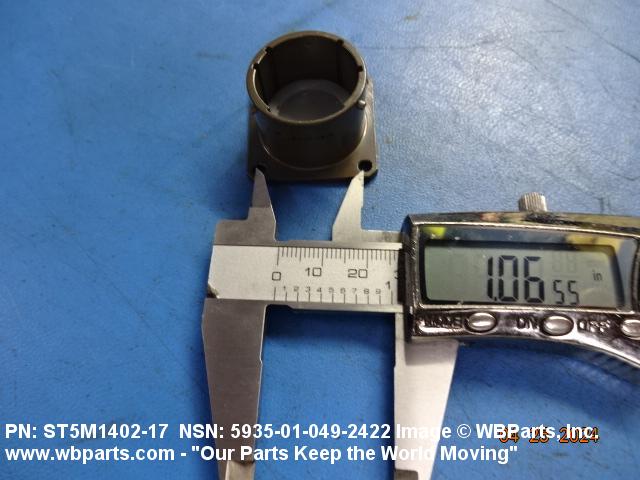

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.062 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.062 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.727 INCHES NOMINAL |

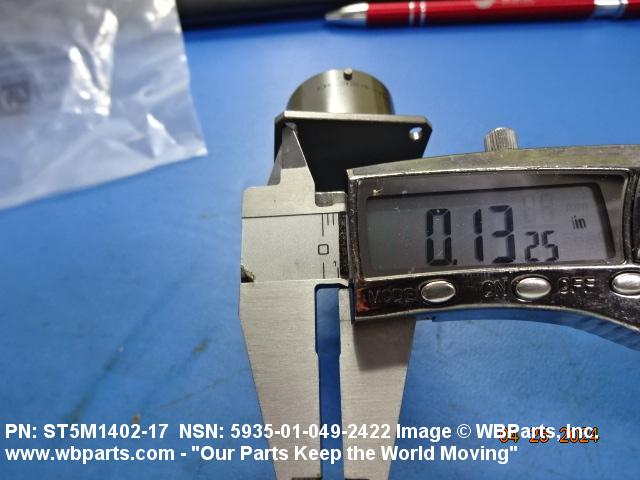

| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.132 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND NICKEL |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
Restrictions/Controls & Freight Information | NSN 5935-01-049-2422
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-049-2422
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
