NSN 5935-01-083-1217 M55339/04-00001, M55339/04-0001, M553390400001

Product Details | CONNECTOR ADAPTER

5935-01-083-1217 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: M55339/04-00001, M55339/04-0001, M553390400001, M55339040001, MIL-C-55339/4, MILC553394, KN9934, KN-99-34, 34N5001, 34N-50-0-1, 5935-01-083-1217, 01-083-1217, 5935010831217, 010831217

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	17 SEP 1979	01-083-1217	15091 ( ADAPTER, CONNECTOR )

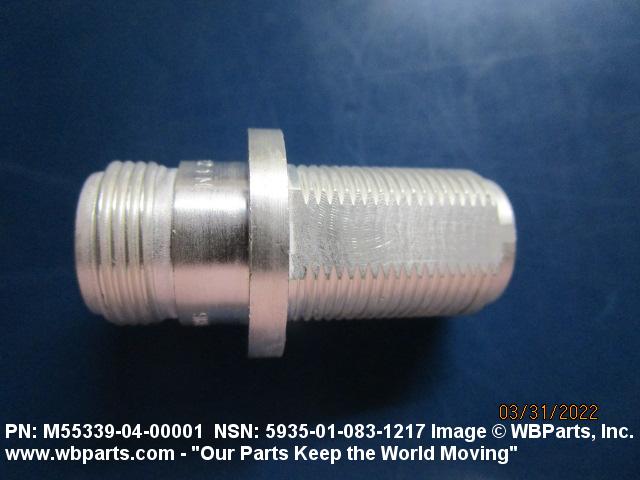

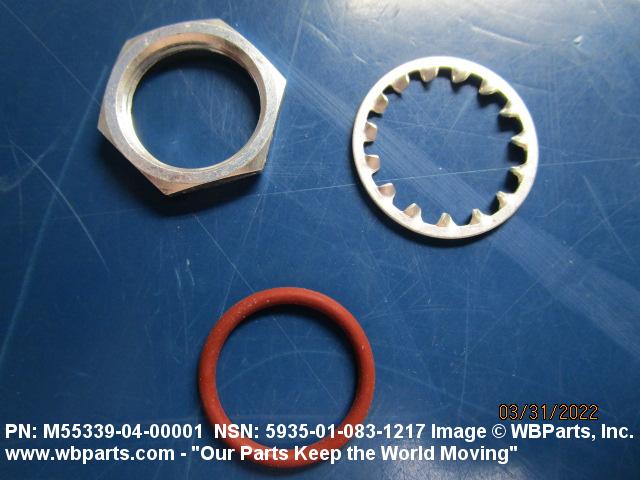

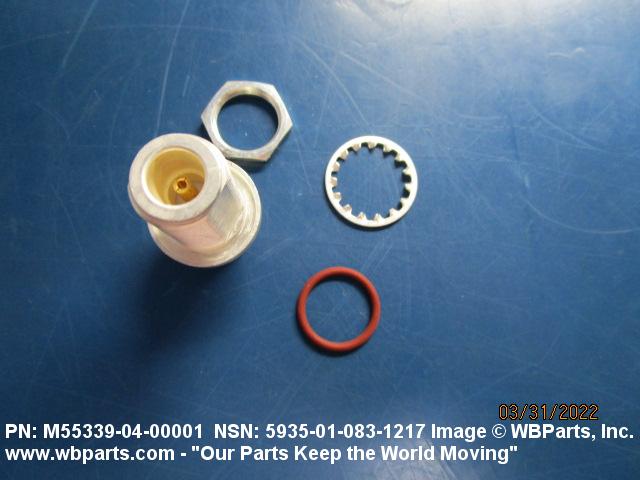

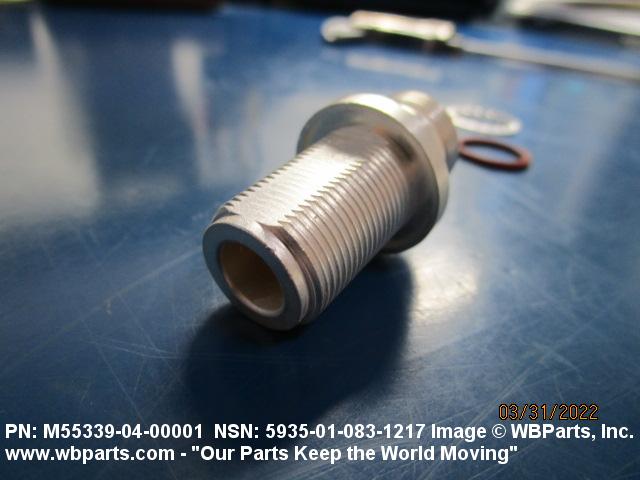

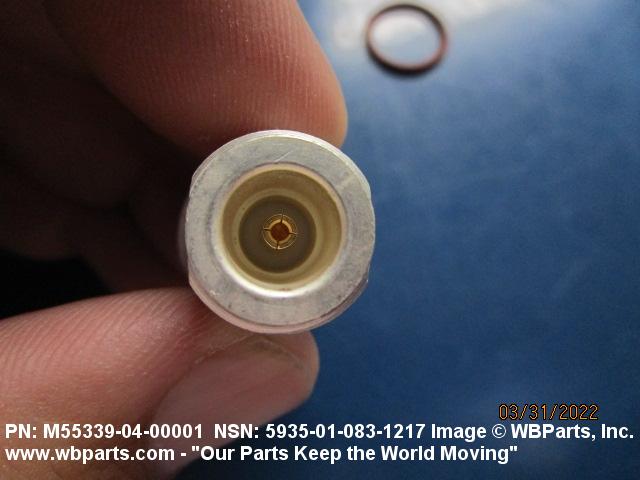

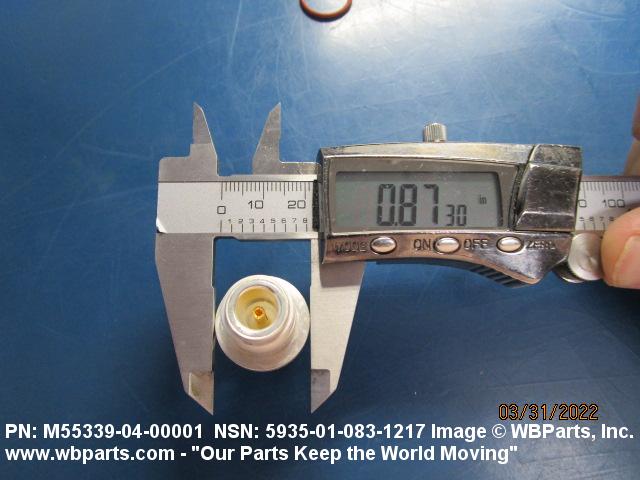

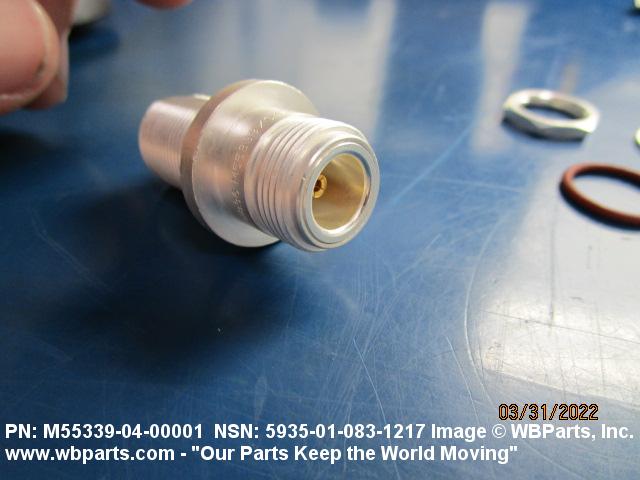

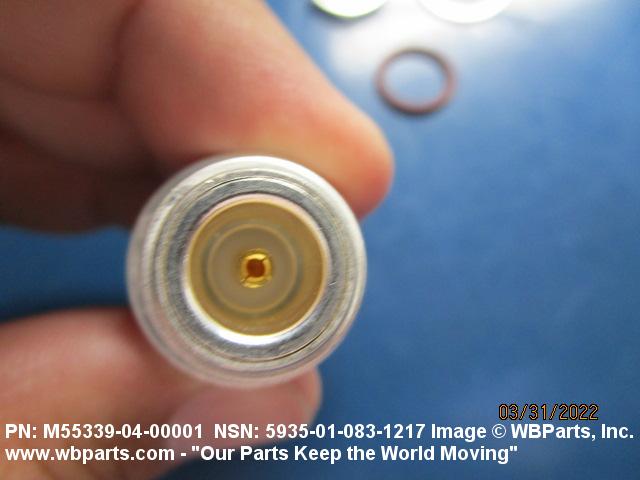

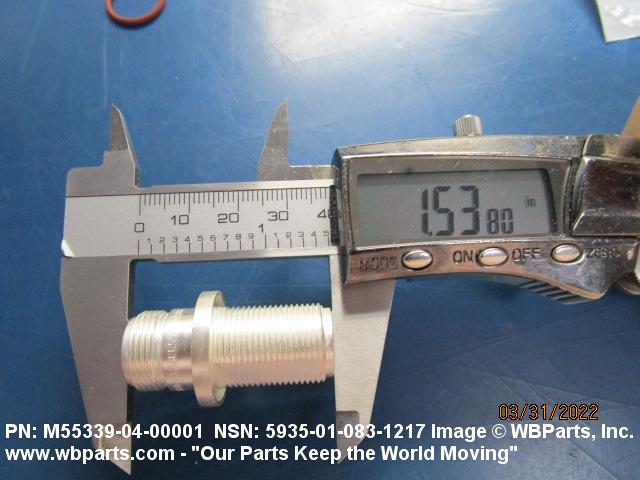

Drawings & Photos | NSN 5935-01-083-1217

Part Number	Request Date	QTY	Origin
5935-01-083-1217	2025-11-307	50	DIBBS
5935-01-083-1217	2025-10-296	50	DIBBS
5935-01-083-1217	2025-10-283	58	DIBBS
5935-01-083-1217	2025-09-272	58	DIBBS
5935-01-083-1217	2025-08-217	58	DIBBS
5935-01-083-1217	2025-07-201	58	DIBBS
5935-01-083-1217	2024-10-291	20	DIBBS
5935-01-083-1217	2024-08-241	83	DIBBS
5935-01-083-1217	2024-08-217	39	DIBBS
M553390400001	2022-03-70	16	Taiwan
5935-01-083-1217	2020-03-79	25	DIBBS
5935-01-083-1217	2020-01-30	20	DIBBS
5935-01-083-1217	2019-10-290	137	DIBBS
5935-01-083-1217	2019-10-288	150	DIBBS
5935-01-083-1217	2019-10-275	150	DIBBS
5935-01-083-1217	2019-09-260	22	DIBBS
5935-01-083-1217	2019-08-213	9	DIBBS
5935-01-083-1217	2019-06-171	16	DIBBS
5935-01-083-1217	2019-06-161	1	DIBBS-RFPs
5935-01-083-1217	2019-01-31	14	DIBBS
5935-01-083-1217	2011-04-109	129	DIBBS
5935-01-083-1217	2011-01-19	95	DIBBS
5935-01-083-1217	2011-01-07	92	DIBBS
M553390400001	2010-09-272	1	United States
M553390400001	2010-09-263	30	US
5935-01-083-1217	2009-07-212	156	DIBBS
5935-01-083-1217	2009-01-05	49	DIBBS
5935-01-083-1217	2008-11-316	58	DIBBS
5935-01-083-1217	2008-10-281	10	DIBBS
5935-01-083-1217	2008-06-154	24	DIBBS
5935-01-083-1217	2008-05-122	92	DIBBS
5935-01-083-1217	2008-03-71	45	DIBBS
5935-01-083-1217	2008-02-58	65	DIBBS
5935-01-083-1217	2007-07-188	95	DIBBS
5935-01-083-1217	2007-03-69	91	DIBBS

Cross Reference | NSN 5935-01-083-1217

Part Number	Cage Code	Manufacturer
34N-50-0-1	S4773	HUBER UND SUHNER AG
KN-99-34	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
M55339/04-00001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M55339/04-0001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-55339/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-083-1217

Compare

Related Products | NSN 5935-01-083-1217

5935-01-083-1218, 5935-01-083-1219, 5935-01-083-1221, 5935-01-083-1222, 5935-01-083-1223

Technical Data | NSN 5935-01-083-1217

Characteristic	Specifications
BODY STYLE	12N STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH	1.562 INCHES MAXIMUM
OVERALL DIAMETER	0.900 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.858 INCHES MINIMUM AND 0.868 INCHES MAXIMUM
BUSHING ACCOMMODATION HOLE SHAPE	ROUND W/DOUBLE FLAT
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY AND MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
MATING END QUANTITY	2
CONTACT POSITION ARRANGEMENT STYLE	ABCE N ALL MATING ENDS
INCLUDED CONTACT QUANTITY	1 1ST MATING END SINGLE CONTACT GROUPING 1 2ND MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL SOCKET ALL MATING ENDS SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD ALL MATING ENDS SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 1,CL 2,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-55339 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-55339/4 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-55339/4
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M55339/04-00001

Restrictions/Controls & Freight Information | NSN 5935-01-083-1217

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-083-1217

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
