NSN 5935-01-149-2512 C85411, C8541-1, K3946
Product Details | CONNECTOR ADAPTER
5935-01-149-2512 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: C85411, C8541-1, K3946, K-3946, RB97601, RB9760-1, 30361, 5935-01-149-2512, 01-149-2512, 5935011492512, 011492512
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAR 2001 | 01-149-2512 | 15091 ( ADAPTER, CONNECTOR ) |

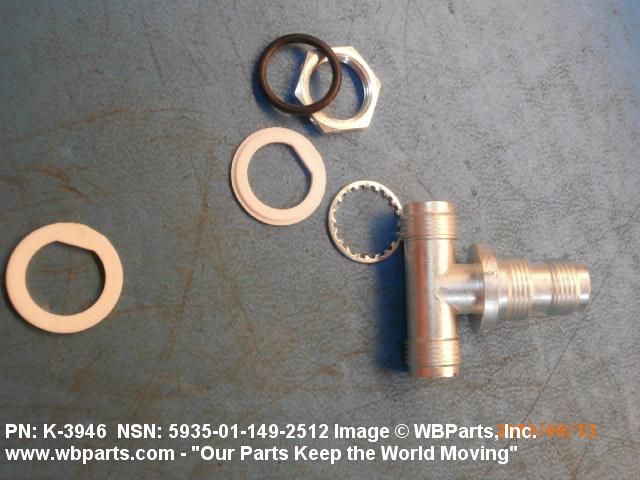

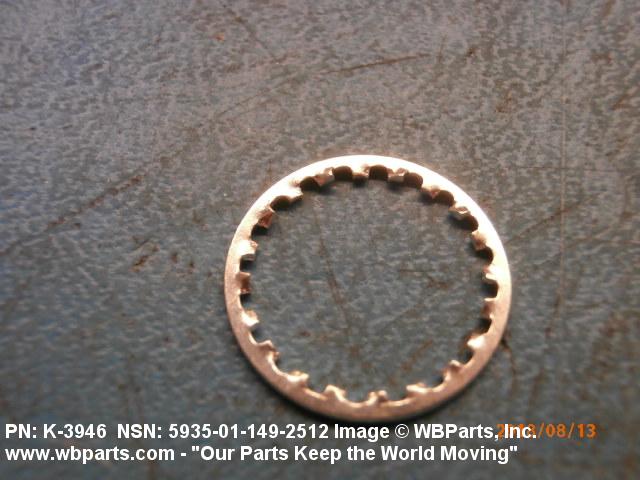

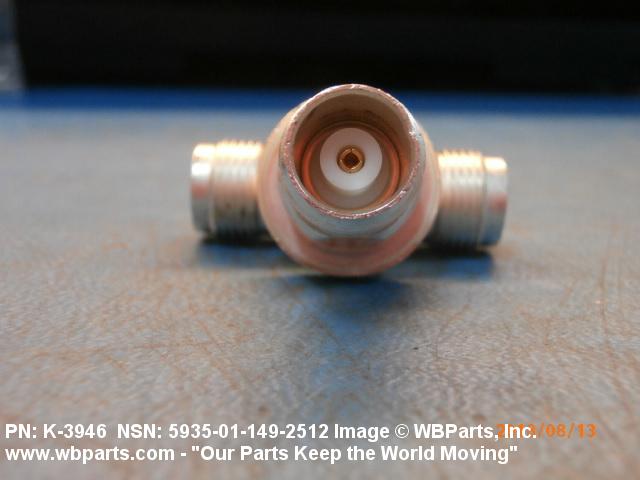

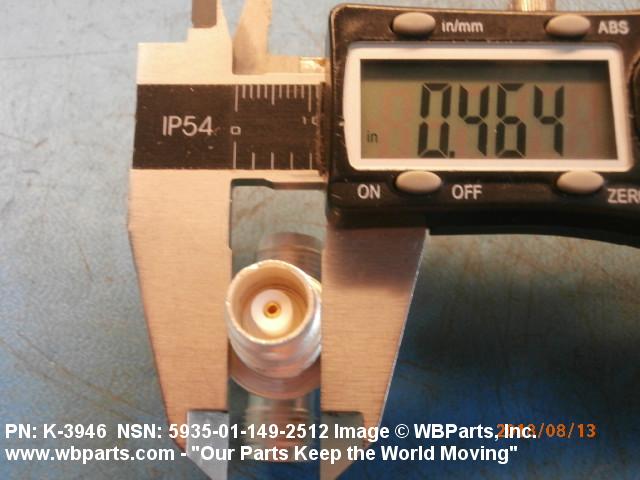

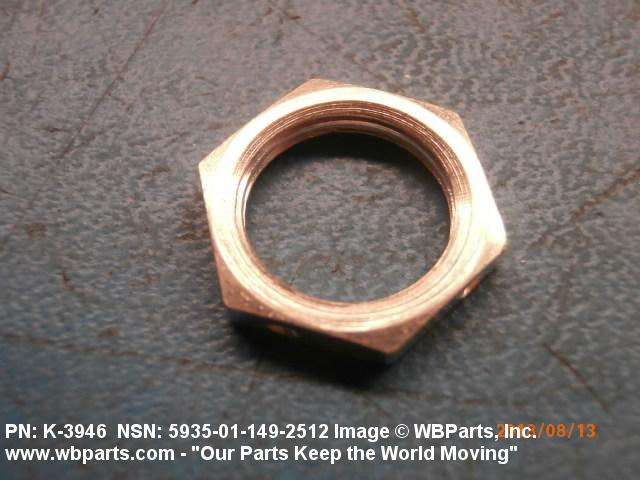

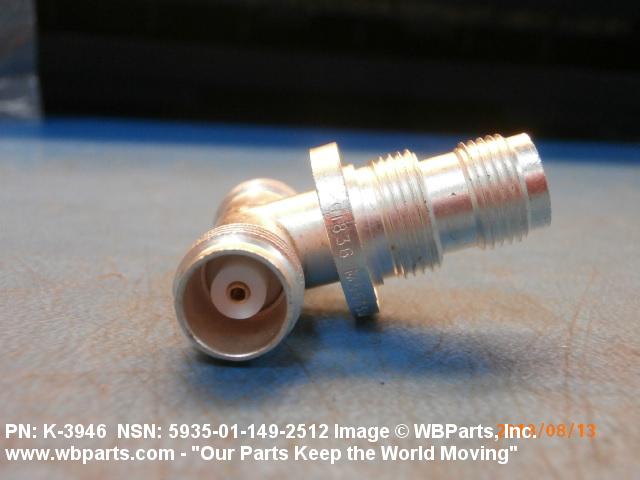

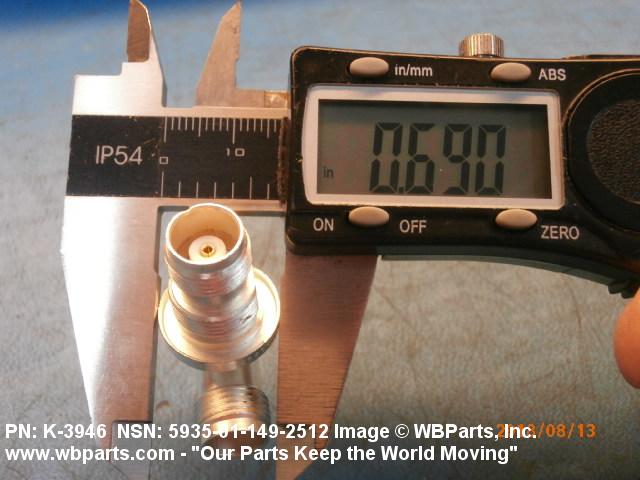

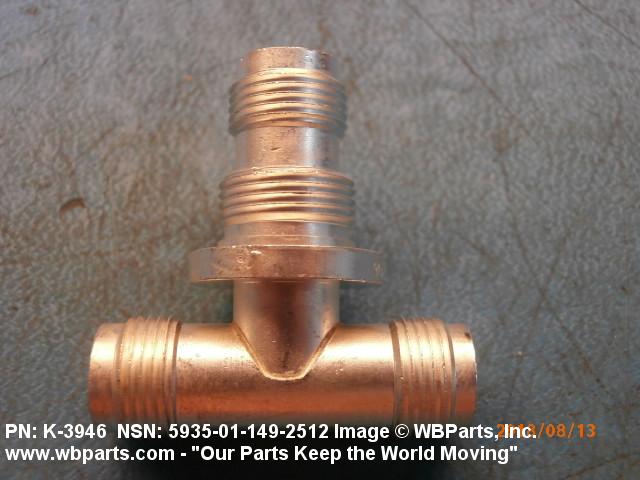

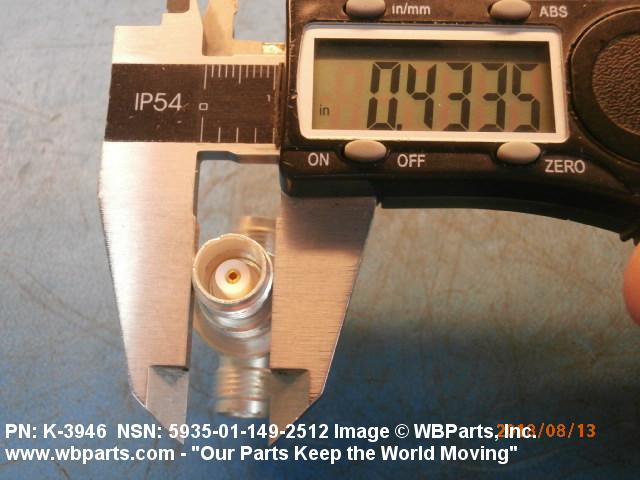

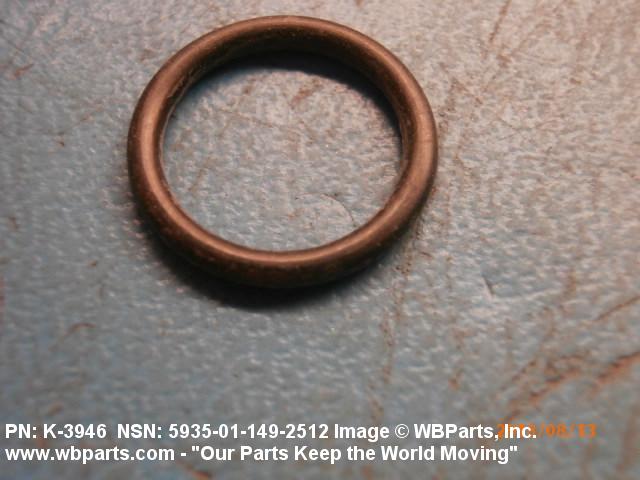

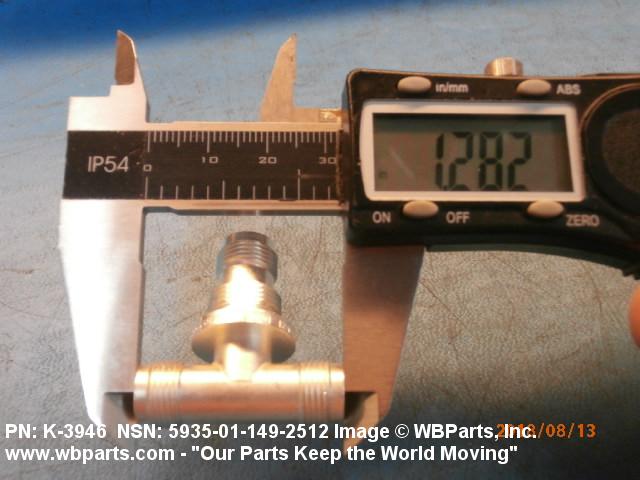

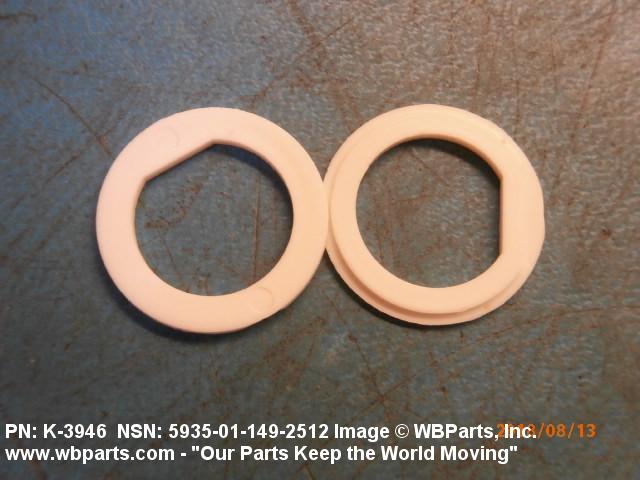

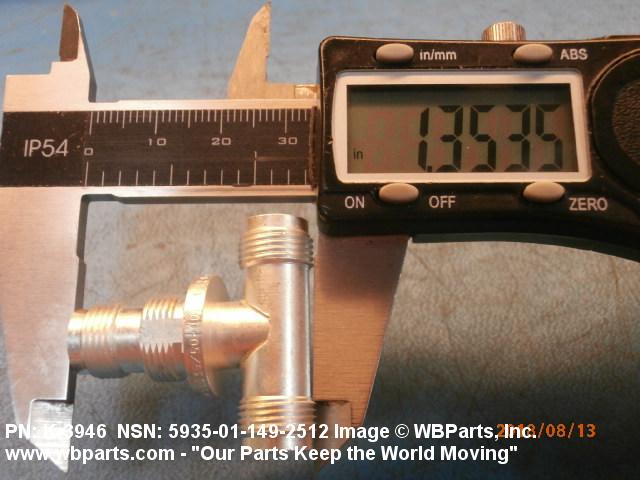

Drawings & Photos | NSN 5935-01-149-2512
Demand History | NSN 5935-01-149-2512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30361 | 2025-08-219 | 42 | DIBBS |
| C8541-1 | 2025-08-219 | 42 | DIBBS |
| 5935-01-149-2512 | 2025-06-176 | 35 | US |
| 5935-01-149-2512 | 2024-10-296 | 3 | United States |
| 5935-01-149-2512 | 2024-09-268 | 1 | United States |
| 5935-01-149-2512 | 2024-09-253 | 1 | United States |
| 30361 | 2024-05-134 | 194 | DIBBS |
| C8541-1 | 2024-05-134 | 194 | DIBBS |
| 30361 | 2024-05-123 | 194 | DIBBS |
| C8541-1 | 2024-05-123 | 194 | DIBBS |
| 30361 | 2024-02-57 | 258 | DIBBS |
| C8541-1 | 2024-02-57 | 258 | DIBBS |
| 30361 | 2024-02-45 | 258 | DIBBS |
| C8541-1 | 2024-02-45 | 258 | DIBBS |
| 30361 | 2023-11-332 | 101 | DIBBS |
| C8541-1 | 2023-11-332 | 101 | DIBBS |
| C85411 | 2023-07-205 | 63 | United States |
| 30361 | 2023-02-59 | 91 | DIBBS |
| C8541-1 | 2023-02-59 | 91 | DIBBS |
| 30361 | 2023-02-58 | 91 | DIBBS |
| C8541-1 | 2023-02-58 | 91 | DIBBS |
| 30361 | 2023-02-55 | 91 | DIBBS |
| C8541-1 | 2023-02-55 | 91 | DIBBS |
| 30361 | 2023-02-52 | 91 | DIBBS |
| C8541-1 | 2023-02-52 | 91 | DIBBS |
| 30361 | 2023-02-40 | 91 | DIBBS |
| C8541-1 | 2023-02-40 | 91 | DIBBS |
| 30361 | 2021-08-224 | 1 | United States |
| 5935-01-149-2512 | 2021-05-126 | 5 | us |
| 5935-01-149-2512 | 2021-01-14 | 5 | us |
| 30361 | 2019-11-317 | 121 | DIBBS |
| C8541-1 | 2019-11-317 | 121 | DIBBS |
| 30361 | 2019-02-56 | 120 | DIBBS |
| C8541-1 | 2019-02-56 | 120 | DIBBS |
| 30361 | 2019-02-45 | 120 | DIBBS |
| C8541-1 | 2019-02-45 | 120 | DIBBS |
| 5935-01-149-2512 | 2018-08-218 | 2 | United States |
| 5935-01-149-2512 | 2018-01-29 | 2 | Taiwan |
| 5935-01-149-2512 | 2017-12-351 | 2 | us |
| 5935-01-149-2512 | 2015-10-287 | 143 | DIBBS |
| 5935-01-149-2512 | 2015-09-273 | 143 | DIBBS |
| 5935-01-149-2512 | 2015-07-186 | 95 | DIBBS |
| 5935-01-149-2512 | 2014-10-282 | 132 | DIBBS |
| 5935-01-149-2512 | 2014-09-271 | 132 | DIBBS |
| 5935-01-149-2512 | 2013-10-304 | 65 | DIBBS |
| 5935-01-149-2512 | 2013-06-175 | 85 | DIBBS |
| 5935-01-149-2512 | 2013-03-88 | 27 | DIBBS |
| 5935-01-149-2512 | 2012-09-254 | 100 | DIBBS |
| 5935-01-149-2512 | 2012-08-241 | 10 | DIBBS |
| 5935-01-149-2512 | 2012-08-227 | 12 | DIBBS |
| 5935-01-149-2512 | 2012-05-138 | 12 | DIBBS |
| 5935-01-149-2512 | 2012-03-90 | 12 | DIBBS |
| 5935-01-149-2512 | 2012-03-62 | 11 | DIBBS |
| 5935-01-149-2512 | 2011-12-355 | 10 | DIBBS |
| 5935-01-149-2512 | 2011-11-329 | 7 | DIBBS |
| 5935-01-149-2512 | 2011-07-208 | 40 | DIBBS |
| C85411 | 2008-05-126 | 31 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-149-2512
Related Products | NSN 5935-01-149-2512
Technical Data | NSN 5935-01-149-2512
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 6N T-SHAPE |
| OVERALL LENGTH | 1.312 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.375 INCHES MAXIMUM |
| OVERALL WIDTH | 0.750 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/FLAT |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 0.438 INCHES AND 0.500 INCHES |
| THREAD CLASS | 2A AND 2A |

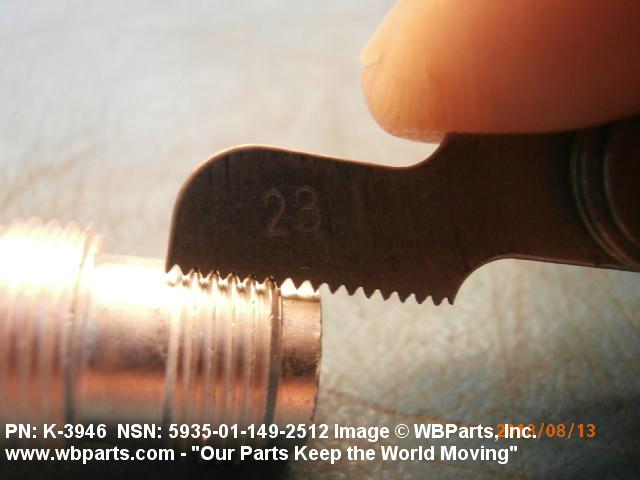

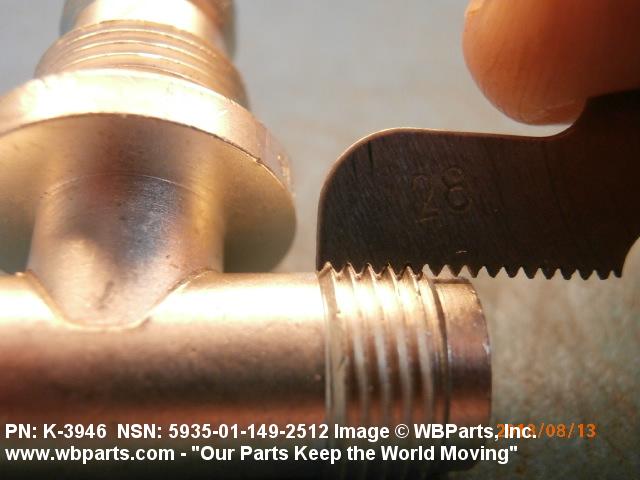

| THREAD QUANTITY PER INCH | 28 AND 28 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| MATING END QUANTITY | 3 |
| CONTACT POSITION ARRANGEMENT STYLE | ABCZ TNC ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 1,CLASS 2,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-149-2512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
