NSN 5935-01-159-5514 M55339/29-30001, M553392930001, MIS-29556/15
Product Details | CONNECTOR ADAPTER
5935-01-159-5514 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: M55339/29-30001, M553392930001, MIS-29556/15, MIS2955615, SF29936008, SF2993-6008, SMSMC, SM-SM-C, MIL-A-55339/29, MILA5533929, E3352000000, E3352-000-000, G2543104, G254310-4, G350273S1, 042309, 2081000031, 2081-0000-31, 2081000044, 2081-0000-44, 2081000069, 2081-0000-69, 2081504929, 2081-5049-29, 218, 21889602, 2188960-2, 2278751-00, 2781000000, 2781-0000-00, 29936001, 2993-6001, 29936008, 2993-6008, 3242091, 4283, 4813981, 481398-1, 53906902CCCESF, 5390-690-2CCCESF, 60-0918-090, 73-805994-3, 73-808848-3, 788C548H27, 856B042309, 8792M09, 879-2M09, 901118, 901-118, 9083445, 908344-5, 9882305, 988230-5, 5935-01-159-5514, 01-159-5514, 5935011595514, 227875100, 011595514, 600918090, 738088483, 738059943
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 AUG 1983 | 01-159-5514 | 15091 ( ADAPTER, CONNECTOR ) |

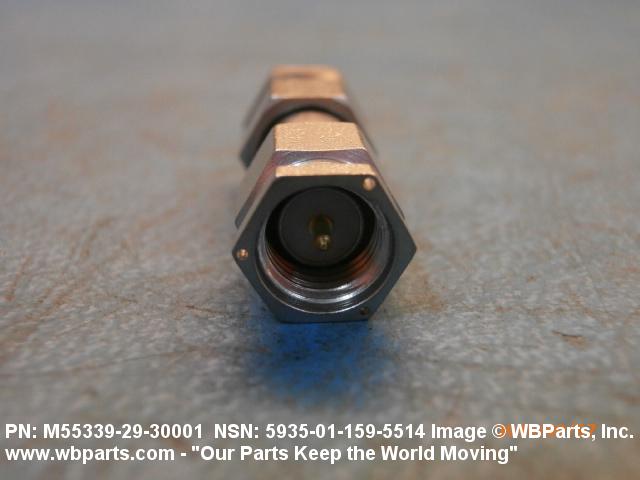

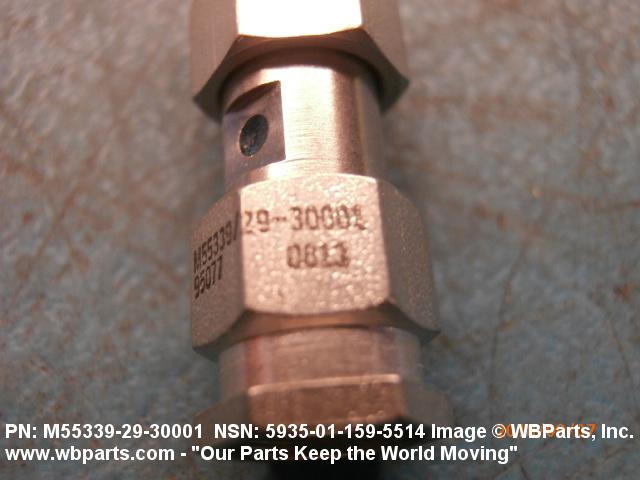

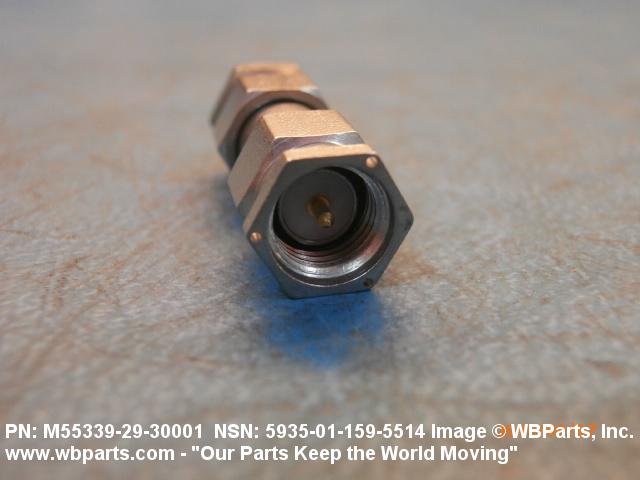

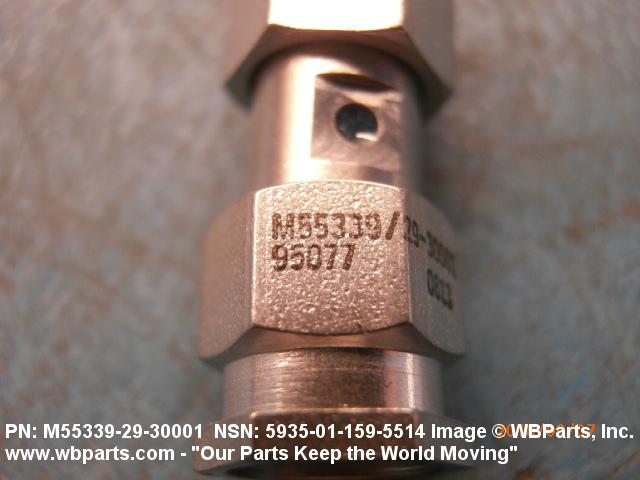

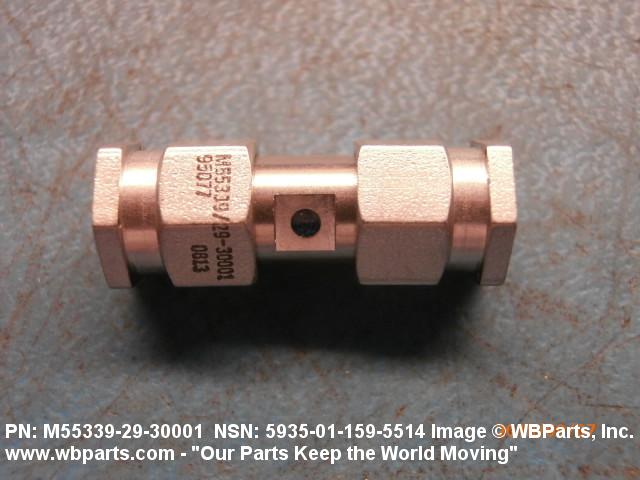

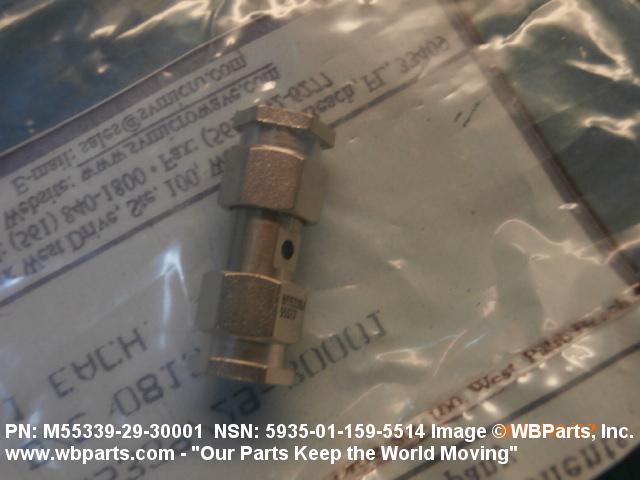

Drawings & Photos | NSN 5935-01-159-5514
Demand History | NSN 5935-01-159-5514
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-159-5514 | 2022-03-76 | 95 | DIBBS |
| 5935-01-159-5514 | 2018-06-180 | 1 | United States |
| 5935-01-159-5514 | 2018-03-63 | 207 | DIBBS |
| 5935-01-159-5514 | 2015-04-110 | 278 | DIBBS |
| 5935-01-159-5514 | 2014-09-255 | 12 | TW |
| 5935-01-159-5514 | 2014-08-237 | 236 | DIBBS |
| 5935-01-159-5514 | 2013-05-149 | 210 | DIBBS |
| 5935-01-159-5514 | 2012-07-193 | 213 | DIBBS |
| M553392930001 | 2011-05-150 | 20 | IL |
| 5935-01-159-5514 | 2007-08-235 | 1200 | DIBBS |
| 5935-01-159-5514 | 2007-04-93 | 350 | DIBBS |
| 5935-01-159-5514 | 2007-01-26 | 325 | DIBBS |
Cross Reference | NSN 5935-01-159-5514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 042309 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 2081-0000-31 | 26805 | TYCO ELECTRONICS CORP |
| 2081-0000-44 | 26805 | TYCO ELECTRONICS CORP |
| 2081-0000-69 | 26805 | TYCO ELECTRONICS CORP |
| 2081-5049-29 | 26805 | TYCO ELECTRONICS CORP |
| 218 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 2188960-2 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 2278751-00 | 06401 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST |
| 2781-0000-00 | 26805 | TYCO ELECTRONICS CORP |
| 2781-0000-00 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 2993-6001 | 95554 | COATS CO INC THE |
| 2993-6008 | 95077 | SV MICROWAVE, INC DIV SV MICROWAVE |
| 3242091 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 4283 | 4U744 | FLUKE ELECTRONICS CORPORATION DBA FLUKE |
| 481398-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5390-690-2CCCESF | 30990 | TENSOLITE, LLC DIV LONG BEACH |
| 60-0918-090 | 19505 | RADIALL USA, INC. |
| 73-805994-3 | 07397 | GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS INC. |
| 73-808848-3 | 07397 | GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS INC. |
| 788C548H27 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 856B042309 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 879-2M09 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| 901-118 | 04454 | SENSOR SYSTEMS, L.L.C. |
| 908344-5 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 988230-5 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| E3352-000-000 | 94375 | AUTOMATIC CONNECTOR |
| G254310-4 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G254310-4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G350273S1 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| M55339/29-30001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-A-55339/29 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIS-29556/15 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| SF2993-6008 | 95077 | SV MICROWAVE, INC DIV SV MICROWAVE |
| SM-SM-C | 52335 | DAL-TECH DEVICES, INC. DBA MICROWAVE DISTRIBUTORS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-159-5514
Technical Data | NSN 5935-01-159-5514
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2N STRAIGHT SHAPE, INTERNAL COUPLING |

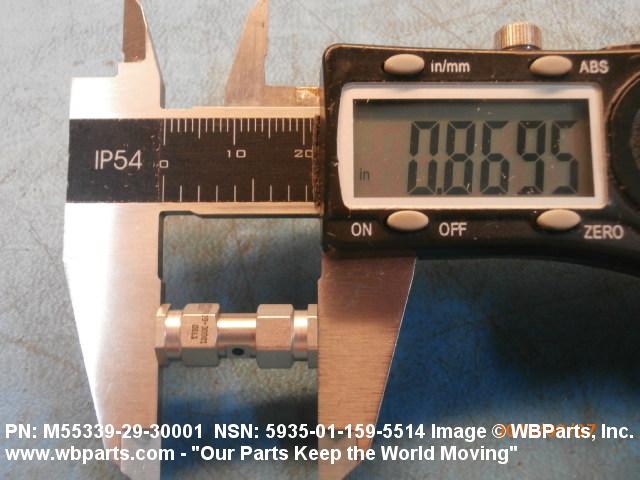

| OVERALL LENGTH | 0.910 INCHES MAXIMUM |

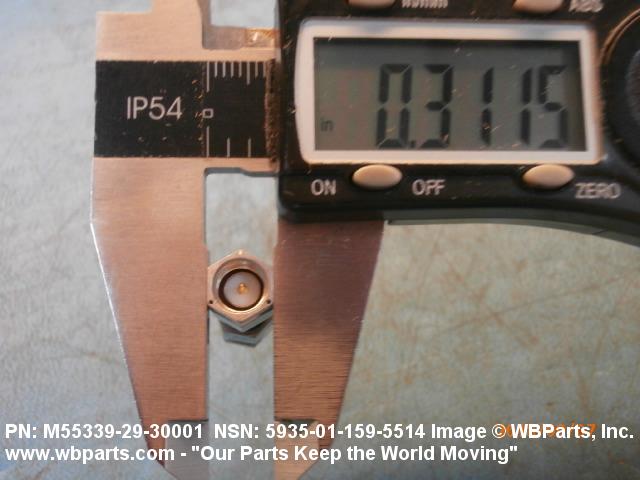

| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING NUT |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 36 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.130 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | ABDN SMA ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 335.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM FREQUENCY RATING | 18000.0 MEGAHERTZ ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 1,CLASS 2,GRADE C MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND CORROSION RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-55339 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-55339/29 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-55339/29 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M55339/29-30001 |
Restrictions/Controls & Freight Information | NSN 5935-01-159-5514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-159-5514
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
