NSN 5935-01-189-3220 MS2504216, MS25042-16, MS2504216C

Product Details | ELECTRICAL CONNECTOR COVER

5935-01-189-3220 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.

Part Alternates: MS2504216, MS25042-16, MS2504216C, MS25042-16C, MS2504216D, MS25042-16D, MS2504216DA, MS25042-16DA, AS50151 , MILC5015, MIL-C-5015, 85340400, 853404-00, 976016PG, 9760-16PG, 5935-01-189-3220, 01-189-3220, 5935011893220, 011893220

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 SEP 1984	01-189-3220	15076 ( COVER, ELECTRICAL CONNECTOR )

Drawings & Photos | NSN 5935-01-189-3220

Part Number	Request Date	QTY	Origin
5935-01-189-3220	2025-11-316	2674	DIBBS
MS2504216DA	2020-05-127	1	PR
MS2504216DA	2016-08-223	782	United States
MS25042-16D	2014-07-203	8
5935-01-189-3220	2014-07-198	2	US
5935-01-189-3220	2014-07-192	2027	DIBBS
MS2504216DA	2013-12-347	1047	US
MS2504216D	2013-10-301	4	United States
MS2504216D	2013-08-233	6	United States
MS2504216D	2013-08-224	76	United States
5935-01-189-3220	2012-08-241	0	DIBBS
5935-01-189-3220	2012-08-215	1948	DIBBS
5935-01-189-3220	2012-02-55	192	DIBBS
5935-01-189-3220	2011-09-251	803	DIBBS
5935-01-189-3220	2011-08-227	0	DIBBS
5935-01-189-3220	2011-07-208	214	DIBBS
5935-01-189-3220	2011-07-182	484	DIBBS
MS2504216DA	2011-06-178	60	United States
5935-01-189-3220	2011-02-53	70	US
5935-01-189-3220	2010-09-244	1518	DIBBS
5935-01-189-3220	2010-06-153	1146	DIBBS
5935-01-189-3220	2009-04-91	243	DIBBS
5935-01-189-3220	2008-06-154	1209	DIBBS
5935-01-189-3220	2008-04-100	1161	DIBBS
5935-01-189-3220	2008-03-87	762	DIBBS
5935-01-189-3220	2008-01-08	379	DIBBS
5935-01-189-3220	2007-12-338	220	DIBBS
5935-01-189-3220	2007-10-296	187	DIBBS
5935-01-189-3220	2007-10-289	190	DIBBS
5935-01-189-3220	2007-10-275	169	DIBBS
5935-01-189-3220	2007-08-233	699	DIBBS

Cross Reference | NSN 5935-01-189-3220

Part Number	Cage Code	Manufacturer
853404-00	32345	DEFENSE REDUCTION AGENCY
9760-16PG	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
AS50151	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-C-5015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25042-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25042-16C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25042-16D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25042-16DA	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS25042-16DA	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-189-3220

Compare

Related Products | NSN 5935-01-189-3220

5935-01-189-3221, 5935-01-189-3222, 5935-01-189-3223, 5935-01-189-3224, 5935-01-189-3225

Technical Data | NSN 5935-01-189-3220

Characteristic	Specifications
STYLE DESIGNATOR	10A EXTERNAL THREADS W/CHAIN OR ROPE

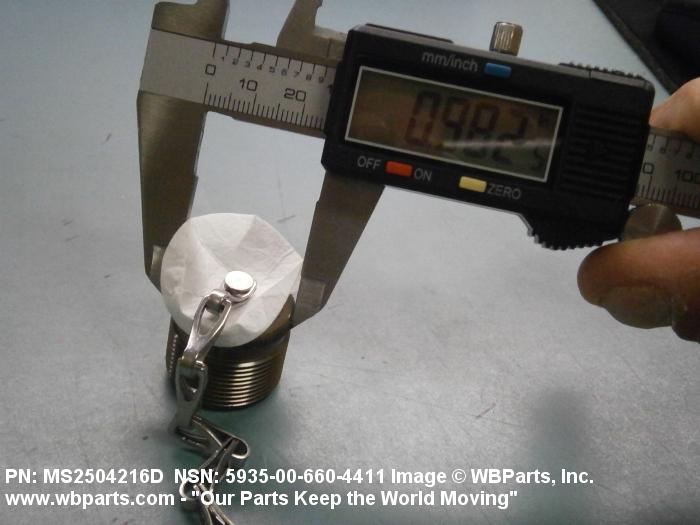

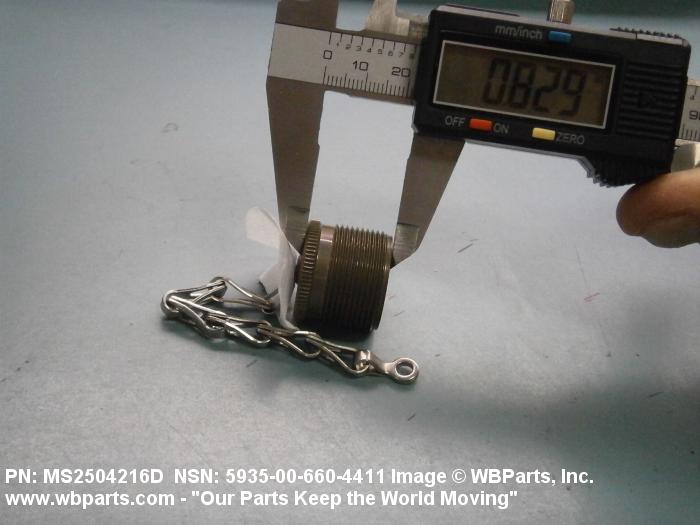

BODY HEIGHT	0.844 INCHES MAXIMUM

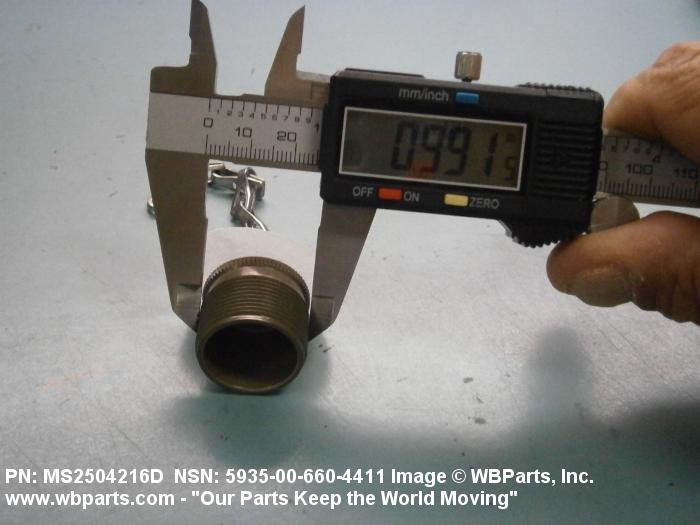

OVERALL DIAMETER	1.062 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	ANODIZED
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.000 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
FURNISHED ITEMS	LINK CHAIN
ATTACHMENT FEATURE LENGTH	4.500 INCHES NOMINAL
EYE INSIDE DIAMETER	0.156 INCHES NOMINAL
SEAL TYPE	GASKET
SEAL MATERIAL	RUBBER
SIZE DESIGNATION	16 AND 16S
TEST DATA DOCUMENT	81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25042 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5015
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25042-16DA

Restrictions/Controls & Freight Information | NSN 5935-01-189-3220

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-189-3220

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	V2	MV-22 aircraft
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
