NSN 5935-01-191-4127 MS2504328, MS25043-28, MS2504328D

Product Details | ELECTRICAL CONNECTOR COVER

5935-01-191-4127 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.

Part Alternates: MS2504328, MS25043-28, MS2504328D, MS25043-28D, MS2504328DA, MS25043-28DA, B55A4198, CA220910, CA2209-10, CA2209S101, CA2209-S101, JANTX1N6163A , MILC5015, MIL-C-5015, MILDTL5015, MIL-DTL-5015, MIL-PRF-19500/516 , MILPRF19500516, MIL-S-19500/516 , MILS19500516, X2156428, X21-564-28, 813661, 826220, 836134, 853393, 9018600, 945406P2, 94-5406P2, 10349312, 21C171140, 21C1711-40, 21C2203132, 21C2203-132, 239610, 239-6-10, 5935-01-191-4127, 01-191-4127, 5935011914127, 011914127

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 OCT 1984	01-191-4127	15076 ( COVER, ELECTRICAL CONNECTOR )

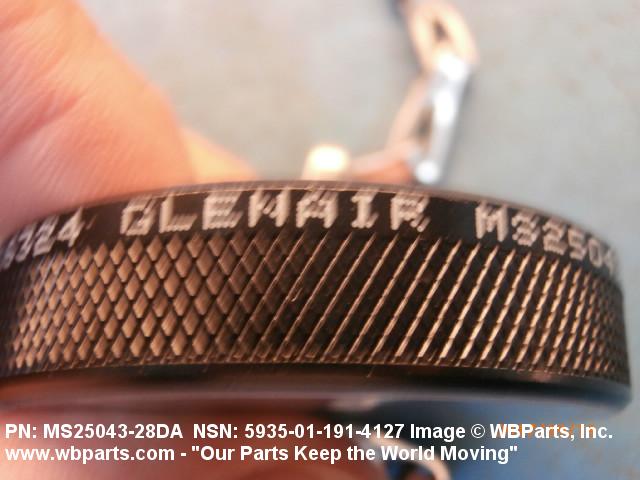

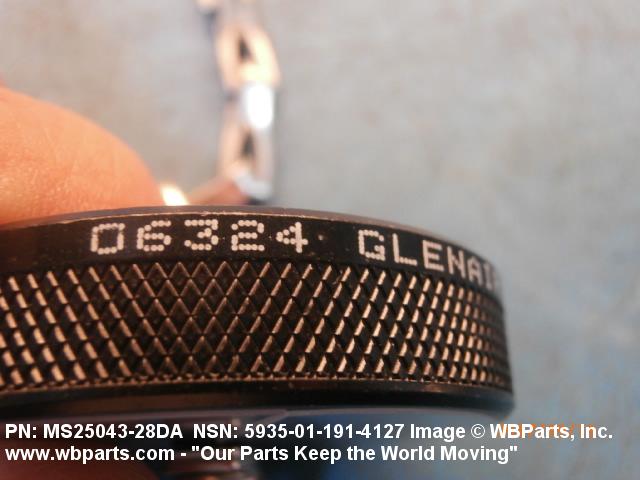

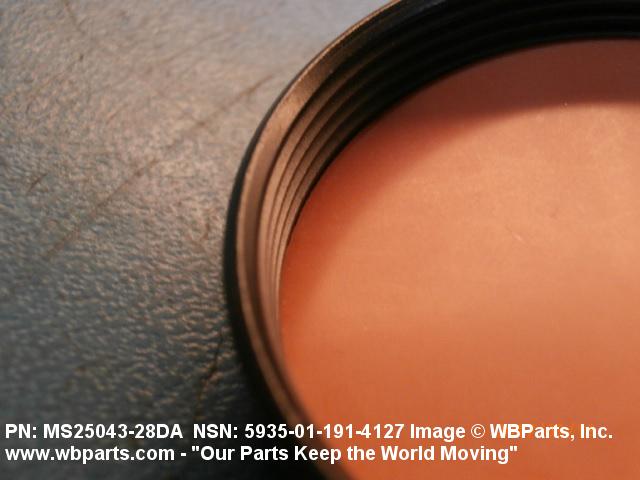

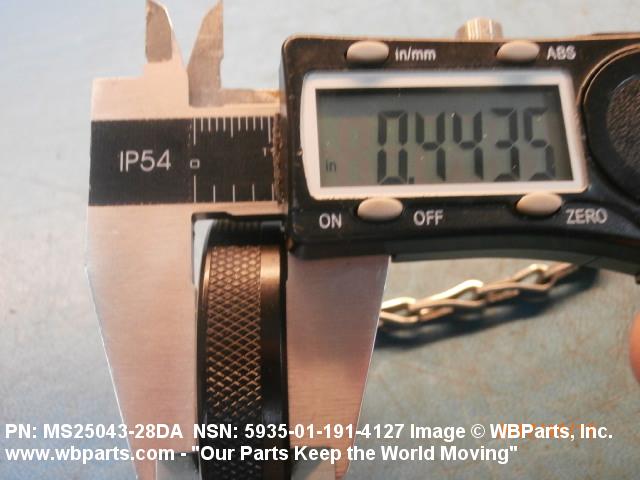

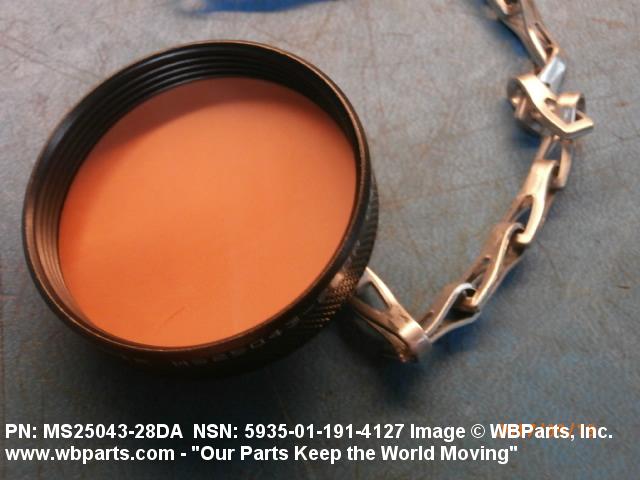

Drawings & Photos | NSN 5935-01-191-4127

Part Number	Request Date	QTY	Origin
5935-01-191-4127	2025-04-96	1256	DIBBS
5935-01-191-4127	2024-02-37	477	DIBBS
5935-01-191-4127	2023-09-250	353	DIBBS
5935-01-191-4127	2023-08-239	353	DIBBS
5935-01-191-4127	2021-05-144	445	DIBBS
5935-01-191-4127	2021-03-73	392	DIBBS
5935-01-191-4127	2020-08-230	446	DIBBS
5935-01-191-4127	2019-06-174	988	DIBBS
MS2504328DA	2017-08-216	31	United States
5935-01-191-4127	2017-01-12	541	DIBBS
5935-01-191-4127	2016-06-157	839	DIBBS
5935-01-191-4127	2015-05-133	861	DIBBS
MS2504328DA	2013-06-172	4	CA
5935-01-191-4127	2012-06-163	552	DIBBS
5935-01-191-4127	2012-02-38	231	DIBBS
5935-01-191-4127	2011-10-294	427	DIBBS
MS2504328D	2011-02-48	18	Korea
5935-01-191-4127	2008-08-223	140	IL
5935-01-191-4127	2007-08-218	4262	DIBBS
5935-01-191-4127	2007-04-102	667	DIBBS

Cross Reference | NSN 5935-01-191-4127

Part Number	Cage Code	Manufacturer
10349312	S3712	BAE SYSTEMS BOFORS AB
10349312	S3715	BOFORS AB
21C1711-40	07482	GENERAL ELECTRIC COMPANY DBA GE
21C2203-132	07482	GENERAL ELECTRIC COMPANY DBA GE
239-6-10	88818	KEARFOTT CORPORATION DBA KEARFOTT
813661	19203	PICATINNY ARSENAL
826220	19203	PICATINNY ARSENAL
836134	19203	PICATINNY ARSENAL
853393	19203	PICATINNY ARSENAL
9018600	19204	ARMY UNITED STATES DEPARTMENT OF THE
94-5406P2	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
94-5406P2	49956	RAYTHEON COMPANY DBA RAYTHEON
B55A4198	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
B55A4198	49956	RAYTHEON COMPANY DBA RAYTHEON
CA2209-10	71468	ITT CORPORATION DBA I T T CANNON
CA2209-S101	71468	ITT CORPORATION DBA I T T CANNON
MIL-C-5015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-5015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25043-28	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25043-28D	71468	ITT CORPORATION DBA I T T CANNON
MS25043-28D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25043-28DA	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS25043-28DA	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
X21-564-28	S3712	BAE SYSTEMS BOFORS AB
X21-564-28	S3715	BOFORS AB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-191-4127

Compare

Related Products | NSN 5935-01-191-4127

5935-01-191-4129, 5935-01-191-4130, 5935-01-191-4131, 5935-01-191-4132, 5935-01-191-4133

Technical Data | NSN 5935-01-191-4127

Characteristic	Specifications
STYLE DESIGNATOR	1A INTERNAL THREAD W/CHAIN OR ROPE

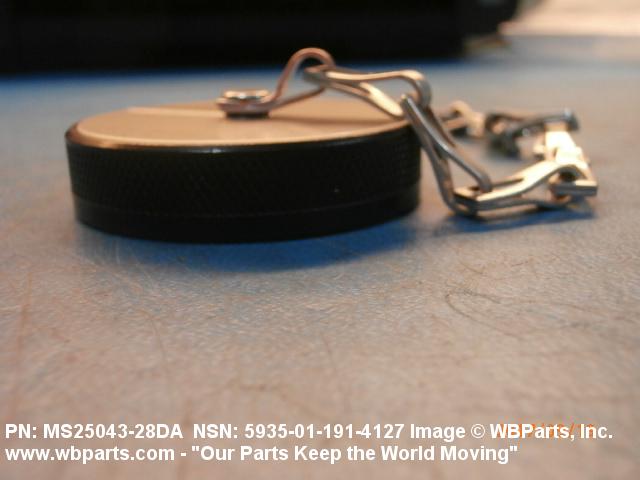

BODY HEIGHT	0.812 INCHES MAXIMUM

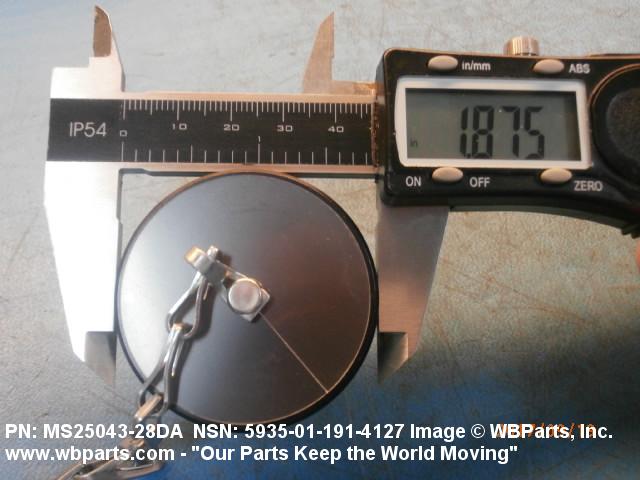

OVERALL DIAMETER	1.969 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	ANODIZED
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	UNS

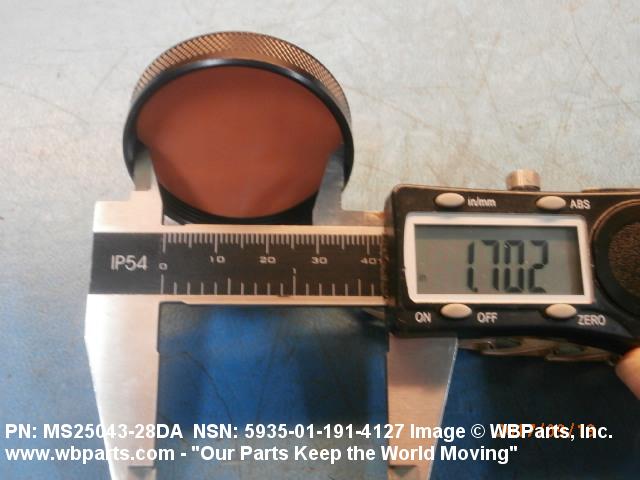

NOMINAL THREAD SIZE	1.750 INCHES
THREAD CLASS	2B

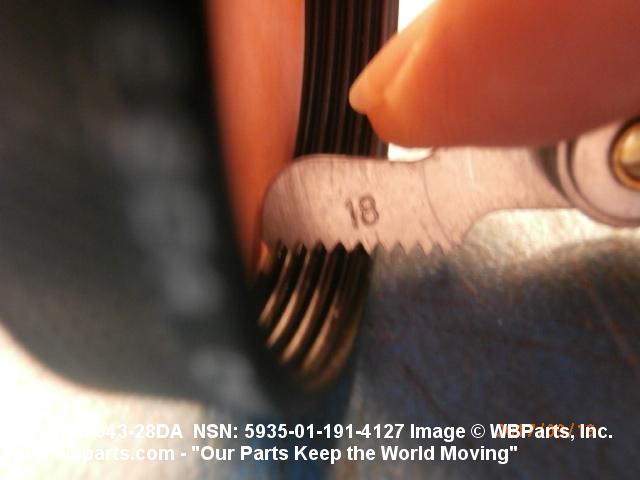

THREAD QUANTITY PER INCH	18
THREAD DIRECTION	RIGHT-HAND

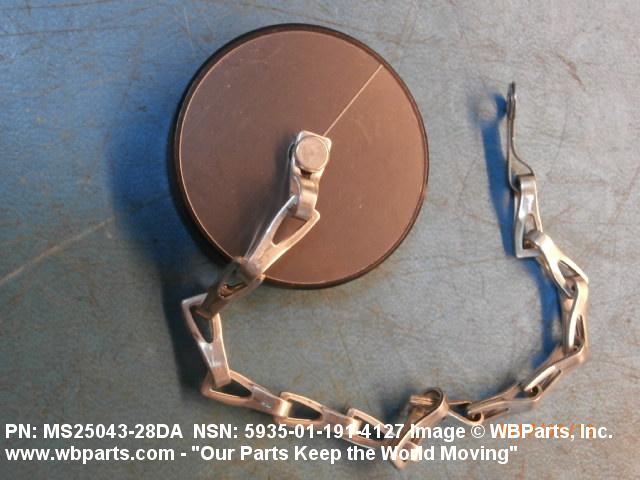

FURNISHED ITEMS	CHAIN

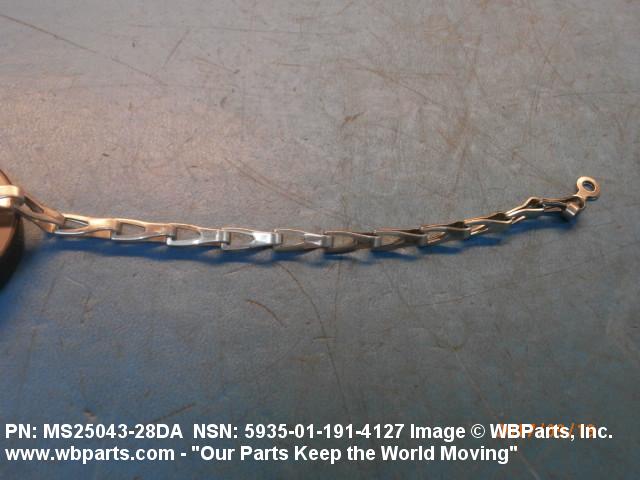

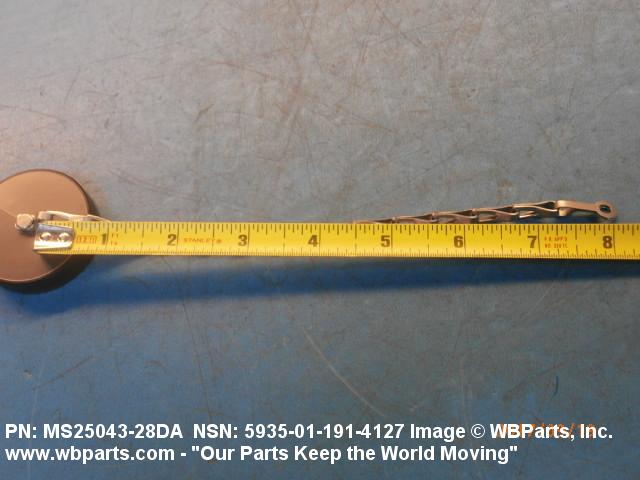

ATTACHMENT FEATURE LENGTH	7.750 INCHES NOMINAL

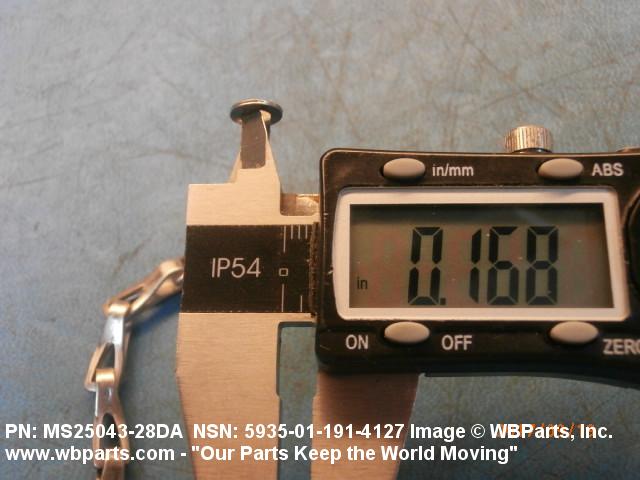

EYE INSIDE DIAMETER	0.166 INCHES MINIMUM AND 0.181 INCHES MAXIMUM
SEAL TYPE	GASKET
SEAL MATERIAL	RUBBER
SIZE DESIGNATION	28
TEST DATA DOCUMENT	81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25043 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	AN/DSM162TEST
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5015
MANUFACTURERS CODE	96906

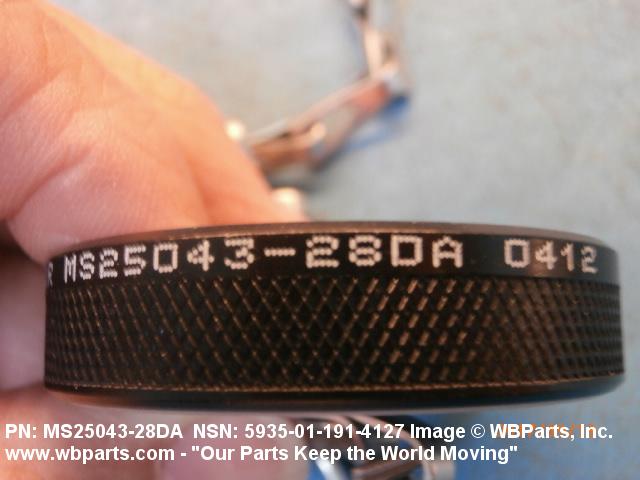

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25043-28DA

Restrictions/Controls & Freight Information | NSN 5935-01-191-4127

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	063025	SEMICONDUCTORS/DEVICES NOI ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5935-01-191-4127

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
