NSN 5935-01-193-5557 MS55339/44-30001, MS553394430001, M55339/44-30001
Product Details | CONNECTOR ADAPTER
5935-01-193-5557 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: MS55339/44-30001, MS553394430001, M55339/44-30001, M553394430001, MIL-C-55339/44, MILC5533944, G3503461, G350346-1, 3282224000, 3282-2240-00, 4291, 5935-01-193-5557, 01-193-5557, 5935011935557, 011935557
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1984 | 01-193-5557 | 15091 ( ADAPTER, CONNECTOR ) |

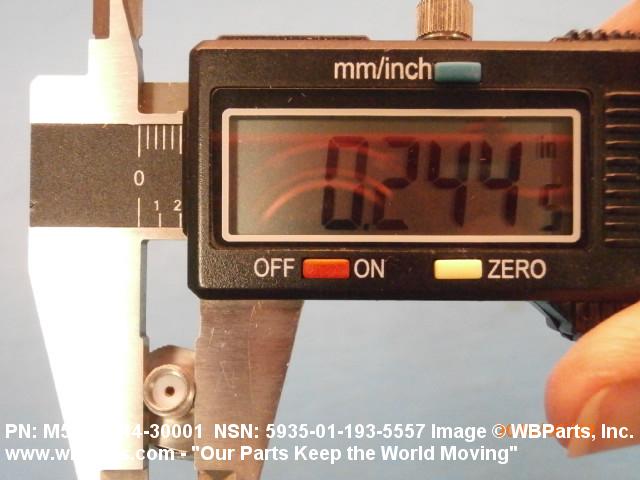

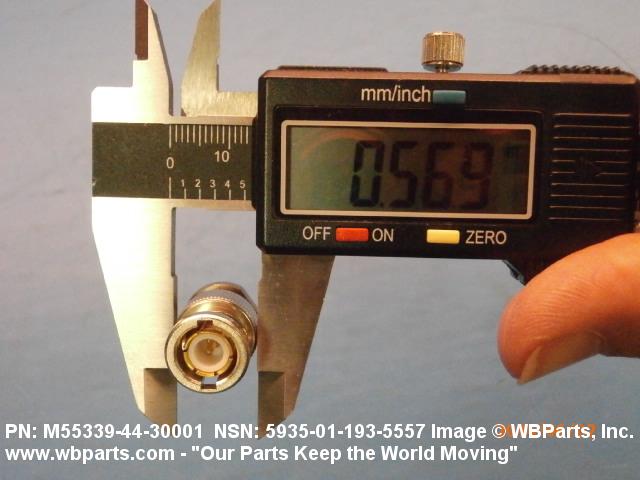

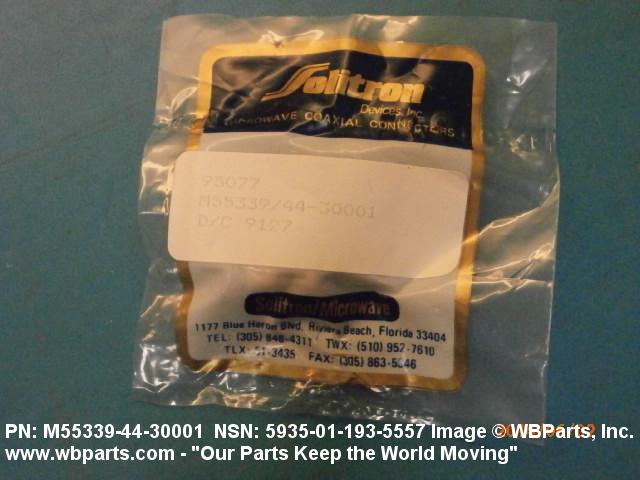

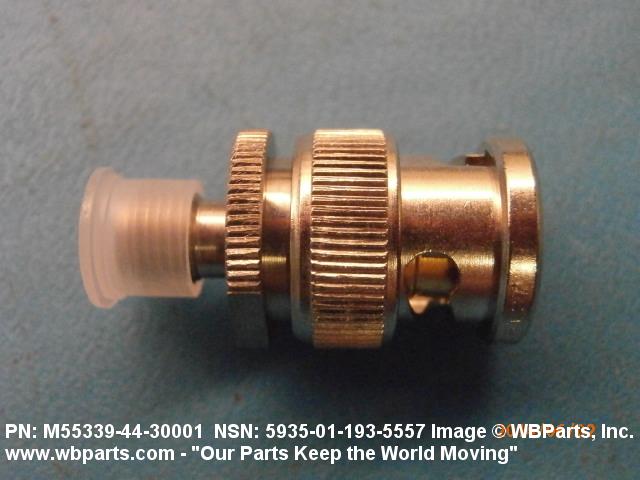

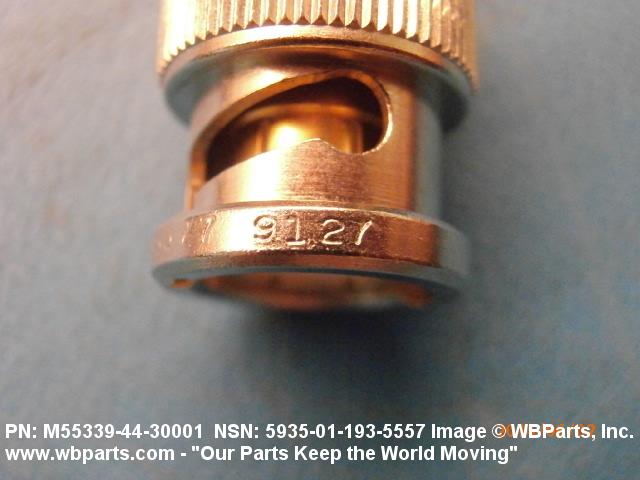

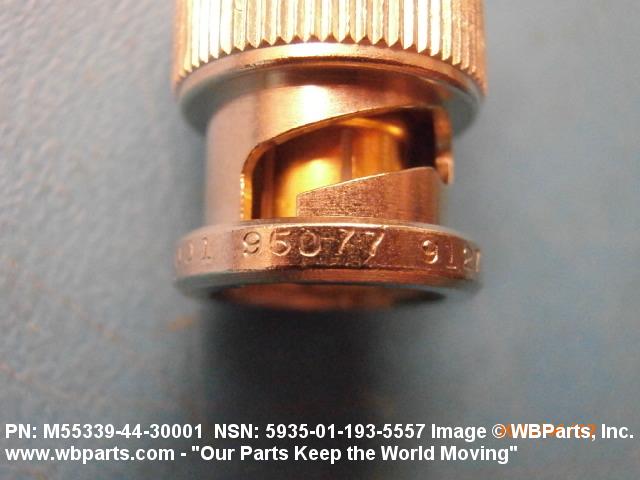

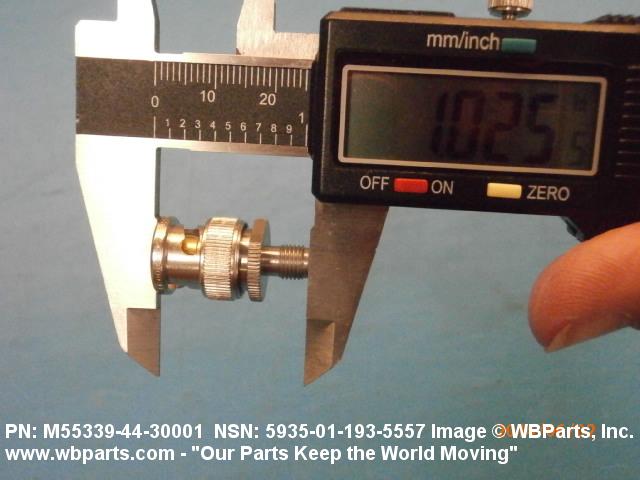

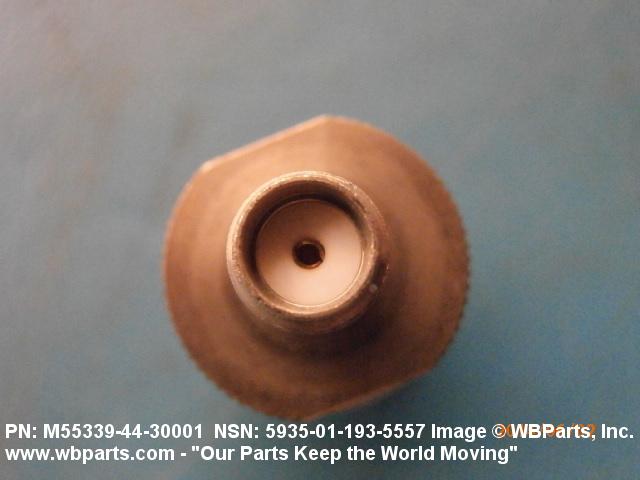

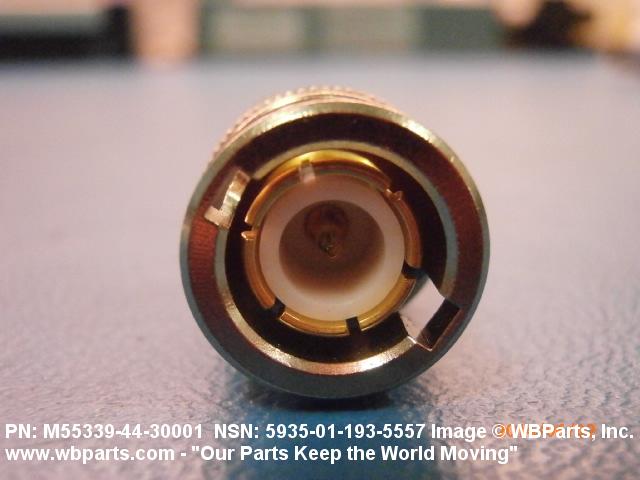

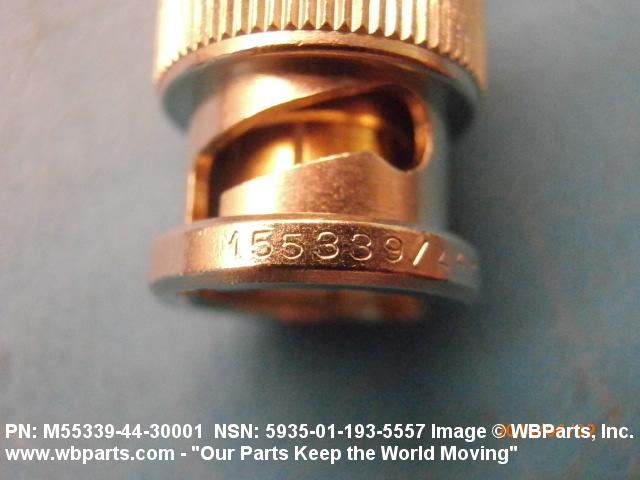

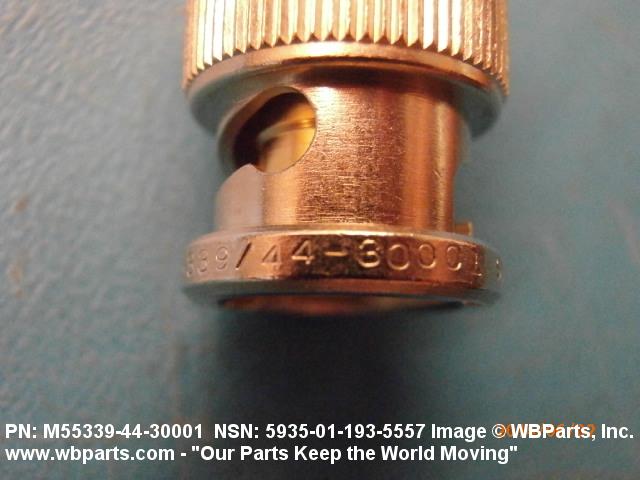

Drawings & Photos | NSN 5935-01-193-5557
Demand History | NSN 5935-01-193-5557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-193-5557 | 2024-04-95 | 106 | DIBBS |
| 5935-01-193-5557 | 2023-09-256 | 20 | United States |
| 5935-01-193-5557 | 2022-10-297 | 117 | DIBBS |
| 5935-01-193-5557 | 2022-10-286 | 117 | DIBBS |
| 5935-01-193-5557 | 2021-12-346 | 25 | DIBBS |
| 5935-01-193-5557 | 2021-11-333 | 87 | DIBBS |
| 5935-01-193-5557 | 2021-10-277 | 25 | DIBBS |
| 5935-01-193-5557 | 2021-09-266 | 25 | DIBBS |
| 5935-01-193-5557 | 2021-06-175 | 25 | DIBBS |
| 5935-01-193-5557 | 2021-04-115 | 25 | DIBBS |
| 5935-01-193-5557 | 2020-10-282 | 25 | DIBBS |
| 5935-01-193-5557 | 2020-03-79 | 25 | DIBBS |
| 5935-01-193-5557 | 2020-02-37 | 30 | DIBBS |
| 5935-01-193-5557 | 2019-09-273 | 9 | DIBBS |
| 5935-01-193-5557 | 2019-06-161 | 1 | DIBBS-RFPs |
| 5935-01-193-5557 | 2018-08-235 | 46 | DIBBS |
| 5935-01-193-5557 | 2018-07-203 | 13 | DIBBS |
| 5935-01-193-5557 | 2014-05-147 | 25 | United States |
| 5935-01-193-5557 | 2014-05-147 | 25 | United States |
| 5935-01-193-5557 | 2014-05-136 | 25 | United States |
| 5935-01-193-5557 | 2014-05-136 | 25 | United States |
| 5935-01-193-5557 | 2013-05-127 | 4 | MANUAL |
| 5935-01-193-5557 | 2012-09-272 | 116 | DIBBS |
| 5935-01-193-5557 | 2012-05-125 | 117 | DIBBS |
| 5935-01-193-5557 | 2009-01-02 | 142 | DIBBS |
| M553394430001 | 2008-10-291 | 3 | United States |
| 5935-01-193-5557 | 2007-06-157 | 329 | DIBBS |
| 5935-01-193-5557 | 2007-03-68 | 244 | DIBBS |
| 5935-01-193-5557 | 2007-01-29 | 163 | DIBBS |
Cross Reference | NSN 5935-01-193-5557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3282-2240-00 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 4291 | 4U744 | FLUKE ELECTRONICS CORPORATION DBA FLUKE |
| G350346-1 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| M55339/44-30001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-55339/44 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS55339/44-30001 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-193-5557
Related Products | NSN 5935-01-193-5557
Technical Data | NSN 5935-01-193-5557
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1N STRAIGHT SHAPE, EXTERNAL/INTERNAL COUPLING |
| OVERALL LENGTH | 1.250 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.593 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH AND EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 36 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBJ BNC 1ST MATING END ABDN SMA 2ND MATING END |
| INSERT MATERIAL | PLASTIC FLUOROCARBON ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN 1ST MATING END SINGLE CONTACT GROUPING COAXIAL SOCKET 2ND MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 335.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND MOISTURE RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-55339 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-55339/44 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-55339/44 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M55339/44-30001 |
Restrictions/Controls & Freight Information | NSN 5935-01-193-5557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-193-5557
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
