NSN 5935-01-244-7280 M24217/09-003, M24217/9-003, M2421709003
Product Details | ELECTRICAL CONNECTOR COVER
5935-01-244-7280 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: M24217/09-003, M24217/9-003, M2421709003, M242179003, MIL-C-24217/9, MILC242179, 1749155, 4125202783, 412-5202783, 412-5202783 ITEM 5, 4125202783ITEM5, 4602381, 4602-381, 5935-01-244-7280, 01-244-7280, 5935012447280, 012447280
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 NOV 1986 | 01-244-7280 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |

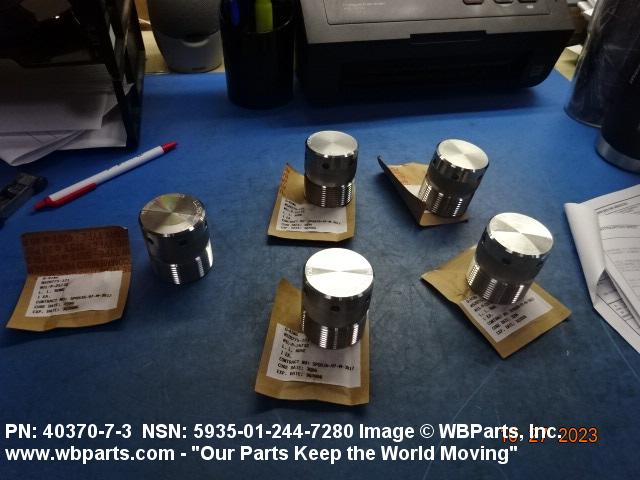

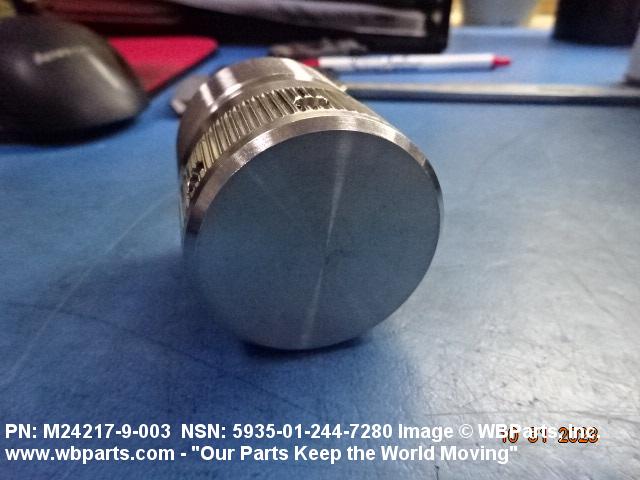

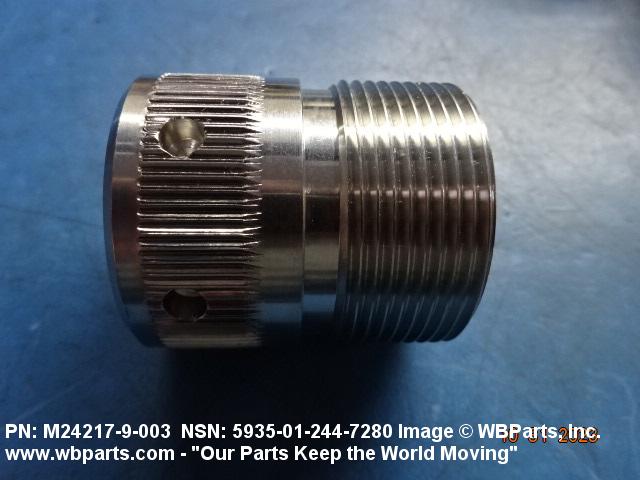

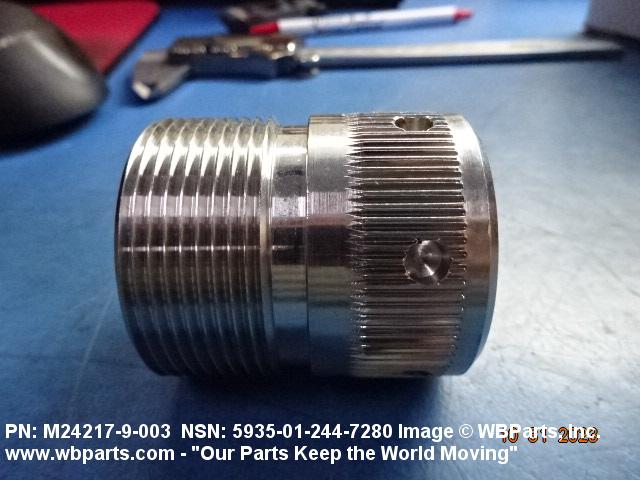

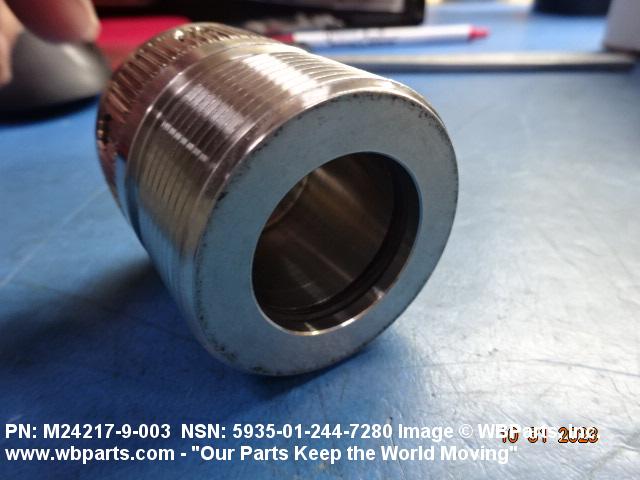

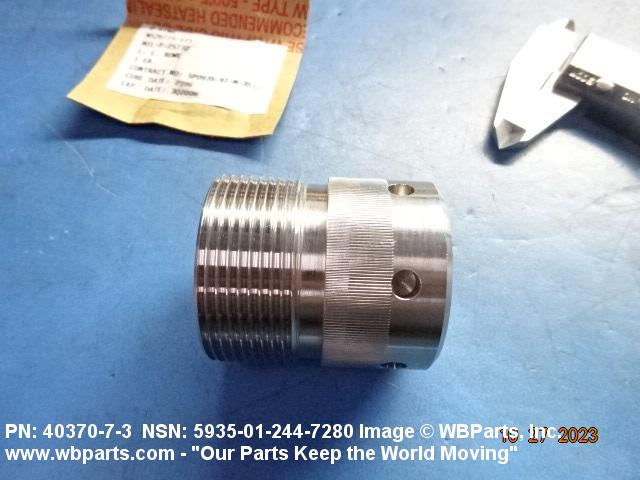

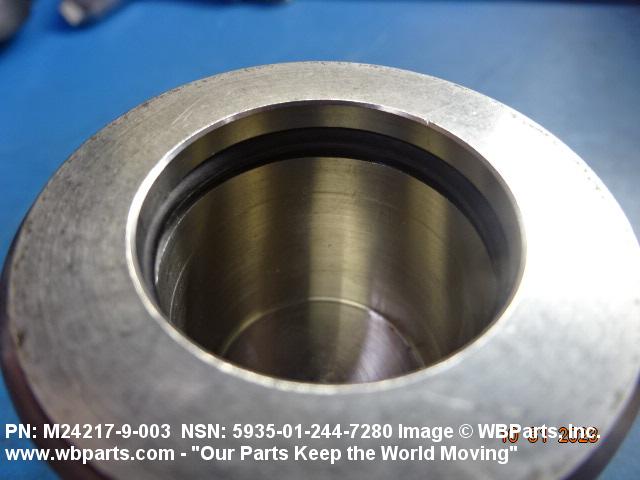

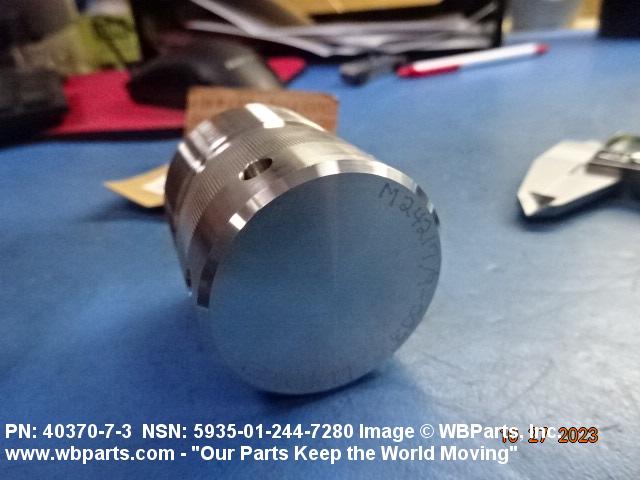

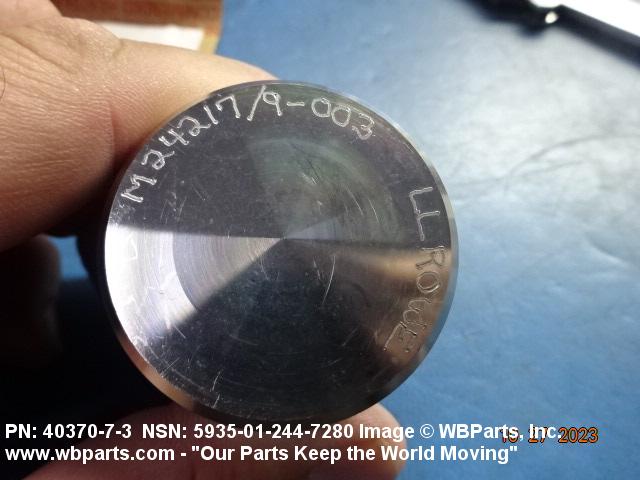

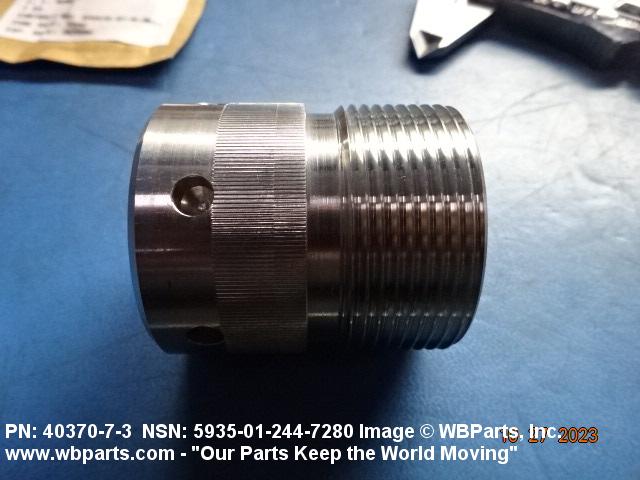

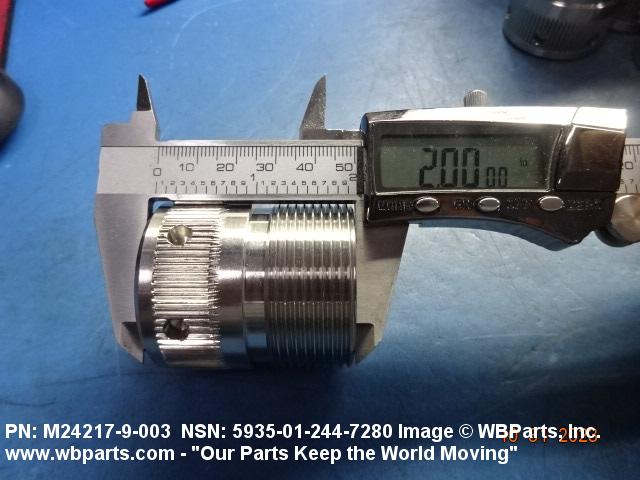

Drawings & Photos | NSN 5935-01-244-7280
Demand History | NSN 5935-01-244-7280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-244-7280 | 2025-07-208 | 13 | DIBBS |
| 5935-01-244-7280 | 2024-09-261 | 40 | DIBBS |
| 5935-01-244-7280 | 2024-02-52 | 3 | DIBBS |
| 5935-01-244-7280 | 2023-06-172 | 9 | us |
| 5935-01-244-7280 | 2023-04-100 | 10 | DIBBS |
| 5935-01-244-7280 | 2021-10-300 | 20 | DIBBS |
| 5935-01-244-7280 | 2018-05-128 | 4 | DIBBS |
| 5935-01-244-7280 | 2017-08-241 | 10 | DIBBS |
| 5935-01-244-7280 | 2017-03-66 | 8 | DIBBS |
| 5935-01-244-7280 | 2016-03-66 | 11 | DIBBS |
| 5935-01-244-7280 | 2014-05-131 | 1 | AU |
| 5935-01-244-7280 | 2010-07-195 | 25 | DIBBS |
| 5935-01-244-7280 | 2010-06-168 | 70 | DIBBS |
| 5935-01-244-7280 | 2010-03-78 | 26 | DIBBS |
| 5935-01-244-7280 | 2010-03-78 | 29 | DIBBS |
| 5935-01-244-7280 | 2010-03-78 | 32 | DIBBS |
| 5935-01-244-7280 | 2009-10-302 | 100 | DIBBS |
| 5935-01-244-7280 | 2009-08-216 | 6 | DIBBS |
| 5935-01-244-7280 | 2009-08-216 | 8 | DIBBS |
| 5935-01-244-7280 | 2009-08-216 | 9 | DIBBS |
| 5935-01-244-7280 | 2009-07-209 | 6 | DIBBS |
| 5935-01-244-7280 | 2009-07-209 | 8 | DIBBS |
Cross Reference | NSN 5935-01-244-7280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1749155 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 412-5202783 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 412-5202783 ITEM 5 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 4602-381 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| M24217/09-003 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24217/9-003 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-24217/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-244-7280
Related Products | NSN 5935-01-244-7280
Technical Data | NSN 5935-01-244-7280
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A EXTERNAL THREADS |

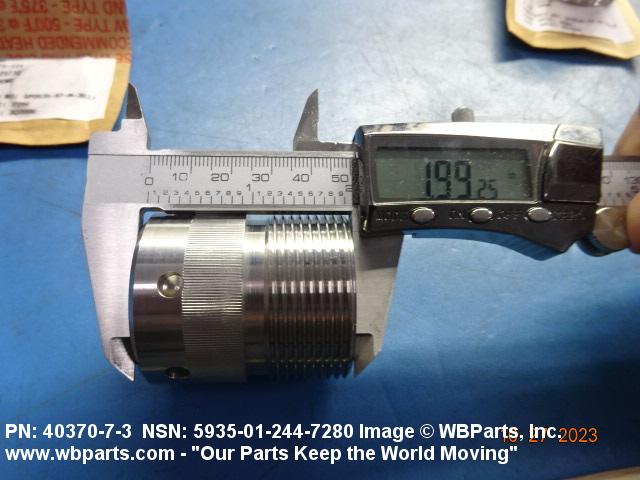

| BODY HEIGHT | 2.000 INCHES NOMINAL |

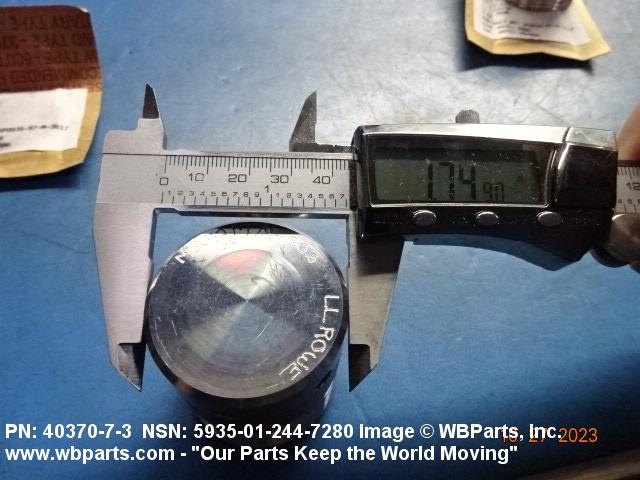

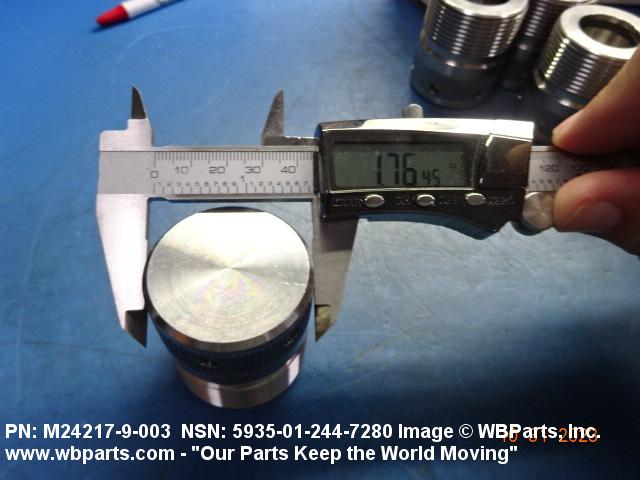

| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | 2A |

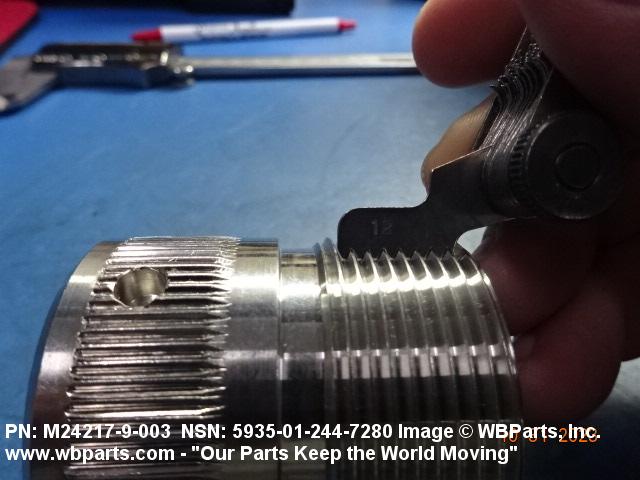

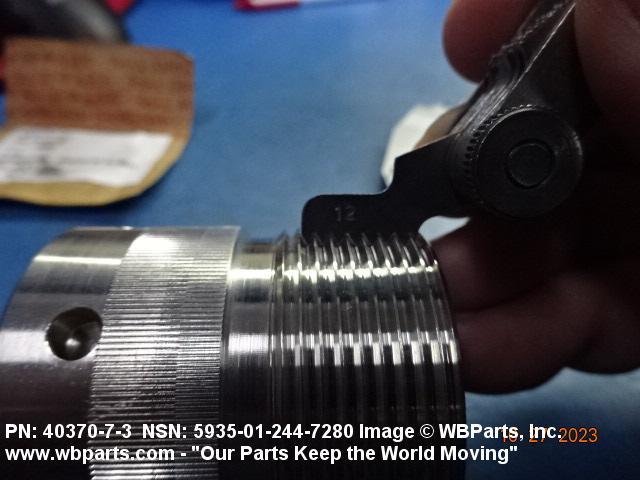

| THREAD QUANTITY PER INCH | 12 |
| THREAD DIRECTION | RIGHT-HAND |

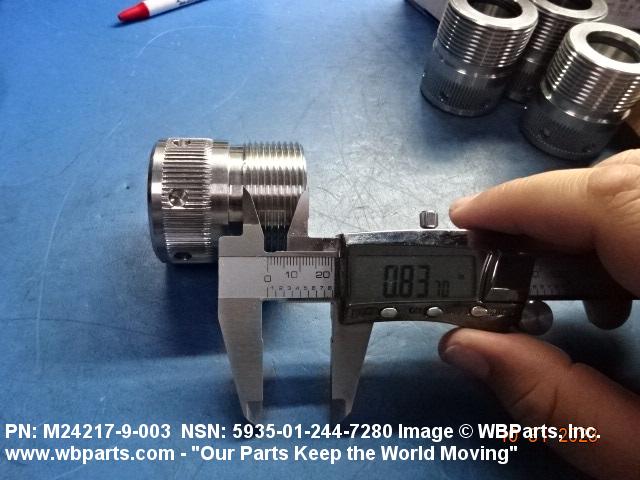

| NOMINAL THREAD LENGTH | 0.833 INCHES |
| SEAL TYPE | PREFORMED PACKING |
| SEAL MATERIAL | RUBBER |
| SPECIAL FEATURES | PRESSURE PROOF UP TO 10000 POUNDS PER SQUARE INCH |
| TEST DATA DOCUMENT | 81349-MIL-C-24217 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24217/9 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24217/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24217/9-003 |
Restrictions/Controls & Freight Information | NSN 5935-01-244-7280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-244-7280
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
