NSN 5935-01-249-0311 D6210028, D-621-0028, 11453048
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-249-0311 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D6210028, D-621-0028, 11453048, 5935-01-249-0311, 01-249-0311, 5935012490311, 012490311
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 FEB 1987 | 01-249-0311 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

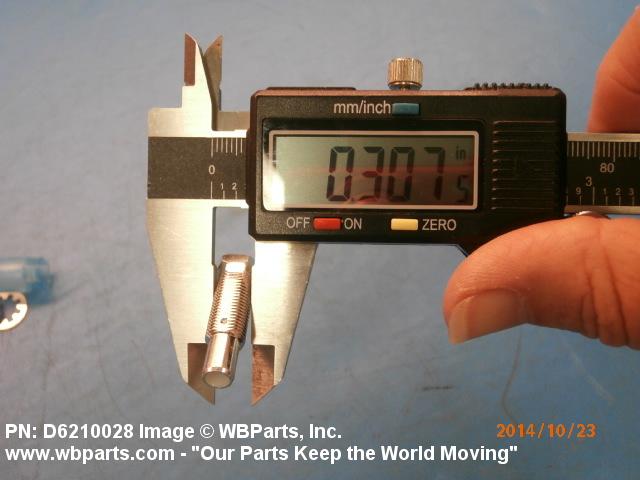

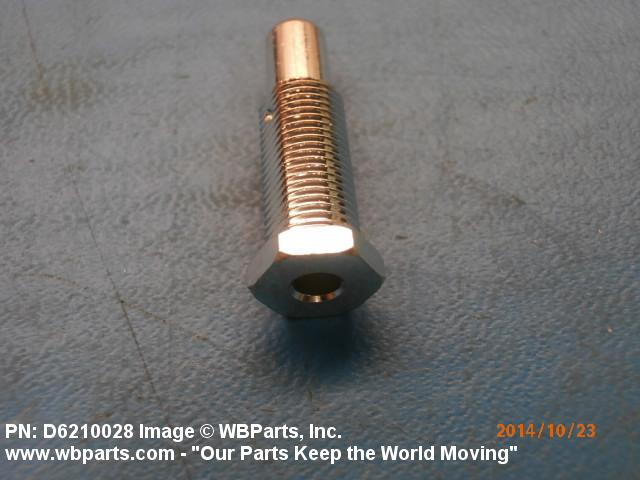

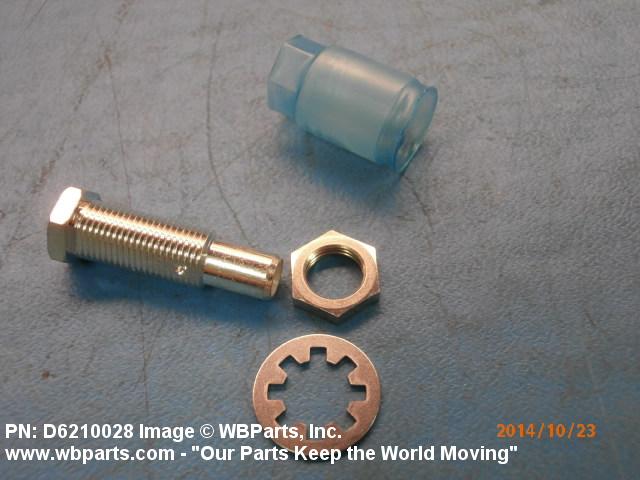

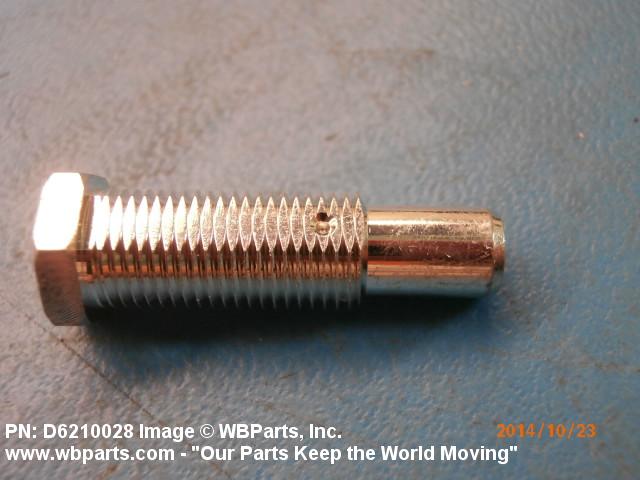

Drawings & Photos | NSN 5935-01-249-0311
