Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-249-9088 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SD11094551, SD110945-51, 1025014551, 10250145-51, 230941P40YYB, 230941-P40YYB, 230941P40YYS, 230941-P40YYS, 5935-01-249-9088, 01-249-9088, 5935012499088, 012499088
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 FEB 1987 | 01-249-9088 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |

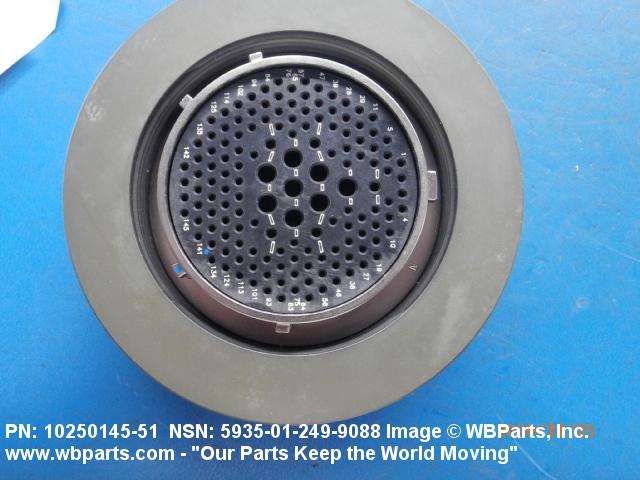

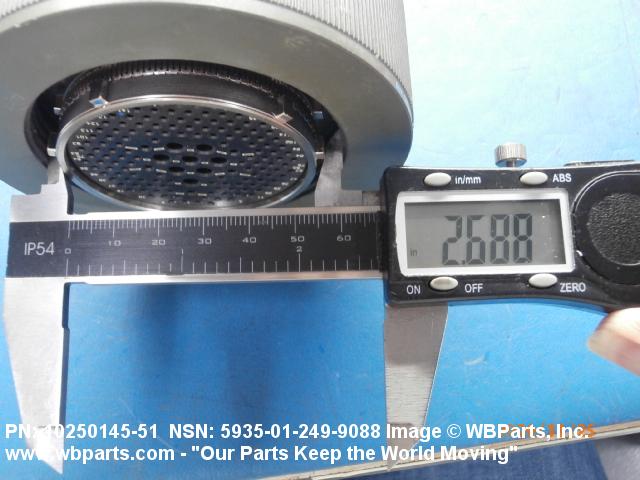

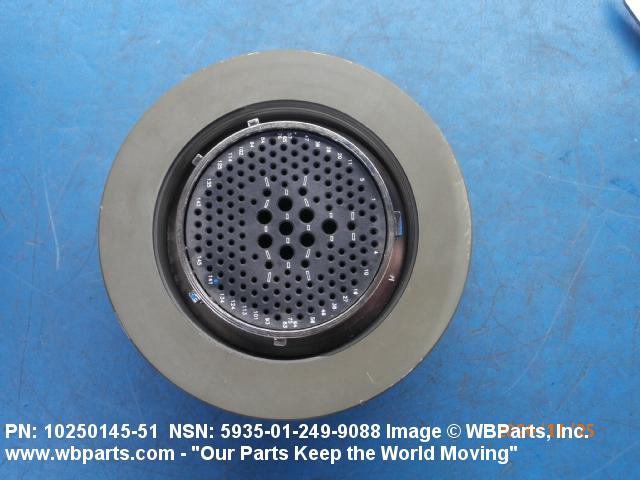

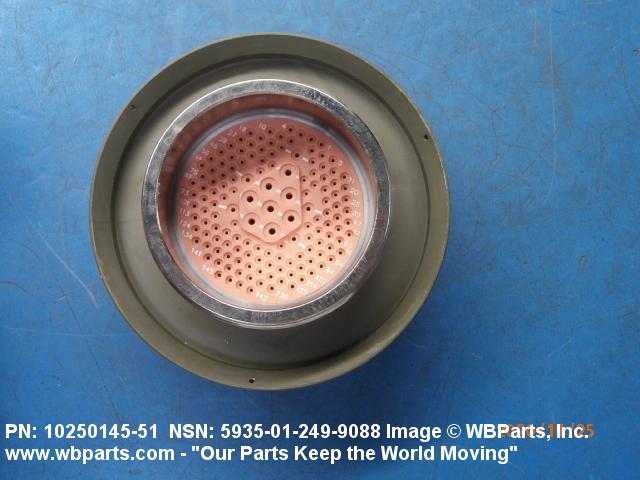

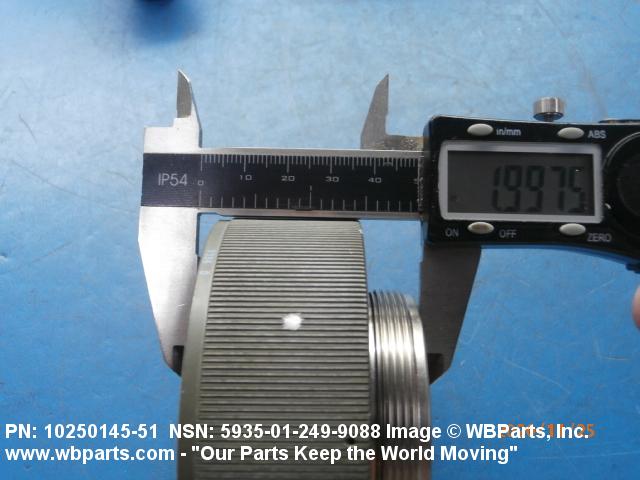

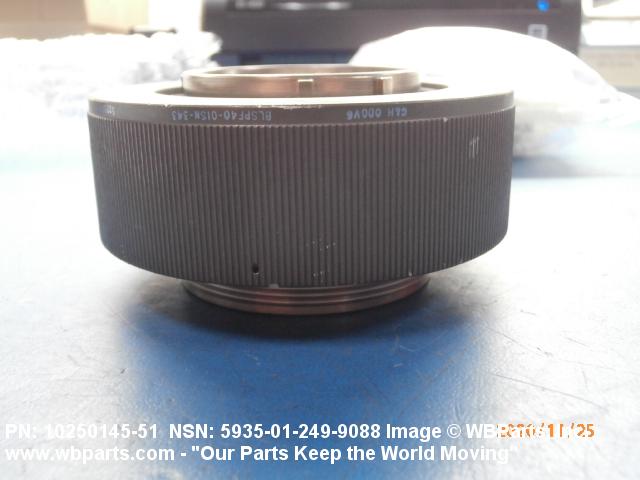

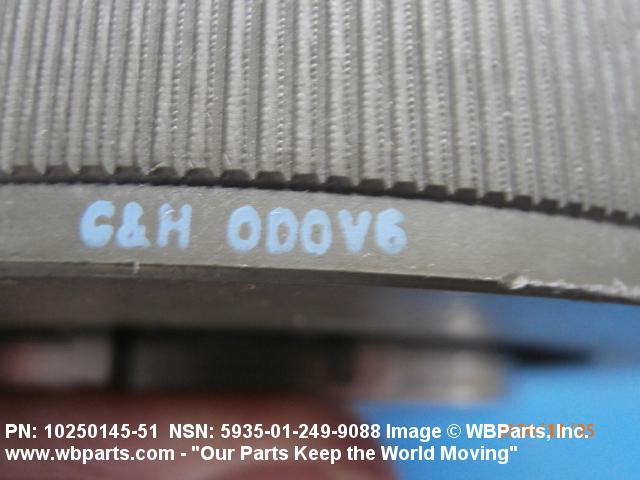

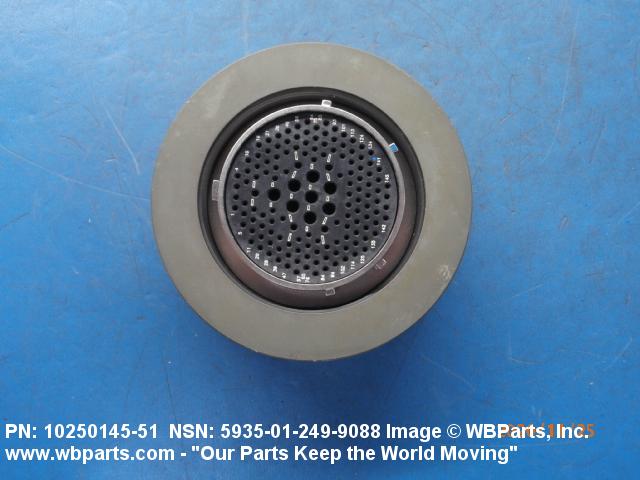

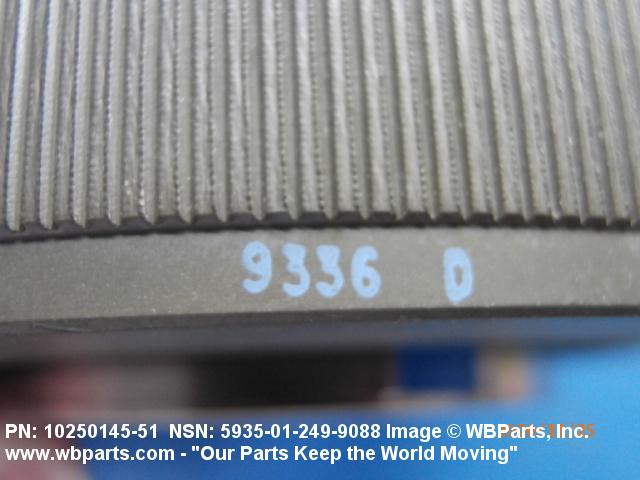

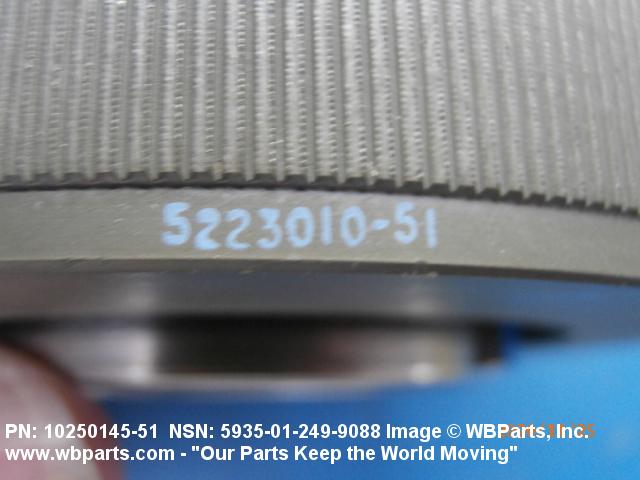

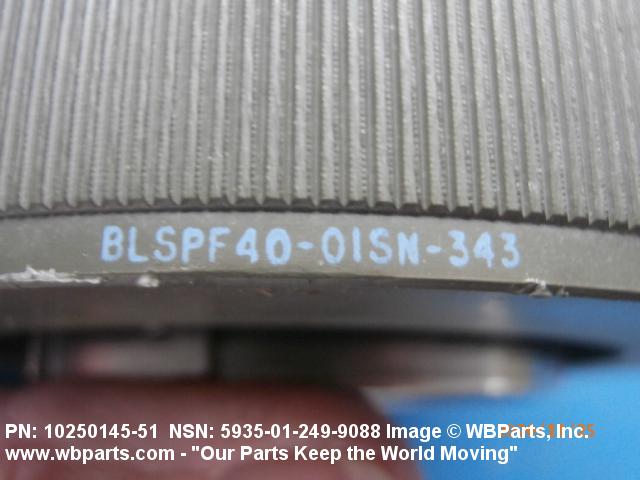

Drawings & Photos | NSN 5935-01-249-9088
Demand History | NSN 5935-01-249-9088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-249-9088 | 2025-12-345 | 4 | United States |
| 5935-01-249-9088 | 2025-07-190 | 1 | US |
| SD11094551 | 2025-07-188 | 1 | United States |
| 5935-01-249-9088 | 2025-05-147 | 11 | DIBBS |
| 5935-01-249-9088 | 2025-05-142 | 11 | US |
| 5935-01-249-9088 | 2025-05-134 | 11 | DIBBS |
| 5935-01-249-9088 | 2025-03-62 | 11 | DIBBS |
| 5935-01-249-9088 | 2025-02-51 | 11 | DIBBS |
| 5935-01-249-9088 | 2024-10-297 | 11 | US |
| 5935-01-249-9088 | 2024-09-253 | 11 | DIBBS |
| 5935-01-249-9088 | 2024-08-242 | 11 | DIBBS |
| 1025014551 | 2021-09-271 | 1 | Greece |
| 5935-01-249-9088 | 2021-09-256 | 10 | DIBBS |
| 5935-01-249-9088 | 2021-09-245 | 10 | DIBBS |
| 1025014551 | 2021-07-207 | 1 | Greece |
| 1025014551 | 2021-03-68 | 1 | Greece |
| 5935-01-249-9088 | 2020-12-357 | 30 | DIBBS |
| 1025014551 | 2020-12-356 | 1 | Greece |
| 5935-01-249-9088 | 2020-12-343 | 15 | DIBBS |
| 1025014551 | 2020-11-321 | 2 | Greece |
| 5935-01-249-9088 | 2020-10-294 | 15 | DIBBS |
| 1025014551 | 2020-09-265 | 1 | Greece |
| 5935-01-249-9088 | 2020-06-167 | 1 | US |
| 5935-01-249-9088 | 2020-06-156 | 4 | DIBBS |
| 5935-01-249-9088 | 2020-06-156 | 5 | DIBBS |
| 5935-01-249-9088 | 2020-06-156 | 7 | DIBBS |
| 1025014551 | 2020-05-133 | 1 | Greece |
| 1025014551 | 2020-05-133 | 4 | Greece |
| 1025014551 | 2019-12-337 | 2 | Greece |
| 5935-01-249-9088 | 2017-09-258 | 10 | Greece |
| SD11094551 | 2017-06-164 | 1 | US |
| 5935-01-249-9088 | 2016-04-110 | 16 | United States |
| 5935-01-249-9088 | 2016-02-35 | 42 | DIBBS |
| 5935-01-249-9088 | 2015-10-277 | 26 | DIBBS |
| 5935-01-249-9088 | 2014-11-321 | 2 | US |
| 5935-01-249-9088 | 2014-07-187 | 25 | DIBBS |
| 5935-01-249-9088 | 2013-09-252 | 15 | DIBBS |
| 5935-01-249-9088 | 2013-01-07 | 3 | DIBBS |
| 5935-01-249-9088 | 2012-12-341 | 5 | DIBBS |
| SD11094551 | 2012-04-111 | 1 | US |
| 5935-01-249-9088 | 2012-03-90 | 14 | DIBBS |
| 5935-01-249-9088 | 2012-03-68 | 0 | DIBBS |
| SD11094551 | 2011-09-258 | 7 | United States |
| 5935-01-249-9088 | 2011-06-154 | 24 | DIBBS |
| 5935-01-249-9088 | 2011-05-126 | 9 | DIBBS |
| 5935-01-249-9088 | 2011-03-75 | 11 | DIBBS |
| 5935-01-249-9088 | 2010-09-251 | 26 | DIBBS |
| 5935-01-249-9088 | 2010-07-211 | 26 | DIBBS |
| 5935-01-249-9088 | 2010-06-173 | 4 | DIBBS |
| 5935-01-249-9088 | 2010-01-29 | 1 | US |
Cross Reference | NSN 5935-01-249-9088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10250145-51 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 230941-P40YYB | 30463 | DCX-CHOL ENTERPRISES, INC. DBA ELECSYS DIVISION OF DCX-CHOL |
| 230941-P40YYS | 30463 | DCX-CHOL ENTERPRISES, INC. DBA ELECSYS DIVISION OF DCX-CHOL |
| SD110945-51 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-249-9088
Related Products | NSN 5935-01-249-9088
Technical Data | NSN 5935-01-249-9088
| Characteristic | Specifications |
|---|---|

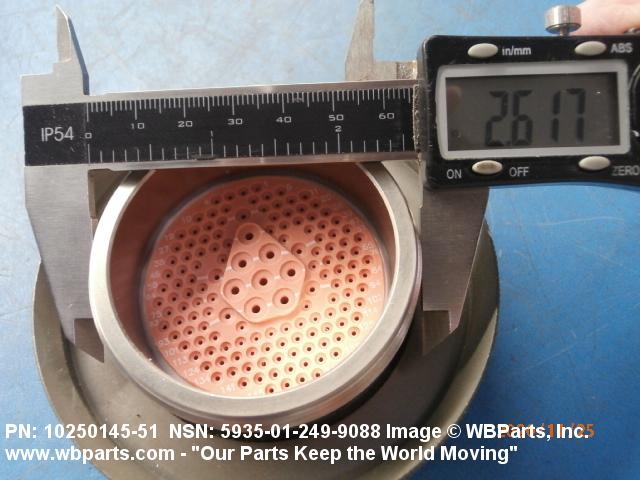

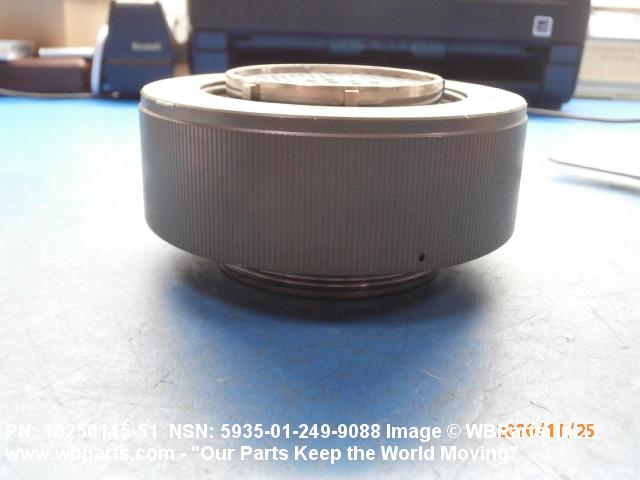

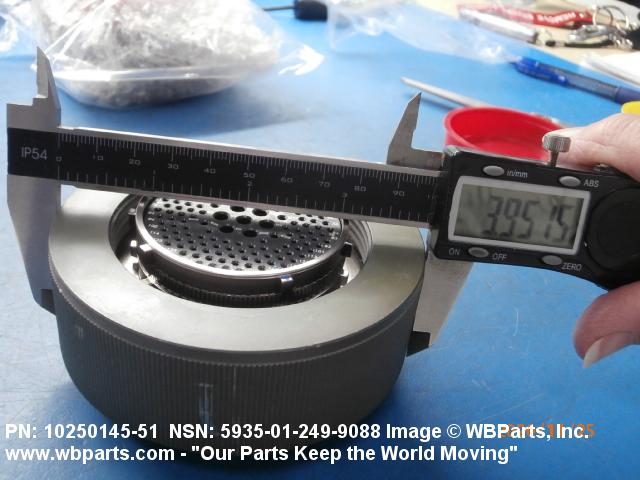

| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 2.015 INCHES MAXIMUM |
| OVERALL DIAMETER | 4.000 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN AND DOUBLE STUB |
| NOMINAL THREAD SIZE | 2.625 INCHES AND 2.750 INCHES |
| THREAD CLASS | 2A AND 2B |

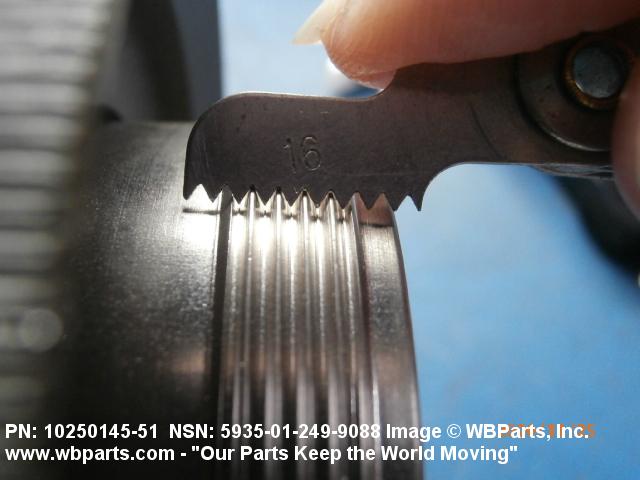

| THREAD QUANTITY PER INCH | 16 AND 10 |
| THREAD DIRECTION | LEFT-HAND AND RIGHT-HAND |

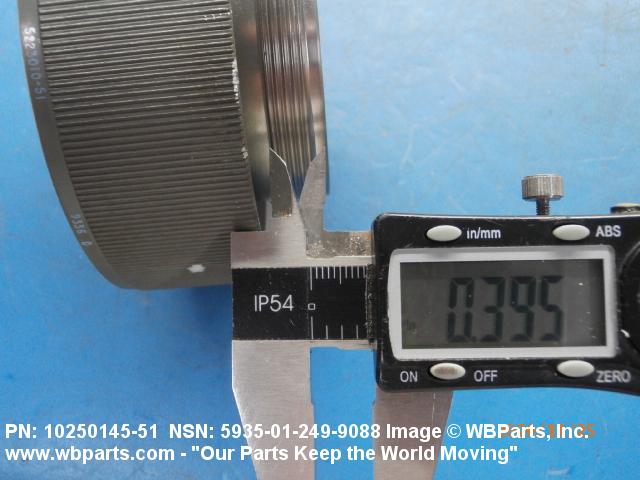

| NOMINAL THREAD LENGTH | 0.375 INCHES AND 0.460 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |

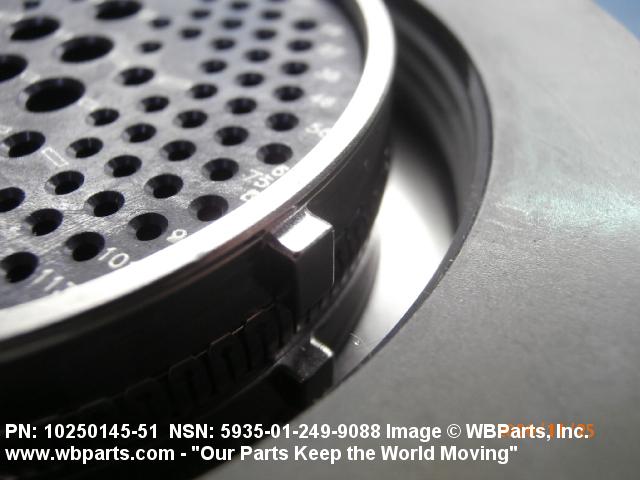

| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| III END ITEM IDENTIFICATION | 4935-01-136-0233 SHOP EQUIPMENT,GUIDED MISSILE SYSTEM |
