NSN 5935-01-257-1201 H920056006C, H920056-006C, 96669113000
Product Details | CONNECTOR ADAPTER
5935-01-257-1201 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: H920056006C, H920056-006C, 96669113000, 9666-9113-000, 050645753989, 050-645-7539-89 , 2988, 2-988, 29881M26, 2-988-1M26, 50645753989, 50-645-7539-89, 5935-01-257-1201, 01-257-1201, 5935012571201, 012571201
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUN 1987 | 01-257-1201 | 15091 ( ADAPTER, CONNECTOR ) |

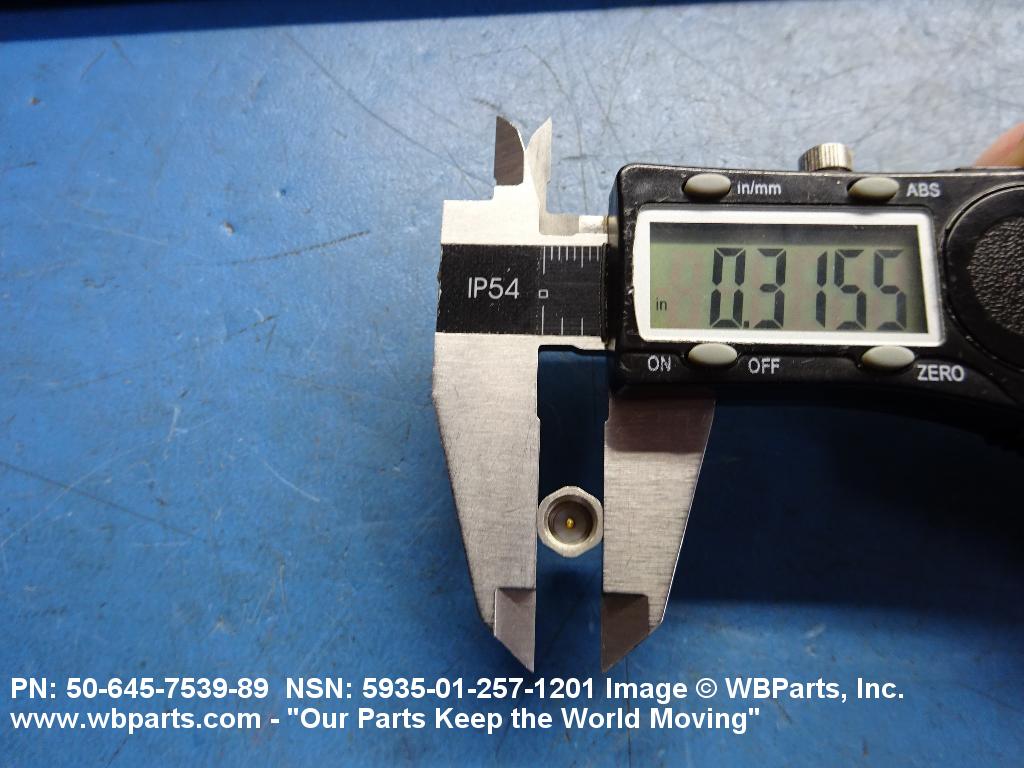

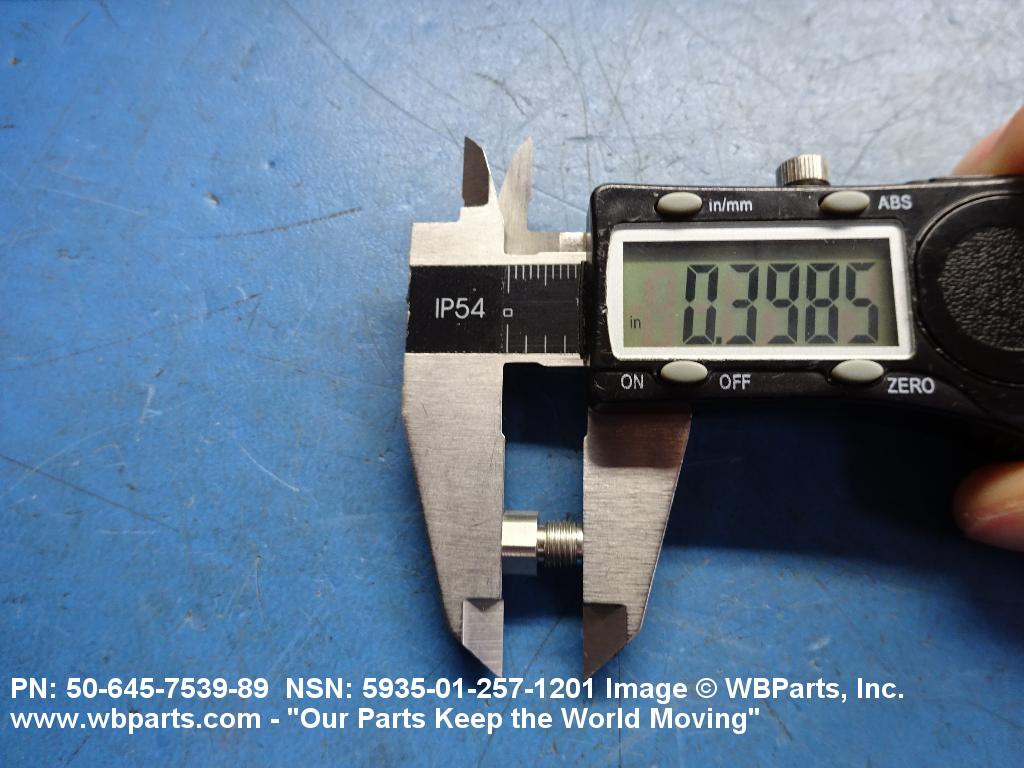

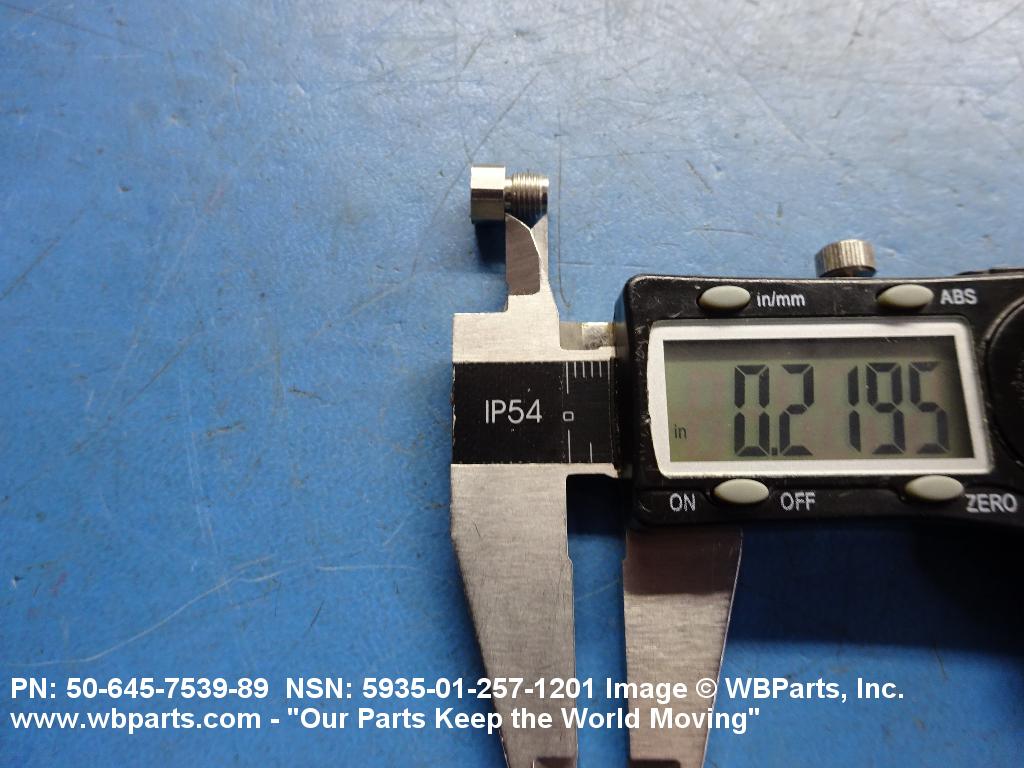

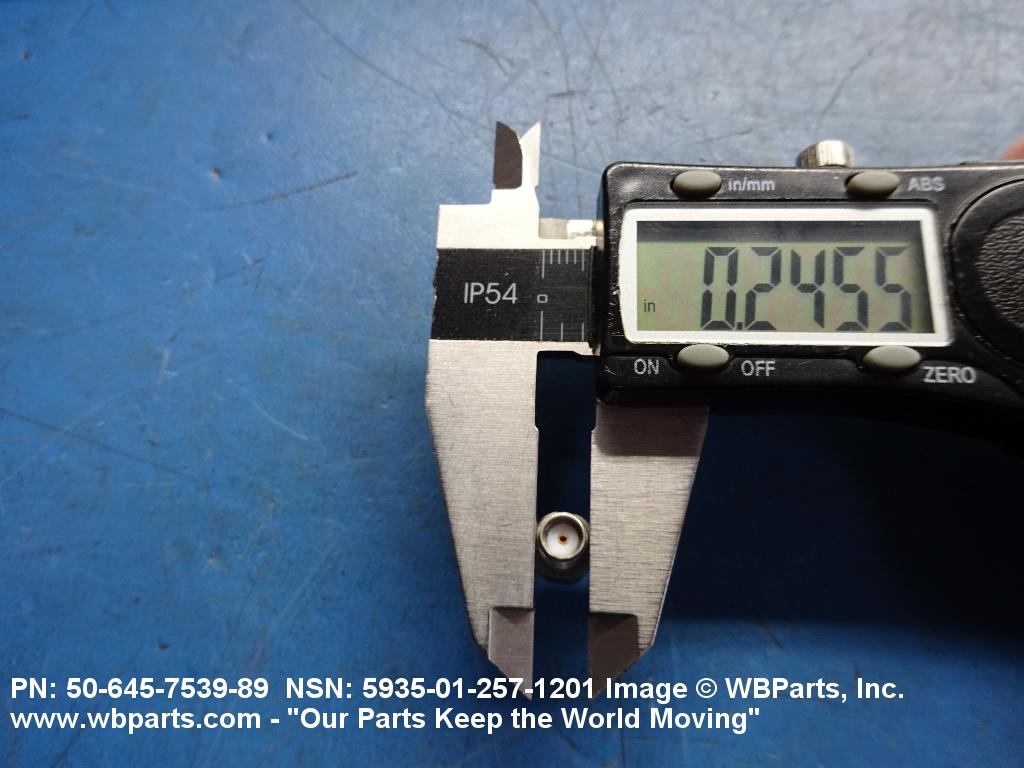

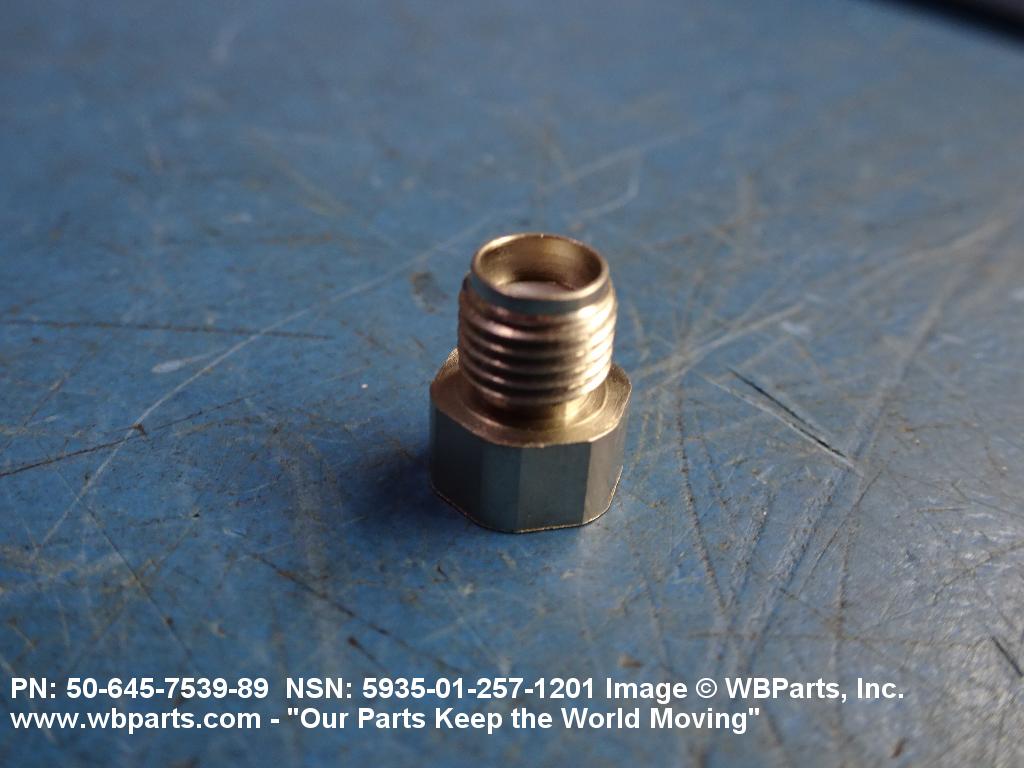

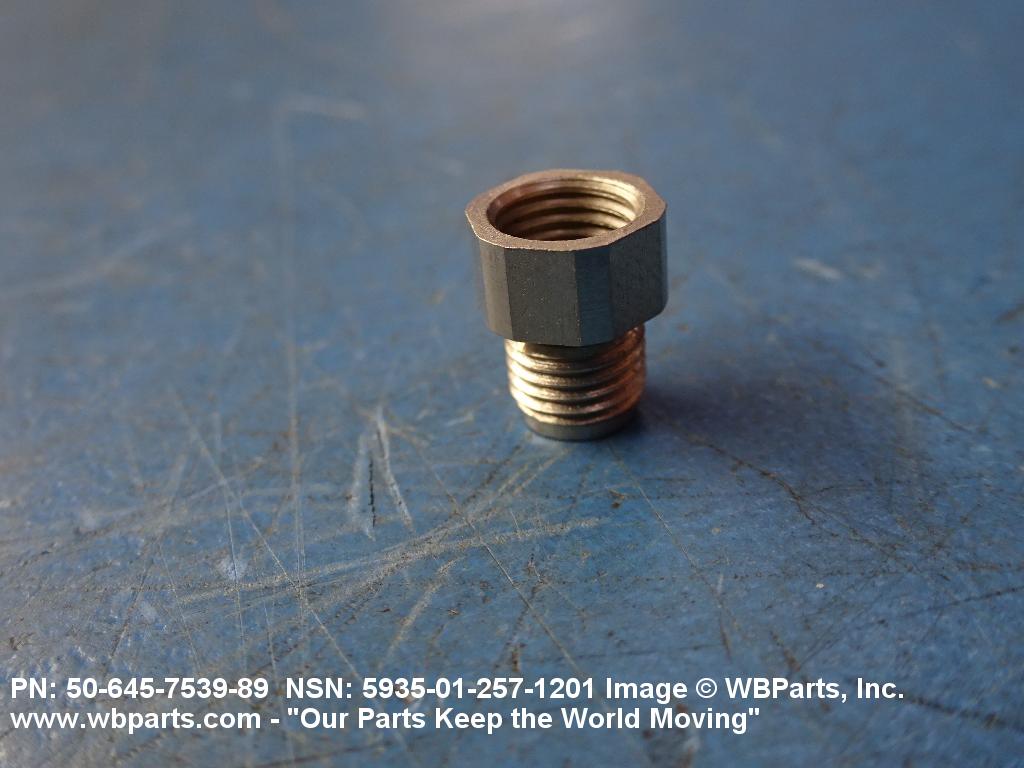

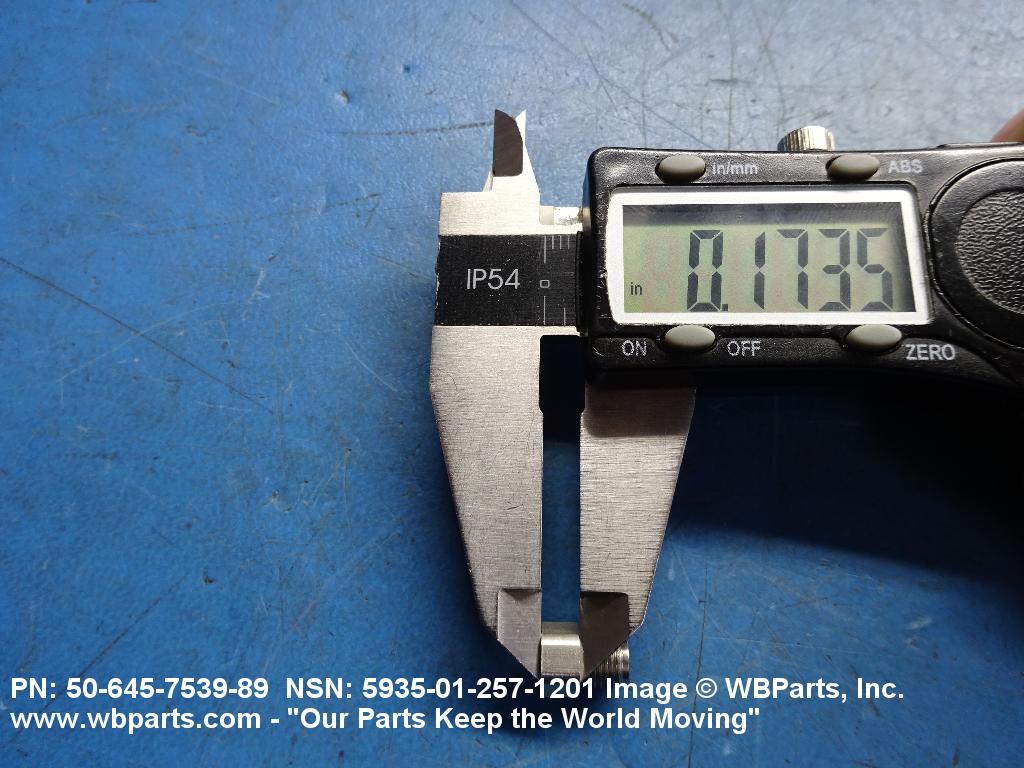

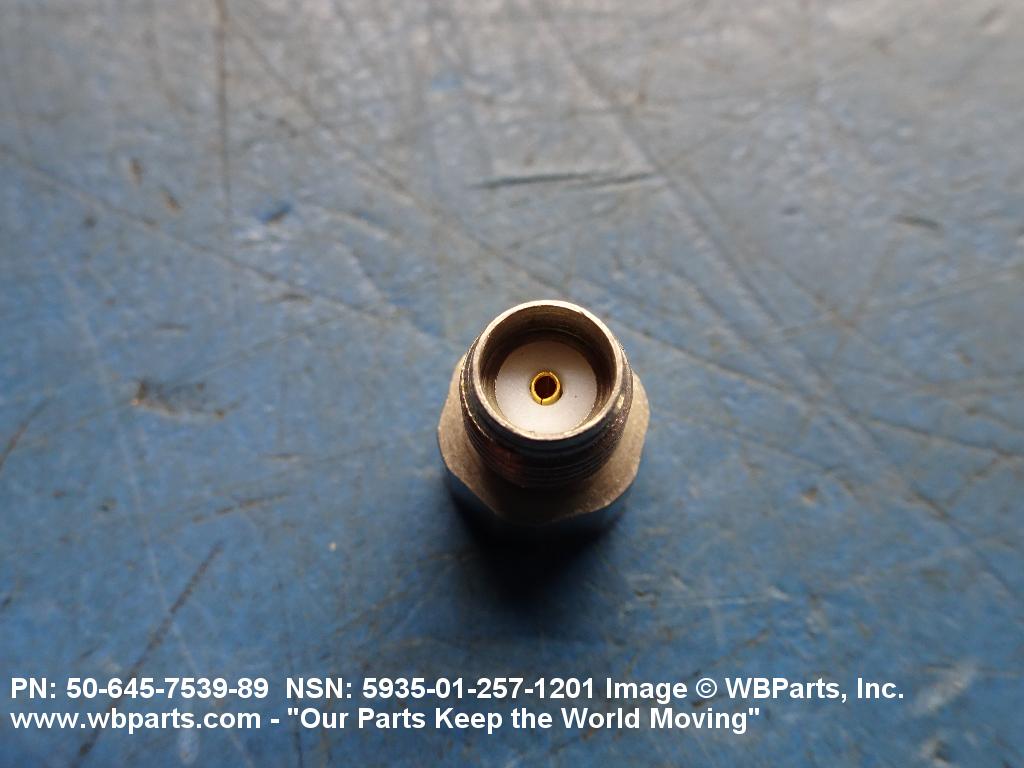

Drawings & Photos | NSN 5935-01-257-1201
Demand History | NSN 5935-01-257-1201
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-257-1201 | 2022-09-270 | 10 | United States |
| 5935-01-257-1201 | 2017-08-221 | 201 | DIBBS |
| 5935-01-257-1201 | 2016-03-63 | 157 | DIBBS |
| 5935-01-257-1201 | 2014-12-348 | 100 | DIBBS |
| 5935-01-257-1201 | 2013-12-357 | 56 | DIBBS |
| 5935-01-257-1201 | 2012-08-244 | 62 | DIBBS |
| 5935-01-257-1201 | 2012-06-181 | 59 | DIBBS |
| 5935-01-257-1201 | 2012-05-126 | 0 | DIBBS |
| 5935-01-257-1201 | 2012-04-100 | 45 | DIBBS |
| 5935-01-257-1201 | 2009-10-293 | 73 | DIBBS |
| 5935-01-257-1201 | 2009-04-105 | 15 | DIBBS |
| 5935-01-257-1201 | 2008-12-343 | 85 | DIBBS |
| 5935-01-257-1201 | 2008-06-176 | 45 | DIBBS |
| 5935-01-257-1201 | 2007-10-298 | 37 | DIBBS |
| 5935-01-257-1201 | 2007-08-226 | 25 | DIBBS |
| 5935-01-257-1201 | 2007-08-216 | 15 | DIBBS |
Cross Reference | NSN 5935-01-257-1201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-988 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| 2-988-1M26 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| 50-645-7539-89 | 98291 | ITT CANNON RF PRODUCTS |
| 9666-9113-000 | 19505 | RADIALL USA, INC. |
| H920056-006C | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-257-1201
Related Products | NSN 5935-01-257-1201
Technical Data | NSN 5935-01-257-1201
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2N STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 0.402 INCHES NOMINAL |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS AND UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES AND 0.250 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 36 AND 36 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764 FED SPEC SINGLE MATERIAL RESPONSE OR ASTM-A-582 ASSN STD SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | PASSIVATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | ABDN SMA ALL MATING ENDS |
| INSERT MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE ALL MATING ENDS |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 1 1ST MATING END SINGLE CONTACT GROUPING 1 2ND MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET 1ST MATING END SINGLE CONTACT GROUPING COAXIAL PIN 2ND MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1,GR C OR D MIL SPEC 1ST TREATMENT RESPONSE ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT AND SHOCK RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-257-1201
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-257-1201
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
