NSN 5935-01-274-3796 B33A01354, B33A0135-4 , 3824702
Product Details | CONNECTOR ADAPTER
5935-01-274-3796 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: B33A01354, B33A0135-4 , 3824702, 4409530P, 44095-30P, 6544781, 654478-1, 5935-01-274-3796, 01-274-3796, 5935012743796, 012743796
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAR 1988 | 01-274-3796 | 15091 ( ADAPTER, CONNECTOR ) |

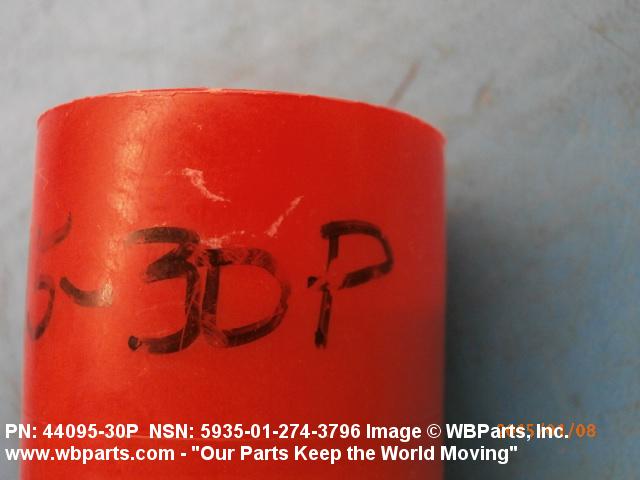

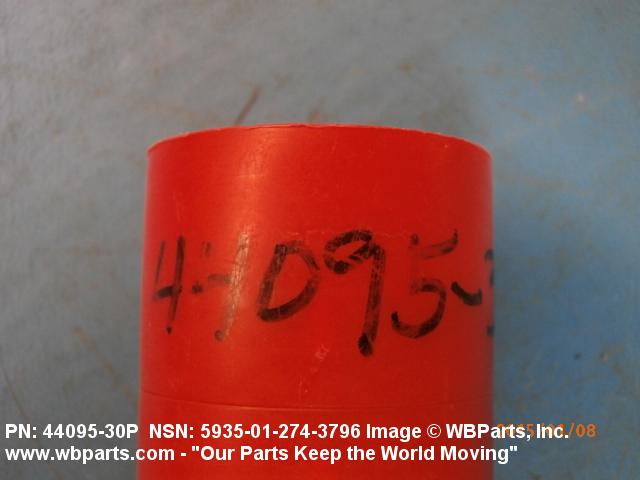

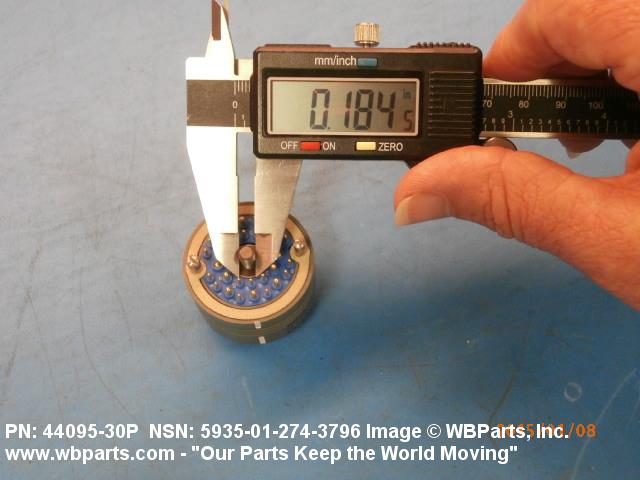

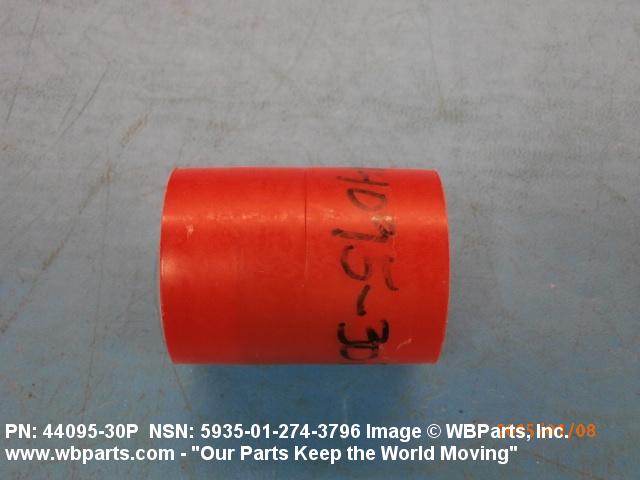

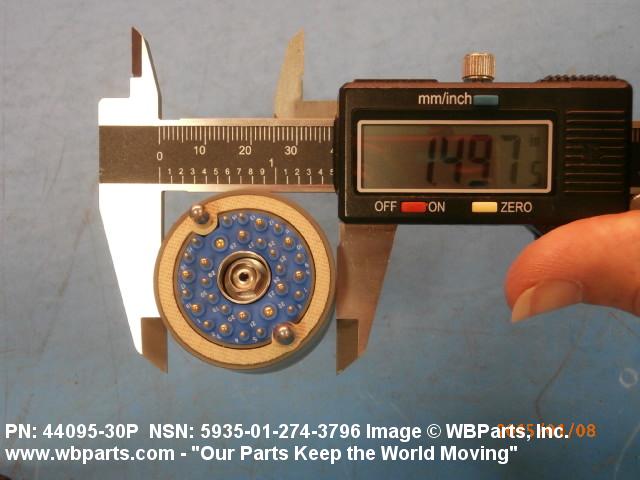

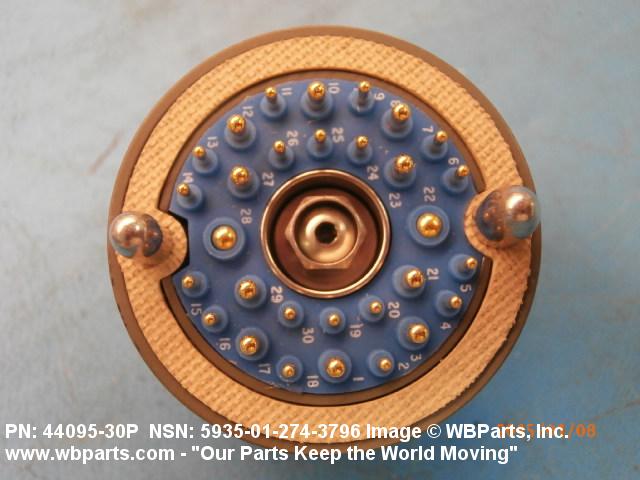

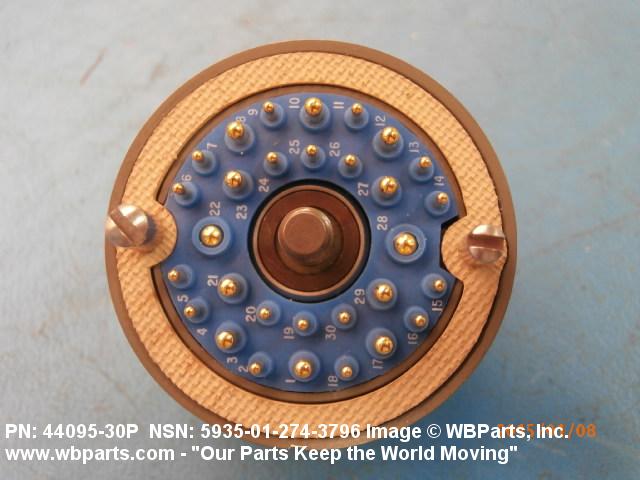

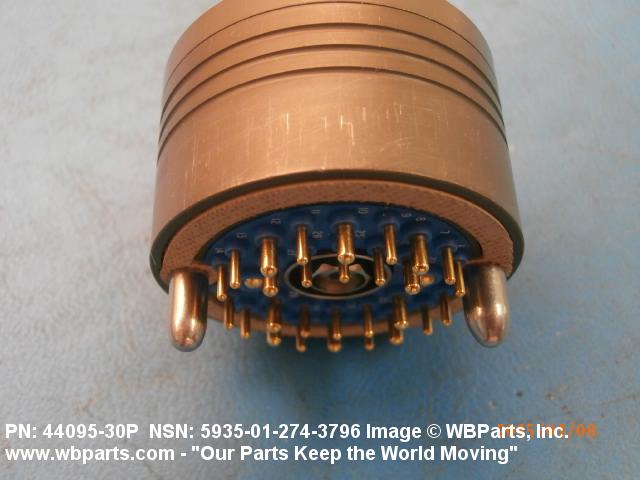

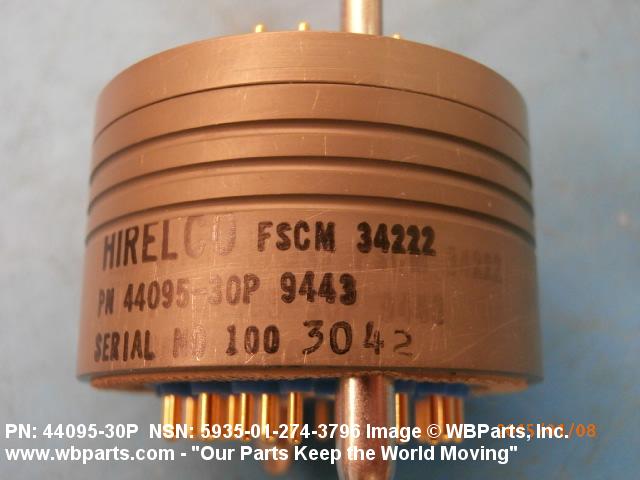

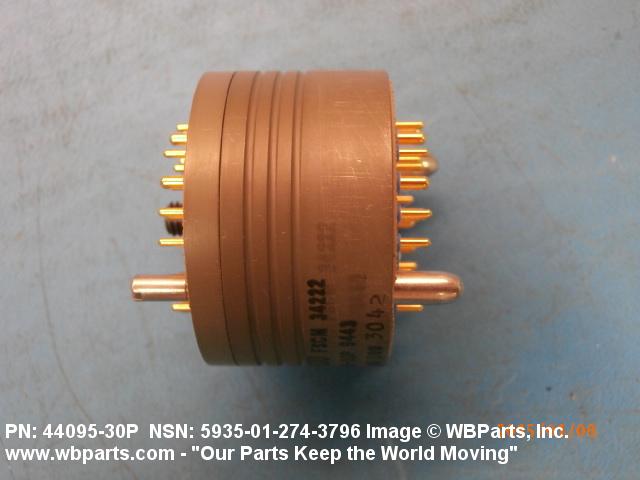

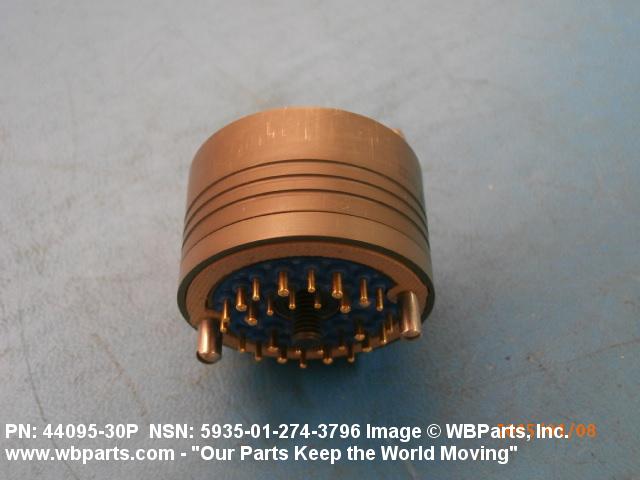

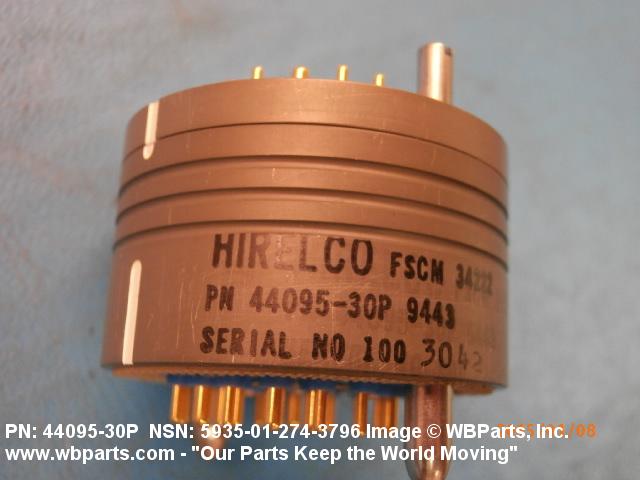

Drawings & Photos | NSN 5935-01-274-3796
Demand History | NSN 5935-01-274-3796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-274-3796 | 2025-11-310 | 3 | United States |
| 5935-01-274-3796 | 2025-08-240 | 6 | United States |
| 5935-01-274-3796 | 2025-08-237 | 6 | United States |
| B33A01354 | 2024-04-100 | 3 | Singapore |
| 5935-01-274-3796 | 2023-06-178 | 3 | United States |
| 5935-01-274-3796 | 2020-09-247 | 5 | KR |
| 5935-01-274-3796 | 2020-08-216 | 10 | Singapore |
| 5935-01-274-3796 | 2020-01-16 | 3 | KR |
| 5935-01-274-3796 | 2018-09-265 | 30 | US |
| 6544781 | 2016-07-196 | 189 | AE |
| 5935-01-274-3796 | 2015-11-328 | 2 | US |
| 4409530P | 2014-12-337 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-274-3796
Technical Data | NSN 5935-01-274-3796
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2N STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.696 INCHES NOMINAL |

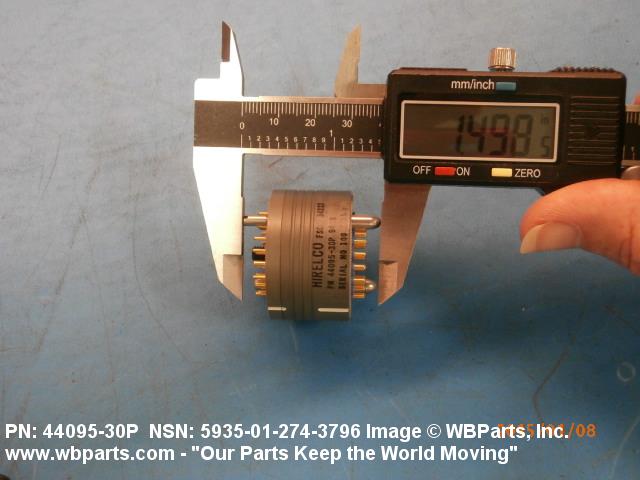

| OVERALL DIAMETER | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| THREADED DEVICE TYPE | MOUNTING STUD |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.191 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074,CLASS 4,GRADE B MIL SPEC SINGLE TREATMENT RESPONSE AND QQ-P-416,TYPE II,CLASS 3,COLOR:OLIVE DRAB FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 2 |

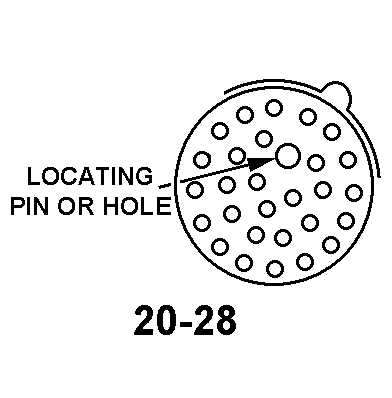

| CONTACT POSITION ARRANGEMENT STYLE | BEAR 20-28 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 28 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | METAL ALL MATING ENDS ALL CONTACT GROUPINGS |
| III END ITEM IDENTIFICATION | AMARAAM SYSTEM |
Restrictions/Controls & Freight Information | NSN 5935-01-274-3796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5935-01-274-3796
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9F | Navy-owned stocks of material managed by the Air Force within the Warner Robins Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
