NSN 5935-01-310-6059 MTCC1PCOAX01P01, MTCC1P-COAX01P-01, MTCC1PCOAX01P01AA
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-310-6059 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MTCC1PCOAX01P01, MTCC1P-COAX01P-01, MTCC1PCOAX01P01AA, MTCC1P-COAX01P-01AA, MTCC1RCOAX01P01DC, MTCC1R-COAX01P-01-DC, C89167, C8916-7, C891671, C8916-7-1, D6520004, D-652-0004, 5935-01-310-6059, 01-310-6059, 5935013106059, 013106059
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 NOV 1989 | 01-310-6059 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |

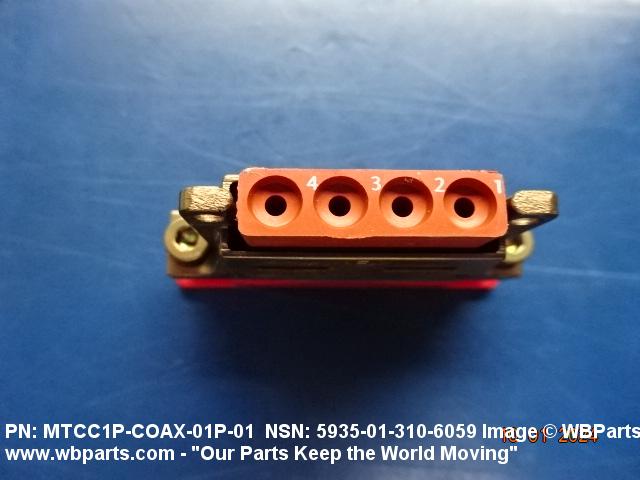

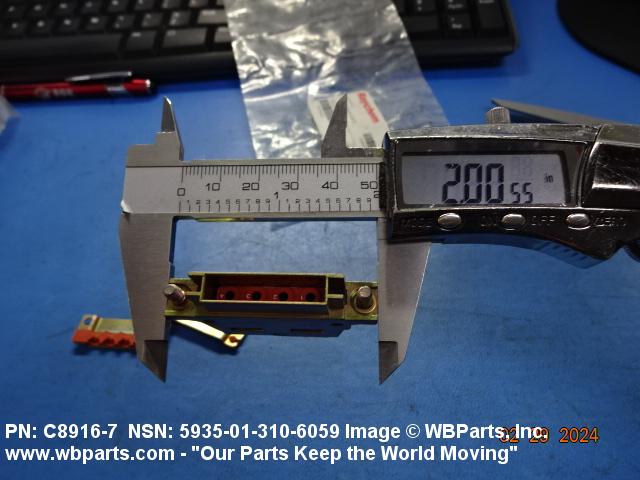

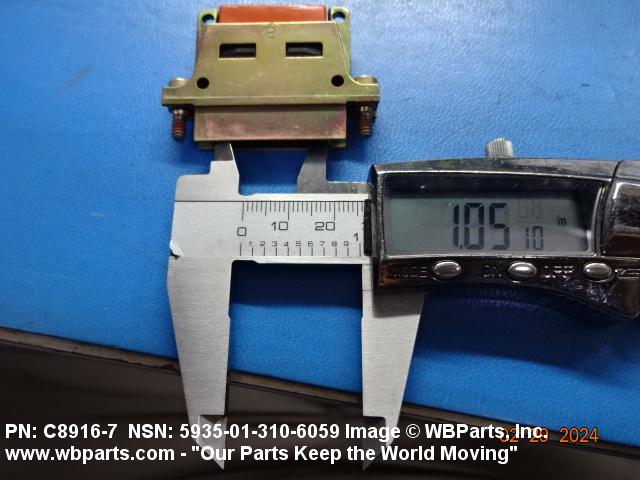

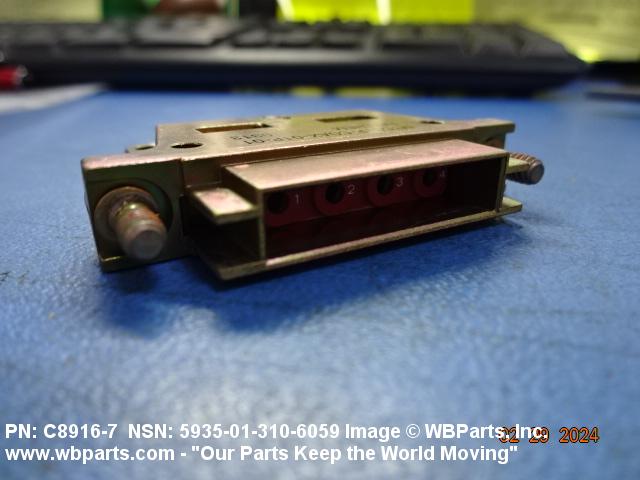

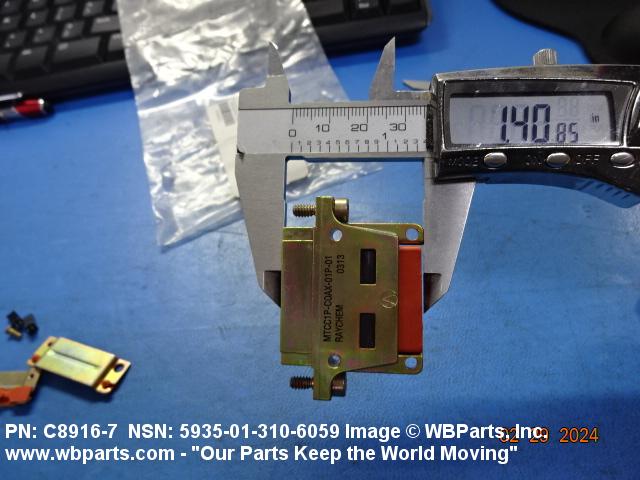

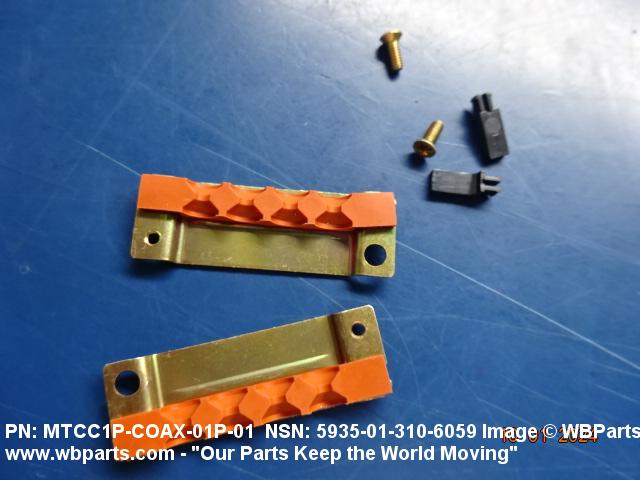

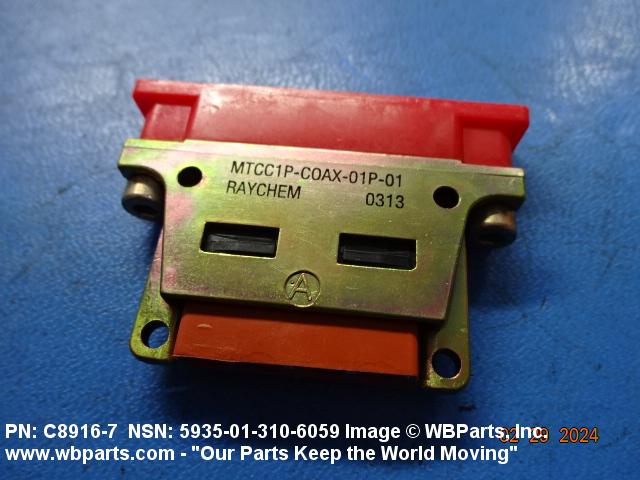

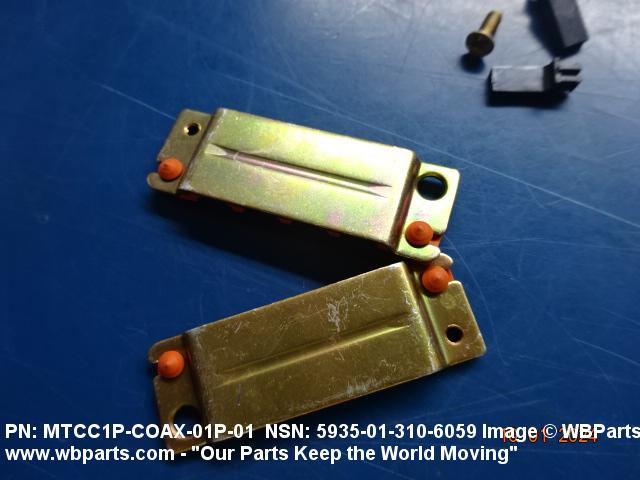

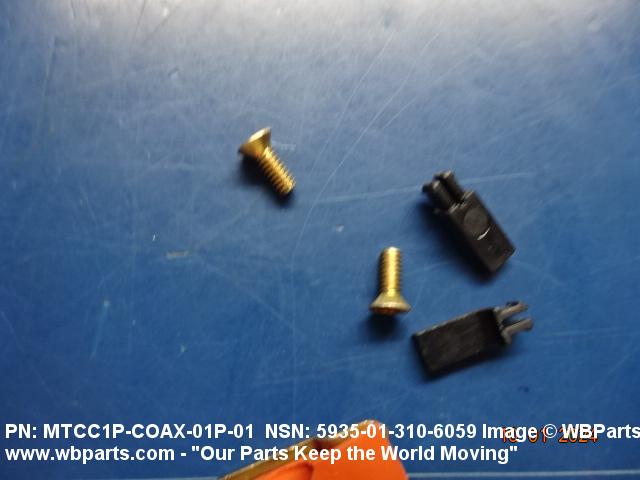

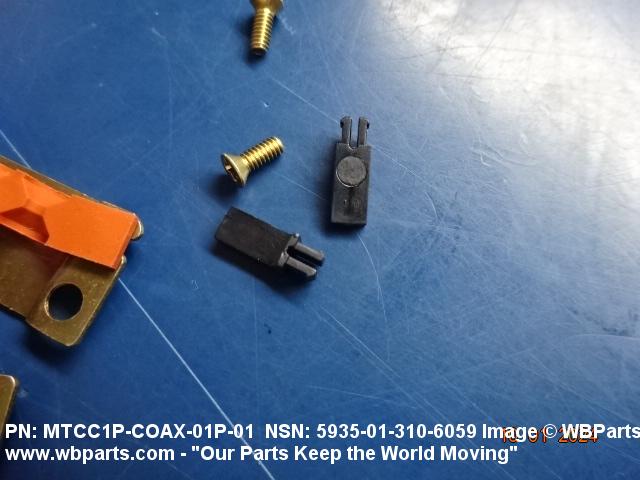

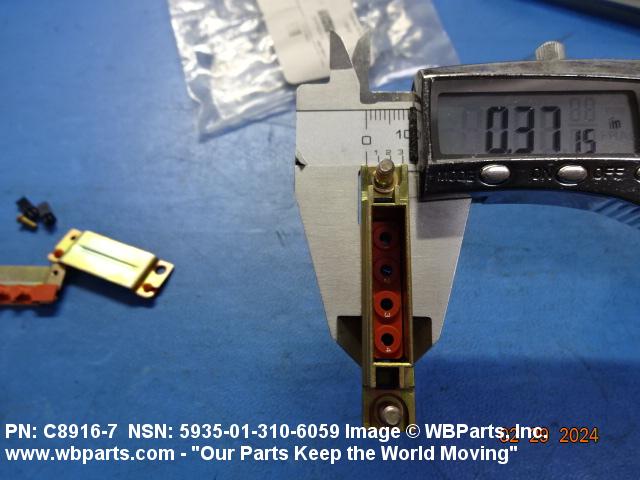

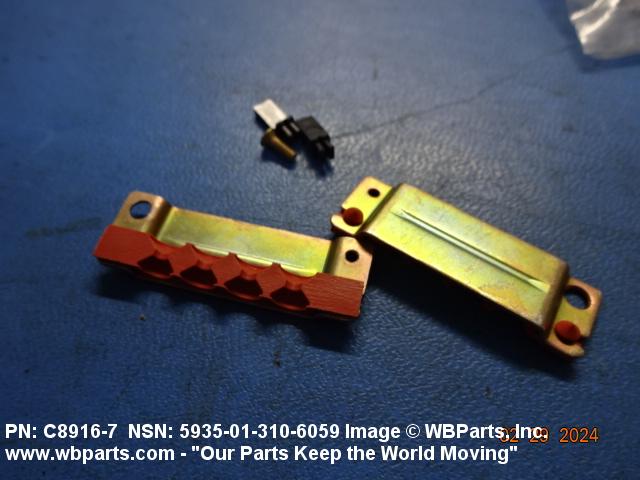

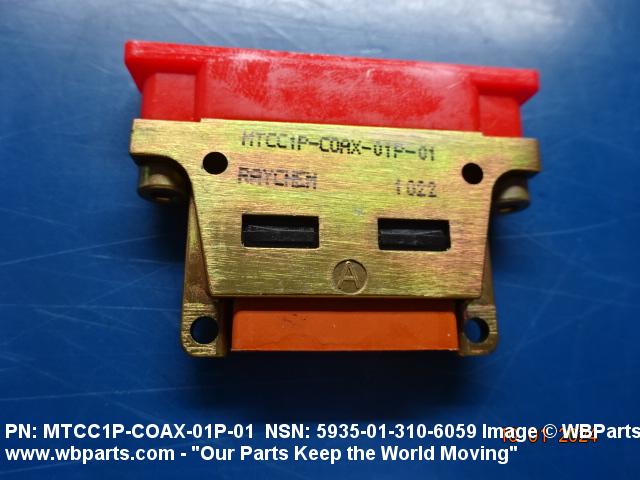

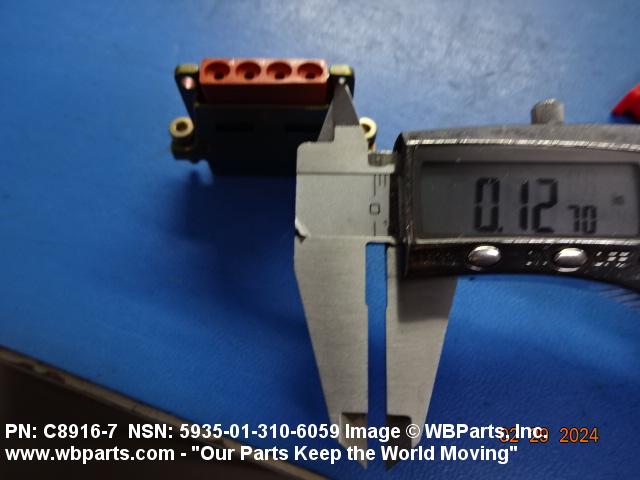

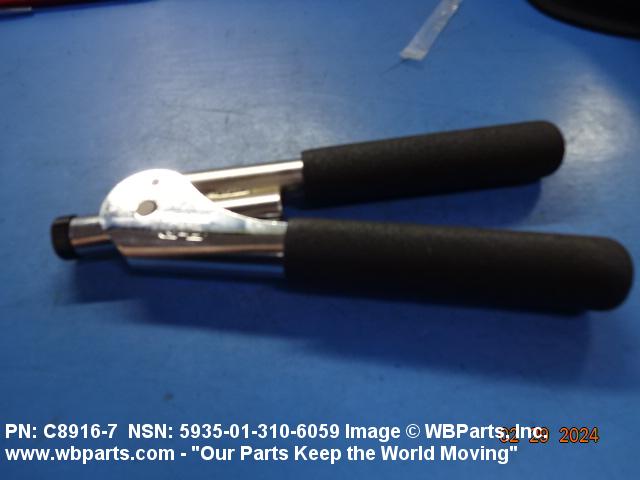

Drawings & Photos | NSN 5935-01-310-6059
Demand History | NSN 5935-01-310-6059
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-310-6059 | 2025-09-246 | 380 | US |
| 5935-01-310-6059 | 2024-11-309 | 3 | United States |
| 5935-01-310-6059 | 2024-09-254 | 1 | United States |
| 5935-01-310-6059 | 2024-09-253 | 1 | United States |
| C8916-7 | 2024-08-214 | 353 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-08-214 | 353 | DIBBS |
| 5935-01-310-6059 | 2024-03-66 | 60 | US |
| 5935-01-310-6059 | 2024-02-60 | 60 | United States |
| C8916-7 | 2024-02-60 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-60 | 628 | DIBBS |
| C8916-7 | 2024-02-59 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-59 | 628 | DIBBS |
| C8916-7 | 2024-02-58 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-58 | 628 | DIBBS |
| 5935-01-310-6059 | 2024-02-57 | 10 | US |
| 5935-01-310-6059 | 2024-02-57 | 60 | US |
| C8916-7 | 2024-02-57 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-57 | 628 | DIBBS |
| C8916-7 | 2024-02-54 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-54 | 628 | DIBBS |
| C8916-7 | 2024-02-51 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-51 | 628 | DIBBS |
| C8916-7 | 2024-02-39 | 628 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-39 | 628 | DIBBS |
| C8916-7 | 2024-02-38 | 398 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-38 | 398 | DIBBS |
| C8916-7 | 2024-02-33 | 398 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-02-33 | 398 | DIBBS |
| 5935-01-310-6059 | 2024-02-32 | 10 | United States |
| C8916-7 | 2024-01-22 | 398 | DIBBS |
| MTCC1P-COAX01P-01 | 2024-01-22 | 398 | DIBBS |
| C8916-7 | 2023-11-334 | 267 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-11-334 | 267 | DIBBS |
| C8916-7 | 2023-11-323 | 267 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-11-323 | 267 | DIBBS |
| C8916-7 | 2023-10-296 | 18 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-10-296 | 18 | DIBBS |
| C8916-7 | 2023-10-285 | 18 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-10-285 | 18 | DIBBS |
| C8916-7 | 2023-08-229 | 15 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-08-229 | 15 | DIBBS |
| C8916-7 | 2023-05-138 | 29 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-05-138 | 29 | DIBBS |
| C8916-7 | 2023-02-44 | 120 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-02-44 | 120 | DIBBS |
| C8916-7 | 2023-01-29 | 120 | DIBBS |
| MTCC1P-COAX01P-01 | 2023-01-29 | 120 | DIBBS |
| 5935-01-310-6059 | 2022-05-139 | 18 | United States |
| C8916-7 | 2022-02-40 | 69 | DIBBS |
| MTCC1P-COAX01P-01 | 2022-02-40 | 69 | DIBBS |
| 5935-01-310-6059 | 2021-07-194 | 1 | US |
| 5935-01-310-6059 | 2021-07-194 | 1 | US |
| C8916-7 | 2021-02-52 | 61 | DIBBS |
| MTCC1P-COAX01P-01 | 2021-02-52 | 61 | DIBBS |
| 5935-01-310-6059 | 2018-04-106 | 103 | DIBBS |
| 5935-01-310-6059 | 2018-04-95 | 103 | DIBBS |
| 5935-01-310-6059 | 2018-02-36 | 2 | United States |
| 5935-01-310-6059 | 2017-12-335 | 96 | DIBBS |
| 5935-01-310-6059 | 2017-11-324 | 96 | DIBBS |
| 5935-01-310-6059 | 2017-08-215 | 101 | DIBBS |
| 5935-01-310-6059 | 2014-09-255 | 169 | DIBBS |
| 5935-01-310-6059 | 2014-03-65 | 304 | DIBBS |
| 5935-01-310-6059 | 2014-02-51 | 52 | DIBBS |
| 5935-01-310-6059 | 2014-01-30 | 144 | DIBBS |
| 5935-01-310-6059 | 2013-10-304 | 78 | DIBBS |
| 5935-01-310-6059 | 2010-04-116 | 45 | United States |
| 5935-01-310-6059 | 2008-03-86 | 141 | DIBBS |
| 5935-01-310-6059 | 2007-10-278 | 185 | DIBBS |
| 5935-01-310-6059 | 2007-08-242 | 167 | DIBBS |
| 5935-01-310-6059 | 2007-07-207 | 77 | DIBBS |
| 5935-01-310-6059 | 2007-07-198 | 339 | DIBBS |
| 5935-01-310-6059 | 2007-05-141 | 81 | DIBBS |
| 5935-01-310-6059 | 2006-05-147 | 213 | DIBBS |
| 5935-01-310-6059 | 2006-04-110 | 93 | DIBBS |
Cross Reference | NSN 5935-01-310-6059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C8916-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| C8916-7-1 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| D-652-0004 | 06090 | TYCO ELECTRONICS CORPORATION |
| MTCC1P-COAX01P-01 | 06090 | TYCO ELECTRONICS CORPORATION |
| MTCC1P-COAX01P-01AA | 06090 | TYCO ELECTRONICS CORPORATION |
| MTCC1R-COAX01P-01-DC | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-310-6059
Related Products | NSN 5935-01-310-6059
Technical Data | NSN 5935-01-310-6059
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18A HOOD, TOP OPENING W/CLAMP |
| OVERALL LENGTH | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.690 INCHES NOMINAL |
| OVERALL WIDTH | 0.360 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | JACKSCREW-SOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 1.000 INCHES NOMINAL |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | METAL |
| SHELL SURFACE TREATMENT | CADMIUM AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE |
| POLARIZATION METHOD | MATING END AND JACKSCREW |
| JACKSCREW TYPE AND LOCATION | MALE LEFT-HAND AND MALE RIGHT-HAND |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AEEB 4 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 4 COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| SPECIAL FEATURES | KEYING PINS ARE SUPPLIED LOOSE,AND ARE TO BE IN THE -1 POSITION |
| III OPERATING TEMP RATING | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5935-01-310-6059
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-310-6059
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
