NSN 5935-01-315-0926 2333, 01-315-0926, 013150926
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-315-0926 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 2333, 5935-01-315-0926, 01-315-0926, 5935013150926, 013150926
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 FEB 1990 | 01-315-0926 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-315-0926
Cross Reference | NSN 5935-01-315-0926
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2333 | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-315-0926
Technical Data | NSN 5935-01-315-0926
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5C STRAIGHT SHAPE W/O CLAMP |
| OVERALL HEIGHT | 3.609 INCHES NOMINAL |
| OVERALL DIAMETER | 1.937 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

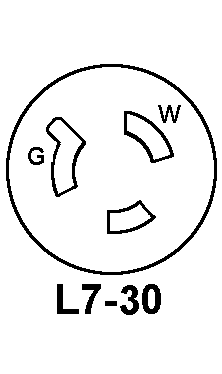

| CONTACT POSITION ARRANGEMENT STYLE | ADLE L7-30 ALL MATING ENDS |
Restrictions/Controls & Freight Information | NSN 5935-01-315-0926
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
