NSN 5935-01-321-1891 MS27474T16B8A, MILC38999, MIL-C-38999
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-321-1891 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS27474T16B8A, MILC38999, MIL-C-38999, 5935-01-321-1891, 01-321-1891, 5935013211891, 013211891
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 1990 | 01-321-1891 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-321-1891
Demand History | NSN 5935-01-321-1891
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILC38999 | 2011-12-340 | 50 | China |
| MILC38999 | 2010-03-69 | 10 | United States |
| MILC38999 | 2010-03-68 | 13 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-321-1891
Related Products | NSN 5935-01-321-1891
Technical Data | NSN 5935-01-321-1891
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 10G STRAIGHT SHAPE EXTERNAL COUPLING |
| OVERALL LENGTH | 0.787 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.922 INCHES MINIMUM AND 1.954 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.433 INCHES MINIMUM AND 0.443 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.062 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | BACK SHELL AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 0.938 INCHES AND 1.375 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 20 AND 18 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.219 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 AND 95.0 AND 132.0 AND 232.0 AND 260.0 |
| MATING END QUANTITY | 1 |

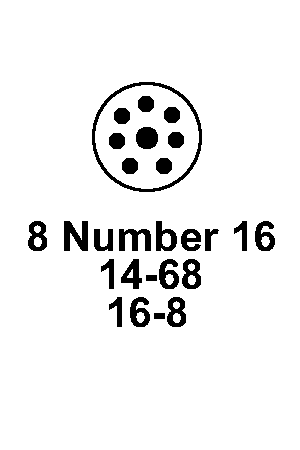

| CONTACT POSITION ARRANGEMENT STYLE | AJCS 8 NUMBER 16,14-68,16-8 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 8 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND FUEL RESISTANT AND FUNGUS RESISTANT AND HUMIDITY RESISTANT AND OIL RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-38999 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS27474 GOVERNMENT STANDARD |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 200.0 DEG CELSIUS MAXIMUM |
| III END ITEM IDENTIFICATION | 5895-01-280-3568 COMMUNICATION SYSTEM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT | MIL-C-38999 |
