NSN 5935-01-325-4032 1000002329, 100-0002-329, 6544463
Product Details | ELECTRICAL CONNECTOR COVER
5935-01-325-4032 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: 1000002329, 100-0002-329, 6544463, 654446-3, 5935-01-325-4032, 01-325-4032, 5935013254032, 013254032
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 SEP 1990 | 01-325-4032 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-325-4032
Demand History | NSN 5935-01-325-4032
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-325-4032 | 2021-08-224 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-325-4032
Technical Data | NSN 5935-01-325-4032
| Characteristic | Specifications |
|---|---|

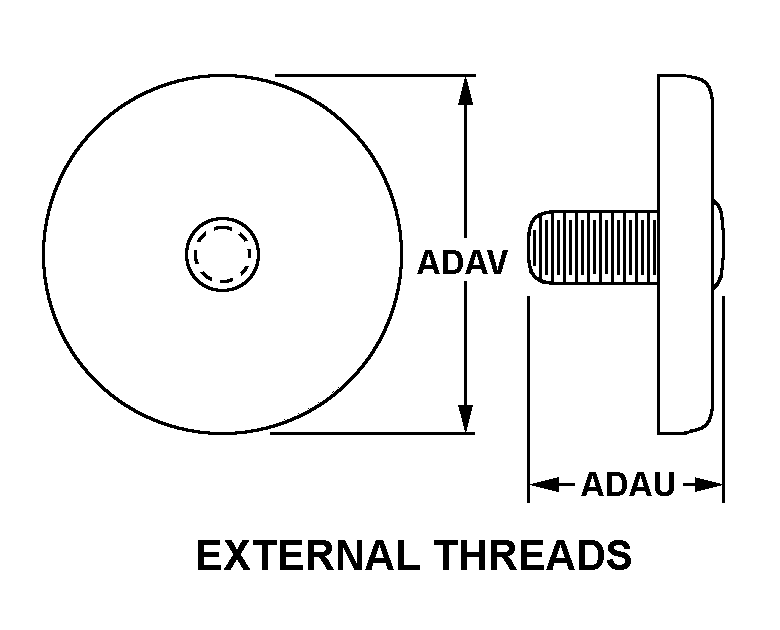

| STYLE DESIGNATOR | 22A EXTERNAL THREADS |
| BODY HEIGHT | 0.863 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | NICKEL, ELECTROLESS AND PAINTED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SCREW |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER, SILICONE BASE AND METAL |
| MANUFACTURERS CODE | 82577 |
| MFR SOURCE CONTROLLING REFERENCE | 654446-3 |
Restrictions/Controls & Freight Information | NSN 5935-01-325-4032
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC SUB2 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-325-4032
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9F | Navy-owned stocks of material managed by the Air Force within the Warner Robins Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
