NSN 5935-01-356-8577 BKW4E3090031F0, BKW4E309-0031F0, 600070W30931
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-356-8577 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: BKW4E3090031F0, BKW4E309-0031F0, 600070W30931, 600070W309-31, 3700082050, 370-0082-050, 5935-01-356-8577, 01-356-8577, 5935013568577, 013568577
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 APR 1992 | 01-356-8577 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-356-8577
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-356-8577
Related Products | NSN 5935-01-356-8577
Technical Data | NSN 5935-01-356-8577
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19G STRAIGHT SHAPE, FLUSH MOUNT |
| OVERALL LENGTH | 1.965 INCHES NOMINAL |
| OVERALL HEIGHT | 5.150 INCHES MINIMUM AND 5.170 INCHES MAXIMUM |
| OVERALL WIDTH | 3.545 INCHES MINIMUM AND 3.565 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 4.728 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.250 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY OR ALUMINUM ALLOY 380.0 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591,COMP 13 FED SPEC 2ND MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| GUIDE DESIGN AND LOCATION | D SHAPE PIN LEFT-HAND AT 10 OCLOCK D SHAPE PIN CENTER AND D SHAPE PIN RIGHT-HAND AT 12 OCLOCK |
| MATING END QUANTITY | 3 |

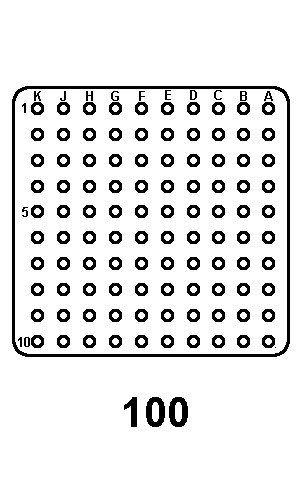

| CONTACT POSITION ARRANGEMENT STYLE | EFAT 100 2ND MATING END FYAC 150 3RD MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED OR PLASTIC ALL MATING ENDS |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY SDG-F MIL SPEC 1ST MATERIAL RESPONSE OR MIL-M-24519 MIL SPEC 2ND MATERIAL RESPONSE ALL MATING ENDS |
| MISSING CONTACT TYPE AND QUANTITY | 4 ROUND SOCKET OR 4 ROUND PIN 1ST MATING END 1ST CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE 20 ROUND SOCKET OR 20 ROUND PIN 1ST MATING END 2ND CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE 100 ROUND SOCKET OR 100 ROUND PIN 2ND MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE 150 ROUND SOCKET OR 150 ROUND PIN 3RD MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
Restrictions/Controls & Freight Information | NSN 5935-01-356-8577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-356-8577
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
