NSN 5935-01-366-5414 D38999/20WJ20SN, D3899920WJ20SN, MIL-DTL-38999/20

Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY

5935-01-366-5414 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: D38999/20WJ20SN, D3899920WJ20SN, MIL-DTL-38999/20, MILDTL3899920, 5935-01-366-5414, 01-366-5414, 5935013665414, 013665414

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	28 OCT 1992	01-366-5414	61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL )

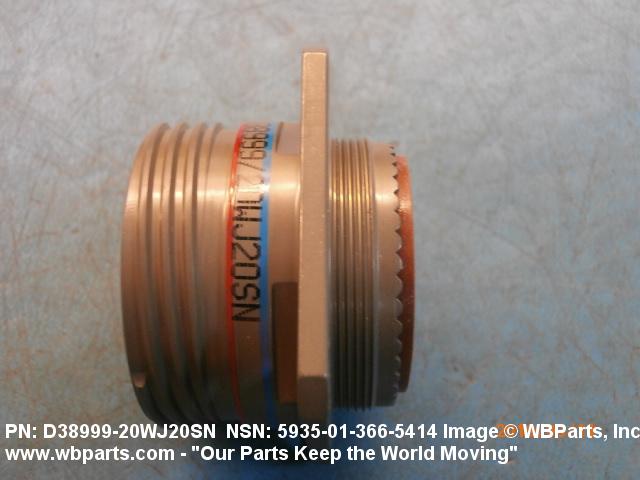

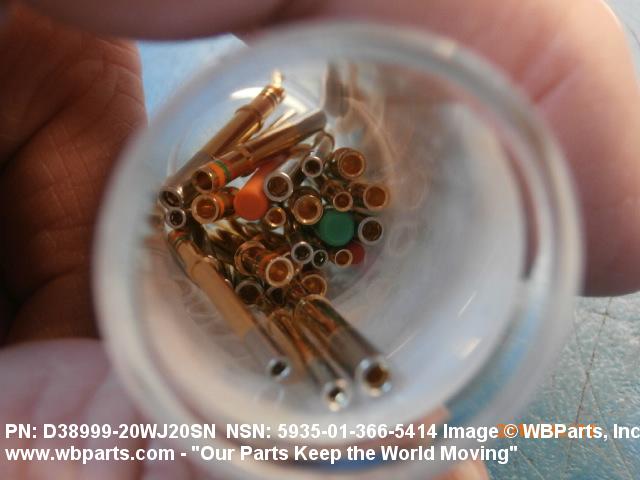

Drawings & Photos | NSN 5935-01-366-5414

Part Number	Request Date	QTY	Origin
5935-01-366-5414	2025-12-343	10	US
5935-01-366-5414	2025-11-310	1	US
5935-01-366-5414	2025-06-153	57	DIBBS
5935-01-366-5414	2024-06-165	20	DIBBS
D3899920WJ20SN	2023-10-276	3	United States
D3899920WJ20SN	2023-07-194	1	United States
5935-01-366-5414	2023-06-179	126	DIBBS
5935-01-366-5414	2022-07-193	170	DIBBS
5935-01-366-5414	2021-07-207	142	DIBBS
5935-01-366-5414	2020-07-212	107	DIBBS
5935-01-366-5414	2020-07-203	30	DIBBS
5935-01-366-5414	2020-07-201	70	DIBBS
5935-01-366-5414	2020-06-163	176	DIBBS
5935-01-366-5414	2020-06-160	160	DIBBS
5935-01-366-5414	2020-05-149	160	DIBBS
5935-01-366-5414	2019-02-50	4	United States
D3899920WJ20SN	2019-02-50	4	United States
5935-01-366-5414	2017-06-155	175	DIBBS
5935-01-366-5414	2017-04-100	141	DIBBS
D3899920WJ20SN	2016-11-328	1	AU
5935-01-366-5414	2016-06-174	327	DIBBS
5935-01-366-5414	2016-04-108	265	DIBBS
5935-01-366-5414	2015-09-256	90	DIBBS
5935-01-366-5414	2012-02-58	30	DIBBS
5935-01-366-5414	2011-07-194	55	DIBBS
5935-01-366-5414	2011-05-139	35	DIBBS
5935-01-366-5414	2010-10-295	40	DIBBS
5935-01-366-5414	2010-08-235	35	DIBBS
5935-01-366-5414	2010-06-159	55	DIBBS
5935-01-366-5414	2010-01-20	75	DIBBS
5935-01-366-5414	2008-07-183	355	DIBBS
5935-01-366-5414	2007-07-184	235	DIBBS
5935-01-366-5414	2007-03-68	70	DIBBS
5935-01-366-5414	2006-07-205	35	DIBBS
5935-01-366-5414	2006-05-131	25	DIBBS

Cross Reference | NSN 5935-01-366-5414

Part Number	Cage Code	Manufacturer
D38999/20WJ20SN	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-38999/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-366-5414

Compare

Related Products | NSN 5935-01-366-5414

5935-01-366-5415, 5935-01-366-5563, 5935-01-366-5564, 5935-01-366-5872, 5935-01-366-5896

Technical Data | NSN 5935-01-366-5414

Characteristic	Specifications
BODY STYLE	3G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH	33.6 MILLIMETERS MAXIMUM
OVERALL HEIGHT	45.7 MILLIMETERS MINIMUM AND 46.3 MILLIMETERS MAXIMUM
OVERALL WIDTH	45.7 MILLIMETERS MINIMUM AND 46.3 MILLIMETERS MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	38.1 MILLIMETERS NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	38.1 MILLIMETERS NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	20.1 MILLIMETERS MAXIMUM
THREAD SERIES DESIGNATOR	ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE	37.0 MILLIMETERS
THREAD CLASS	2A
THREAD TOLERANCE CLASS	6G EXTERNAL
THREAD QUANTITY PER INCH	10
MATING END QUANTITY	1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	D38999/20WJ20SN

Restrictions/Controls & Freight Information | NSN 5935-01-366-5414

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	ZG	Germany ZH ZJ
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-366-5414

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
