NSN 5935-01-394-4687 RD10010, 5943079, 1787917
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-394-4687 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: RD10010, 5943079, 1787917, 178-7917, 5935-01-394-4687, 01-394-4687, 5935013944687, 013944687
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1994 | 01-394-4687 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |
Drawings & Photos | NSN 5935-01-394-4687
Demand History | NSN 5935-01-394-4687
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-394-4687 | 2022-09-266 | 17 | US |
| 5935-01-394-4687 | 2011-12-344 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-394-4687
Technical Data | NSN 5935-01-394-4687
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| OVERALL DIAMETER | 2.210 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.080 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.252 INCHES MAXIMUM |
| MOUNTING METHOD | JAM MUT |
| MATING END QUANTITY | 1 |

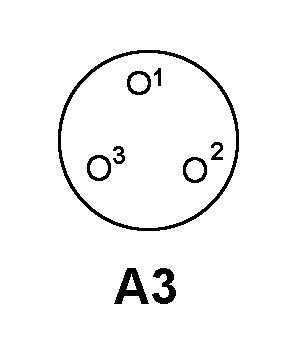

| CONTACT POSITION ARRANGEMENT STYLE | ADGB A3 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END SINGLE CONTACT GROUPING |
